Dragon osd+ V2 full set, autopilot and RTH

$215.00

Model: DRAGON LAB
Shipping Weight: 100g
6 Units in Stock

Add to Cart:

Dosd Autopilot 19 Waypoints-- only with GPS stabilisation (12 min 8 sec)

A test video from the customer

Finally we have this super OSD in stock now, it's designed with incredible technology and smart thoughts, it almost support every feature you need, and fully upgradable.

Download the newest Manual here!

Dragon osd+, mini current sensor and 10HZ GPS!

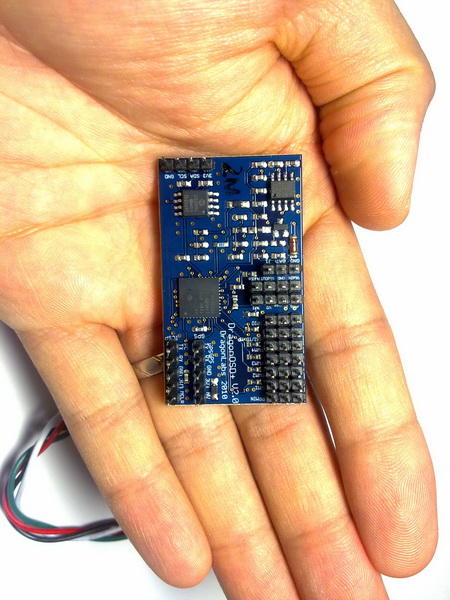

The Dragon OSD+ v2 is the newest analog OSD from DragonLabs.
It provides a light and low cost board, but high quality display and a very long list of features. Knowledge is required to assemble and use the OSD. Please see the support section for more information.

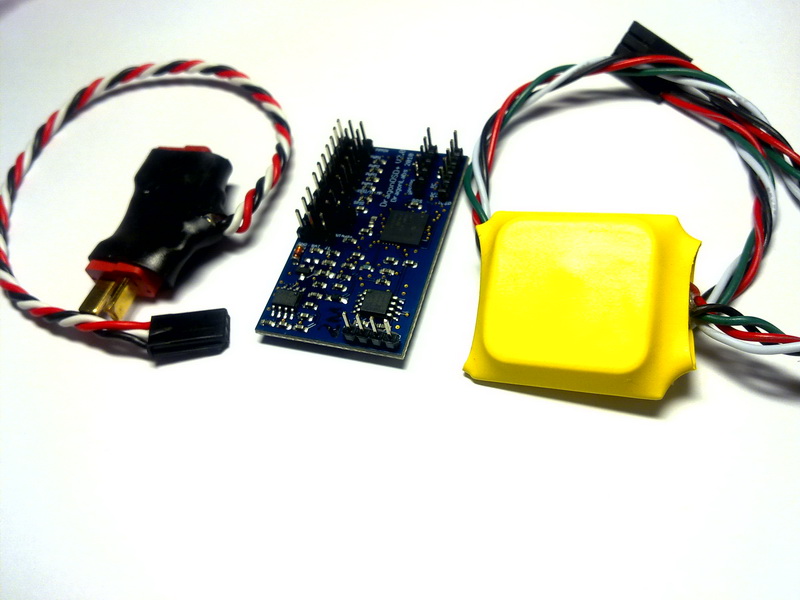

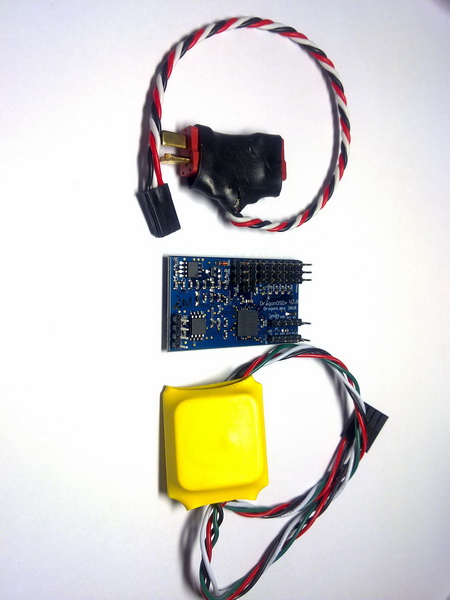

your purchase include:

1xdragon osd

1x10hz gps

1x 100A current sensor

it's recommended to use a good auto leveller like FY20A to stabilize the plane while the dragon osd is used for autopilot.

FY20A: http://www.foxtechfpv.com/foxtech-fy20a-ii-inertia-aircraft-stabilizer-p-172.html

and you will also need a ppm encoder to use dragon osd+ 's autopilot function ,ppm encoder:

http://www.foxtechfpv.com/ppm-encoder-p-236.html

Display Features
Voltage	2 ports
Current	1 port
GPS	Altitude, Ground speed, Coordinates, Satellites, Track heading, Home heading, LOS Distance, Distance to home
Barometer	Altitude, Temperature
Variometer	Airspeed, Vertical speed indicator
Compass	Magnetic&GPS heading
IMU	Artificial horizon
Others	Elapsed time, Callsign, RSSI, Flight summary, Various display modes, Remote OSD off, Configurable border area
Configuration
	On screen menu, Configure via stick input, Configure via PC, Customizable screen layout
Alerts
Warning	Range, Altitude, Stall speed, Voltage, mAh, Audio notification, Lost signal, RSSI level
Other Features
Integration	Single servo wire link from the DragonLink for multi-channel auto-pilot
Logging	Google Earth Logging
Autopilot	RTH (Return to home), IMU fly-by-wire
Way points	20 GPS way points configurable on the PC
Hardware
	PAL/NTSC auto-detect, GPS auto-detect, UART interfaces, I2C extension bus (various devices supported)

DragonOSD+ v2 improvements over DragonOSD+ v1

4 servo control channels instead of 2
Buffered RSSI input (simplifies interfacing with various receivers which do not have dedicated RSSI output lines)
Buffered PPM input (likewise)
Improved contrast control. The new boards have dedicated video handling circuitry which should make text whiter and blacks blacker, all without compromising on readability.
Additional spare input/output pin (unused, for future expansion/improvements)

If there is any other question , you can always visit :http://www.dragonlabs.net/site/DragonOSDplus

to download the newest software and seek for the answers you need.
