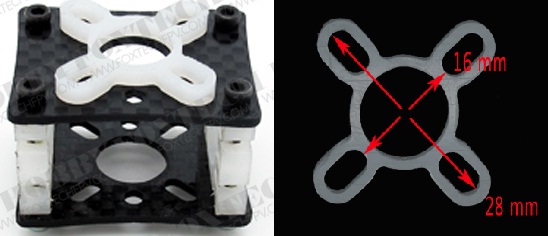

Pls Note: All motor mount changed to new type to answer the disc motor mounting.

Test video:

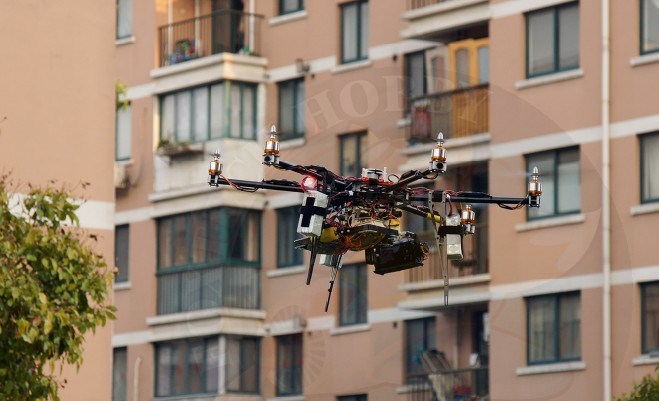

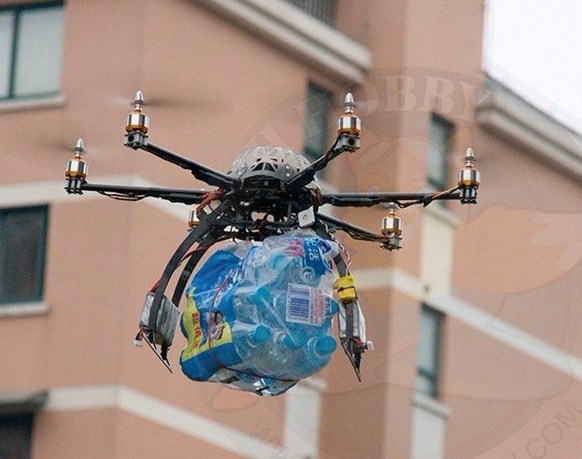

Load Test: http://www.youtube.com/watch?v=Gi-gOnsTso4

power test: http://www.youtube.com/watch?v=JDh89-DG--c&feature=youtu.be

introduction:http://youtu.be/uPdaHrsEBmk

Parameters:

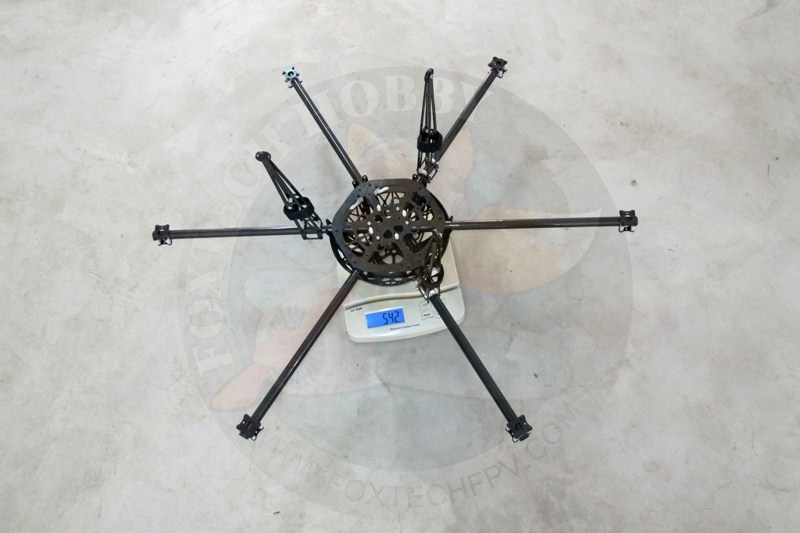

-Weight: 560g
-Diameter: 800mm

-Tube Diameter: 16mm

-Motor Mounting Hole spacing: 19mm

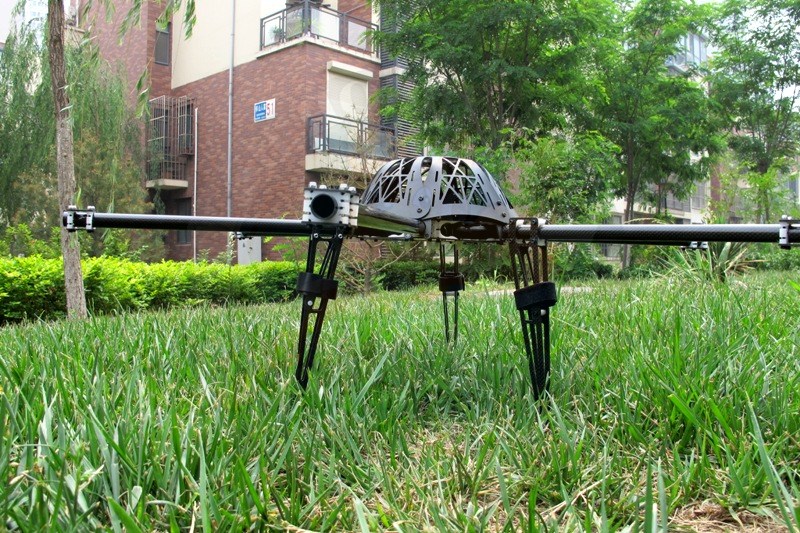

-height: 210mm from ground to the bottom center plate.

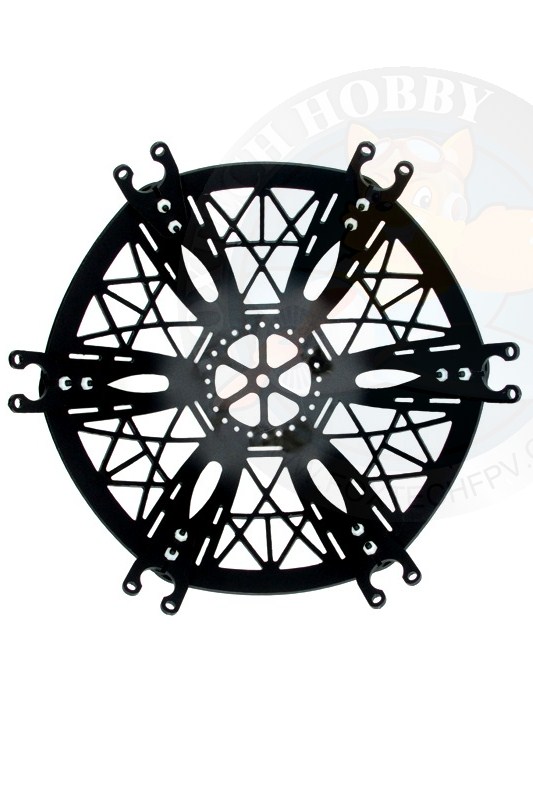

-Material: Carbon fiber and ABS

Suggested combo:

motor: Sunnysky 2814 kv700x6 http://www.foxtechfpv.com/sunnysky-281411-kv-700-motor-p-382.html

Propeller: CF 1238 CW/CCW x3 http://www.foxtechfpv.com/1238-carbon-fiber-propeller-cwccw-p-446.html

ESC: Hobbywing 30A flyfun ESC X6 http://www.foxtechfpv.com/hobbywing-30a-esc-p-440.html

        or Hobbywing 40A platinum ESC X6 http://www.foxtechfpv.com/hobbywing-platinum-40a-pro-esc-p-379.html

Controller:  http://www.foxtechfpv.com/djiwkm-multirotor-controller-with-power-module-p-362.html

Propller:12-15inches(max)

Battery : Foxtech 3-4S lipo, 5000-10000mah:http://www.foxtechfpv.com/foxtech-hidischarge-lipo-batter-c-137.html

The max fly weight of this setup is 12kg for 4S lipo in theroy, but normally make it below 8kg for long flight time and safety.

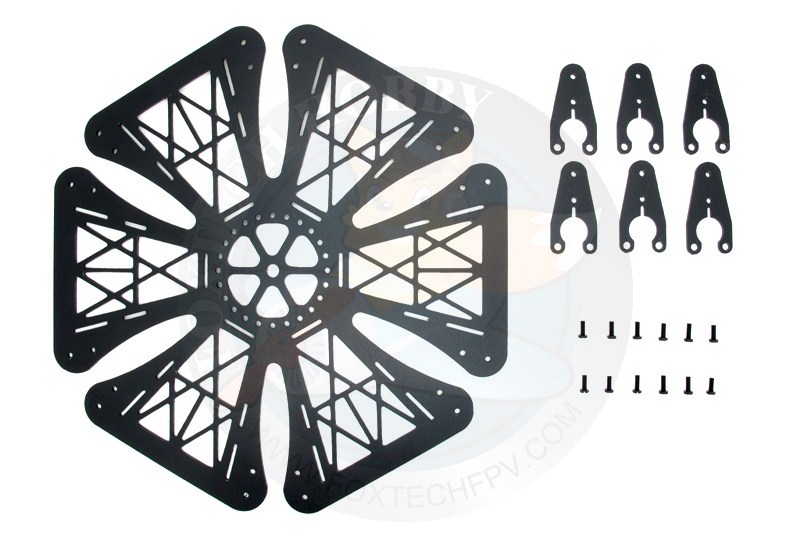

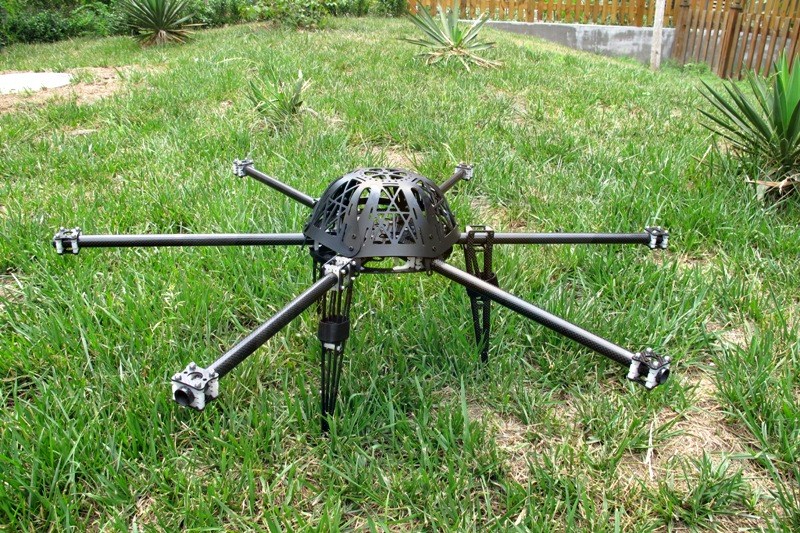

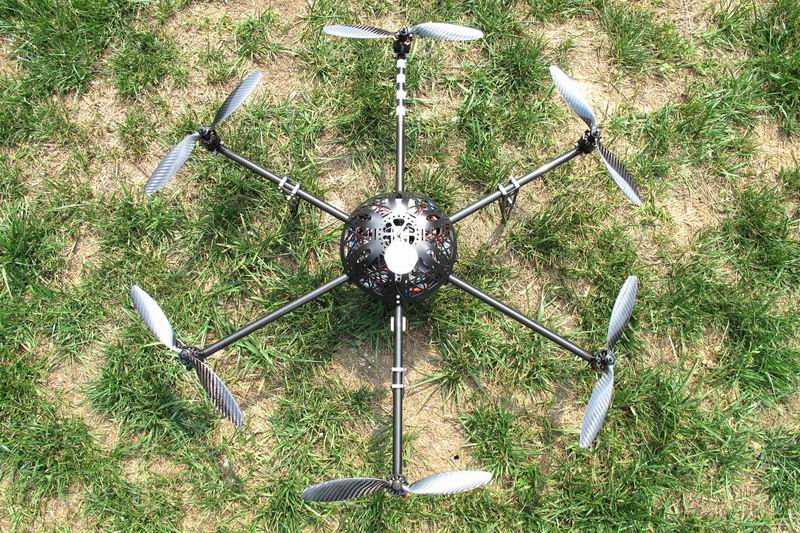

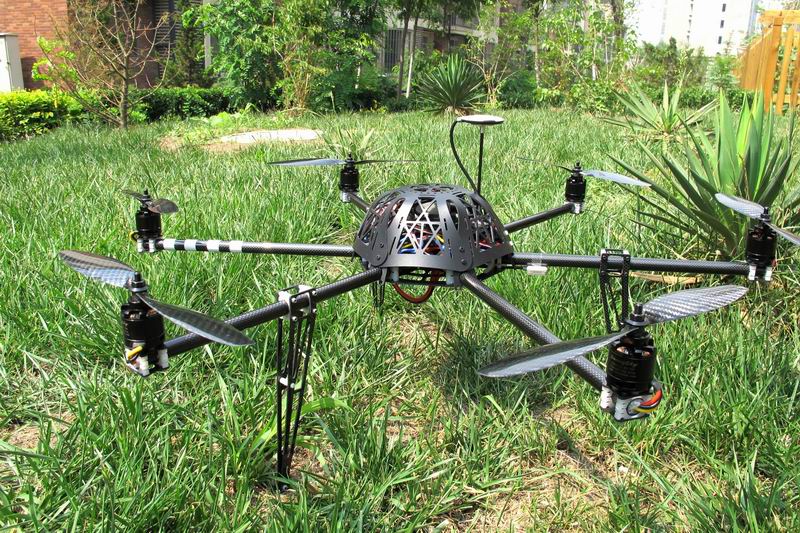

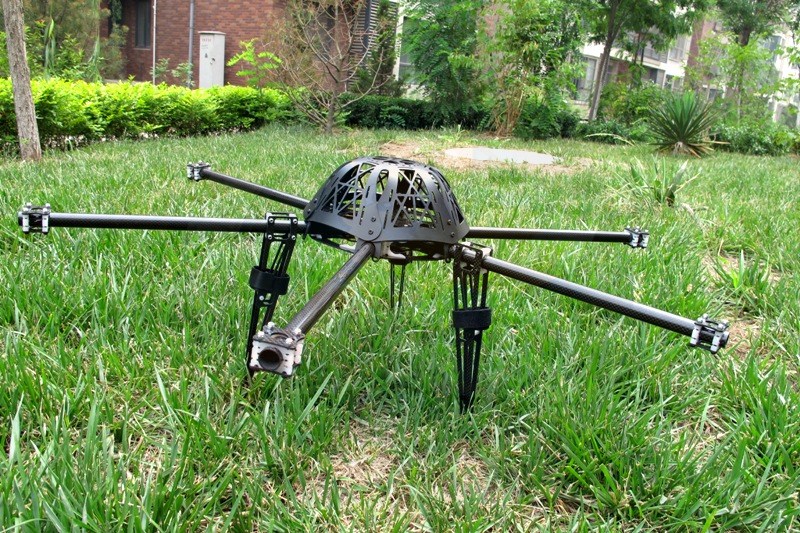

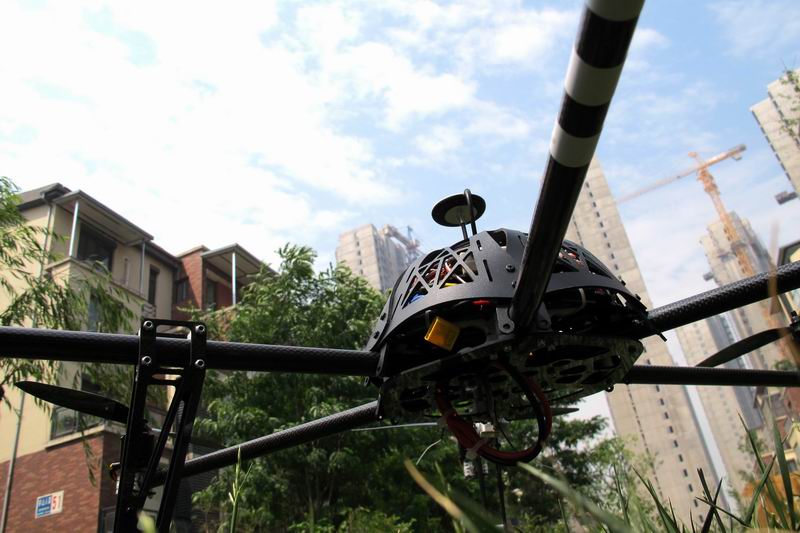

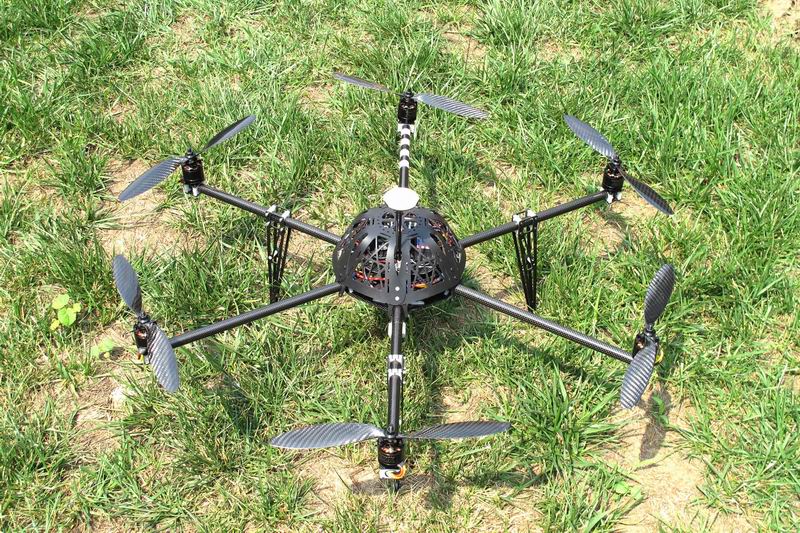

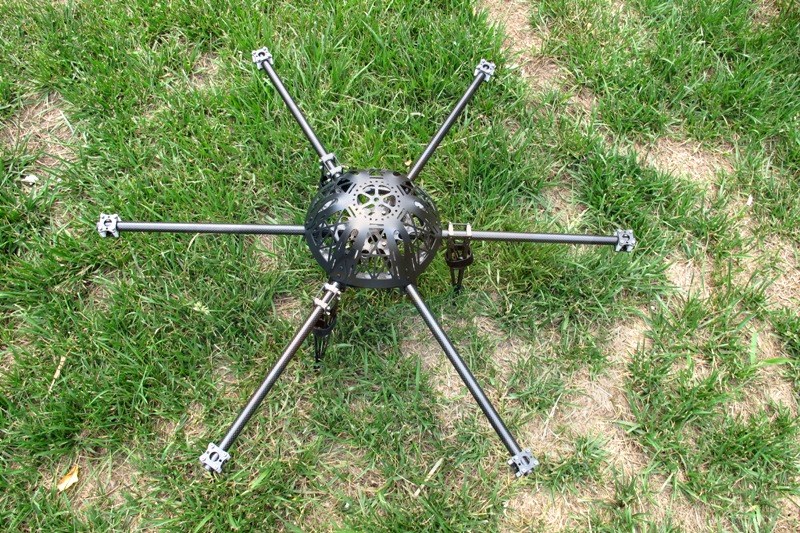

In the following pics , Motor, ESC,  propller, battery,  flying control system,camera and test loading are not included.
