New Batch will be available around 9.5, all Preorders will be sent at then.
Important Notice: Due to different hardware between V1 and V2, the firmwares are not inter-usable.
Do not use UHF radio system directly with HoryzonHD without HoryzonHD UHF shield kit.UHF shield link:http://www.foxtechfpv.com/horyzonhd-uhf-shield-preorder-p-596.html
HoryzonHD is a revolutionary Full HD 1080P camcorder and FPV camera.It has a seperated cam module connecting the mainboard module by 20cm cam wire.It creats a lot of possibility and saves a lot of weight for HDFPV and other applications. Dedicated Thread on RCGROUP:http://www.rcgroups.com/forums/showthread.php?t=1630045New features of V2:
1. New sensor module, better image and video quality.
2. Horzyonhd V-reg added. support voltage input from 5-28V
3. Better keypad ribbon wire and easier to use keypad.
4. auto on function, no power on/off button.
Parameters
Lens: 140 degree wide angle.
Sensor: 5.0 Megapixels CMOS
Video resolution:
-1920x1080 30fps
-1440x 1080 30fps
-1280x720 30fps
-1280x720 60fps
Photo resolution: 2592x1944
Video formate: H.264 encoding, Mov
Audo: built-in Microphone
Memory: Support Micro SD card(TF card) up to 32 GB
Power supply: 4.2V DC(5-28V with V-REG)
Your Purchase will include:
1x HoryzonHD 1080P camera
1x HoryzonHD V-REG
1x USB cable
1x avout cable

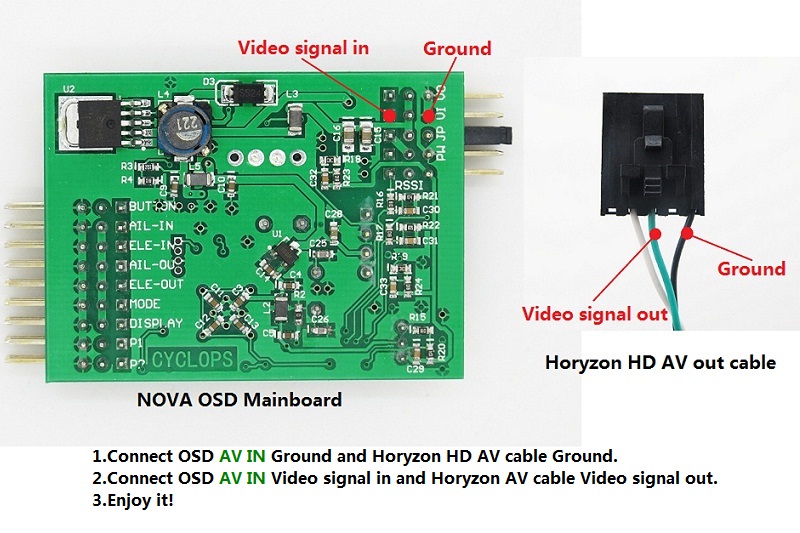

Av out wire Pin definition :
Black--GND
Green-- Video out
White---Audio out
Manual Download: Download
Firmware：
No Icon during recording: Download
Important Notice: Due to different hardware between V1 and V2, the firmwares are not inter-usable.
Do not use UHF radio system directly with HoryzonHD without HoryzonHD UHF shield kit.UHF shield link:http://www.foxtechfpv.com/horyzonhd-uhf-shield-preorder-p-596.html
Watch the vid below to learn how to update the cam.
HoryzonHD V2 new features.
720p 60fps, 1/2 playing speed.
1080p 30fps
1080p 30fps
New designed box
Printed manual also included.
With the V-reg, HoryzonHD V2 is able to draw power from 2-6S lipo
Everything in the box.
When the cam case is removed , the whole unit weight is only 38g.
Enjoy OSD and Horyzon HD cam!
Reviews：
http://devbase.be/review-horyzonhd-2/
Videos：
Clifton Observatory fpv tricopter HoryzonHD v1 & Gopro 2
http://www.youtube.com/watch?v=qU2_gdVc9_U
Unboxing Review (Alishanmao): http://www.youtube.com/watch?v=pO0HIYyLiV4
GoPro HD Vs Replay XD1080P Vs Horyzon HD in motorcycle (Alishanmao): Part 1 http://www.youtube.com/watch?v=_7yopAe5m5w&feature=player_embedded#!
Part 2 http://www.youtube.com/watch?v=yY1TYJHVTkM&feature=plcp
HoryzonHD vs GoPro: http://vimeo.com/41651588
http://www.youtube.com/watch?v=Zez3570OSGs
Testing Horyzon HD as FPV Cam on T380(Alishanmao): http://www.youtube.com/watch?v=DcF5cj84kJw&feature=plcp
HoryzonHD 1080p cam VS Sony 3ccd pro camera(w1z4rddd): http://www.youtube.com/watch?v=-1PE46aQfEU
Horyzon HD FPV Camera Unboxing, Setup and GoPro Comparison (RoswellFlightTest): http://www.youtube.com/watch?v=CBZccxW6wYs&feature=related
AV-OUT VIDEO (wayneuk): http://www.youtube.com/watch?v=OdPkNk1m7NA&feature=player_embedded
HoryzonHD Review : http://www.youtube.com/watch?v=F2ASHpRzU9g http://www.youtube.com/watch?v=8ZGpXfccqSg
http://www.youtube.com/watch?v=2wm_kzmCyjQ&feature=player_embedded
http://www.youtube.com/watch?v=pckC7c8EZ_8
