HoryzonHD Full HD 1080p FPV camera V3

$149.99

  • Model: HoryzonHD V3
  • Shipping Weight: 280g
  • 0 Units in Stock
Sold Out

Please kindly notice that V3 purchased after June 2013 can't be reflashed below No Icons Firmware,we will release latest No Icons Firmware soon.
*HoryzonHD V3 Recovery Software: Download
*HoryzonHD V3(Purchased after June,2013) Firmware(No recording red point) : Download
*HoryzonHD V3 12.26 Firmware(For recovery only, not for FC_1.12  firmware upgrade): Download
*HoryzonHD V3 No icons Firmware(Purchased before April,10,2013): Download
*HoryzonHD V3 No icons Firmware(Purchased after April,10,2013): Download
DO NOT inter-use the firmware or it will cause crash.
Dedicated Thread on RCG: http://www.rcgroups.com/forums/showthread.php?t=1810451
Reviews:
http://www.youtube.com/watch?v=4omdhmLk0vo (RCTESTFLIGHT)
http://www.youtube.com/watch?v=nDGoqOZrwe8 (RCMODELREVIEWS)

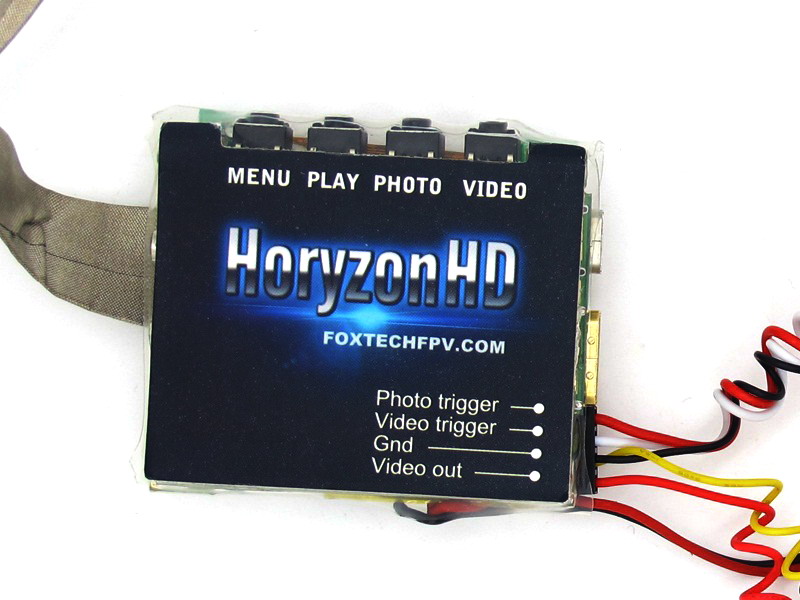

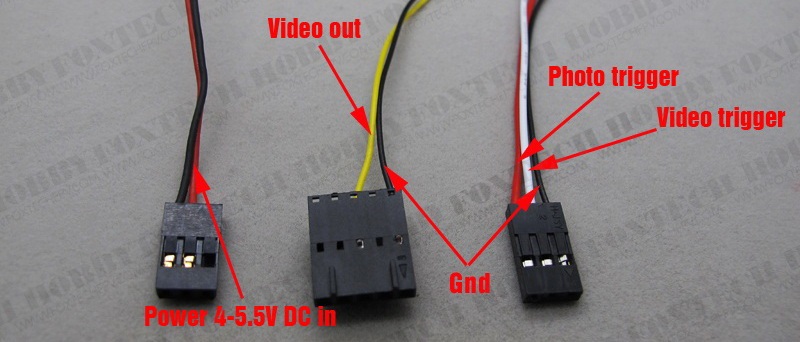

Output connector difinition:
Power Connector
        Red: Power+
        Black: Gnd
Video Connector
        Yellow: Video Out
        Black: Gnd
*The Camera LCD will turn off automatic if plug video out connector into vtx module.
Trigger Connector
     Red: Photo Trigger
     White: Video Trigger
     Black: Gnd
*Short Red and black for photo function/Short White and black for Video function
For Easy FPV flying, Horyzon V3 will automatic record video when power up, it can be stopped by
'Video' buttom or video function trigger.

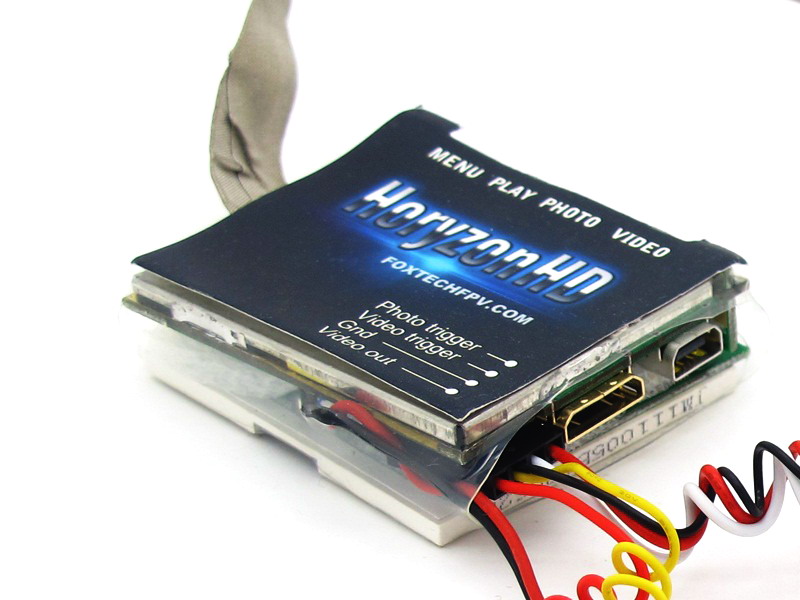

HoryzonHD is a revolutionary Full HD 1080P camcorder and FPV camera.
It has a seperated cam module connecting the mainboard module by 20cm cam wire.
It creats a lot of possibility and saves a lot of weight for HD FPV and other applications.
Dedicated Thread on RCGROUP: http://www.rcgroups.com/forums/showthread.php?t=1630045

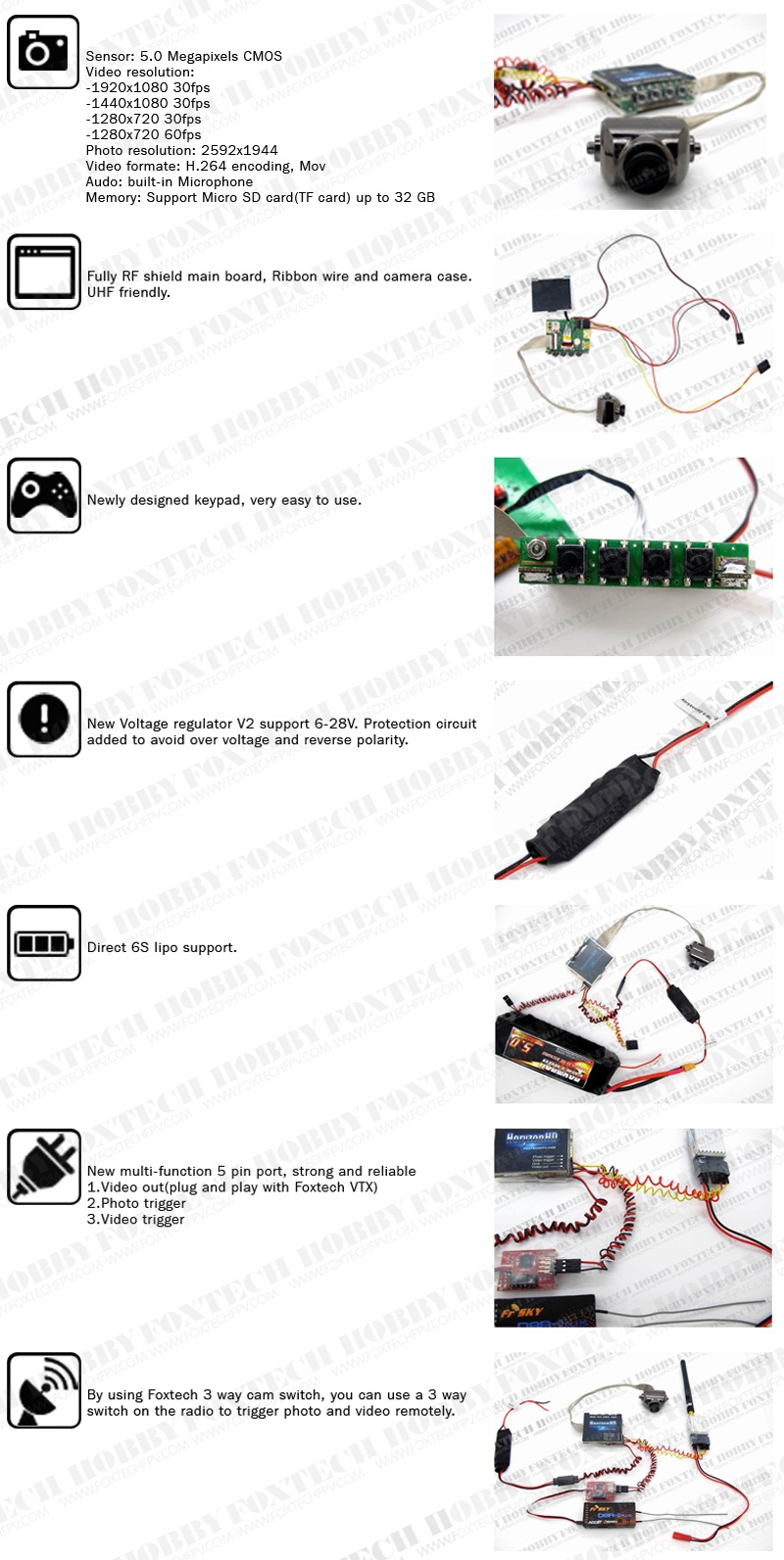

Features of V3 plus:

Your Purchase will include:
1x HoryzonHD 1080P V3 camera
1x HoryzonHD V-REG V2 version
1x USB cable
1x avout cable and Video&Photo Trigger cable
Power supply plug pin definition:
Black- GND
Red- 4-5.5V DC in
Video&Photo Trigger pin Definition:
Black-GND
White-Video Trigger
Red- Photo Trigger
An example video of Horyzonhd V2 PLUS and Dragon link , UHF noise removed by the shield.
Manual Download: Download

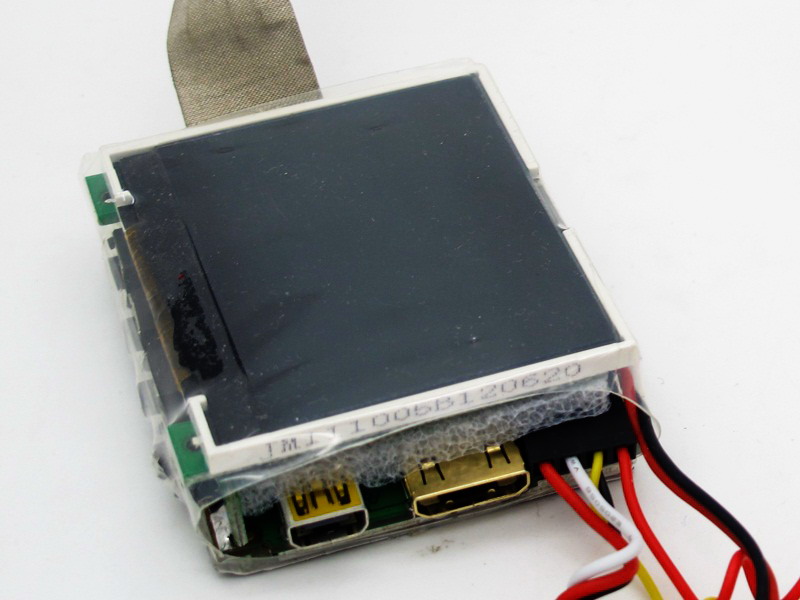

Open box:

The new V2 V-Reg with protection circuit to avoid over voltage and reverse polarity.

Note:There are few differents between all of the produts and pictures,subject to our available products.

Some photos by CN I Dawg from RCgroups.com:

The followings are HoryzonHD old version reviews:
Reviews:
http://devbase.be/review-horyzonhd-2/
Videos:
Clifton Observatory fpv tricopter HoryzonHDv1 & Gopro2
http://www.youtube.com/watch?v=qU2_gdVc9_U
Unboxing Review (Alishanmao): http://www.youtube.com/watch?v=pO0HIYyLiV4
GoPro HD Vs Replay XD1080P Vs Horyzon HD in motorcycle (Alishanmao): Part 1 http://www.youtube.com/watch?v=_7yopAe5m5w&feature=player_embedded#!
Part 2 http://www.youtube.com/watch?v=yY1TYJHVTkM&feature=plcp
HoryzonHD vs GoPro: http://vimeo.com/41651588
http://www.youtube.com/watch?v=Zez3570OSGs
Testing Horyzon HD as FPV Cam on T380(Alishanmao): http://www.youtube.com/watch?v=DcF5cj84kJw&feature=plcp
HoryzonHD 1080p cam VS Sony 3ccd pro camera(w1z4rddd): http://www.youtube.com/watch?v=-1PE46aQfEU
Horyzon HD FPV Camera Unboxing, Setup and GoPro Comparison (RoswellFlightTest): http://www.youtube.com/watch?v=CBZccxW6wYs&feature=related
AV-OUT VIDEO (wayneuk): http://www.youtube.com/watch?v=OdPkNk1m7NA&feature=player_embedded
HoryzonHD Review : http://www.youtube.com/watch?v=F2ASHpRzU9g http://www.youtube.com/watch?v=8ZGpXfccqSg
http://www.youtube.com/watch?v=2wm_kzmCyjQ&feature=player_embedded
http://www.youtube.com/watch?v=pckC7c8EZ_8
Av out wire Pin definition :
Black--GND
Yellow--Video out

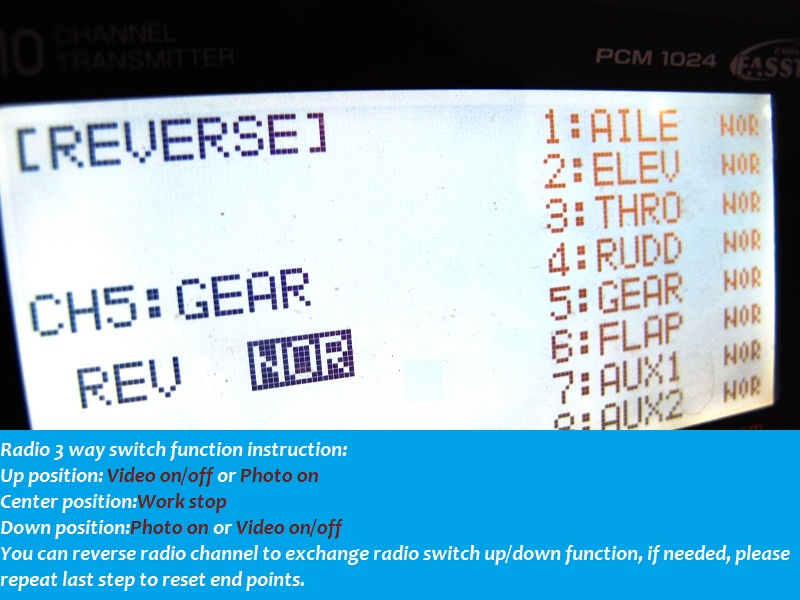

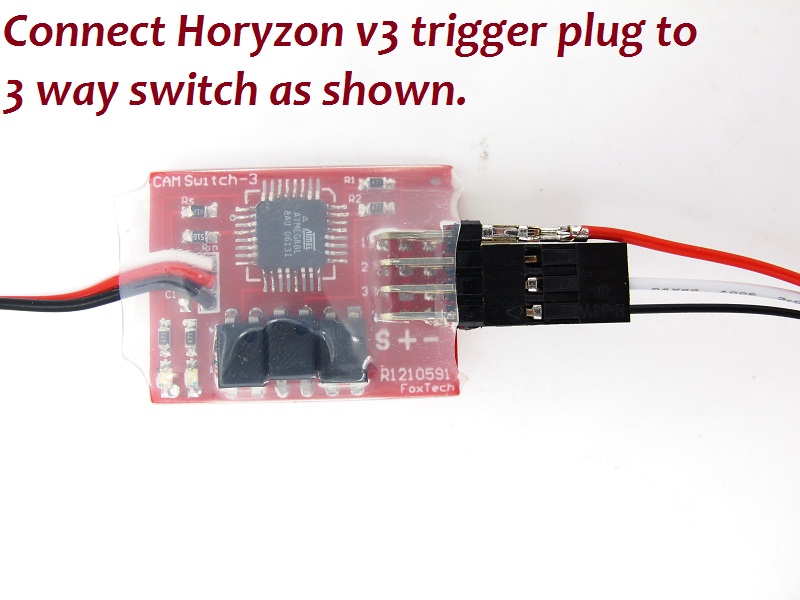

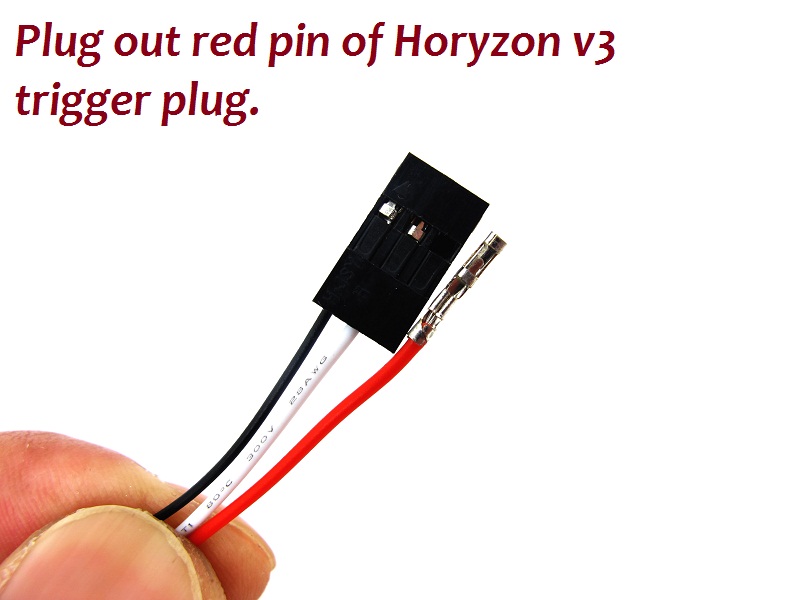

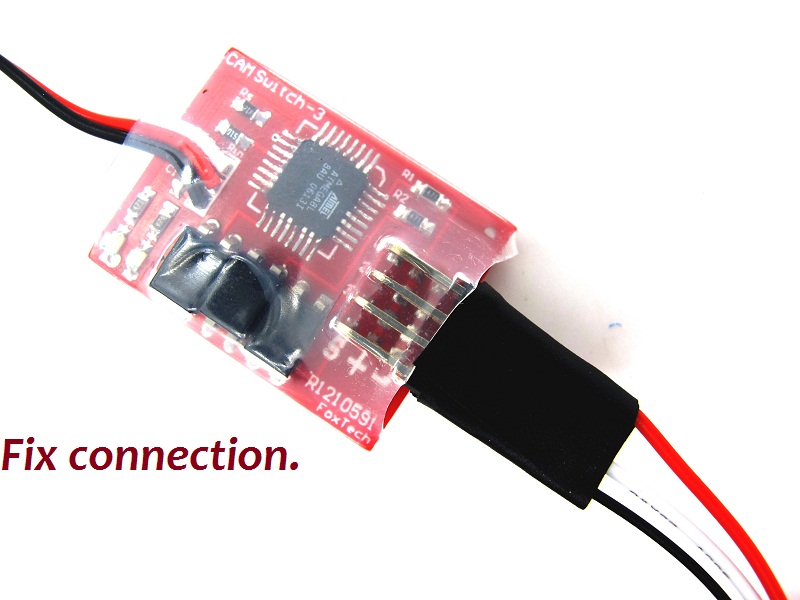

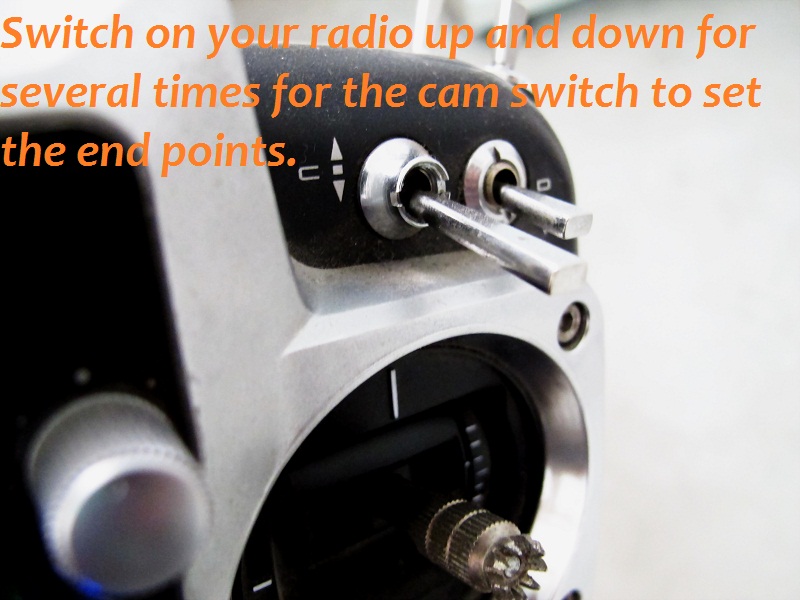

How to connect a 3 way cam switch?
