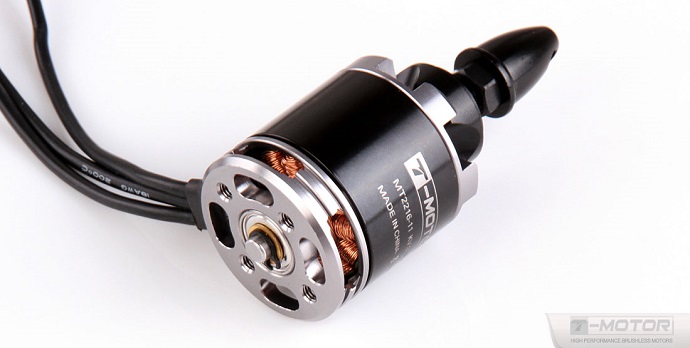

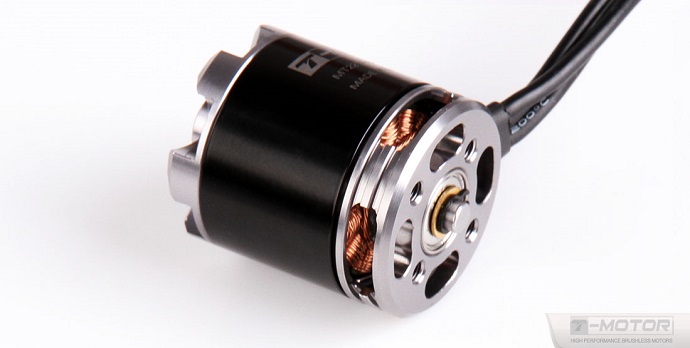

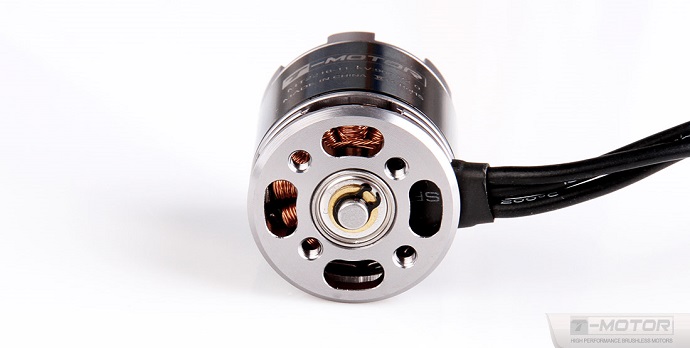

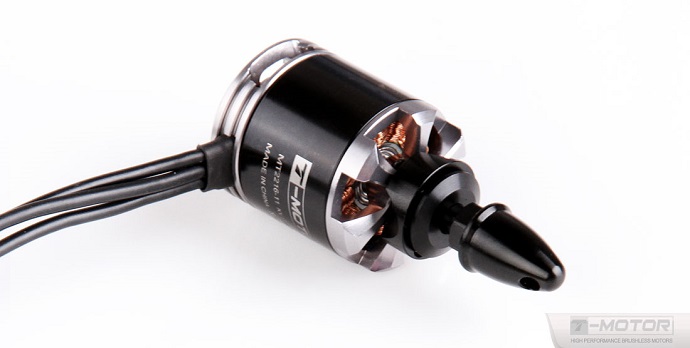

TMOTOR MT2216 KV800 V2

$54.90

  • Model: TMOTOR MT2216 KV800 V2
  • Shipping Weight: 140g
  • 101 Units in Stock
Add to Cart:


Specifications:
KV............................................................................................................800
Configu ration...............................................................................12N14P
Stator Diameter................................................................................22mm
Stator Length....................................................................................16mm
Shaft Diameter...................................................................................3mm
Motor Dimensions(Dia.*Len)...........................................Φ27.5×34mm
Weight (g)...............................................................................................75g
ldle current(10)@10v(A).....................................................................0.3A
No.of Cells(Lipo).................................................................................3-4S
Max Continuous current(A)180S.......................................................18A
Max Continuous Power(W)180S....................................................260W
Max. efficiency current..........................................................(5-15A)>80%
internal resistance.........................................................................175mΩ


This product was added to our catalog on Thursday 03 May, 2012.
