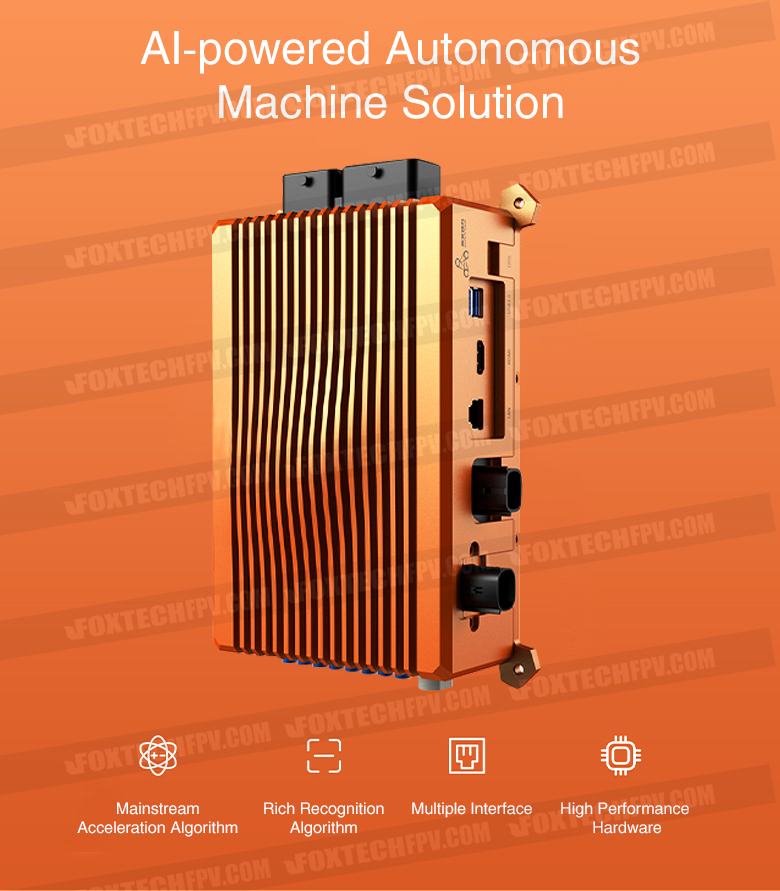

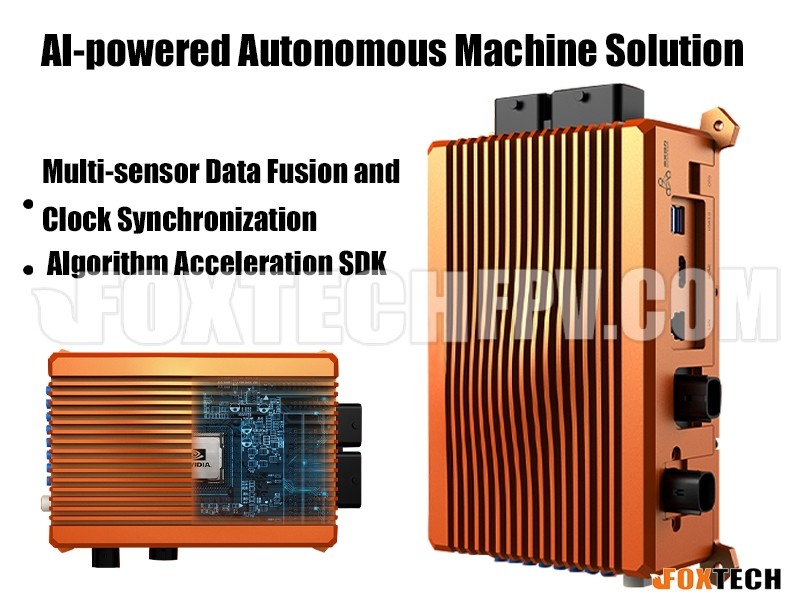

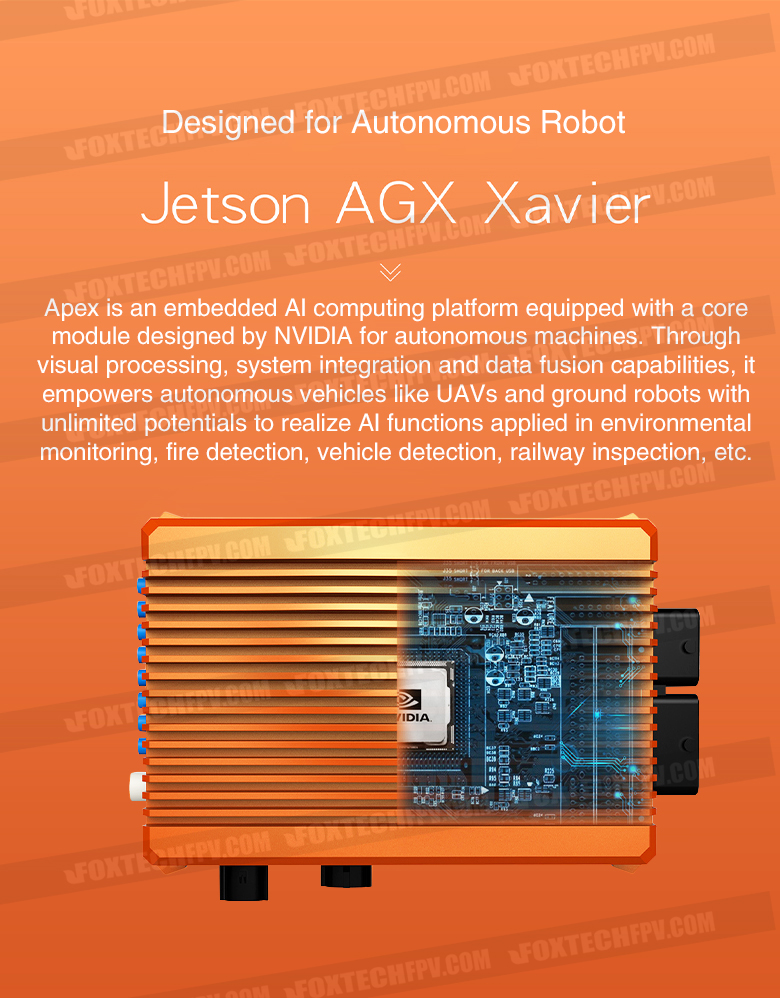

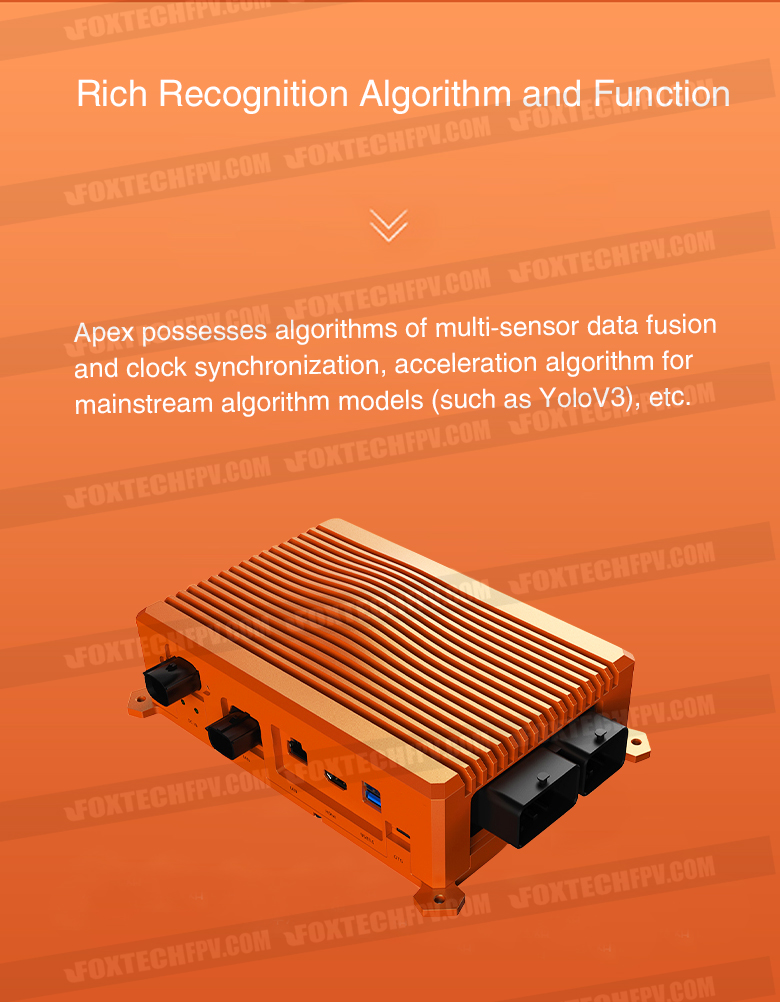

APEX is an embedded computing platform equipped with a core module designed by NVIDIA, which makes AI-powered autonomous machines possible, running in as little as 30W and delivering up to 32 TOPs. With IP67 waterproof and shockproof connectors, APEX satisfies the needs for working in humid and shaky environments such as mine or sea if processed further more. The computer vision processing capability makes it a powerful tool to be used in AI applications such as environmental monitoring, railway inspection, posture recognition, vehicle detection, etc. It can be applied in fields such as logistics, traffic, railway, security, medicine, mining. APEX possesses algorithms of multi-sensor data fusion and clock synchronization, acceleration algorithm for mainstream algorithm models (such as YoloV3), etc.
Note: Although the IO ports are IP67-rated, to achieve IP67 rating for the whole product to work in humid and shaky environments, please email us at [email protected] for reinforced and water-repellent treatment.
Features:
- IP67 Waterproof and High Shockproof Connectors
- High Performance Passive Cooling System
- 8×GMSL Port for Video Input
-20℃-60℃ Working Temperature
- Complete BSP Support
- DC 12-50V Wide Voltage Adaptation
- 2×M.2 Expansion Port
Software Function:
1. 8-channel GMSL video input and 1 video output; image data and timestamp synchronized by Linux and ROS terminals
2. Supports laser radar, GMSL camera, IMU and other sensor access; pre-installed a variety of sensor drivers, eliminating the need for driver development
3. Supports Real Time Operating System (RTOS)
4. PPS, SYNC IN, SYNC OUT three mainstream sensor clock synchronization
5. Provides acceleration SDK based on open source algorithm YOLOV3 and API ports
6. Provides open source SLAM algorithm installation support
7. Provides support in ROS robot system installation
8. Provides instructions on software framework installation
9. Provides installation support in Jetson platform development tools
10. After-sales technical support team, greatly shortens the development cycle
Your Purchase Includes:
1x Apex
1x I/O Cable Assemblies
1x Power Supply with AC Cord
2x 4G Antenna
2x WIFI Antenna
