Based on D130 Version I‘s success, the strength and flight time of Version II are improved to meet higher requirements.
Removing Version I center damper plate, the strengthened center plate consists of 4mm carbon fiber plate with reinforcement ring and 4mm aluminum plate; the thickened arm tube is still 30mm in diameter but 2mm thickness now; the new landing gear system is with optimized standing angle which gives more space to take larger photography equipment, the optional dual landing gear makes landing still stable even with heavier load; the upgrade power system is formed with T-motor U8 II KV85, T-Motor Flame 60A ESC and Foxtech Supreme 2880To Propeller, under 12S, the take-off weight can reach 24kg maximum, the flight time is 48minutes without load .
Foxtech D130 V-II brings all innovations, technology and experimental tests together to make such bright change.

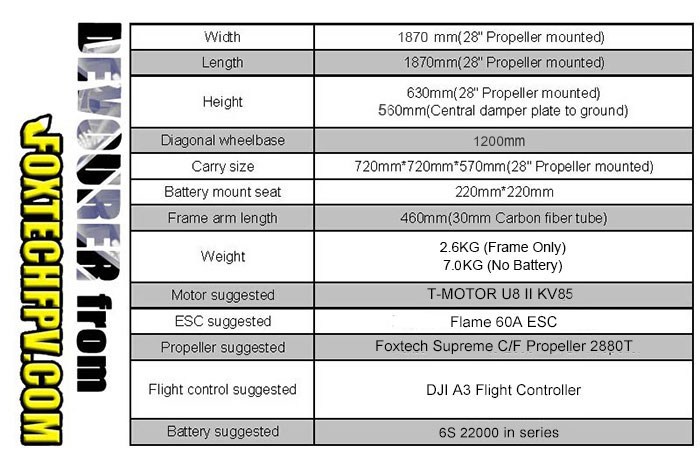

Weight: 7.2kg (No Battery, no gimbal)
Max Take-off Weight: 24kg
Max Pay Load: 16kg (Include Battery)
Max Flight Time: 48mins (No Load)
The Motor Mounting Size:
Automatic Landing Gear Controller Wiring Diagram:
RTF Purchase Includes:
-1*Foxtech Devourer130 V2 Frame
-1*Plug/Cable/Wires/Shrink Tubing etc
