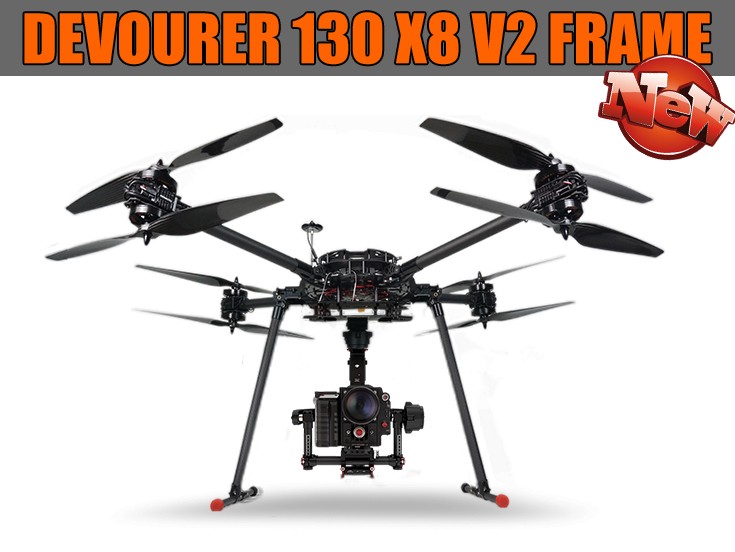

D130 X8 V2 Frame

SKU: 001293

Availability: In stock ( 4 )

Weight:4KG

Regular Price: $1,099.00

Special Price $999.00

save  9.1%

Reward points Earn you 999 reward points.

Qty:

The appointed delivery method is DHL/EMS.




Foxtech Devourer130 Version II is released!
Based on D130 Version I‘s success, the strength and flight time of Version II are improved to meet higher requirements.
Removing Version I center damper plate, the strengthened center plate consists of 4mm carbon fiber plate with reinforcement ring and 4mm aluminum plate; the thickened arm tube is still 30mm in diameter but 2mm thickness now; the new landing gear system is with optimized standing angle which gives more space to take larger photography equipment, the optional dual landing gear makes landing still stable even with heavier load; two power systems are avaialble. 12S power system is formed with T-motor U8 KV100, Foxtech Multi-Pal OPTO 80A HV ESC and Foxtech Supreme 2880 Pro Propeller, under 12S, the take-off weight can reach 24kg maximum, the flight time is 48minutes without load . 6S power system is formed with T-motor U8 KV170, Foxtech Multi-Pal 60A OPTO ESC and Foxtech Supreme 2880 Pro Propeller, under 6S, the take-off weight can reach 20kg maximum, the flight time is 50minutes without load.
Foxtech D130 V-II brings all innovations, technology and experimental tests together to make such bright change.

Parameters:
Diameter: 1300mm
Weight: 12S: 7.2kg (No Battery, no gimbal); 6S: 7.0kg (No Battery, no gimbal)
Max Take-off Weight: 12S: 24kg; 6S: 20kg
Max Pay Load: 12S: 16kg (Include Battery); 6S: 12kg (Include Battery)
Max Flight Time: 12S: 48mins (No Load); 6S: 50mins (No Load)



The Motor Mounting Size:


Automatic Landing Gear Controller Wiring Diagram:


Purchase Includes:
-1*Foxtech Devourer130 V2 Frame

Optional:
-8*T-Motor U8 KV100 Motor
-8*T-Motor U8 KV170 Motor
-8*Foxtech Multi-Pal 60A OPTO ESC
-8*Foxtech Multi-Pal 80A HV ESC (Available Soon)
-4*Foxtech Supreme 2880 Pro Propeller
-1*DJI A2 50Waypoints Combo Flight Controller/ ZeroTech Gemini Autopilot
-1*Foxtech 300A Ultra Power Distributor
-1*Foxtech Devourer130 Gimbal Loading Kit
-1*Plug/Cable/Wires/Shrink Tubing etc
-1*Futaba 14SG Radio Control
-1*D130 Dual Landing Gear
-1*Foxtech D130 Canopy (Available Soon)
-8*Foxtech Motor Cover (Available Soon)
-1*Foxtech Foldable GPS Seat
-2*Foxtech 6S 22000 Lipo Battery
