Foxtech Eagle-360 Hybrid VTOL

SKU: S2211011

Availability: In stock

Weight:1g

$20,109.00

Reward points Earn your 20109 reward points.

$20,109.00
Qty:

Important Notice!
Our company's unmanned aerial vehicle (UAV) products only support domestic transactions within China. If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. Furthermore, the products cannot be used for military, terrorist, or war purposes.

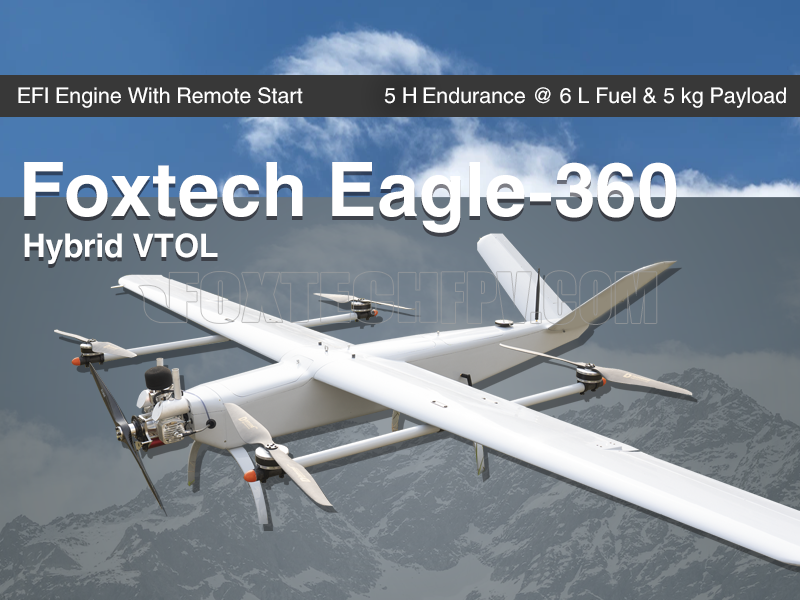

Eagle-360 hybrid VTOL is a heavy-load, long-endurance platform for inspection, mapping, survey, rescue, etc.

Eagle-360 provides EFI and carburetor engine to be chosen, and there is also a DGPS version.

The Eagle-360 is made of pure carbon fiber material, which is very light, sturdy and durable to provide the VTOL with longer service life, higher stability, lighter structure, and less maintenance.

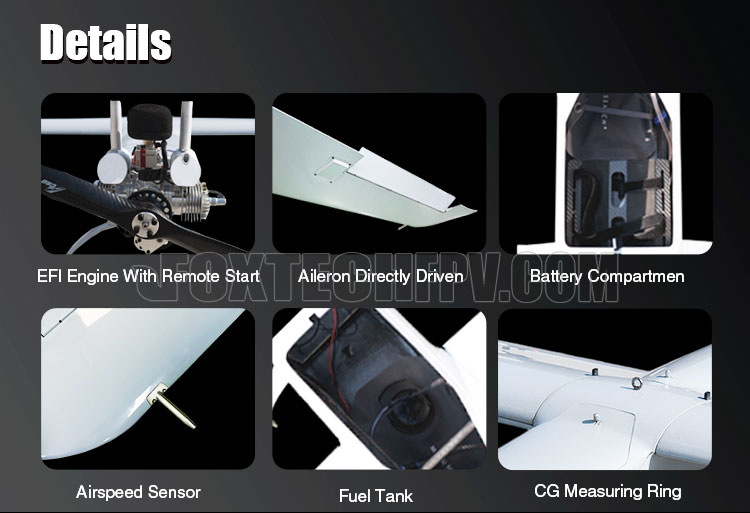

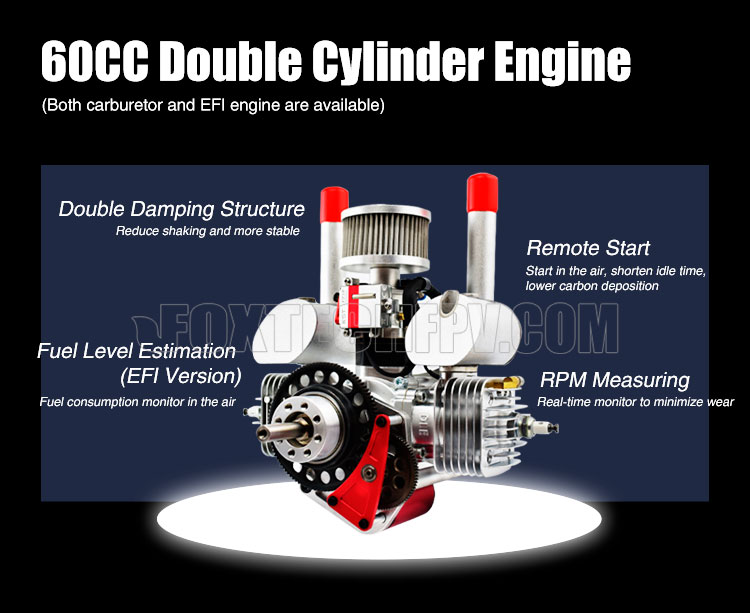

The engine uses a double damping design to reduce shaking when the engine at idle. Remote start allows the engine to start/restart in the air after taking off to reduce the idling time, thus the carbon deposition will be reduced. RPM measuring informs the operator of the performance of the engine, so to minimize wear and damage to the equipment. The EFI version also provides fuel level estimation to realize fuel consumption in-the-air monitoring.

The ESC used for Eagle-360 can filter out shakes and noises caused by the rotation of propellers so that the attitude measurement is more precise and the flight is smoother. It also supports ESC telemetry, i. e. transfer ESC and motor working status, including the temperature of ESC, the voltage, current, and RPM of the motors, to the operator. With this function, the operator can check the working condition of the propulsion system in real time, and enjoy a safer flight.

Eagle-360 adopts DGPS technology (optional), which spares the operator the need to calibrate and eliminate electromagnetic interferences when using a compass. Higher positioning accuracy can be obtained via dual GPS since two GPS both can get satellite signals and do the rectification with each other, as well as attitude self-correction.

The aileron control surface is larger and directly driven by the servo, so the roll angle is expanded up to 40° and the transmission efficiency is improved.

0.25 m clearance to the ground and large payload cabin provides enough space for current mainstream gimbals/cameras to carry out different missions, including but not limited to aerial photography, search and rescue, filming and inspection, etc.

Note: For our valued customers from Jordan interested in purchasing our drones, please kindly contact our distributor directly at [email protected]. We appreciate your understanding and thank you immensely for considering our products.

Note: If you have any inquiries regarding endurance and payload capacity, please don't hesitate to reach out to our customer service.

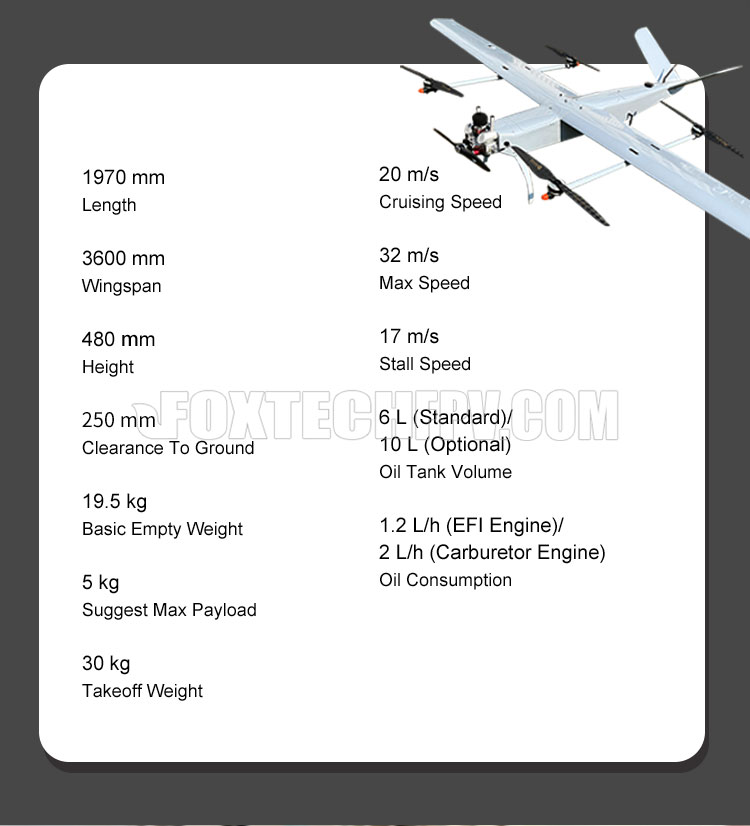

Specification:

Length: 1970 mm

Wingspan: 3600 mm

Height: 480 mm

Clearance To Ground: 250 mm

Basic Empty Weight: 19.5 kg

Takeoff Weight: 30 kg

Cruising Speed: 20 m/s

Max Speed: 32 m/s

Stall Speed: 17 m/s

Oil Tank Volume: 6 L (Default)/ 10 L (Optional)

Oil Consumption: 1.2 L/h (EFI Engine)/ 2 L/h (Carburetor Engine)

It is suggested to use 92# gasoline and 2T engine oil with a mix ratio of 40:1 (gasoline-engine oil)

Carrying Box Size: 2060*630*610 mm



Highlights:

- DGPS

- EFI Engine

Your Purchase Includes:

1x Eagle-360 Hybrid VTOL

1x Tail ESC
2x 23 inch Propeller for Tail Motor
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 26 inch Propellers for VTOL Mode
1x Flight Controller with Single GPS Module (Carburetor/EFI engine version)

1x Flight Controller with Dual DPS (EFI & DGPS version)

1x Engine (Carburetor or EFI engine)

1x DA16S+ 16-Channel Radio Controller

1x Fuel Mixer

2x 6 S
2x 3 S
1x Carrying Case
1x Assembling, tuned and Flying Test Service
