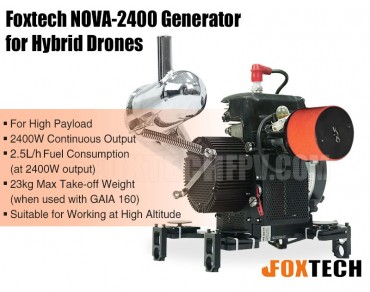

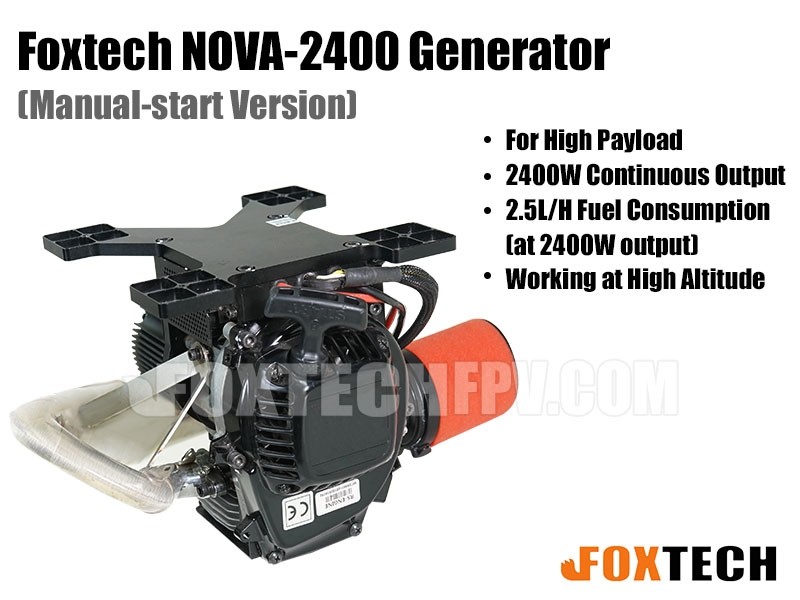

NOVA-2400 generator manual-start version is released!
NOVA-2400 generator system is a high efficiency, high output and very light generator system designed for multicopters, fixedwings and VTOL.
The continuous output power of this generator is 2400w,fuel consumption is 2.5L/h(at 2400w output). The NOVA-2400 generator is suitable for high payload or working at high altitude.The Max. take-off weight of Gaia 160 by using this 2400w generator can reache 23kg. GAIA 160 Elite equipped with this 2400w generator can reach 3.5 hours flight time with 19.7kg take-off weight.
Compared with NOVA-2000, the NOVA-2400 has a new designed exhaust pipe and cooling system, which can greatly enhance the performance of the inner engine.
NOVA-2400 generator system is a good choice for those clients who want to fly over long range and fly very long time.Multicopter equipped with NOVA-2400 can be used in many fileds like power line inspection, mapping industry and logistics etc. Also could equip agricultural sparyer with this generator, which can load 10L pesticide and the total cost will much lower comparing with the pure electric drone.
Specifications:
Version: 2400W Manual-start Version
Generator weight: 4.2kg
Generator output: 2.4kw(continuous);2.4kw/1000m,1.9kw/1500m,1.8kw/2000m
Recommanded Max. take-off Weight: 23kg(the parameter of GAIA 160)
Output voltage DC: 12S
Fuel consumption: 2.5L/h at 2400W output
Service temperature: -20 ~ 40°C

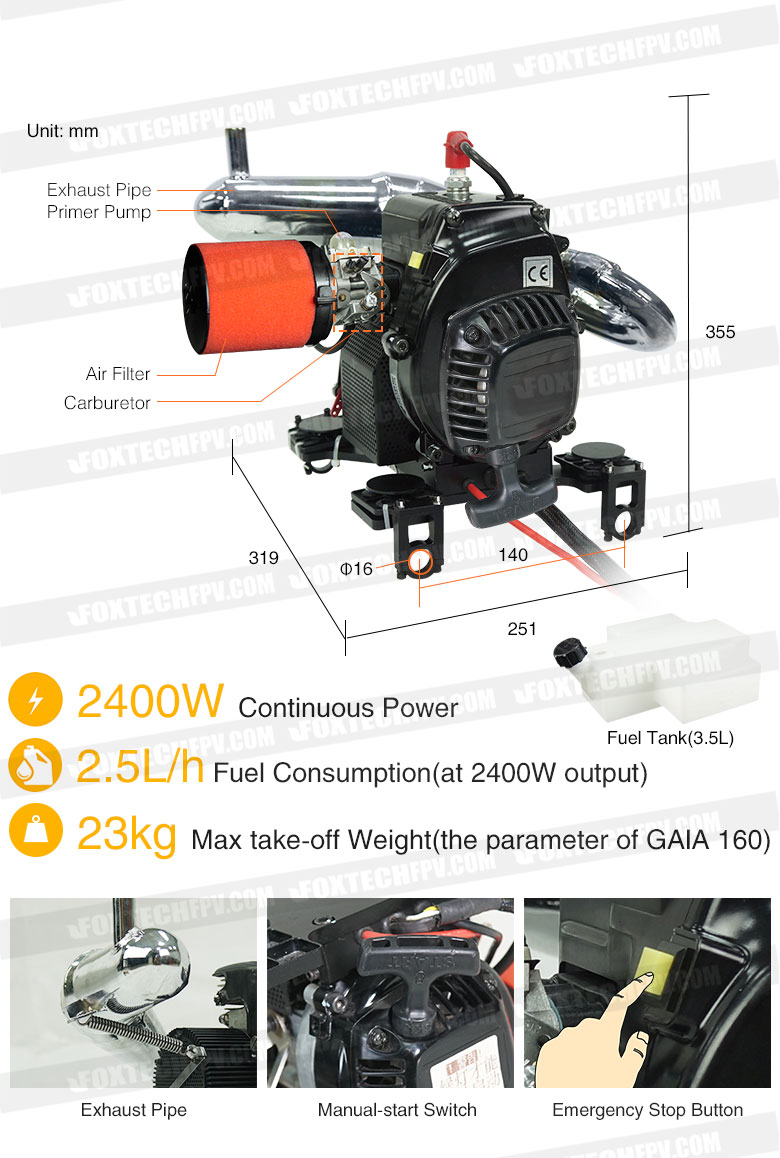

Dimension: 355x319x251mm
Altitude(above sea): 2000m
Applicable UAV types: Multicopters, VTOL Fixedwings

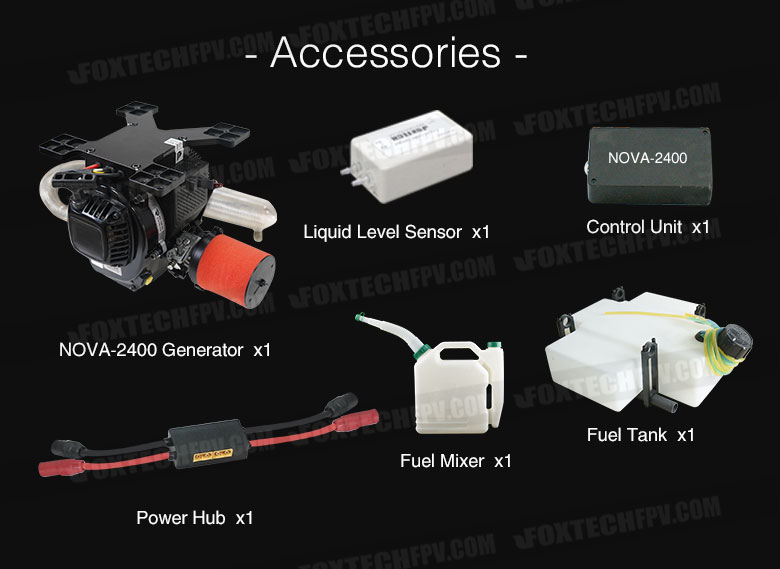

Your Purchase Includes:
1x NOVA-2400 Generator(Manual-start Version)
1x Generator Control Unit
1x Liquid Level Sensor
2x 6S 3300mAh Battery
1x 3.5L Fuel Tank
1x Tools(fuel mixer etc.)
It is recommended to choose one of the following products according to different flight controller types. If you have any questions or concerns, please contact us.
Options:
