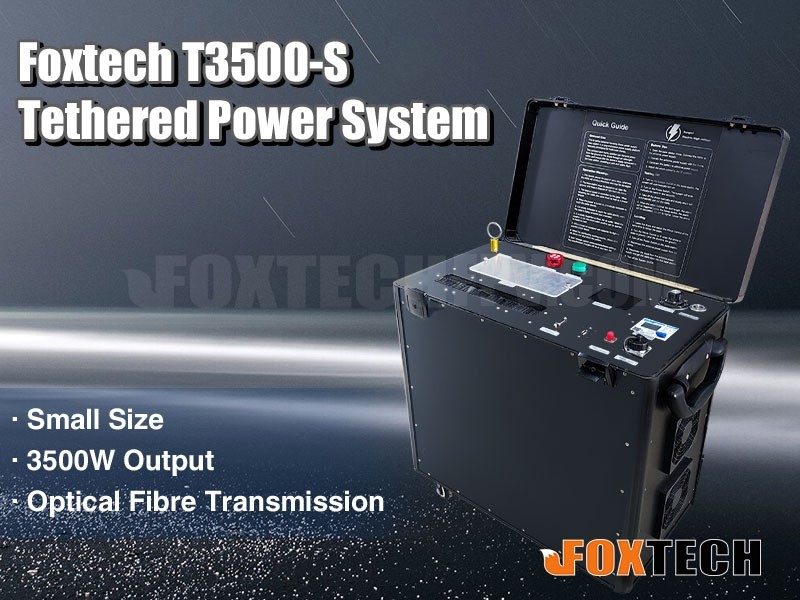

Foxtech T3500-S Tethered Power System

Note: A voltage converter is needed to lift 110V into 220V to supply the tethered system. And there are three types of plugs to choose, UK, US and EU, please leave a note when ordering to tell us which plug you need.

T3500-S is a 3500W output power supply system. It is compact, easy to carry, and features fiber optic data output and automatic cable management.

T3500-S is designed to be lightweight and portable, making it ideal for use in a variety of settings, including remote locations, and temporary surveillance or monitoring sites.

The self-organizing winch inside the tethered system helps to ensure reliable and consistent cable performance by automatically organizing the cable and avoiding knots or twists. In the air, T3500-S will automatically adjust the length of the cable and the pulling force.

The system also has power management capabilities, including overcurrent protection, overvoltage protection, overload protection and short-circuit protection to prevent damage to the equipment and ensure safe operation of the system.

Fiber optic data transmission has the advantages of being immune to electromagnetic interference, longer transmission distances, and higher bandwidth and data transfer rates.

Specification:

Ground Station Output: Max 5500 W

Onboard Unit Output: 12S (50V)

Max 3500 W, rated 3300 W

Ground Station Weight: 28 kg

Onboard Unit Weight: 700 g

Cable Length: 110 m

Size: 500*260*480 mm

Carrying Box: 640*480*650 mm

Highlights:

Small Size

3500W Output

Compact & Powerful

Optical Fiber Transmission

Your Purchase Includes：

1x Tethered Power Ground Station
1x Tethered Power Onboard Unit
1x Ground Station Power Cable
1x Optical Fiber Cable
1x Optical Fiber Plug Adaptor
1x Voltage Converter(For 110V Version)
