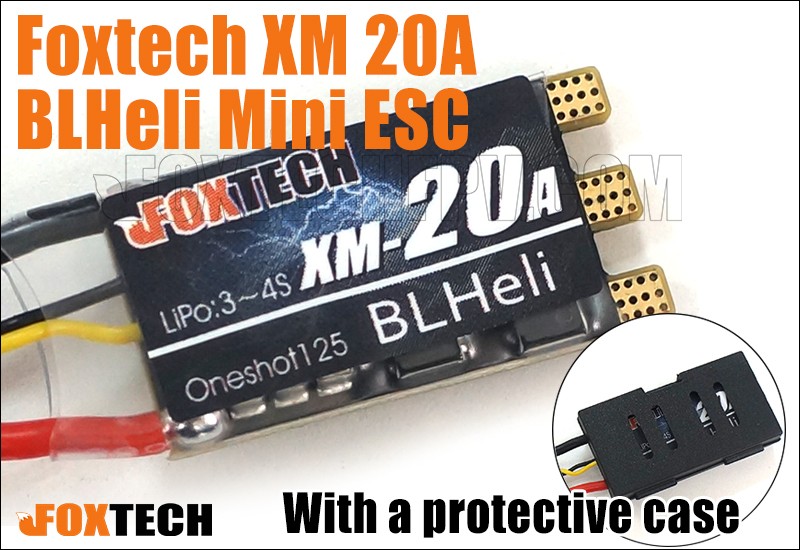

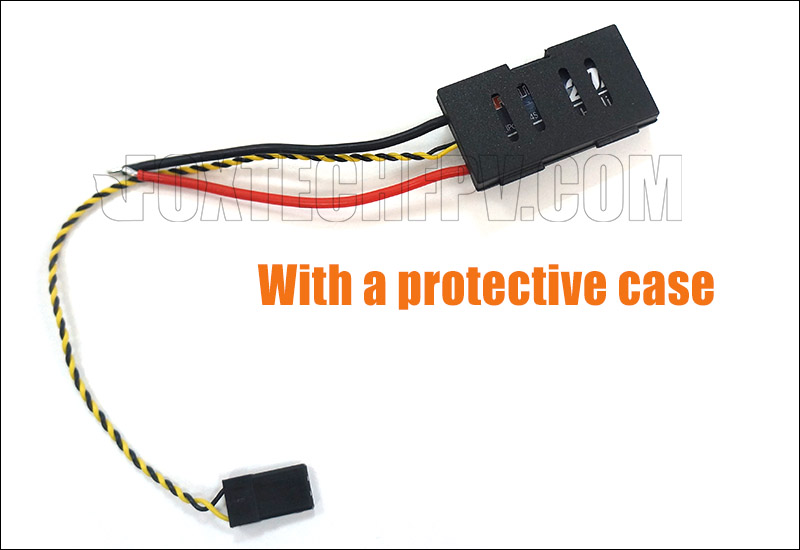

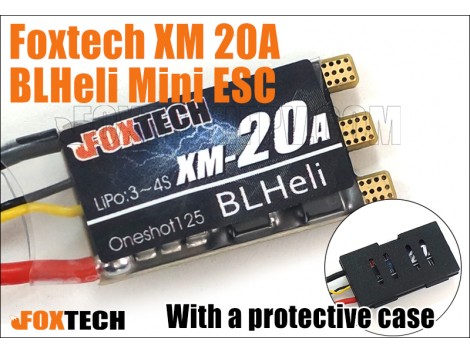

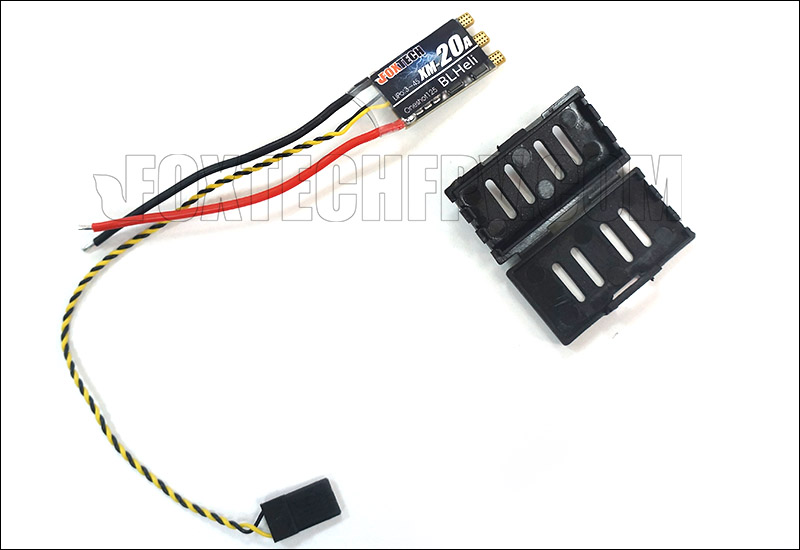

Foxtech XM 20A BLHeli Mini ESC(with protective case)

Foxtech XM series ESC with a protective case is the upgraded version from Foxtech Multipal BLHeli series with advanced processor. It's more compatible with relatively big motors, making the motor rotation more smooth. Its maximum refresh frequency is up to 500Hz, making it compatible with all flight controllers. So it's the first choice for racing multicopters.

Specifications:
- Input voltage: 3-4s Lipo
- BEC: NO
- Signal frequency: 20-500Hz/ Oneshot125 Ultra high speed
- Firmware: BLHeli
- Size(mm)L*W*H: 24*14*4.5mm
- Weight: 5.8g

Features:
- Designed specially for multi-copters with fast throttle response
- Better compatibility with motors, high KV motors supported
- The signal is transfered by twisted pair cable, reducing the interference between wires.
- The maximum refresh frequency is up to 500Hz, making it compatible with all flight controllers.
- Using mini ultra-low resistance MOSFET and high current N MOS flashes
- Subminiaturization design with high performance filtering capacitor on the board to reduce the weight
- Throttle lever travel and other settings are available to be set by USB linker; Two-way mode and 3D mode for racing frame supported


Your purchase includes:
- 1*Foxtech XM 20A Mini ESC
