Foxtech Diamond Series Semi-Solid-State Li-ion Battery

Compared with traditional battery, Diamond semi-solid-state li-ion battery achieves both safety and performance improvement, which features high energy density, high discharge rate and high safety performance, small size and light weight.

Take 6S 22000mAh semi-solid-state li-ion battery as an example:

6S 22000mAh semi-solid-state li-ion battery is only 1963g, with 251.7Wh/kg energy density, the continuous discharge rate is 5C, Max. discharge rate is 10C. It also has a long cycle life, over 600 times.

Compared with Li-ion battery, the Diamond Semi-solid-state Li-ion battery has higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of Li-ion battery.

Compared with traditional lipo battery, the Diamond Semi-solid-state Li-ion battery has light weight and higher energy density. Its energy density increased by 30%-35%, even 20% higher than that of high-voltage version lipo battery. So the drone endurance time will be increased by 20%-35% by using the Diamond Semi-solid-state Li-ion battery.

Diamond Semi-solid-state Li-ion battery supports Max.5C discharge and Max. 2C charge. The recommended discharge rate is 1C-3C to achieve the maximum discharge capacity, charging with 1C current to improve battery life.

Diamond Semi-solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires long endurance time: Agriculture drone, Industrial multicopter and VTOL, Robots, Surface ship etc. Like GAIA 160 series drone, GAIA160S hexacopter, RHEA 160 hexacopter, Great Shark VTOL and Baby Shark VTOL, by using semi-solid state battery the flight time will be greatly increased!

Note:
We may contact you for extra shipping cost due to some countries or areas will be considered "remote" by shipping companies.

Specification:

Voltage: 22.2V
Capacity: 22000mAh
Continuous Discharge: 5C
Max.Discharge: 10C
Charge: 1C
Energy: 448.4Wh
Energy density: 251.7Wh/kg
Size: 19x6.5x7.5cm
Weight: 1963g
Plug: XT90
Working Condition Temperature:
Charge: 0℃～45℃
Discharge: -10℃～55℃

Your Purchase Includes：

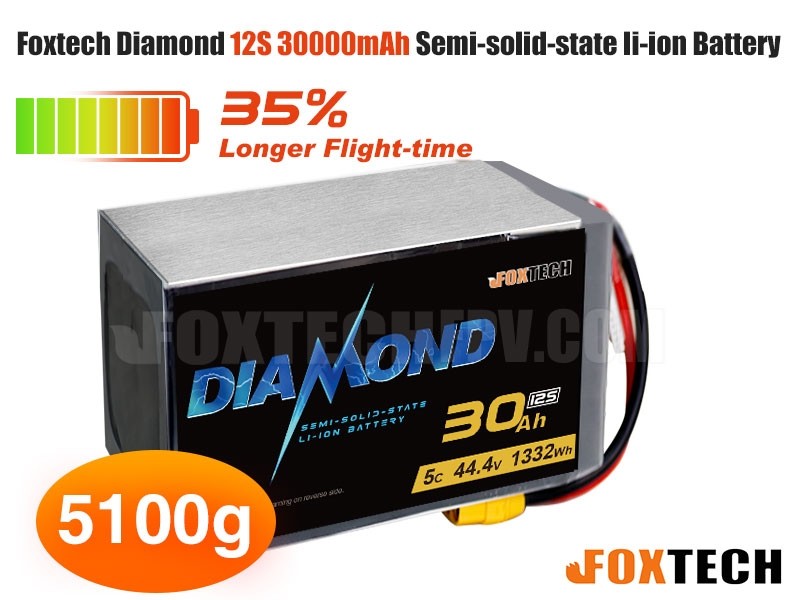

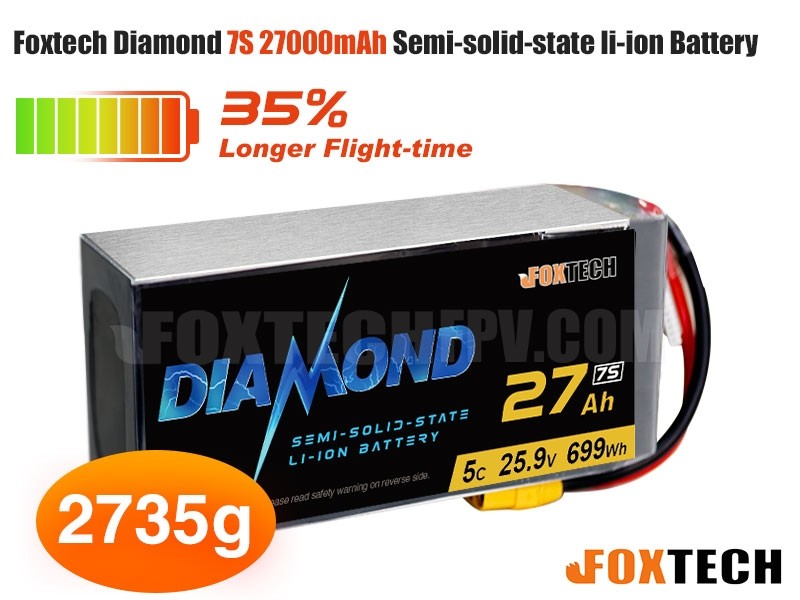

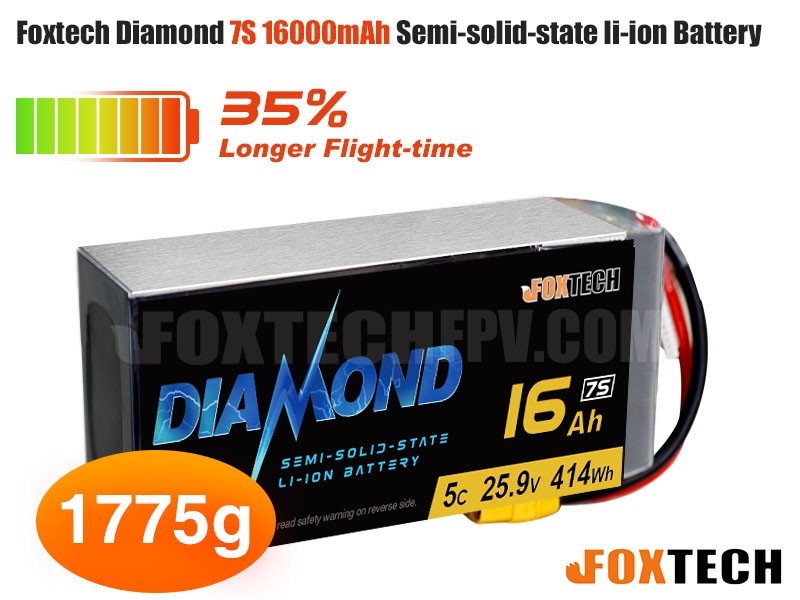

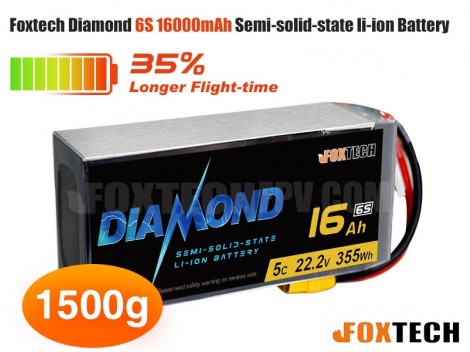

1x Foxtech Diamond 6S/7S/12S 16000/22000/27000/30000mAh Semi-solid-state Li-ion Battery
