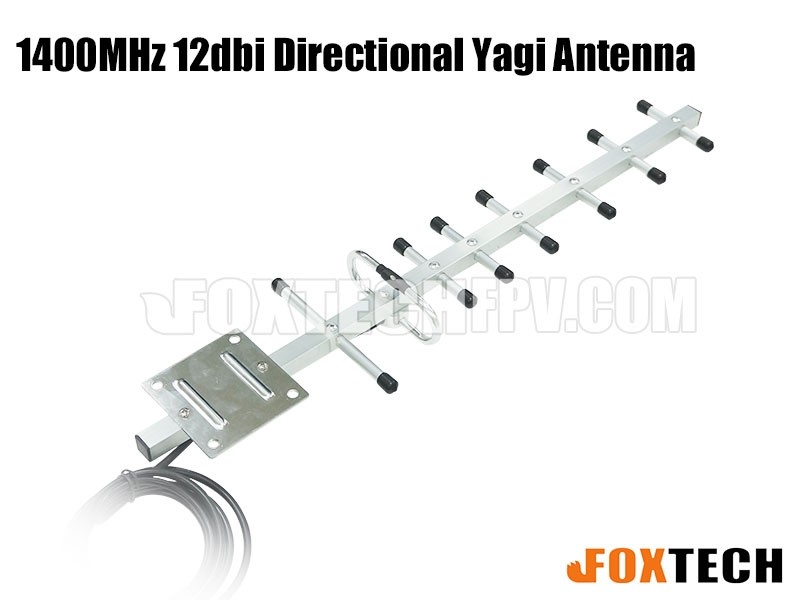

This is a high gain directional Yagi antenna, which features 12dBi of gain and a 40 degree vertical beam width.The 1400MHz 12dbi directional Yagi antenna can be applied in many fileds like long distance communication, remote sensing etc.
Specification:
Frequency Range: 1450±40MHZ
Bandwidth: 80MHZ
Gain-dBi: 12
Horizontal Beamwidth: 48°
Vertical Beamwidth: 40°
F/B Ratio-dB: ≥16
VSWR: ≤1.5
Nominal Impedance: 50Ω
Polarization: Vertical or Horizontal
Maximum Power: 100W
Weight: 0.5kg
Ratcd Wind Velocity: 60m/s
Connector: N-female
Mounting Mast Diameter: Ф30mm
Features:
Superior performance, high gain
All weather operation
High quality aluminum alloy material
Mounting kits
Your Purchase Include:
1x 1400MHz 12dBi directional antenna

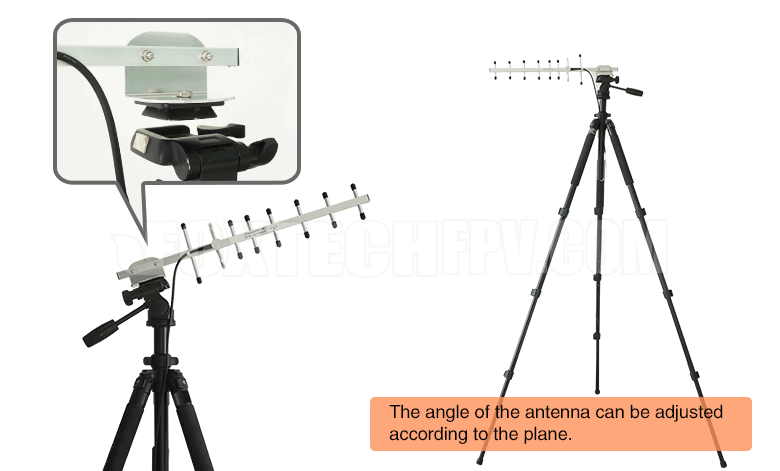

1x Pack of installation accessories(tripod is not included)
