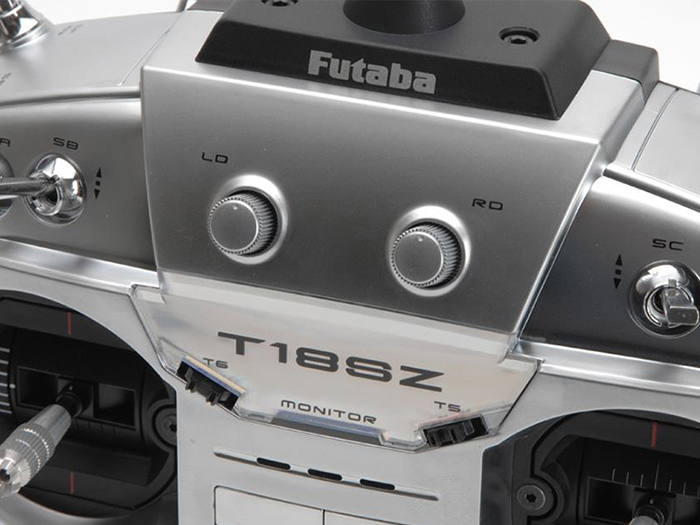

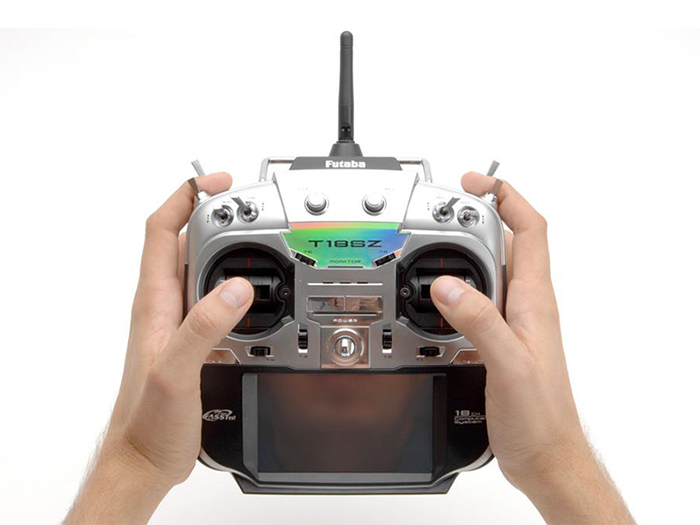

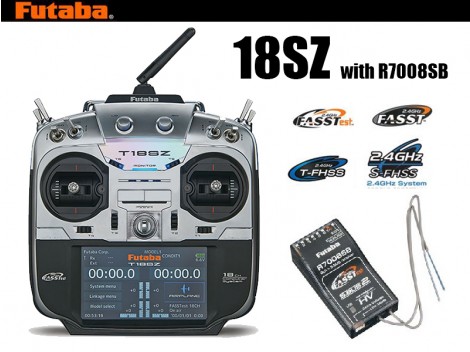

Futaba 18SZ 2.4Ghz Radio Controller

SKU: R00004

Availability: In stock

Weight:1g

Volume Weight: 4.2KG

$1,099.99

Reward points Earn your 1100 reward points.

$1,099.99
Qty:

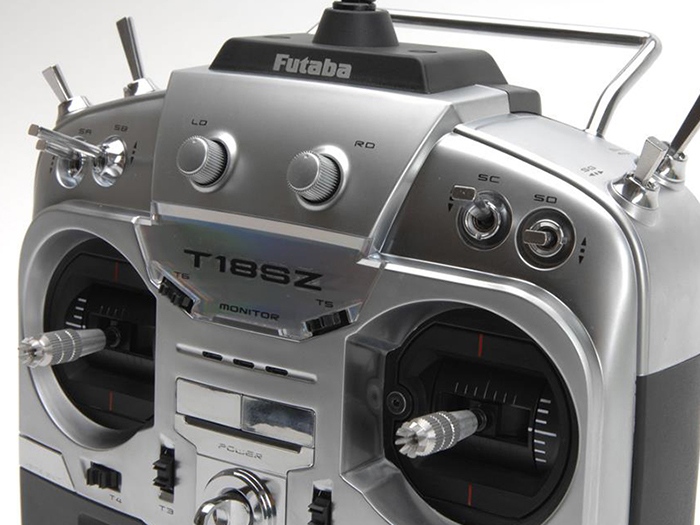

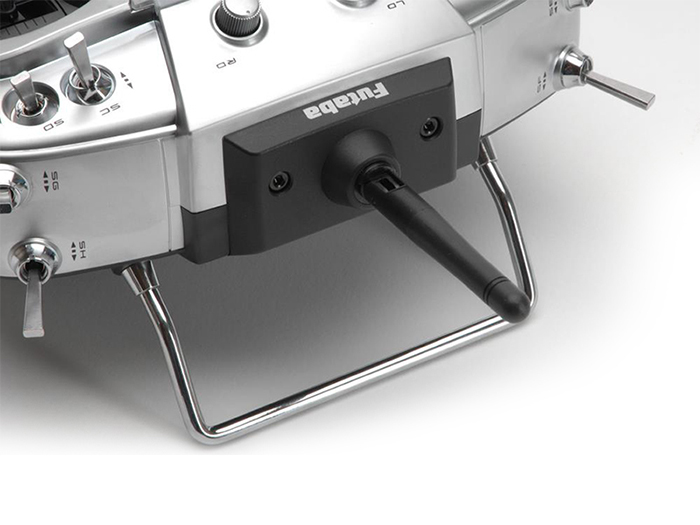

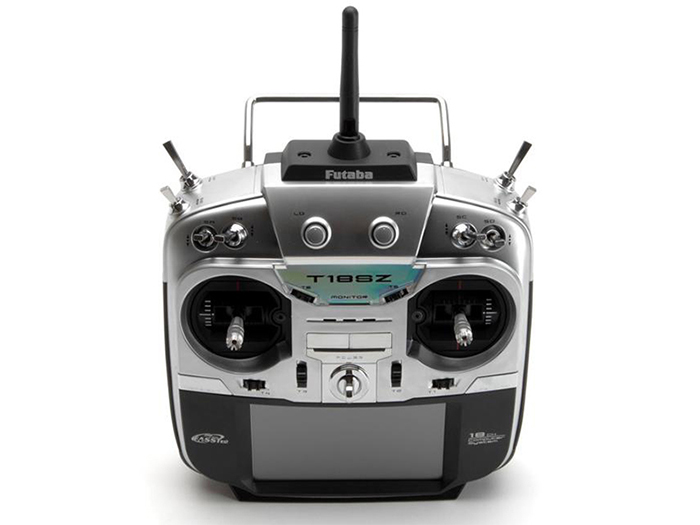

For many years Futaba has led the way in field of radio systems, and they have done it again with their new T18SZ. Packed full of possibilities, the T18SZ includes a Li-Fe battery for extended run time, S-FHSS, T-FHSS, FASST and FASSTest transmission systems, 4.3" colour ultra quick response touch screen, flight conditions, a massive range of mixing and programming options for Aircraft, Gliders, Helicopters and Multirotors, Telemetry, Data Logging, etc, not to mention full 18 channel operation.

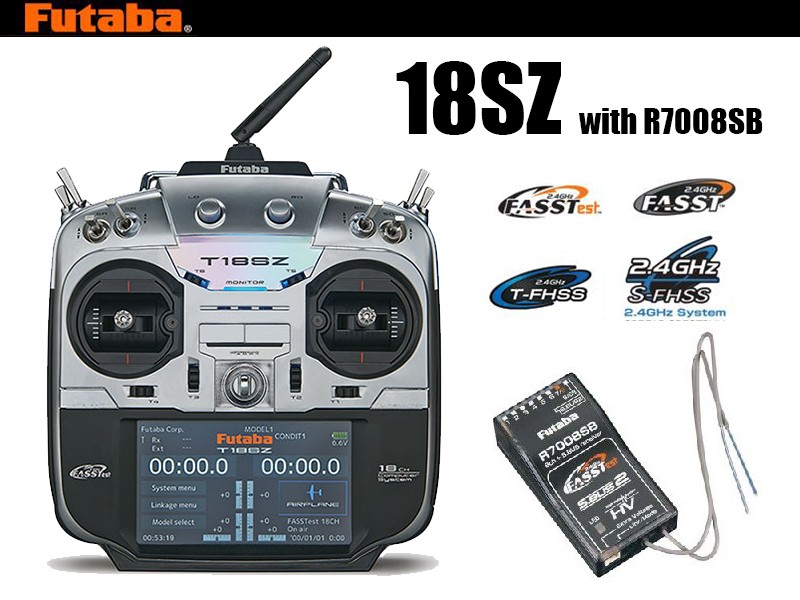

Supplied complete with the 8 18 channel R7008SB receiver, the T18SZ is the perfect radio for any serious pilot, and of course the regular software updates provided by Futaba will keep this superb radio up to date.



Features:

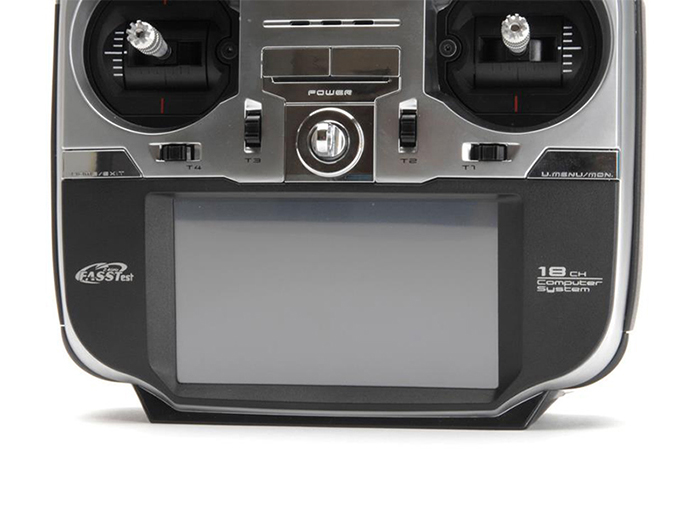

- 4.3 inch full-color fast-processing touch LCD screen for quick, clear data viewing and menu surfing
- 8 full conditions to customize every flight to your flying situation
- Telemetry temperature, RPM, altitude, GPS, voltage, current, and data logging to keep you more connected to your model than ever before
- Expandable, 30-model internal memory to save your settings for all your aircraft

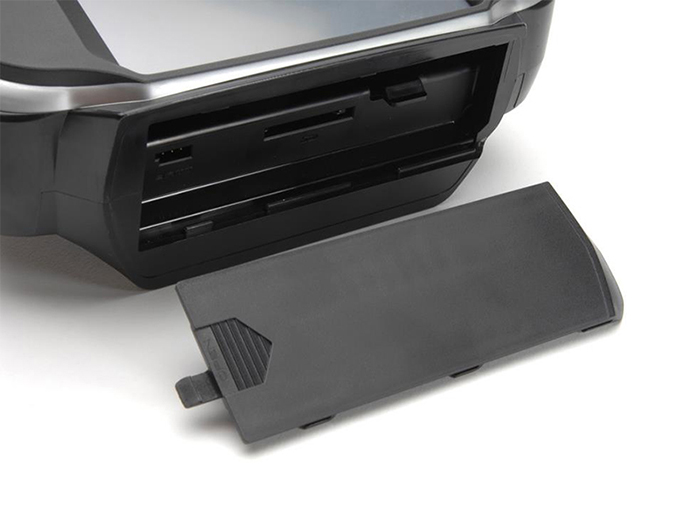

- 6.6V 2100mAh LiFe battery for 7 to 8 hours of flight time
- Telemetry voice messages keep you up to date on your plane's vital statistics
- User-updateable software lets you keep your radio cutting edge

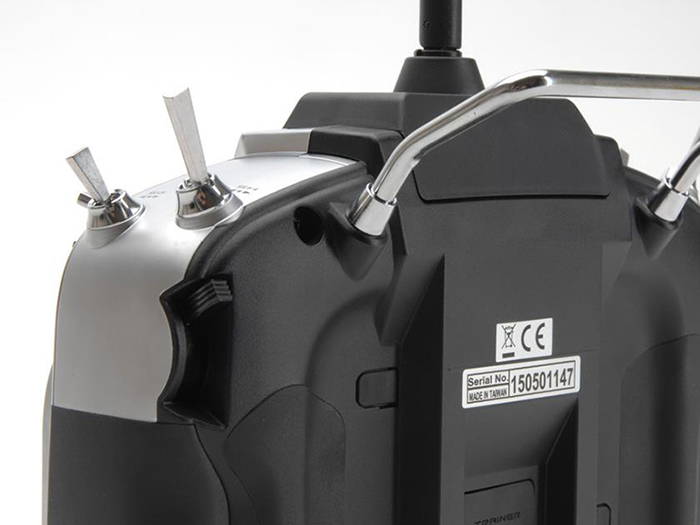

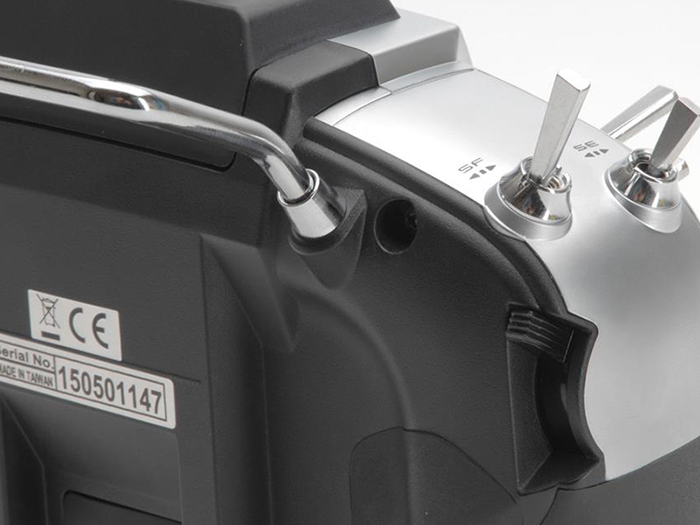

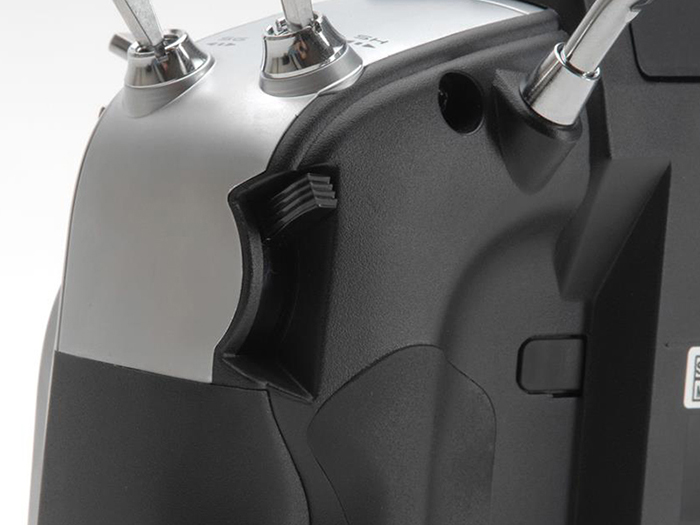

- 2 side levers, 6 digital trims, 8 toggle switches to accommodate every function you can dream up

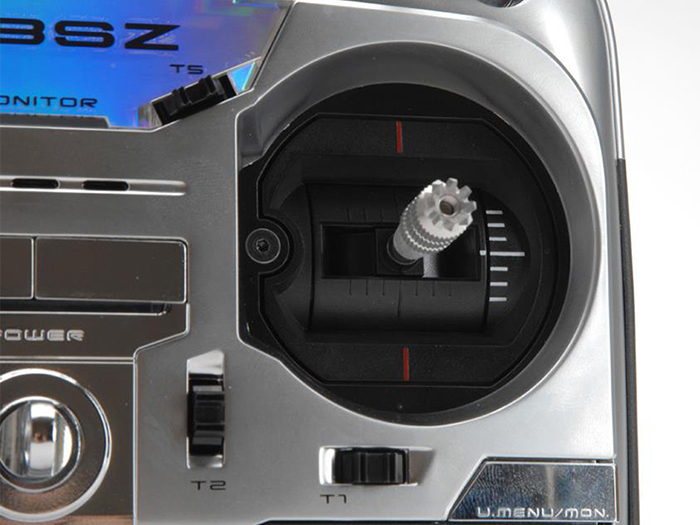

- Quad bearing stick assemblies
- Speaker and earphone jack for audible telemetry announcements

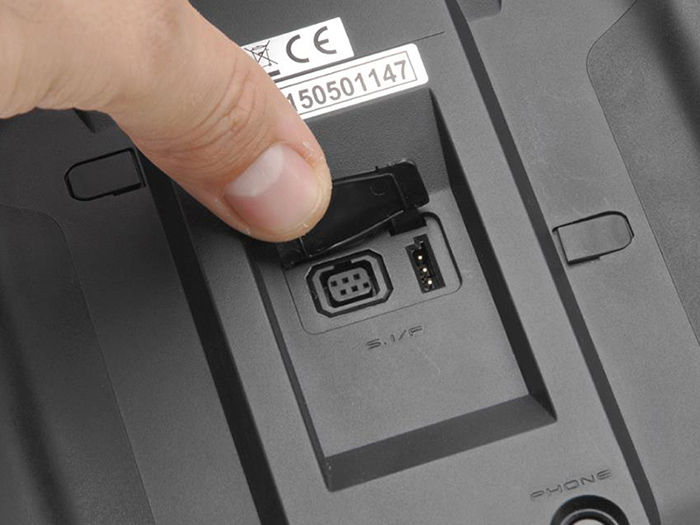

- Trainer and S.Bus ports
- Data editor S.Bus programming
- 15 character user naming and model naming
- Sub trims
- Servo reversing
- End point adjustment
- Data resets
- Battery fail safe
- Servo speed adjustment
- AFR D/R
- AFR curve mode (3)
- AFR curve point (17 points)
- Programmable mixing (10 circuits per condition)
- Throttle cut
- Idle down
- Logic switch
- User menu
- Servo monitor
- Up/down timer (2)
- System timer
- Model timer
- Throttle stick alarm
- Rubber hand grips
- Backlight adjustment
- Calibration
- Alarm voltage
- Alarm vibrator
- Auto power off
- Range check
- Dual receiver set up

Airplane features:
- 13 wing types
- 3 tail types
- 2 rudder types
- Flap setting
- Aileron differential
- Aileron to camber flap mix
- Aileron to brake flap mix
- Aileron to rudder mix
- Airbrake to elevator mix
- Rudder to aileron mix
- Rudder to elevator mix
- Camber mix
- Elevator to camber mix
- Camber flap to elevator mix
- Snap roll
- Airbrake mix
- V tail
- Ailevator
- Winglet
- Motor mix
- Multi-engine
- Gyro sensor

Helicopter Features:
- 8 swash types
- Pitch/throttle curve
- Pitch/throttle curve mode (3)
- 17 point pitch/throttle curve
- Acceleration
- Throttle hold
- Swash mixing
- Throttle mixing
- Pitch to needle mixing
- Pitch to rudder mixing
- Gyro sensor (3)
- Governor
- Condition hold
- Hovering pitch
- Hovering throttle
- Swash AFR
- Swash setting
- Swash ring
- Throttle limiter

Glider:
- 13 wing types
- 3 tail types
- 2 rudder types
- Flap setting
- Aileron differential
- Aileron to camber flap mix
- Aileron to brake flap mix
- Aileron to rudder mix
- Rudder to aileron mix
- Airbrake to elevator mix
- Camber mix
- Elevator to camber mix
- Camber flap to elevator mix
- Butterfly mixing
- Butterfly to elevator
- Trim mix 1
- Trim mix 2
- V-tail
- Ailevator
- Winglet
- Motor mix

Multicopter:
- Gyro

Telemetry functions:
- Temperature
- RPM (magnetic and optic)
- Altitude
- GPS
- Voltage
- Current
- Data logging

Your purchase includes:

- 1*T18SZ radio controller
- 1*R7008SB Receiver
- 1*6.6V LiFe battery
- 1*Charger, switch harness, and mini screwdriver
