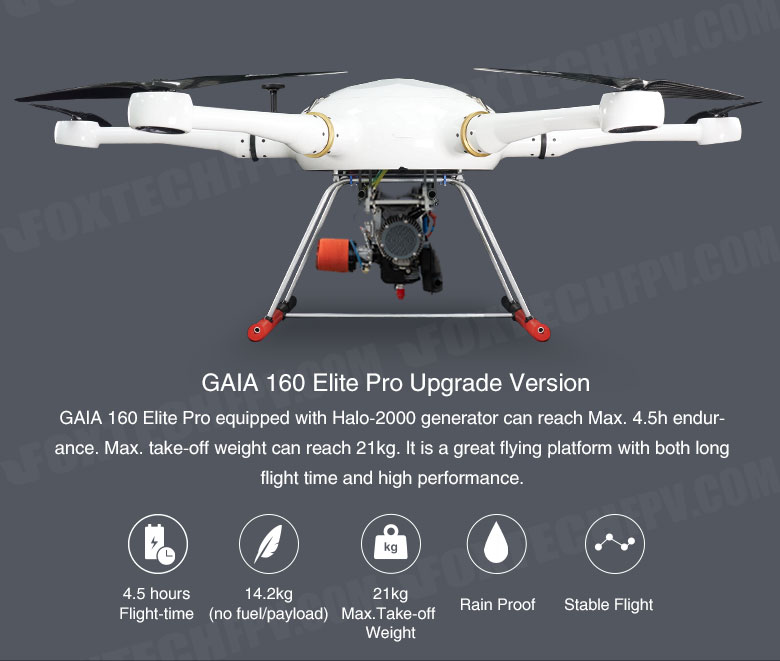

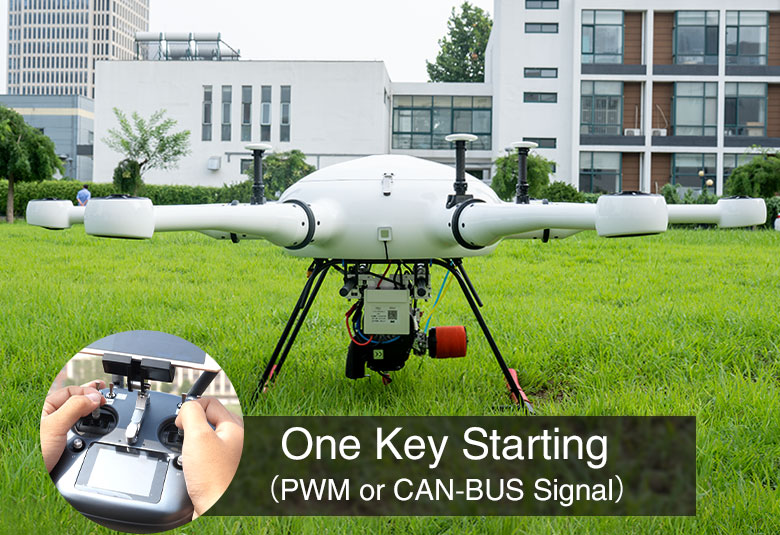

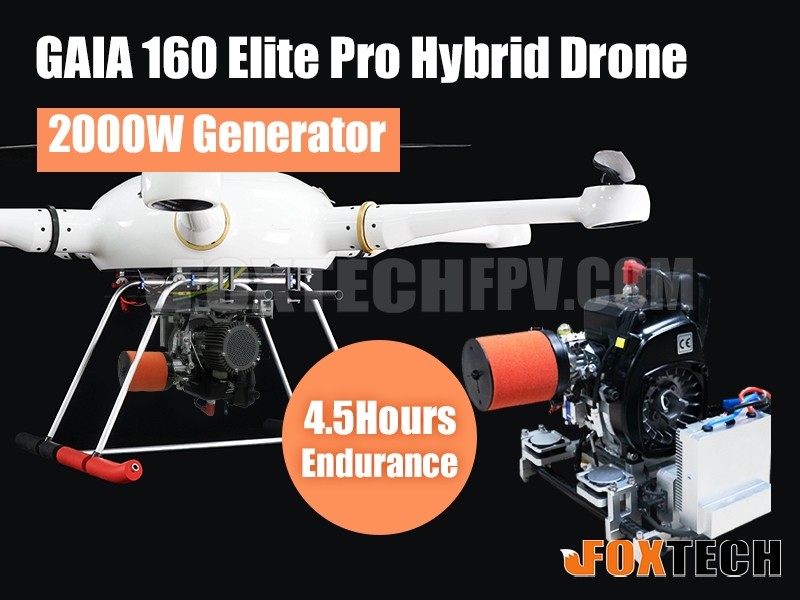

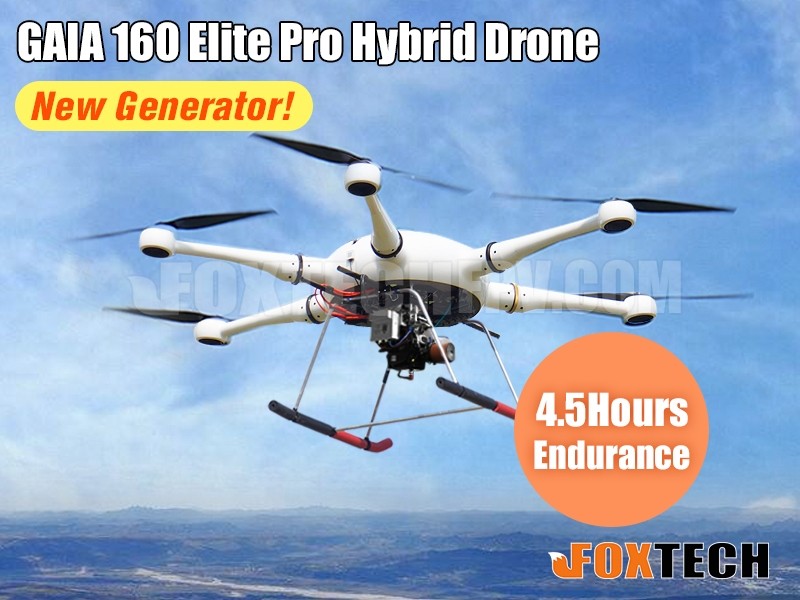

GAIA 160 Elite Pro is upgraded with a new 2000W generator Halo-2000, with which the Max. flight time can reach 4.5h (no payload), Max. take-off weight can reach 21kg. Besides this, Halo-2000 generator can be started through PWM or CAN-BUS, quick and convenient. The generator can be restarted quickly after flame-out in the air; a monitoring software is provided to monitoring the generator working status in real time, that greatly improves its safety.

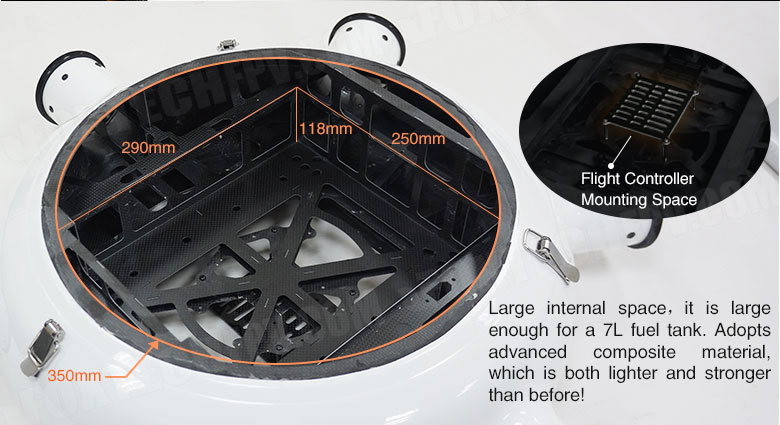

GAIA 160 Elite Pro hybrid drone with 7L fuel tank features light weight and stronger fuselage. The max take off weight is 21kg. The high strength and high performance makes the drone adaptive to extreme weather conditions, e.g 17m/s wind, -40℃ low temperature, +40℃ high temperature, heavy rain, fog etc. The closed fuselage structure protects GAIA 160 Elite pro from the rain and dust, and also protect other load equipment like flight control and battery.

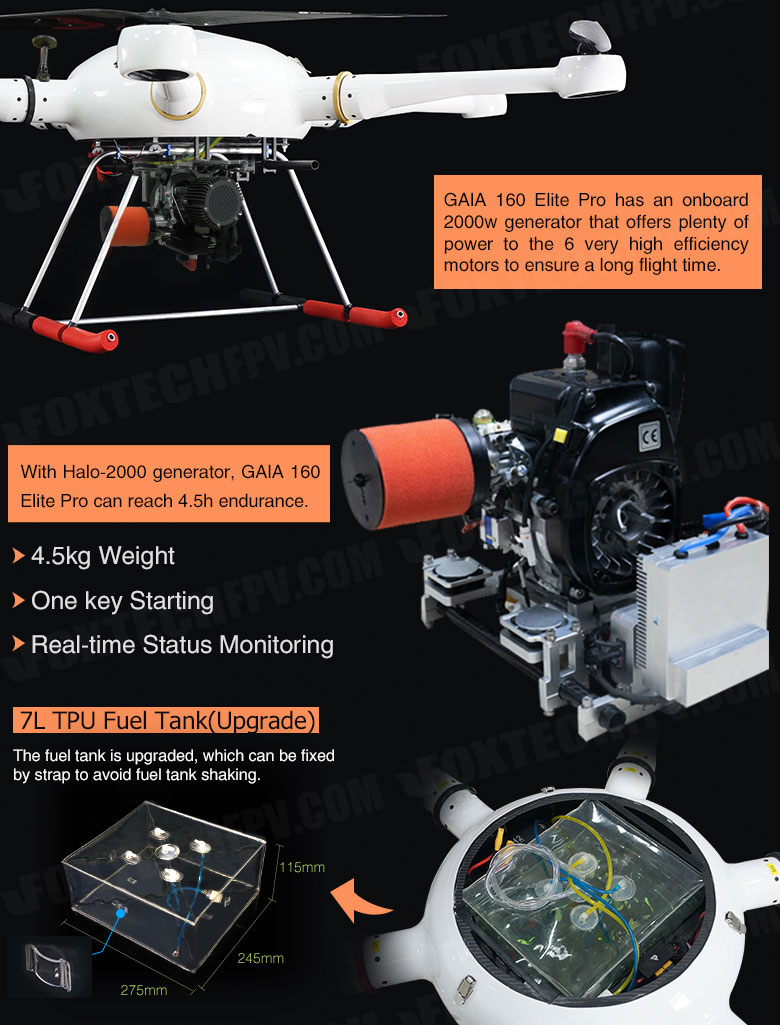

GAIA 160 Elite Pro hexacopter is equipped with high efficient power system, which ensures a very stable flight performance. Gaia 160 Elite Pro has good power redundancy, it can still fly or land in case one propeller or motor is gone. The highlight of GAIA 160 Elite Pro is the gasoline-electric hybrid power system. GAIA 160 Elite has an onboard 2000w generator that offers plenty of power to the six very high efficiency motors to ensure a long flight time. The flight time is 4.5 hours (21kg take-off weight). Besides this, a 12S lipo battery package is also installed onboard to offer emergency back-up power for quick climbing and quick maneuvering.
GAIA 160 Elite Pro hybrid drone is also installed with redundancy flight controllers, three GPS and a full range of optional equipment like RTK GPS, 20km data link, parachute, secondary radio control and more to make this drone very reliable and very safe.

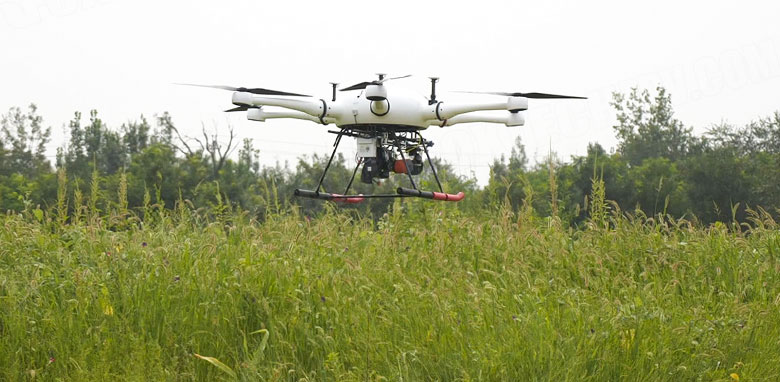

A longer flight time coupled with good stability and high performance of GAIA 160 Elite Pro opens a wide range of new commercial possibilities for businesses such as inspection of offshore platforms, power line inspection, search and rescue, etc.
Specifications:
Version: Gaia 160 Elite Pro 2000W

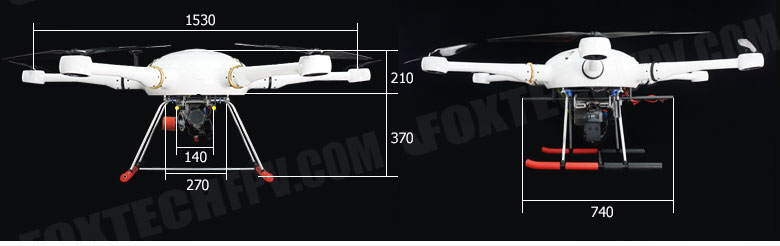

Wheelbase: 1530mm
Basic Empty Weight: 14.2kg (no fuel)
Max.Take-off Weight: 21kg
(2x6s 5000mah battery included)
Flight time: 4.5hours (no payload), 7L fuel
Max. Lifting Speed: 5m/s
Max. Descent Speed: 4m/s
Voltage: 48V
Generator output: 1.8kw(continuous), 2kw(max)
Generator weight: 4.5kg
Fuel tank: 7L
Fuel consumption: 620g/kw.h
Working Temperaure: -10℃ ~ +40℃
Back up battery: 2x 6S 5000mah
Features:
- Gaia 160 Elite Pro has good power redundancy. Hexa-copter can still fly or land in case one propeller or motor is gone.
- Gaia 160 Elite's main body is made of full carbon fiber featuring light weight and high strength. Gaia 160 Elite Pro adapts to extreme weather conditions, e.g -10℃ low temperature, +40℃ high temperature, fog etc.
- Gaia 160 Elite uses cutting edge technologies on the power system, its motors, ESCs and propellers are all optimized and tested for long duration and long range flight.
- Gaia 160 Elite's generator module is isolated from other electric equipment giving advantages for maintenance, working stability and safety.
- Gaia 160 Elite uses flight controllers with triple redundancy. 3X IMU, 3X GPS and 3X Mag sensor. Both A3 PRO and Pixhawk 2.1 are all proved reliable and widely used on professional drones.
- All Plugs used on Gaia 160 Elite Pro are anti-spark type, all wires are optimized for long-duration flight.
- Gaia 160 Elite Pro is rain-proof, it’s possible to fly in mid-moderate rain.
Your Purchase Includes:
Pixhawk Cube Orange RTF:
1x GAIA 160 Elite Pro Frame
1x Halo-2000 Generator
1x 7L Fuel Tank
6x Motor
3x Propeller
6x ESC
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS

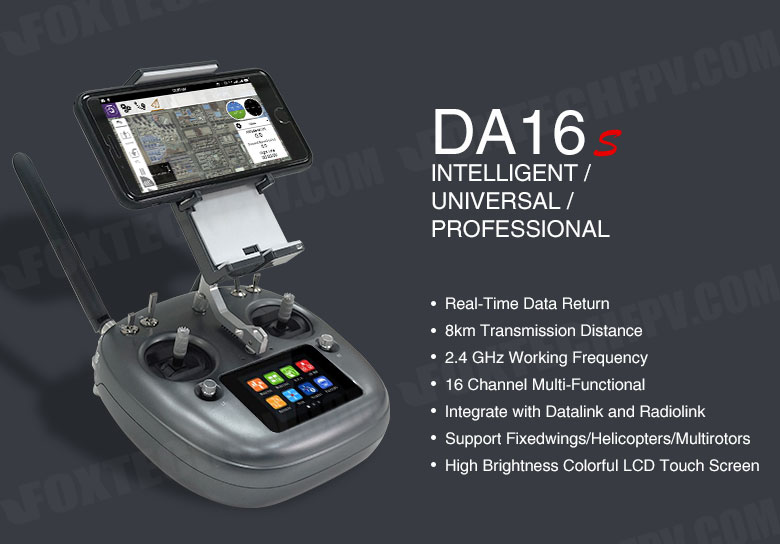

1x DA16S+ Radio Controller
2x Foxtech 6S 5000mAh Battery
1x Adapter Plate
1x Liquid Level Sensor
1x Propeller (for free)
1x Assembly and Fly Test Package
A3 Pro+Lightbridge 2 RTF:
1x GAIA 160 Elite Pro Frame
1x Halo-2000 Generator
1x 7L Fuel Tank
6x Motor
3x Propeller
6x ESC
1x DJI A3 Pro Flight Control
1x DJI Lightbridge 2
1x CUAV P9 900MHZ Radio Telemetry Wireless Transmission Module
2x Foxtech 6S 5000mAh Battery
1x Liquid Level Sensor
1x Propeller(for free)
1x Assembly and Fly Test Package
A3 Pro/DA16S+ RTF:
1x GAIA 160 Elite Pro Frame
1x Halo-2000 Generator
1x 7L Fuel Tank
6x Motor
3x Propeller
6x ESC
1x DJI A3 Pro Flight Control
1x CUAV P9 900MHZ Radio Telemetry Wireless Transmission Module
1x DA16S+ Radio Controller
1x Expansion Module for DJI Flight Controller
1x Foxtech GPS Folding Antenna Mount Holder for GAIA 160 Elite
2x Foxtech 6S 5000mAh Battery
1x Liquid Level Sensor
1x Propeller (for free)
1x Assembly and Fly Test Package
TAURUS-2 RTF:
1x GAIA 160 Elite Pro Frame
1x Halo-2000 Generator
1x 7L Fuel Tank
6x Motor
3x Propeller
6x ESC
1x TAURUS-2 Flight Control System
1x DL900 Datalink
1x Foxtech GPS Folding Antenna Mount Holder for GAIA 160 Elite
2x Foxtech 6S 5000mAh Battery
1x Adapter Plate
1x Liquid Level Sensor
1x Propeller (for free)
1x Assembly and Fly Test Package
Optional:
Remote Controller Channel Expansion Kit for Lightbridge 2
Taranis X9D Plus 2019 Radio Controller (for TAURUS-2/LEO Combo)
ASHIL II Flight Simulation System (for Taurus-2/LEO Combo)
Note: If you have the longer range requirements, you can choose the RB20 signal relay, it can help to get a long communicate range, the max communicate range is 15-30km. And it also depending on what kind of antenna are you going to use with this signal relay.
