For GOPRO brushless pan rack assembly TL68A08 or other similar products, used in photographic film and entertainment, advertising and many other areas of model aircraft photography.
Auxiliary output video supports GOPRO Hero3
Support the supply voltage polarity protection and voltage compensation
Support the motor drive end short-circuit protection
Support for custom initial pitch angle
Sensitivity parameter adjustment support and software 3D pose show
Supports joystick rate mode and position mode
Support Receiver: conventional receiver, S-BUS receiver, DSM2/DSMJ/DSMX receiver
Support remote control device: PPM/PCM/2.4G
Working Voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
Working current: 200mA-500mA (power supply voltage and the motor related)
Working temperature: -15 ℃ ~ 65 ℃
Processor: Dual 32-bit high-speed ARM core processor
Sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers and the three
Maximum angular rate: 2000 °/ sec
Maximum acceleration: 16g
Control frequency: 2000Hz
Motor drive frequency: 20KHz (no noise smoothing drive)
Control accuracy: 0.1 °
Control angle range: -45 °~ 45 ° (roll), -135 °~ 90 °(tilt)
Attitude solver algorithms: PTZ dedicated brushless motor decoupled EKF algorithm
Applicable shooting equipment: GOPRO Hero3

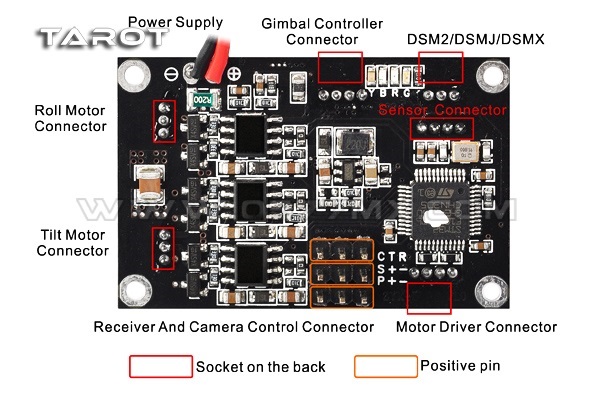

Product features and interfaces:
Power Interface: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
Head Master Scheduling Interface: USB to serial module connected to the computer, the main controller parameter adjustment for PTZ and status monitoring.
Motor drive parameter adjustment Interface: USB to serial module connected to the computer, is used to adjust the motor drive module motor poles
And power, and voltage and current monitoring.
Receiver Photos Servo Output Interface:
R: Normal receiver roll input
T: Normal receiver input pitch
C: Normal mode receiver input (joystick angle mode or speed mode)
S: S-BUS receiver channel or camera input channels
P: photos servo output (can be connected to the infrared camera module)
+: 5V output, -: Power Ground.
Satellite interface: for connecting satellite receiver.
Roll and pitch motors motor interface: for connecting the motor.
Sensor Interface: for connection of sensors.

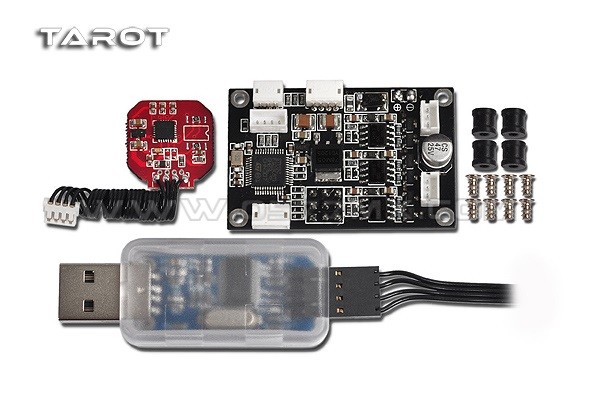

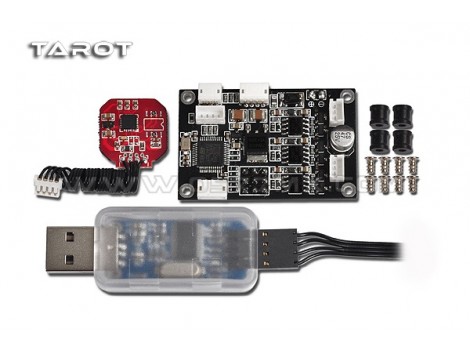

ZYX3 rotor gyro USB cable group ZYX07 x1
GOPRO two-axis gyro sensor head x1
GOPRO two-axis gyro head master controller x1
Φ4.5x4.5mm insulated pillar x4
2x3mm round head Phillips screws x8
