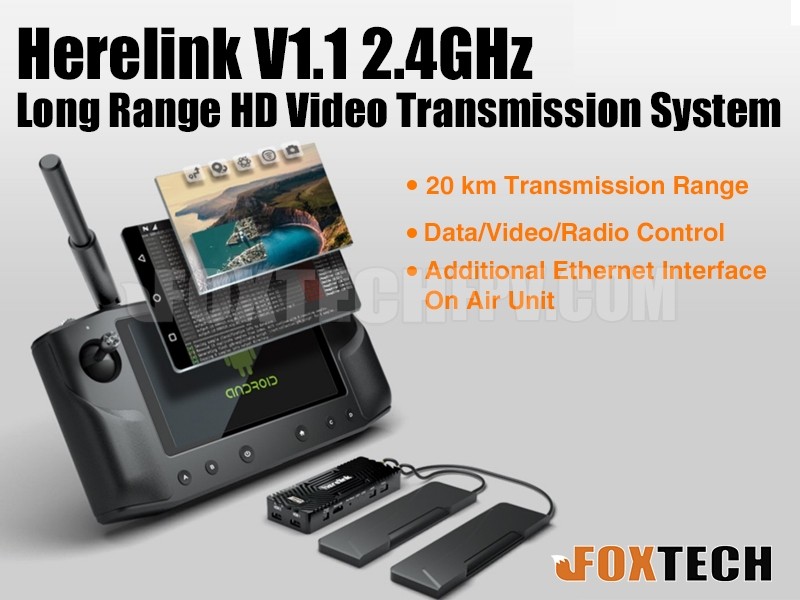

Herelink V1.1 2.4GHz Long Range HD Video Transmission System

SKU: C208109

Availability: In stock ( 32 )

Weight:1.4KG

$1,249.00

Reward points Earn your 1249 reward points.

Qty:

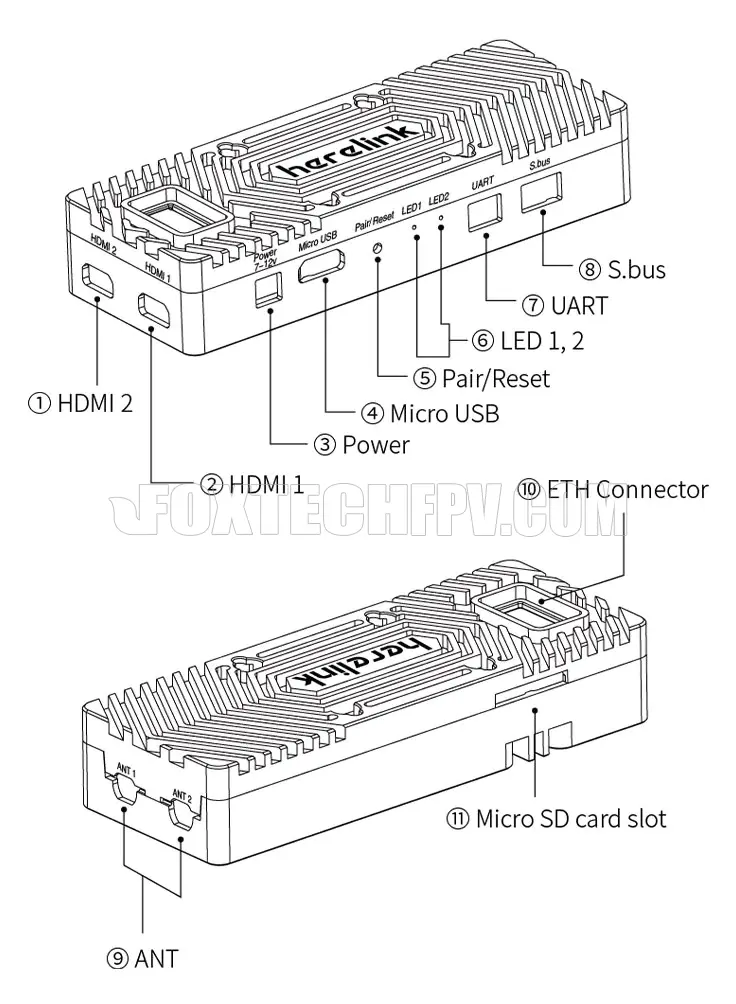

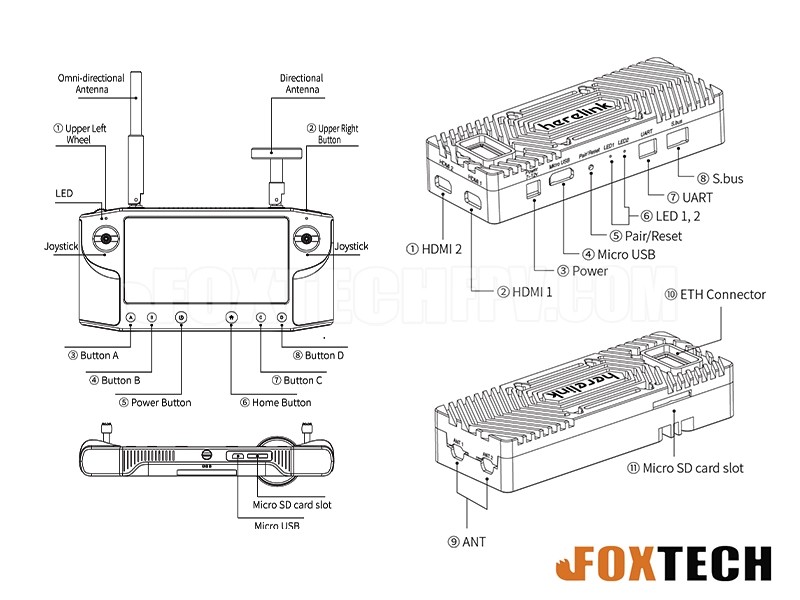

Herelink V1.1 is the upgrade version of Herelink. Compared with the original version, Herelink V1.1 adds an Ethernet interface and an SD card slot on the air unit, so cameras and other equipment with Ethernet output can be controlled easier.

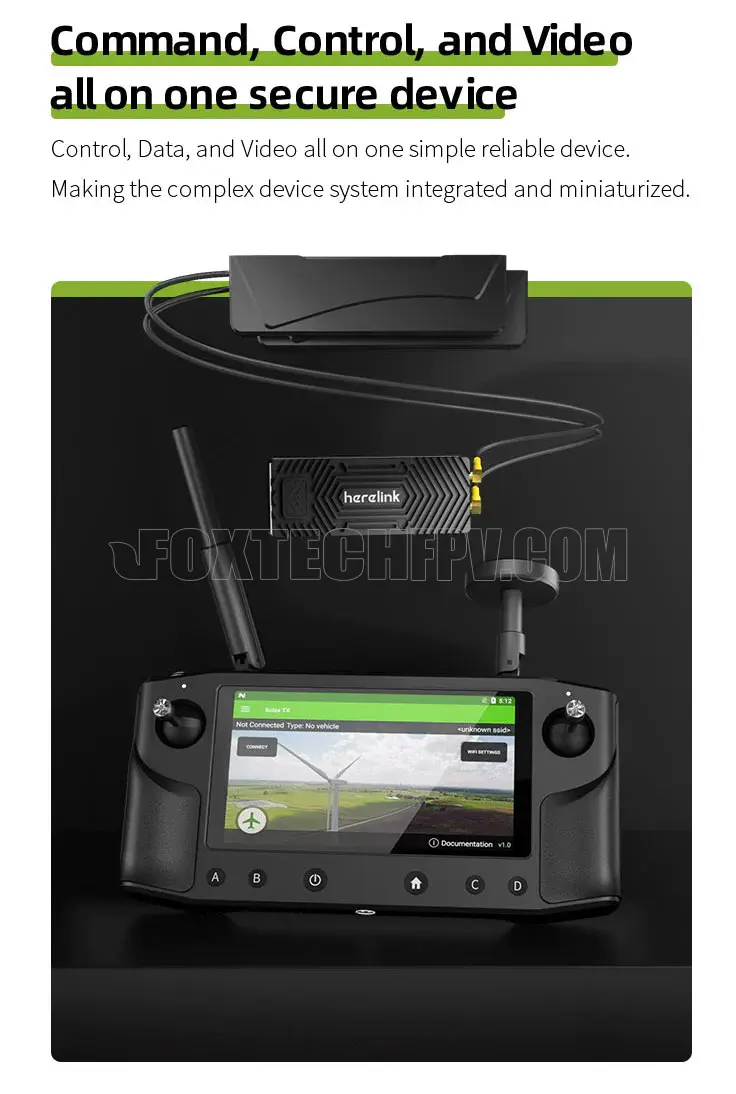

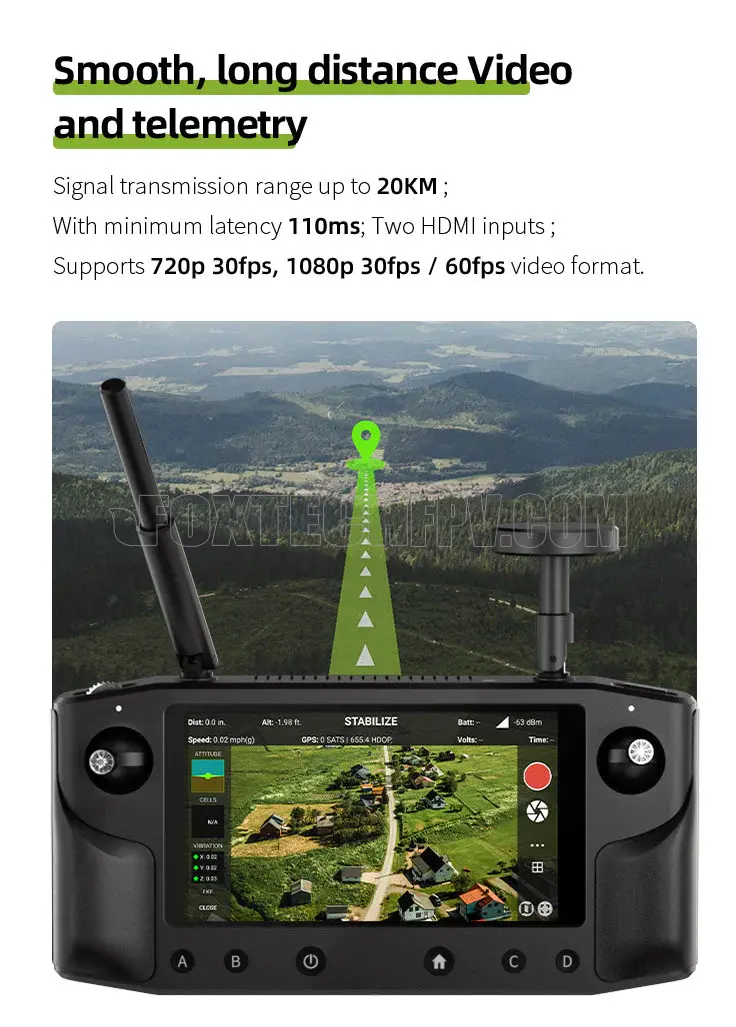

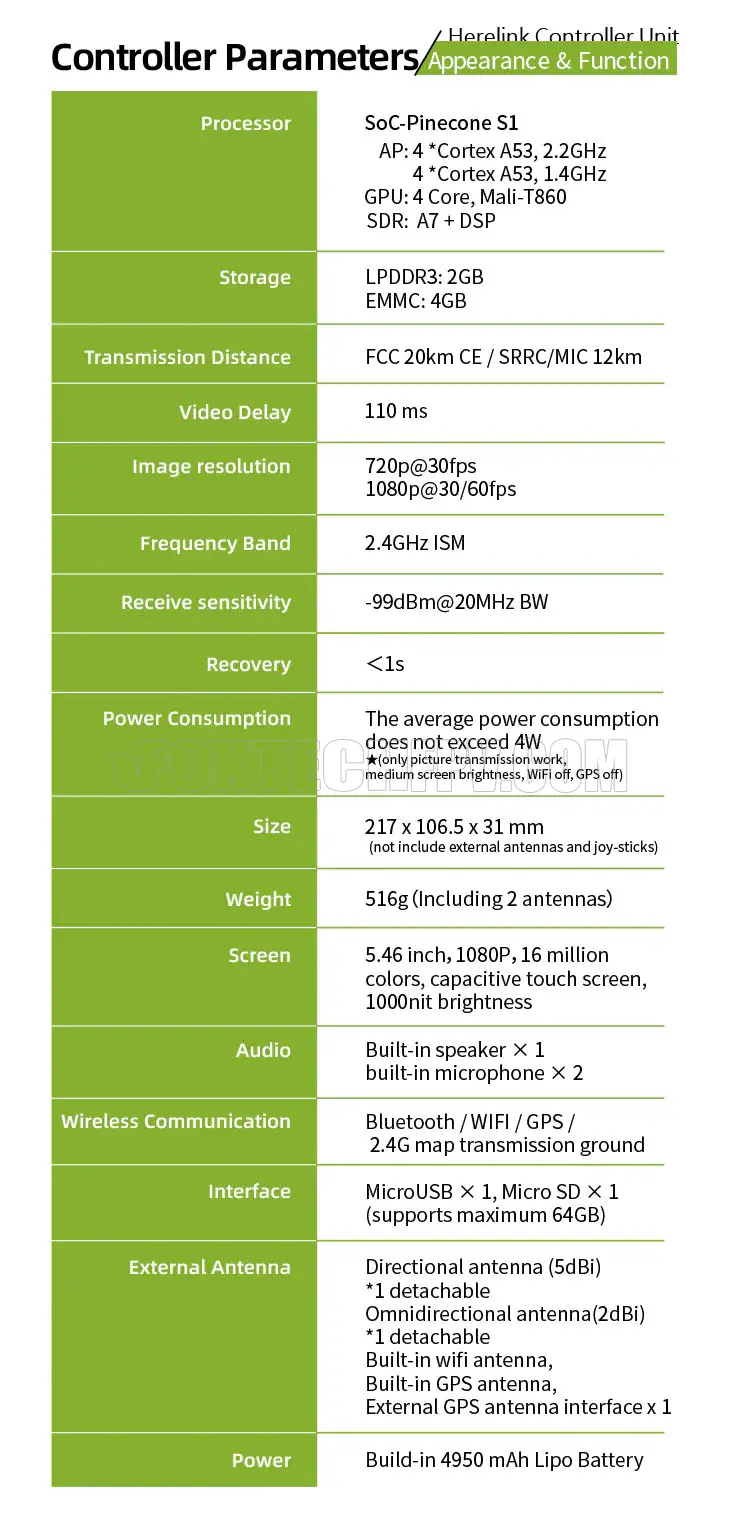

Herelink V1.1 also integrates video transmission, data transmission, radio control and ground control station into one device. The transmission range is 20 km, with 110 ms low latency and two HDMI inputs.

Herelink V1.1 supports Solex and QGC, and the operator can choose one according to their needs. With the Over The Air (OTA) update function, the Herelink V1.1 can download a part of the update package when updating via WIFI, and finish the whole process after, which is more convenient, faster and greatly improves the efficiency. Both the air unit and the ground station feature an integrated 8-core SOC for custom application development.



Features:

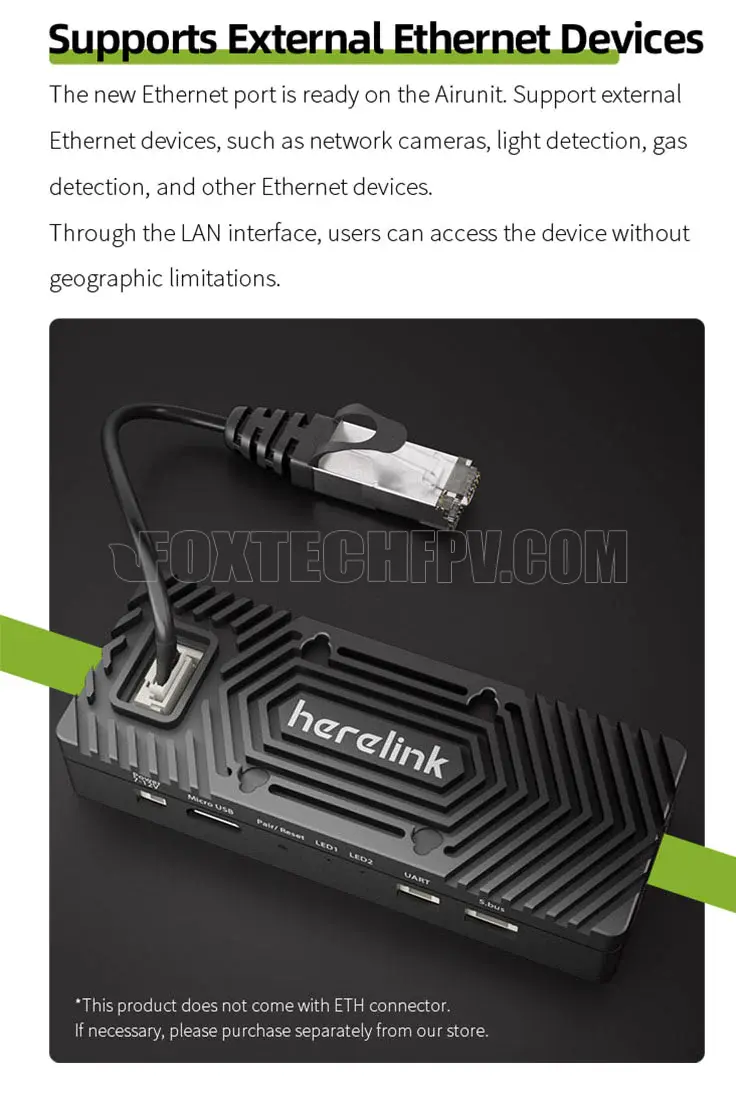

Additional Ethernet Interface on Air Unit

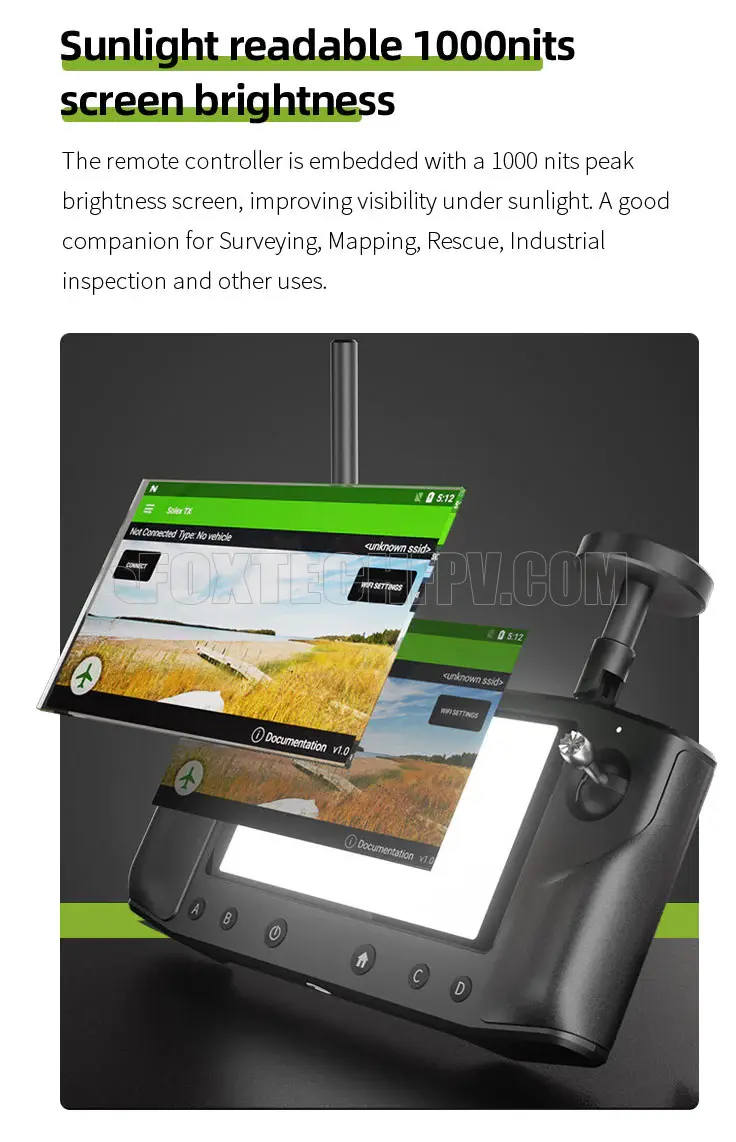

1000 NIT Monitor

All in one: Telemetry, Video, and Control
2.4 Ghz frequency
Up to 20 km in FCC mode and 12 km in CE mode
UART Telemetry
RC Protocol: SBUS, iBUS, ETC.
Mavlink compatible
Touch screen

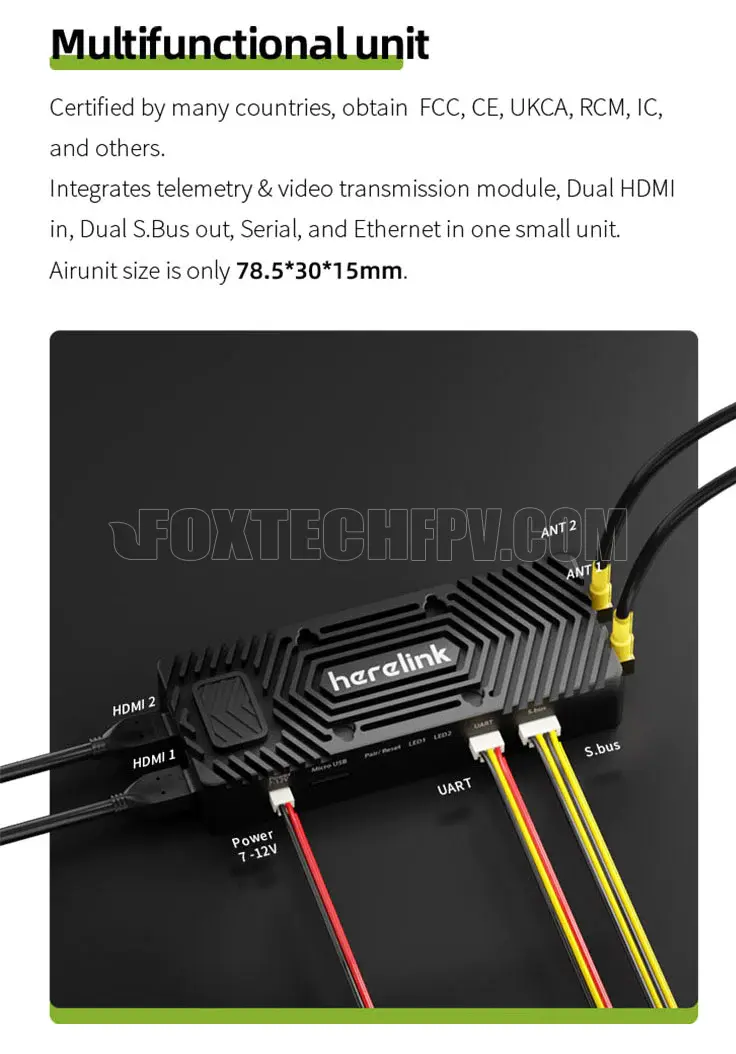

2 HDMI inputs for [email protected] video transmission
APP QGround control, and API for development
WIFI, Bluetooth and USB to connect with other devices

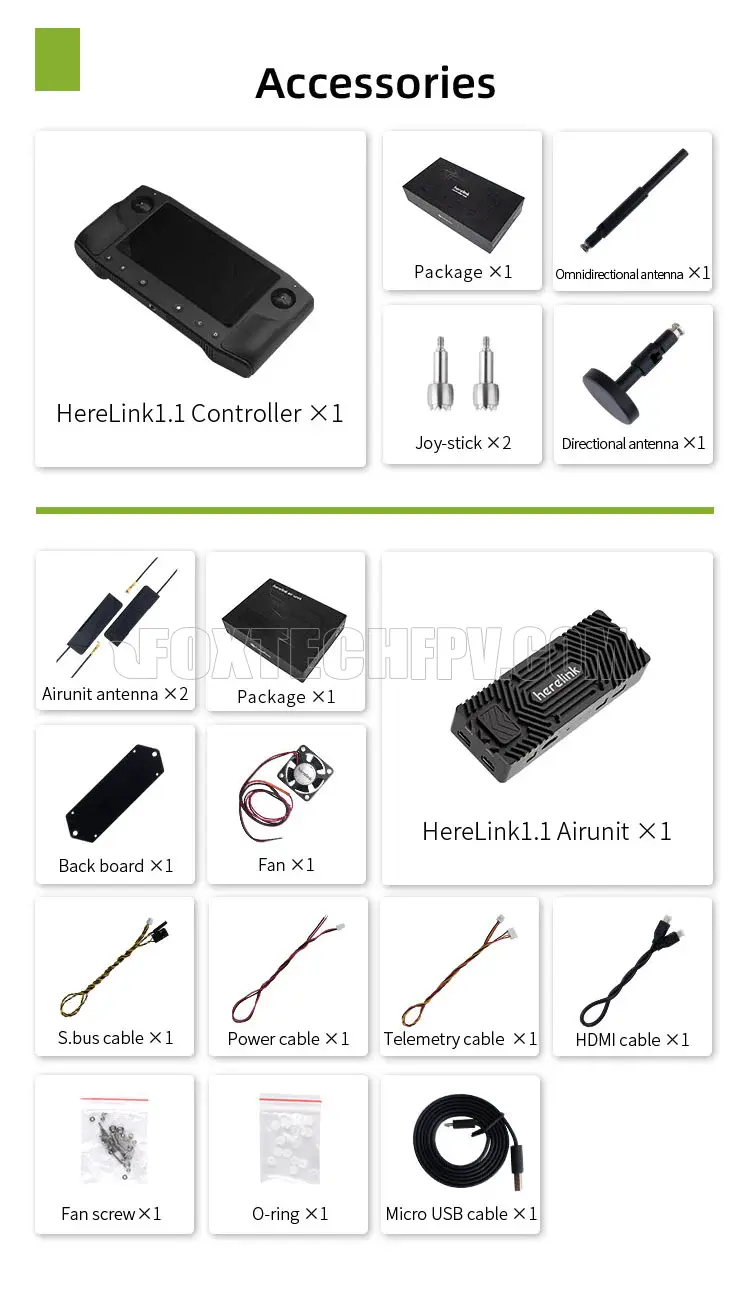

Your Purchase Includes:

1x Herelink V1.1 Radio Controller
1x Herelink V1.1 Air Unit
