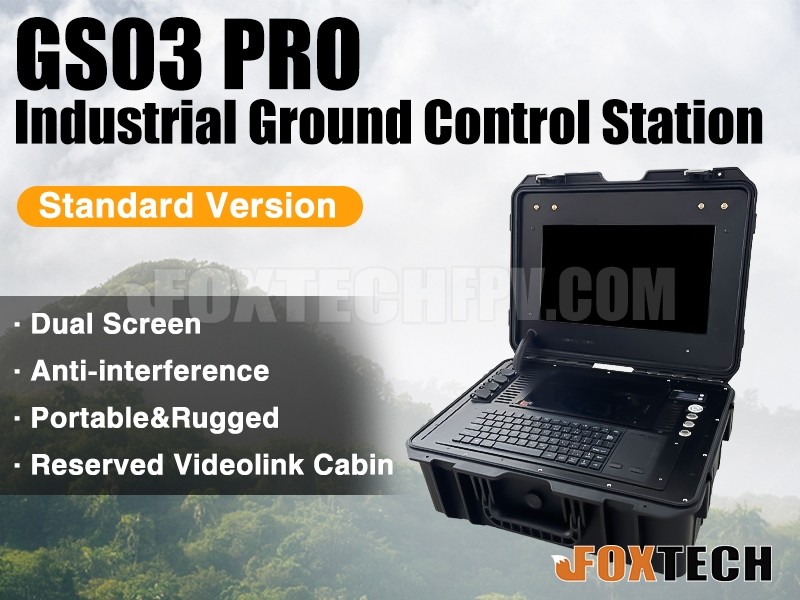

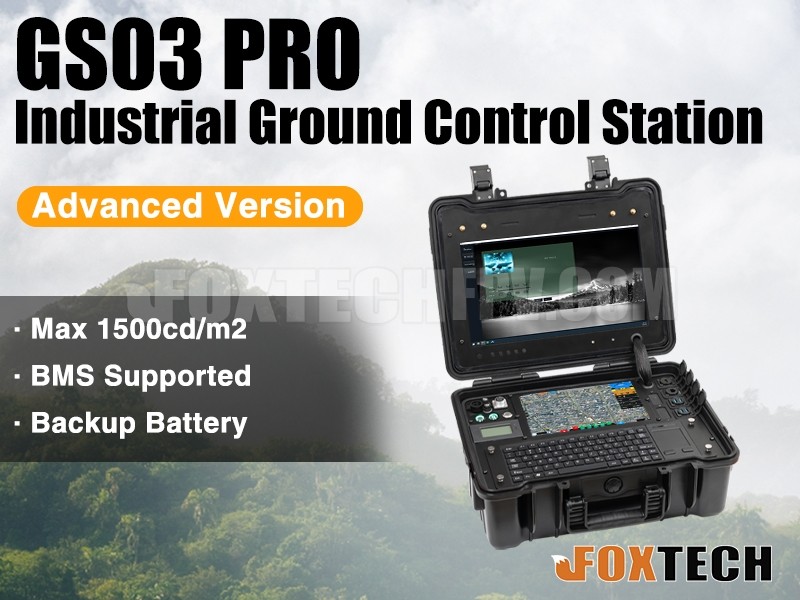

GS03-PRO is a compact UAV ground control station featuring strong anti-interference performance and modular design, which can realize long range video and data transmission. It has two versions: Standard and Advanced.
-GCS box is made of ABS material, features high strength and impact-resistance, can be used in harsh environments; The aluminum alloy panel can prevent the interference of high-power equipment and wireless signal;
-Dual industrial high-brightness LCD, can display real-time videos and maps. With the ambient light sensor, the screen can automatically adjust the brightness, supports max 1800cd/㎡ (advanced version only);
-The upper 15.6'' LCD features 1920*1080 resolution and 1500cd/㎡ brightness (advanced version) (1200cd/㎡for standard version); 10.1'' LCD features 1280x800 resolution and 1200cd/㎡ brightness;
-The big reserved cabin for video/data link is under the 10.1'' screen, which can prevent the signal interference; compatible with different video/data link, such as VD-Pro, VDC, can realize 15~150km long range transmission (option).
-The portable GCS has a built-in computer, which features i5 1135g7 CPU (advanced version)(intel CELERON N5105 for standard version), 8G RAM and 256G ROM, supports Windows 10/Linux system.
-The reserved battery cabin is big enough for one 4s 30000mAh battery to ensure long operation time; The built-in BMS battery management system actively balances the voltage of the cells, effectively prolonging the battery life and improving battery safety (the reserved backup battery port and BMS are for advanced version).
1. The battery needs to be taken out and charged separately.
2. When connecting to external power supply, please disconnect the built-in battery.
Your Purchase Includes:
1x GS03-Pro Industrial Ground Control Station (video/data link is not included)
VD PRO 15~150km Video/Data Wireless Transmission System
