Pixhawk Cube Orange Standard Set with Here 2 GNSS

SKU: 2009091

Availability: In stock ( 26 )

Weight:700g

$415.00

Reward points Earn your 415 reward points.

Qty:

Pixhawk Cube Orange Standard Set with Here 2 GNSS includes an orange cube, ADS-B carrier board and Here 2 GNSS. This open-source autopilot adopting powerful H7 processor, featuring a triple-redundancy IMU system and vibration dampening system.The anti-jamming performance and stability are greatly improved. Carrier Board with an integrated 1090MHz ADS-B receiver, allowing the software to receive information about the location of manned aircraft in the area, that effectively improve the flight safety of UAV.

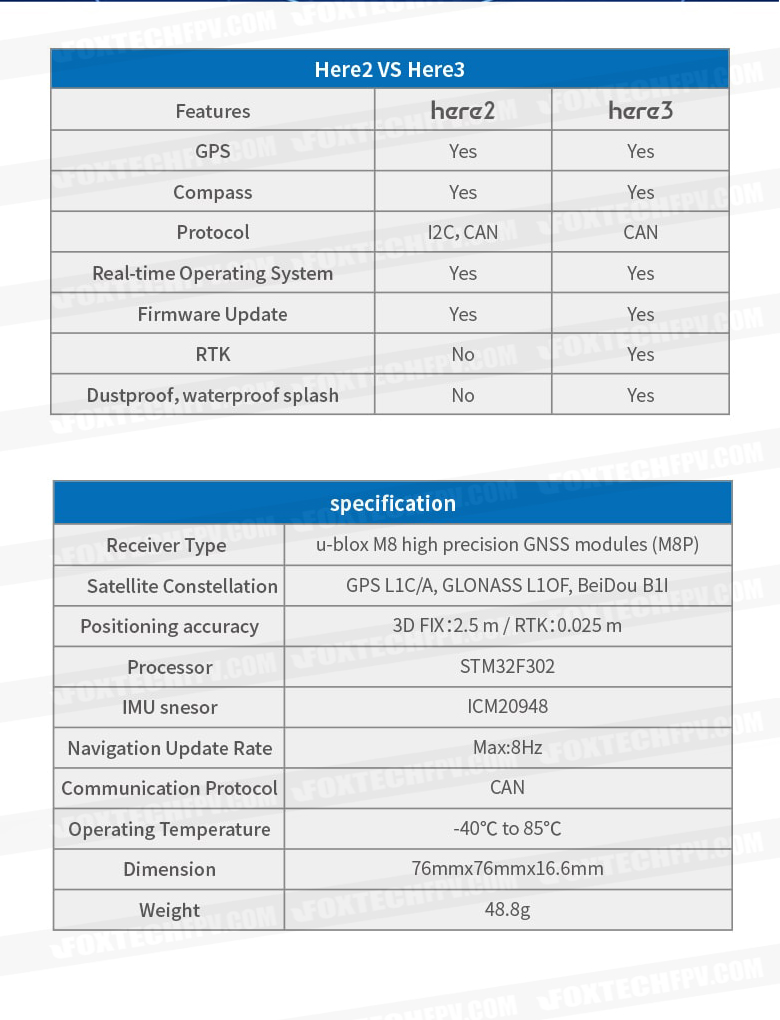

Here 2 GPS module is a new version based on Here GNSS GPS unit. Compared with Here GNSS GPS unit, Here 2 GPS module features more accurate positioning, faster response, and colorful LED lights for visible indications of UAV status. Here 2 GPS Unit is compatible with Pixhawk 2.1 and most of the other open-source flight controllers.

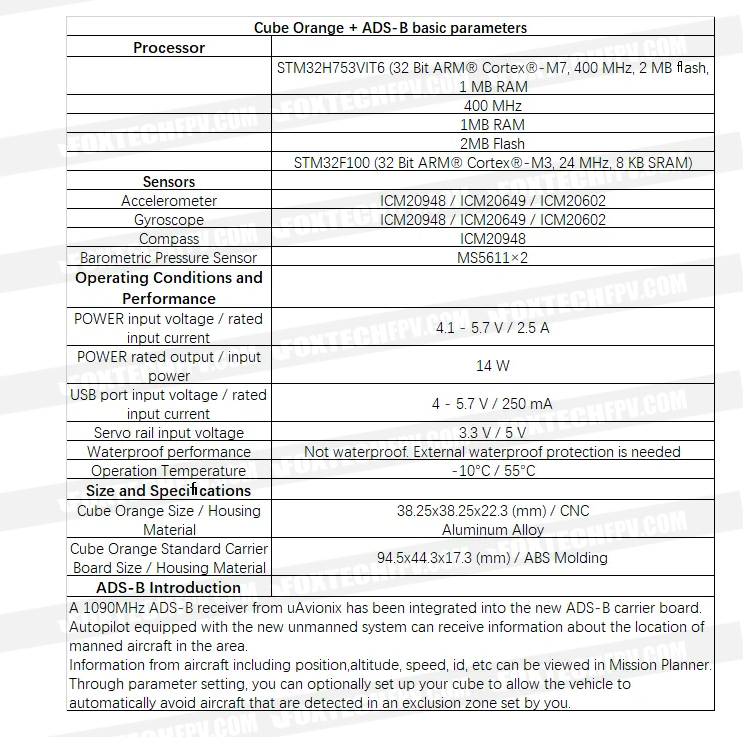

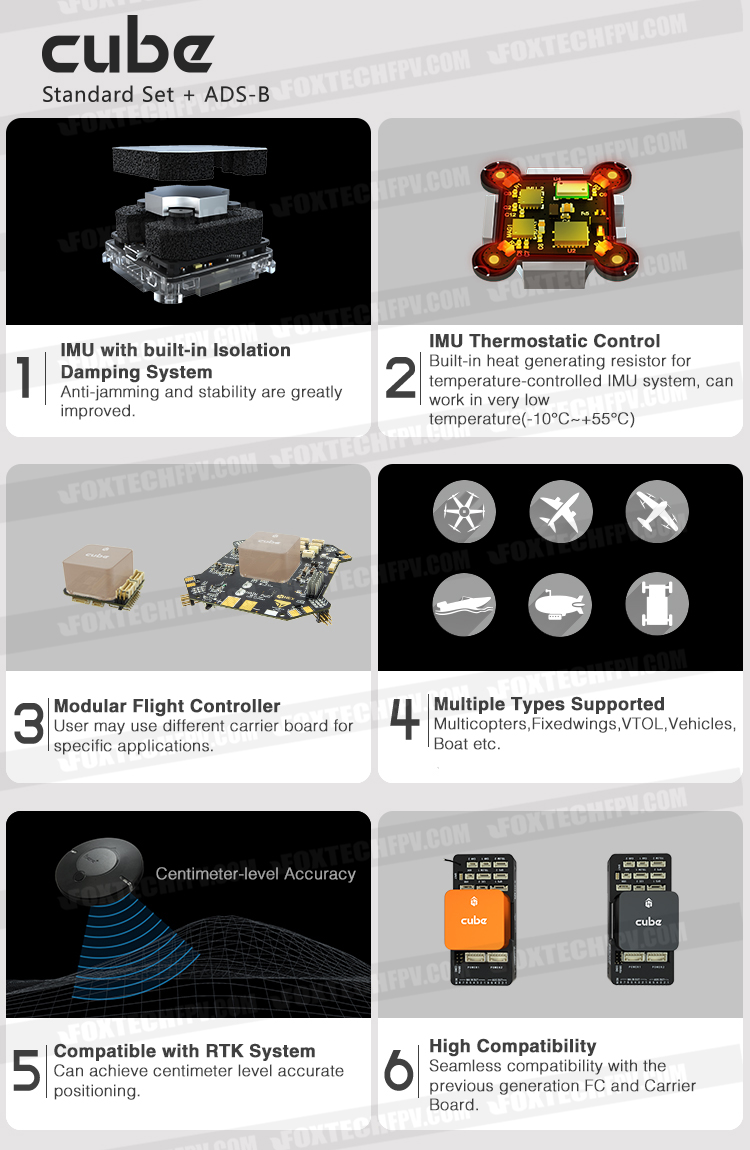

Cube Orange

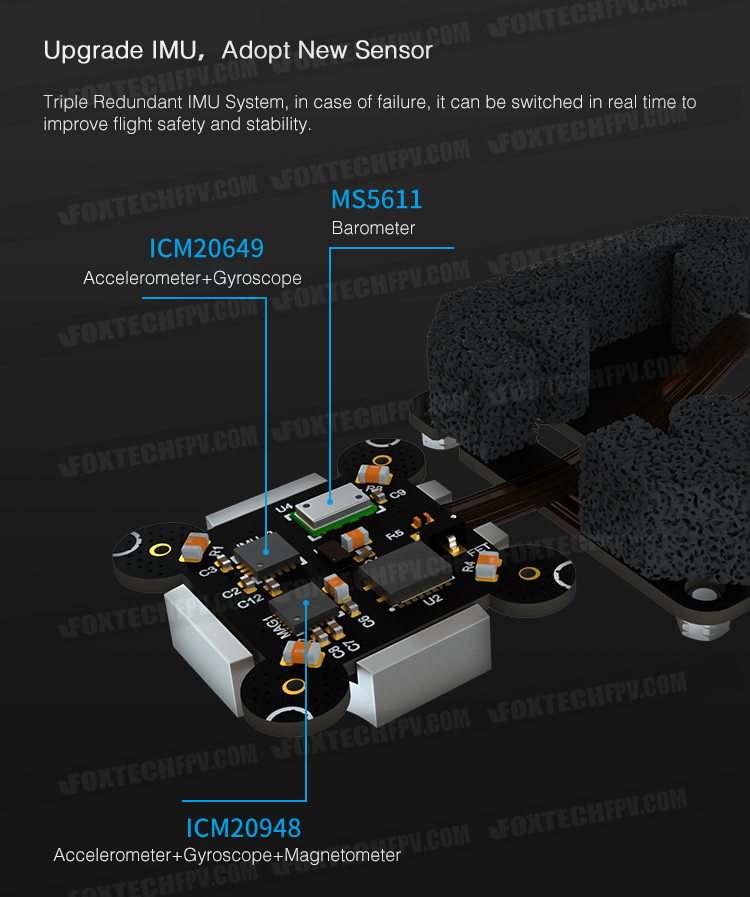

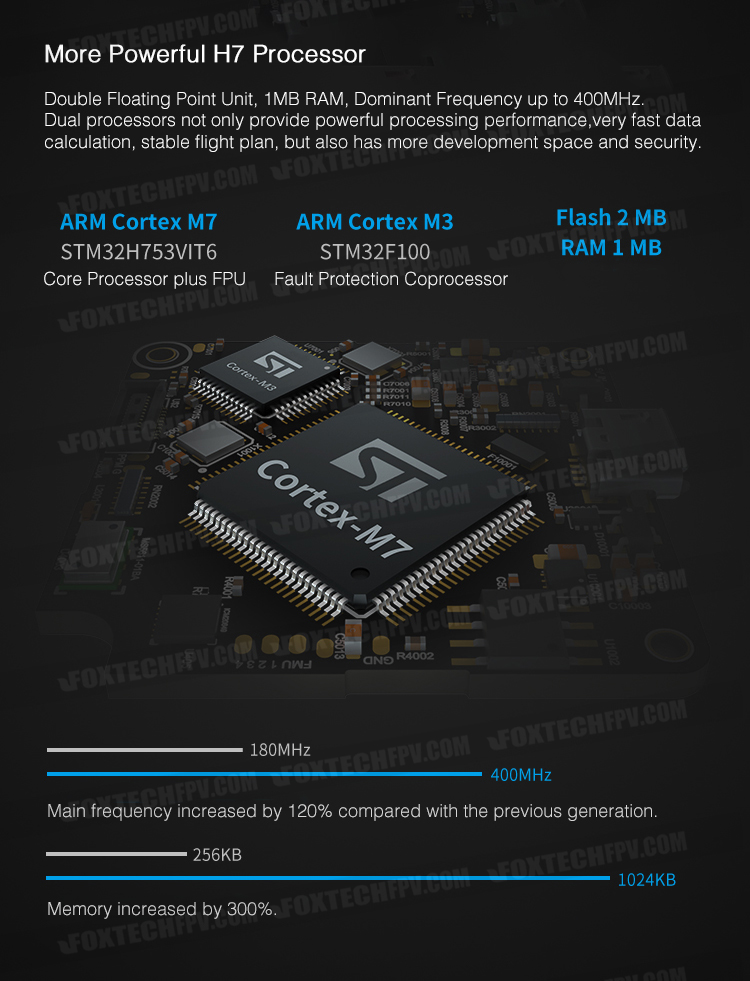

 -Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with built-in triple-redundant sensors, temperature control shock absorption IMU.
 -With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter, or multirotor and turn it into a more professional UAV platform.

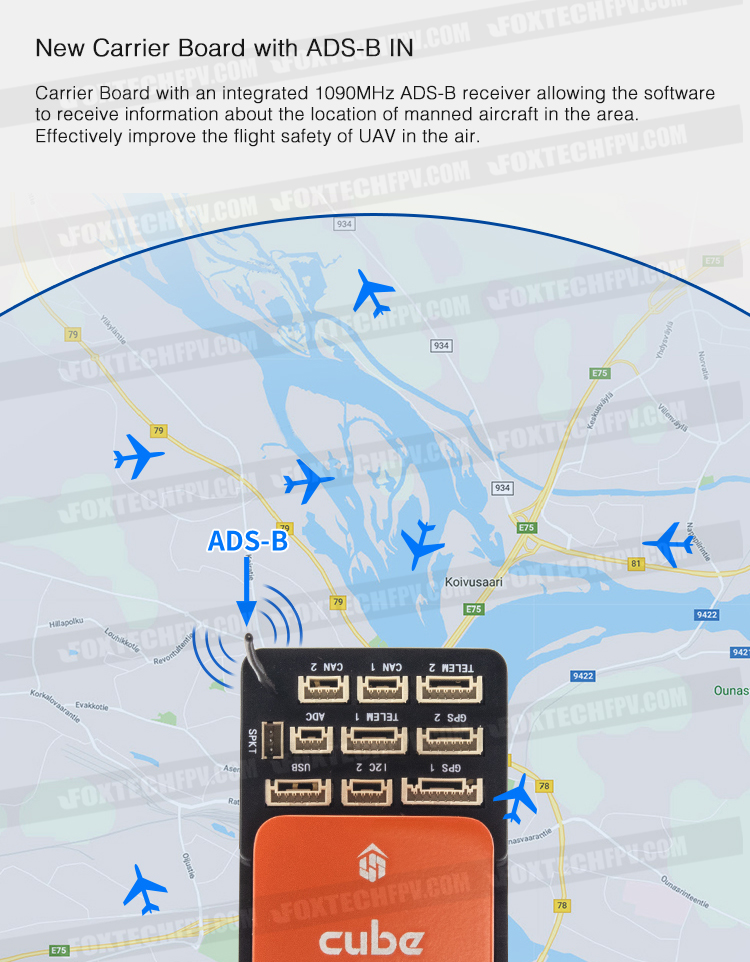

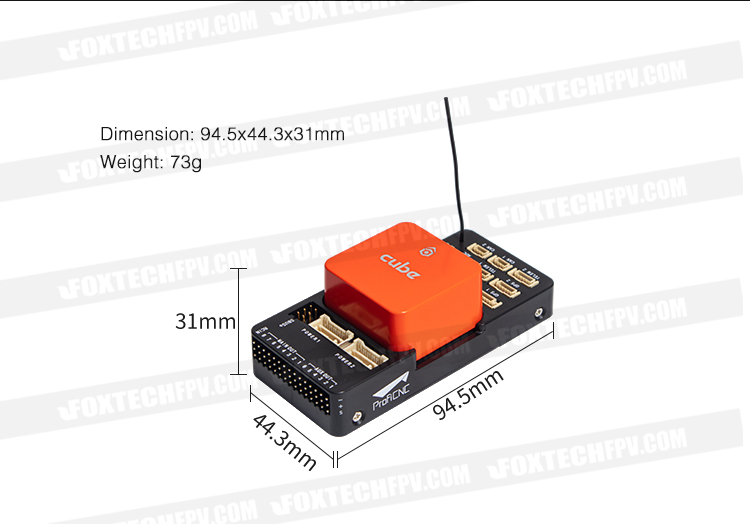

ADS-B Carrier Board
 -A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location of manned aircraft in the area.
 -Receives information such as position, altitude, speed, etc. which can all be viewed in Mission Planner.
 -Through settings, you can optionally set up your cube to allow the drone to automatically avoid aircraft that are within an exclusion zone.

Your Purchase Includes:

1x Cube Orange
1x ADS-B Carrier Board
1x Power Brick
1x Cable Set

1x Here 2 GNSS(M8N) GPS Unit
1x GPS1 Port Connector
