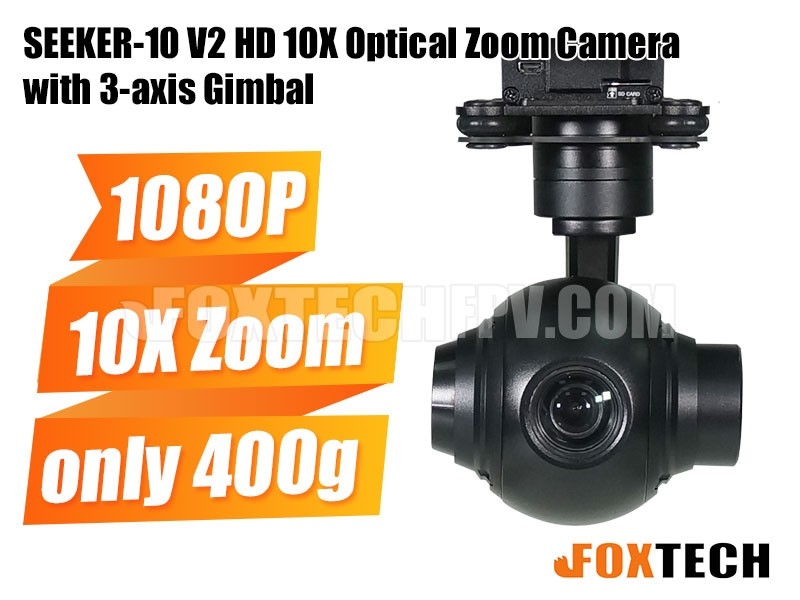

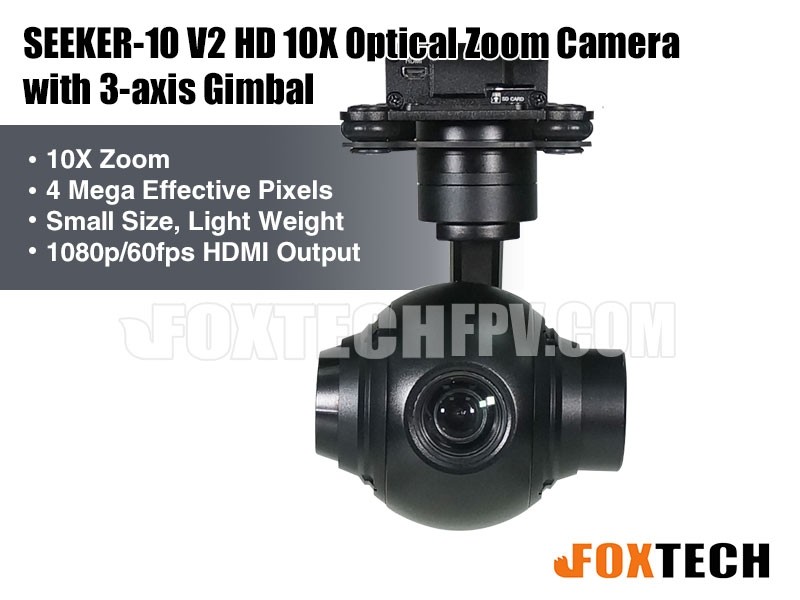

SEEKER-10 V2 10X Optical Zoom Camera has 4 mega effective pixels, supports 10X optical autofocus. It features small size, light weight and compact structure. The 10x zoom camera offers 1080p FULL HD 30fps video recording onboard(H.264) and 1080p 60fps HDMI output for HD video transmission back to the ground. SEEKER-10 V2 supports max 32G SD card.
SEEKER-10 V2 gimbal supports both PWM control and serial command control, suitable for close range remote control or remote data command control.
Specification:
Imager Sensor: 1/3" Exmor CMOS
Video Output:1080P/60fps HDMI
Video Record: 1080P/30 MOV
Focal Length: 10X optical focal zoom,4.9-49mm
Aperture: Φ12.0
Auto focus: Less than 1s
Wide Dynamic: Up to 105dB
SD card: support Max 32G,class 10, FAT32 format
Gimbal System:
Input voltage: 3S-4S
Static current: 240mA(@12v)
Dynamic current: 320mA(@12V)
Working Temperature: -10℃ ~ +50 ℃
Range of control angle:
Pitch:±90° Roll:±45° Yaw:±150°
Control Precision:
Pitch & Roll: ±0.02°Yaw: ±0.03°
Size:105x91x98mm
Weight: 400g
Control interface: PWM and serial command
Your Purchase Includes:
1x SEEKER-10 V2 10X Optical Zoom Camera with 3-axis Gimbal
