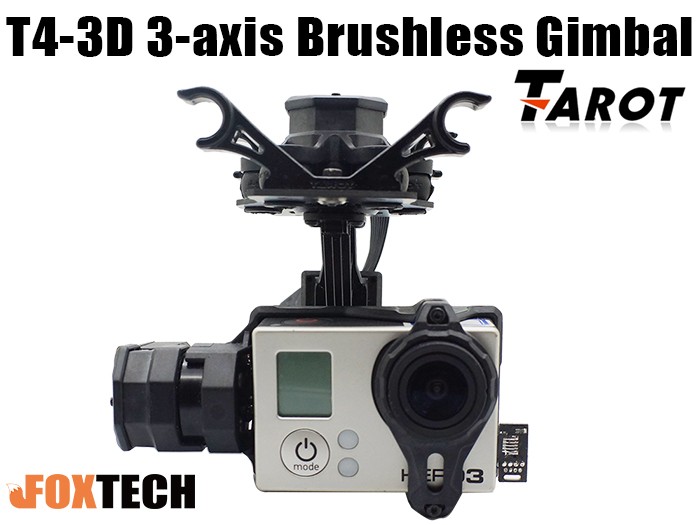

Tarot T4-3D 3-Axis Brushless Gimbal For Gopro Hero3/Hero4(TL3D01)

SKU: 002078

Availability: In stock ( 4 )

Weight:360g

Regular Price: $144.83

Special Price $105.49

save  27.16%

Reward points Earn you 106 reward points.

Qty:
The Tarot T4-3D is a 3-axis self-stabilized gimbal which is designed for: GOPRO HERO3, HERO4 and cameras of the same size. The structure integrates aluminium alloy and engineered plastics to create a lite-weight and high-stability gimbal. The Tarot T4-3D is able to stay stable even in extremely severe environment, so it's the best choice for professional video and aerial photography enthusiasts. Using advanced gimbal control technology, the Tarot T4-3D is equipped with independent IMU module. It supports point follow mode (PF) and first person view (FPV) mode. All the power supply and signal wires are embedded in the gimbal. The innovative mechanical structure allows the operating speed controllable. The stick movement is corresponding to axis speed. The bigger movement is, the faster axis speed will be.

Features:

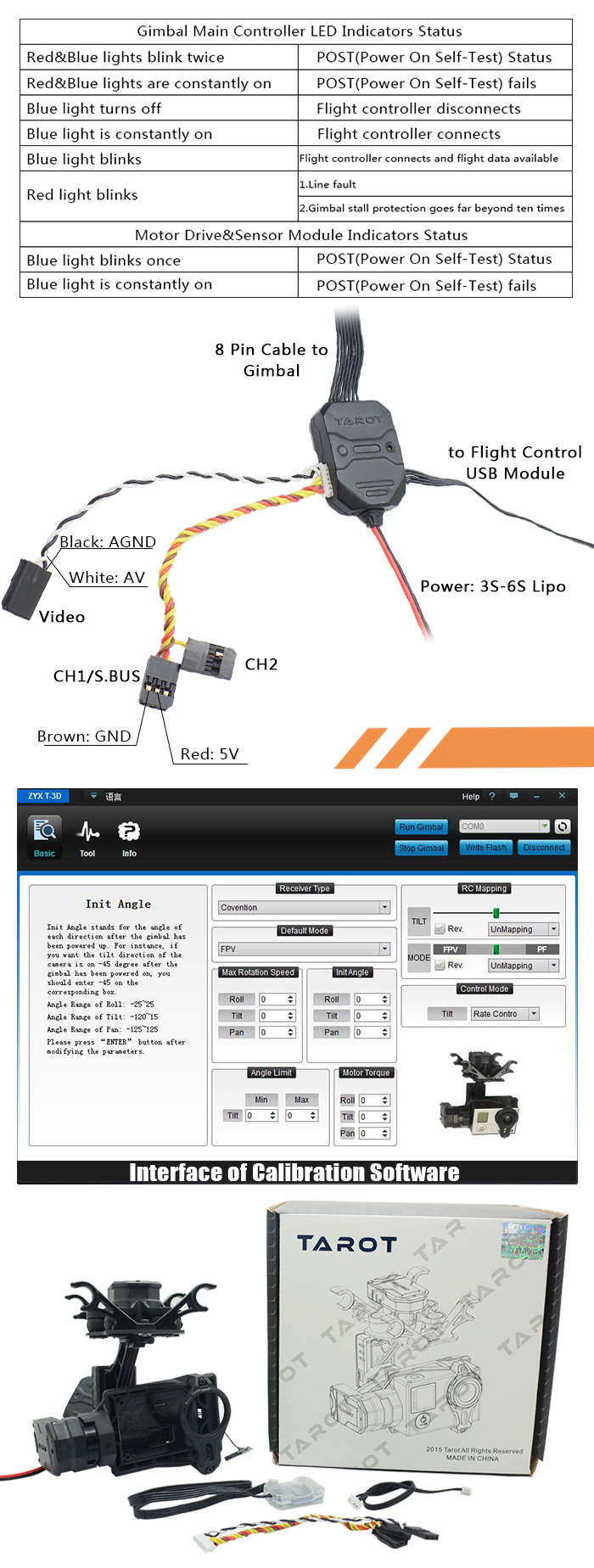

- PC interface supported
- 2 Modes supported: PF and FPV
- Built-in independent IMU modules
- TAROT dedicated gimbal servo module
- AV output
- Wide range input voltage supported
- Conventional receiver/S-Bus receiver/DSM receiver supported
- Cameras supported: GOPRO HERO3/HERO4/other similar cameras
- Input Power: 2S-6S LiPo battery

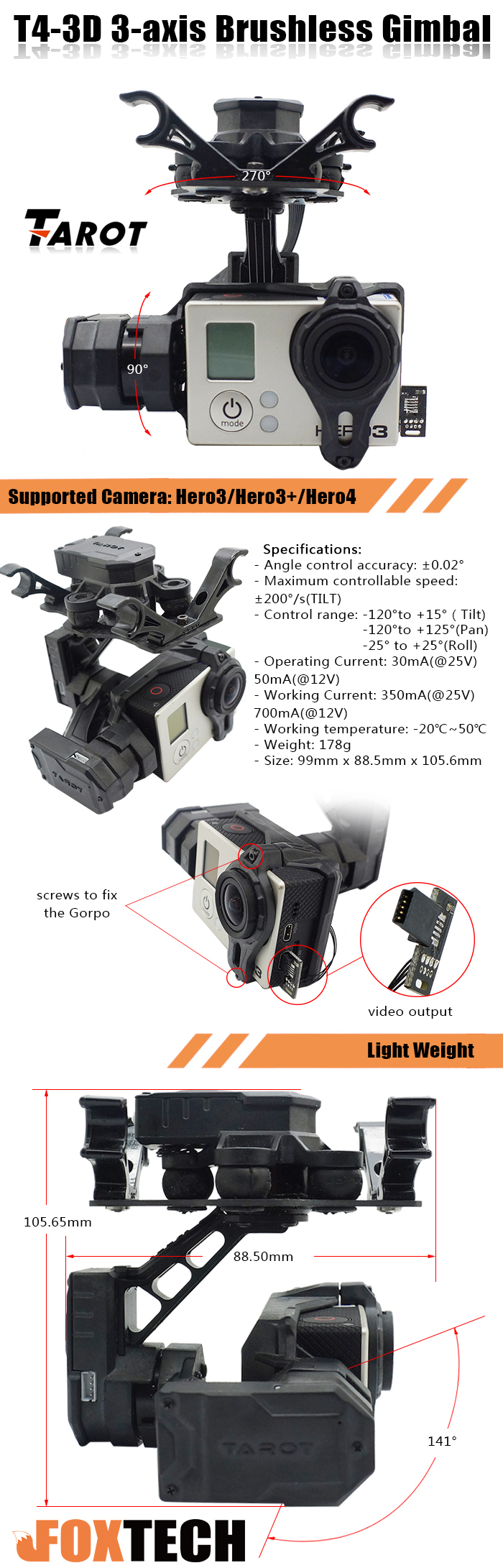

Specifications:
- Angle control accuracy: ±0.02°
- Maximum controllable speed: ±200°/s(Tilt)
- Control range: -120°to +15°(Tilt)
                        -120°to +125°(Pan)
                        -25° to +25°(Roll)
- Operating current: 30mA(@25V) 50mA(@12V)
- Working current: 350mA(@25V) 700mA(@12V)
- Working temperature: -20℃~50℃
- Weight: 178g
- Size: 99mm x 88.5mm x 105.6mm
- Software-adjustment Installation Requirement: Windows XP/Windows VISTA/Windows 7/Windows 8(32 or 64 bit)

Your purchase includes:
- 1*Three-axis brushless gimbal
- 1*Gimbal control module
- 1*Gimbal control cable
- 1*5V output, receiver and video cable
- 1*USB module
- 1*Flight control cable
