Pixhawk Cube Orange Standard Set

SKU: C1910233

Availability: Out of stock



Reward points Earn your 669 reward points.

This is a new Pixhawk flight controller set including orange cube and the ADS-B carrier board.This open source autopilot adopting more powerful H7 processor, featuring triple redundancy IMU system and vibration dampening system.The anti-jamming performance and stability are greatly improved. Carrier Board with an integrated 1090MHz ADS-B receiver, allowing the software to receive information about the location of manned aircraft in the area, that effectively improve the flight safety of UAV.


Main components in this combo:

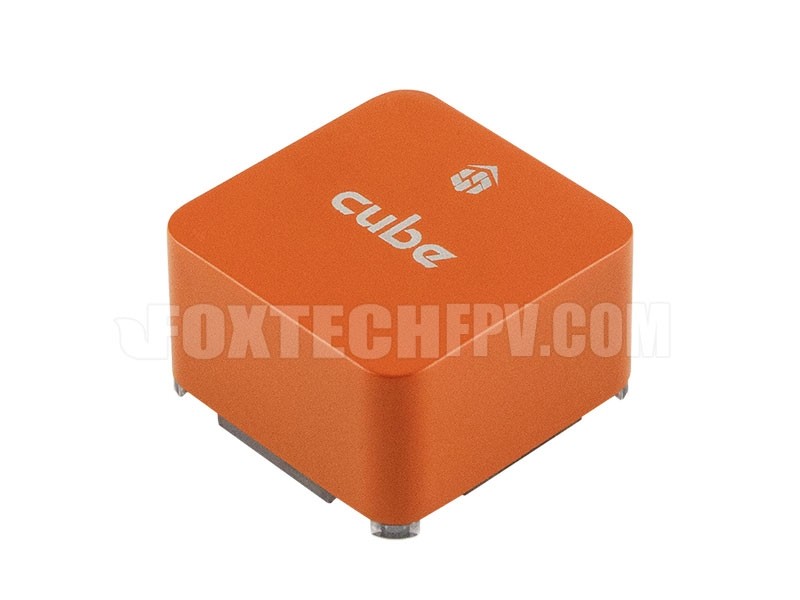

Cube Orange:
 -Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with built-in triple redundant sensors, temperature control shock absorption IMU.
 -With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter or multirotor and turn it into a more professional UAV platform.

ADS-B Carrier Board:
 -A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location of manned aircraft in the area.
 -Receives information such as position, altitude, speed, etc. which can all be viewed in Mission Planner.
 -Through settings, you can optionally set up your cube to allow the drone to automatically avoid aircraft that are within an exclusion zone.

General Pixhawk 2.1 Cube Key Features:
-Built-in IMU Heating system, allowing flights at extreme temperature(-10°C~+55°C)
-Robust DF17 Interface connectors give enhanced drop and shock resistance.
-Aircraft: VTOL, Multicopter, Helicopter, Plane, General Robotics

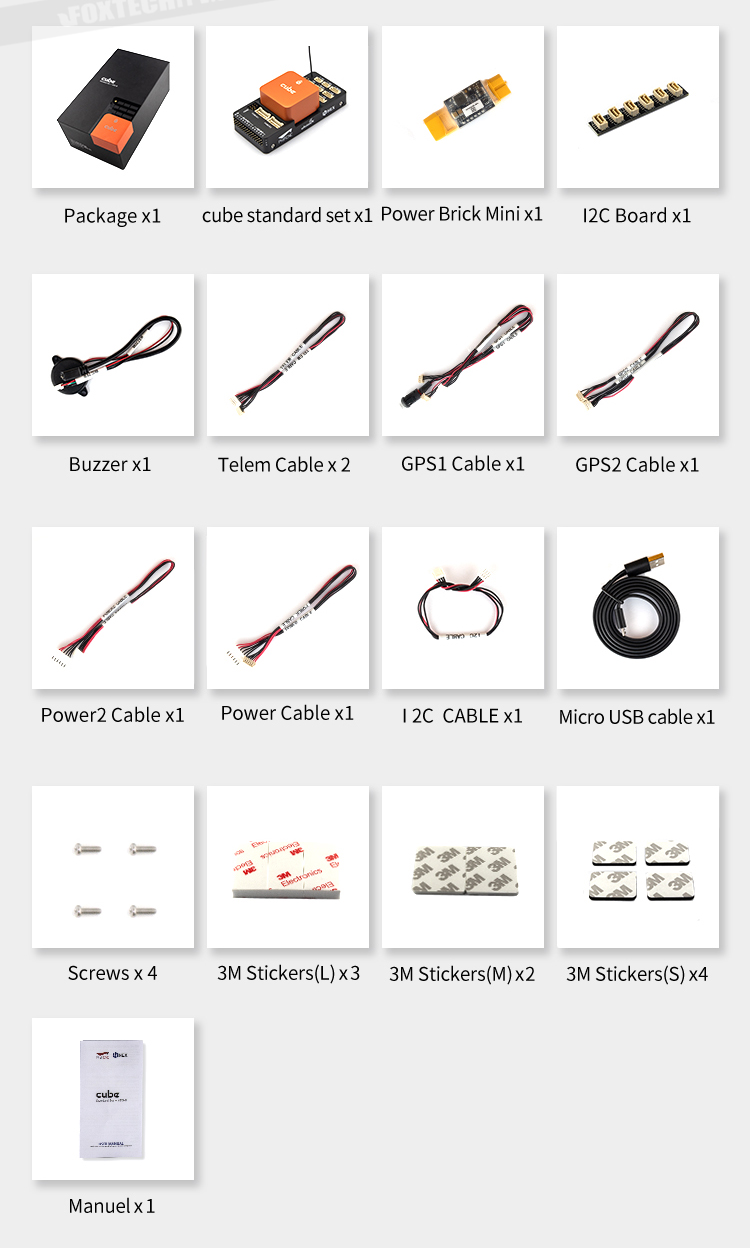

Your Purchase Includes:

1x The Cube Orange
1x A standard carrier board with ADS-B
1x Power Brick
1x Cable set
