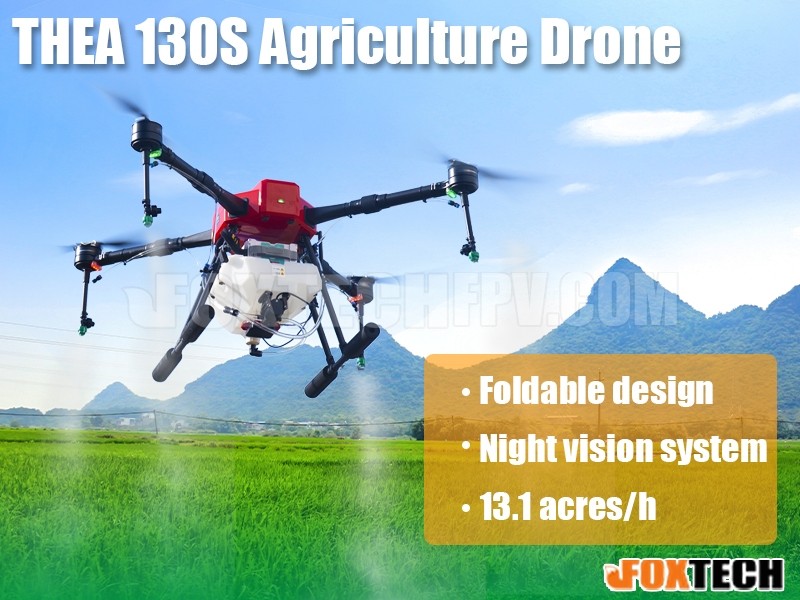

THEA 130S is a cost-effective agricultural spraying hexacopter, featuring high temperature resistance, corrosion resistance, stable and reliable operation. It is equipped with a 10L pesticide tank, and the operation efficiency is about 13.1 acres/h in plain areas, and 6.5 acres/h in mountains. THEA 130S can be applied in variety of environments and terrains, like fields, crops, forests and orchards.

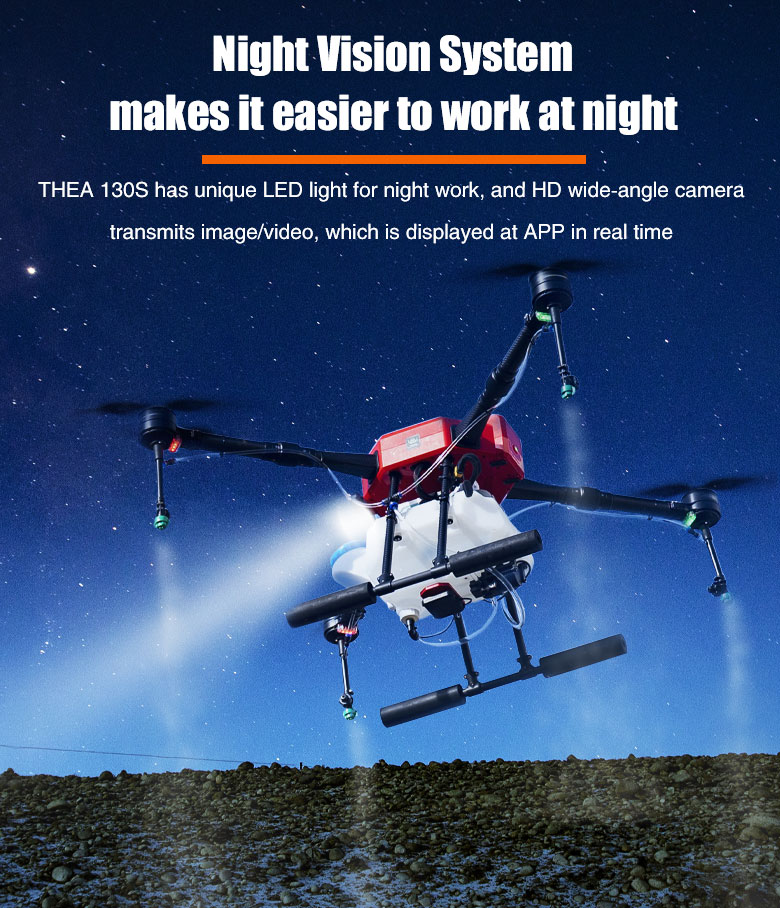

The foldable design saves more space and makes it convenient for transportation. THEA 130S also can work easier at night thanks to unique LED light. HD wide-angle camera can transmit videos, which are displayed at APP in real time.
THEA 130S works more efficiently and safely equipped with PALADIN flight controller set, which can realize the functions like autonomous operation, one-key takeoff and landing, terrain following and fixed height flight. THEA 130S also supports GPS, GLONASS and Beidou satellite navigation mechanism, greatly improving the reliability. The battery power and dosage of pesticide can be monitored in real-time. The microwave radar module provides high-precision altitude information, so that THEA130S will fly above the crops at a constant spraying distance to ensure uniformity of the pesticide spraying.
Features:
1. Automatic spraying in AB point mode
2. Support breakpoint and continuous spraying
3. support no pesticide and low voltage automatic return
4. GPS hovering, simple operation
5. Microwave fixed-height radar, support terrain following flight
6. Android mobile phone ground station, easy to use
7. PC ground station, full voice broadcast
8. Real-time data display, monitor flight status
9. Support route planning, automatic flight operation
10. Support one-key takeoff and landing, greatly improve safety
11. Real-time monitor the battery power
12. Support to set obstacle points, plan routes to avoid obstacle areas
Specification:
Wheelbase: 1300mm
Dimensions: 1030x1030x530mm (without propeller)
Folded dimensions: 580x580x530mm
Tank volume: 10L
Max. take-off weight: 24KG
Max. load: 10KG
Flight speed: 3-10m/s
Peak altitude: 35M
Hovering accuracy: ±0.8M horizontal/±0.5M vertical
Hover accuracy: ±0.8M horizontal/±0.5M vertical
No-load hovering time: 18-23min
Full-load hovering time: 10-13min
Flight mode: Manual mode/Task mode/GPS mode
Working temperature: 0-50℃
Spray boom length: 1.80m
Spray width: 3-6m
Spray efficiency: 13.1 acres/h (plain), 6.5 acres/h (mountain)
Working altitude: 2-5m
Spray flow: max. 5L/min
Your Purchase Includes:
1x THEA 130S Agriculture Drone
1x 10L Pesticide Tank
4x Sprinkler
4x X8 100KV 3090
2x 30inch Folding Propeller

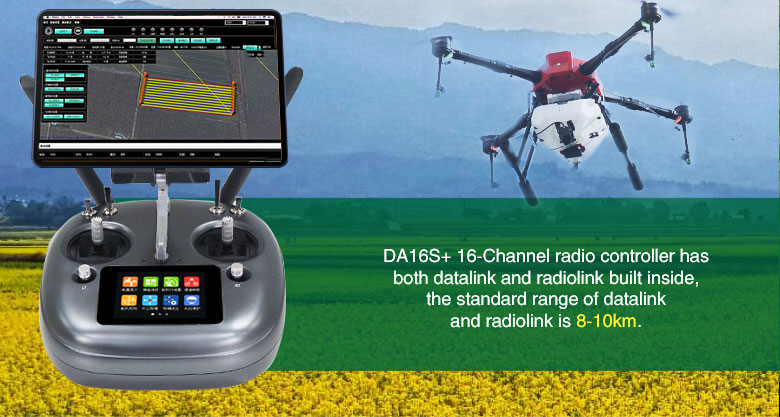

1x DA16S+ Remote Controller
1x Flight Controller with GPS module, power module, microwave radar for fixed height, liquid level sensor
1x Packing Box
Options:
Obstacle Avoidance Radar
12S Smart Battery Module
Two-channel Smart Battery Charger
Ground Control Software Manual
