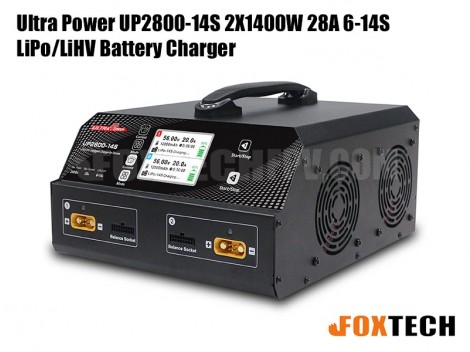

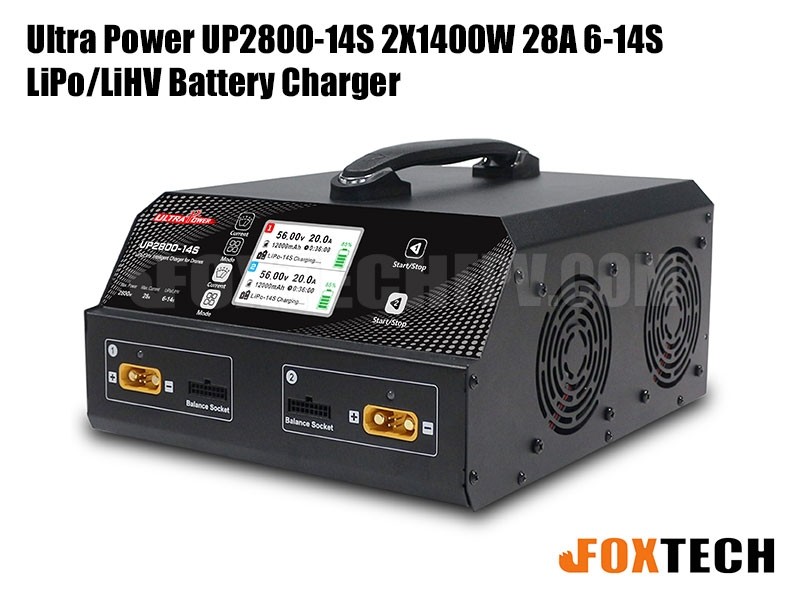

UP2800-14S is specifically designed for dual channels LiPo/LiHV charger of big drones, it can charge & storage 2pcs of 6-14S LiPo/LiHV battery packs simultaneously. The UP2800-14S supports both 220 V discharge and 110 V discharge with different power.
Features:
1. Support charging 2 pcs of 6-14S LiPo/LiHV Battery
2. Charging current is adjustable: 10A/15A/20A/25A/28A
3. Two working modes: Balance charge mode, Storage mode
4. Memorizing last charging current
5. Multiple protection function: over-voltage, over-current, reverse polarity, and over-temperature protection
Specifications:
Dimensions: 303*262*140 mm
Weight: 6.5 KG
Input voltage: AC 220 V/AC 110 V
Charge power:
AC 220V: 2800 W (1400 W*2)
AC 110V: 1200 W(600 W*2)
Discharge power: 140 W(70 W*2)
Charge current range: 10 A/15 A/20 A/25 A/28 A
Balance current: 1.5 A/cell
Battery type: LiPo/LiHV
Battery cell count: 6-14S
Working mode: Charge mode/Storage mode

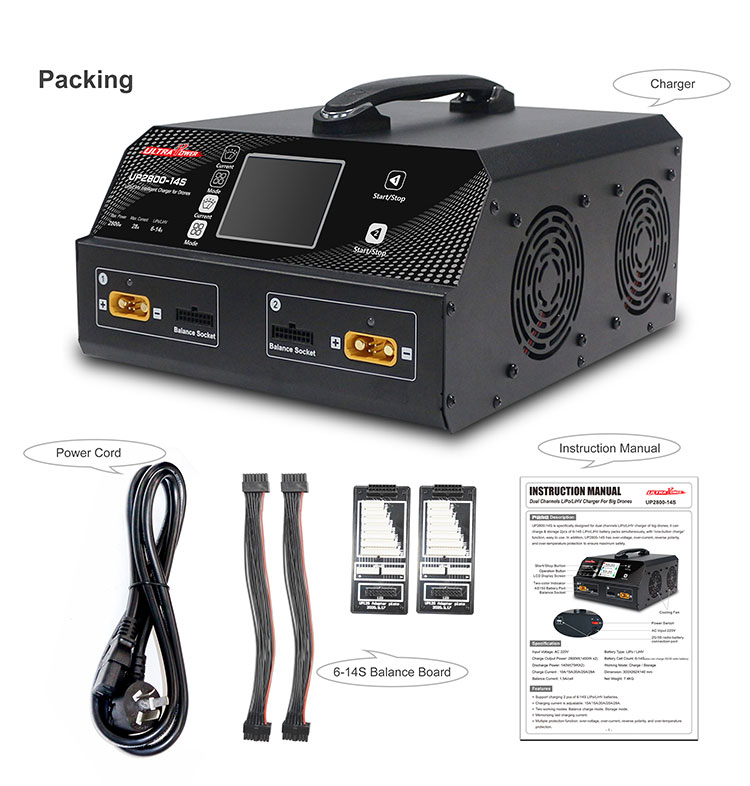

Your Purchase Includes:
1x Ultra Power UP2800-14S Charger
1xPower Cord
2x14S Adaptor Board
1xManual
