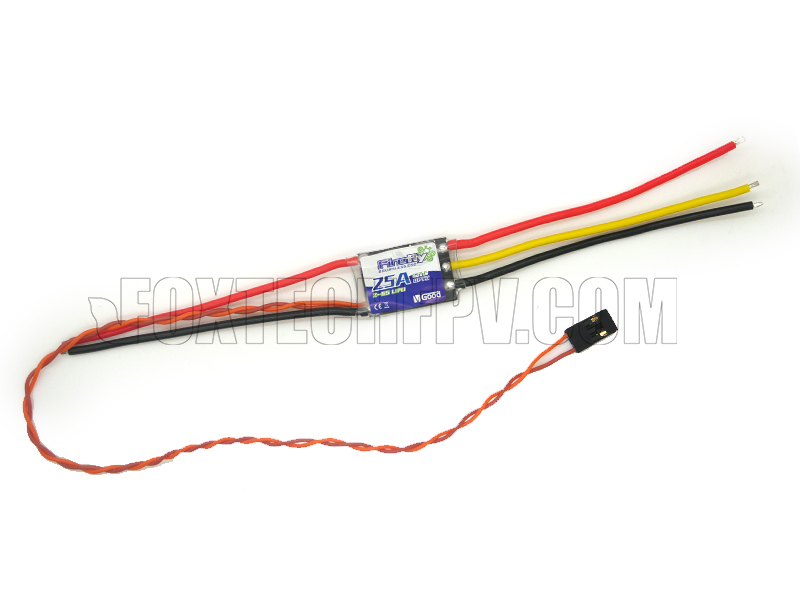

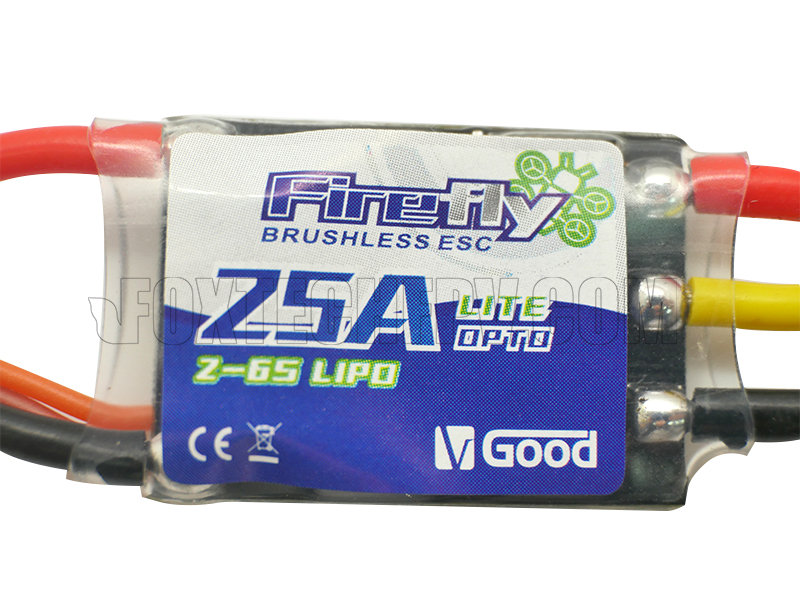

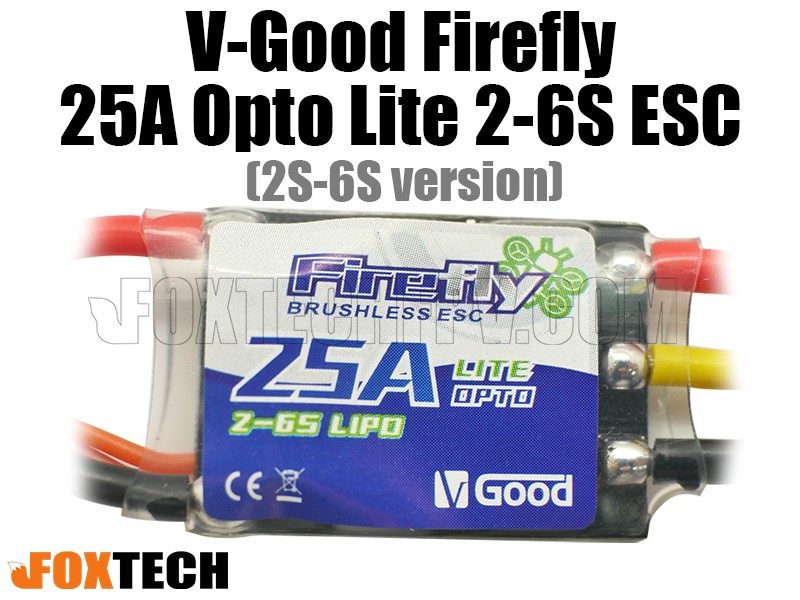

V-Good FireFly 25A Lite Opto 2-6S ESC

SKU: 605172

Availability: In stock ( 5 )

Weight:50g

$15.99

Reward points Earn you 16 reward points.

Qty:

The V-Good FireFly 25A Opto Lite 2-6S ESC 32-bit Micro Processor for RC Quadcopter Drone Parts features fast throttle response, excellent linearity and no jump from 0-100% throttle. Small and light, it utilizes 32bit ARM chip and hardware PWM driver to ensure its high performance. And it adopts synchronous rectification technology for an increased working efficiency. With anti-blocking protection, the ESC will stop the rotating motor immediately to avoid damage when the motor or propeller is blocked, then the motor will automatically start to rotate again when no blocking is detected.

Features:
- Fast throttle response, excellent linearity
- No jump from 0-100% throttle
- Small and light, no external electronic capacitor

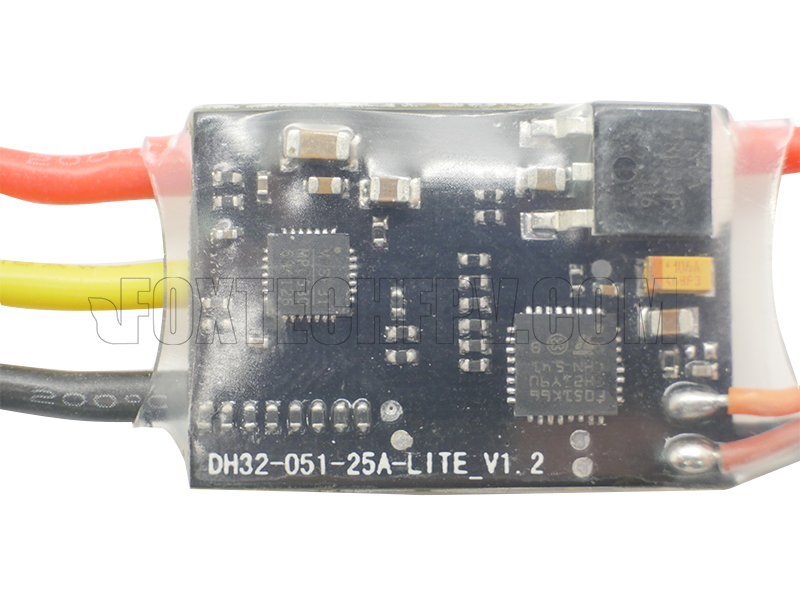

- STM32F051 48MHZ ARM 32-bit micro-processor, hardware PWM driver
- PMSM, gate driver IC
- Designed specifically for multirotors
- Adaptive timing, compatible with more motors
- Automatically detect remote control signal (PWM) 50-500Hz, One-Shot125 signal and One-Shot42
- Adopt synchronous rectification technology for an increased working efficiency
- Regenerative braking, active brake, motor deceleration response increased significantly
- Anti-blocking protection, the ESC will stop the rotating motor immediately to avoid damage when the motor or
propeller is blocked, then the motor will automatically start to rotate again when no blocking is detected

Specifications:
- Battery capacity: 2-6S LiPo
- Continuous Current: 25A
- Peak Current(10s):30A
- BEC:NO
- Weight(Include wire):12g
- Size(PCB): 27x19x8mm

Your purchase includes:
- 1*V-Good FireFly 25A Opto Lite 2-6S ESC
