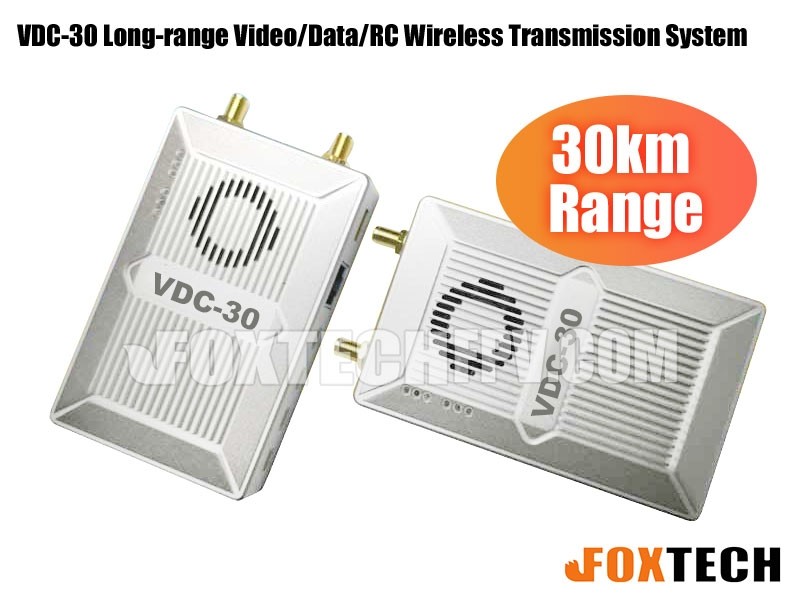

VDC-30 Long-range Video/Data/RC Wireless Transmission System

SKU: S200422

Availability: In stock

Weight:1g

$5,359.00

Reward points Earn your 5359 reward points.

$5,359.00
Qty:

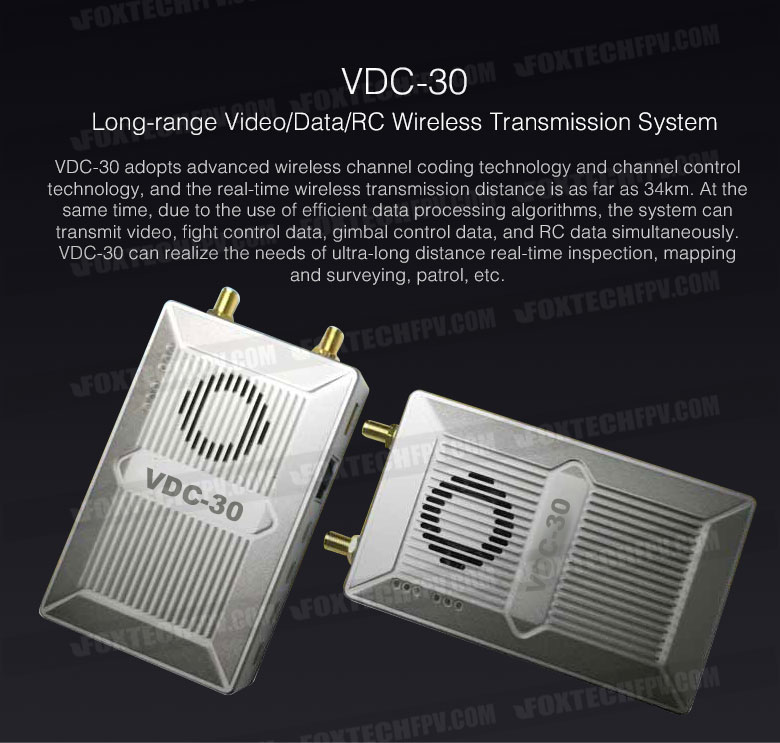

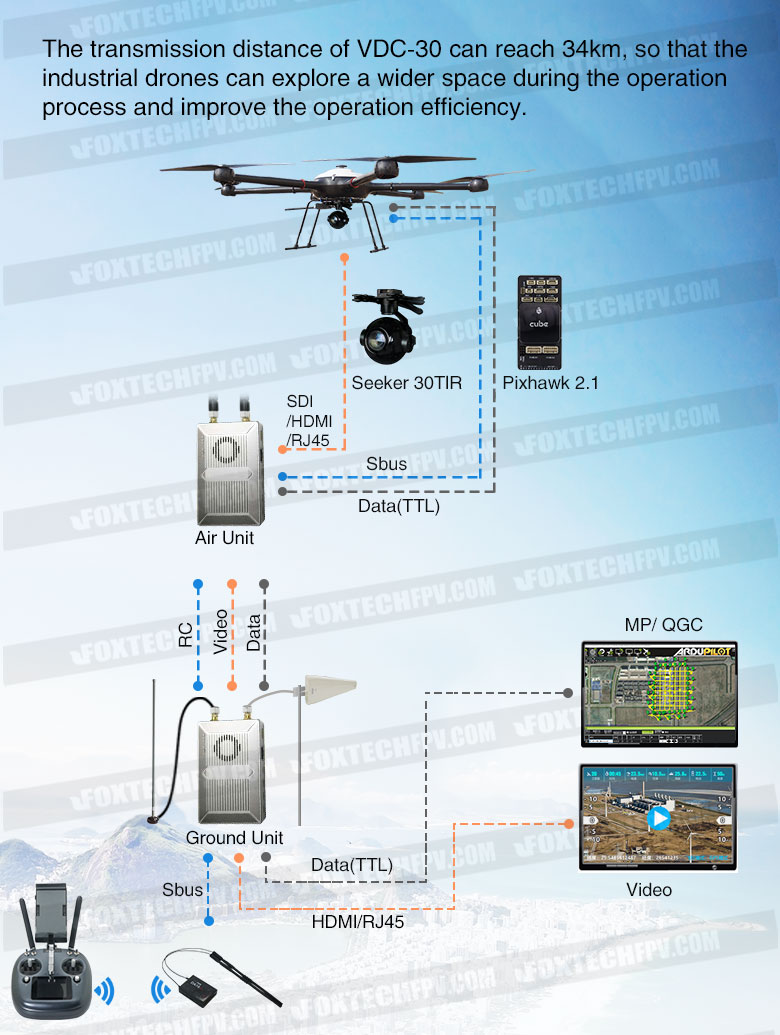

VDC-30, a long-range wireless transmission system, is designed for VTOL fixed wing and other long-range drones. The system can transmit video, fight control data, gimbal control data, and RC data simultaneously. With the advantage of high level intergration and powerful function, VDC-30 is a typical good product to meet long-range transmission requirements.

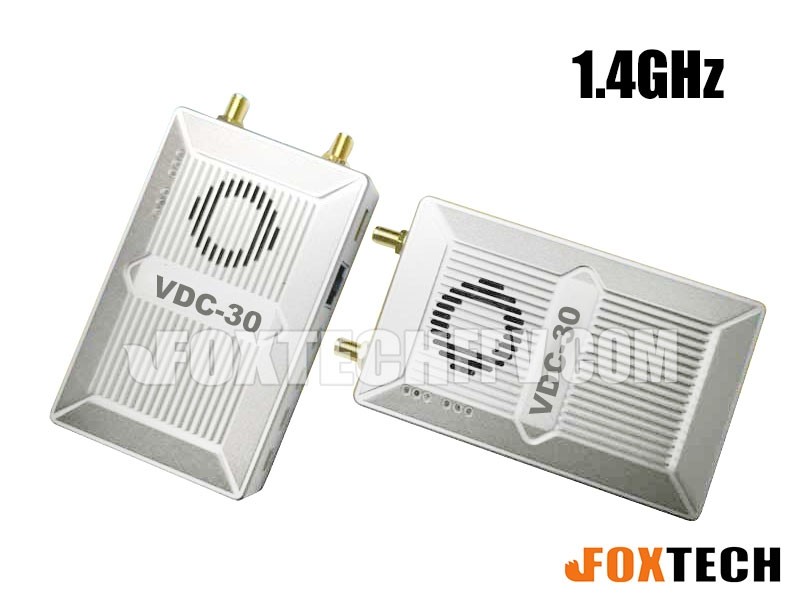

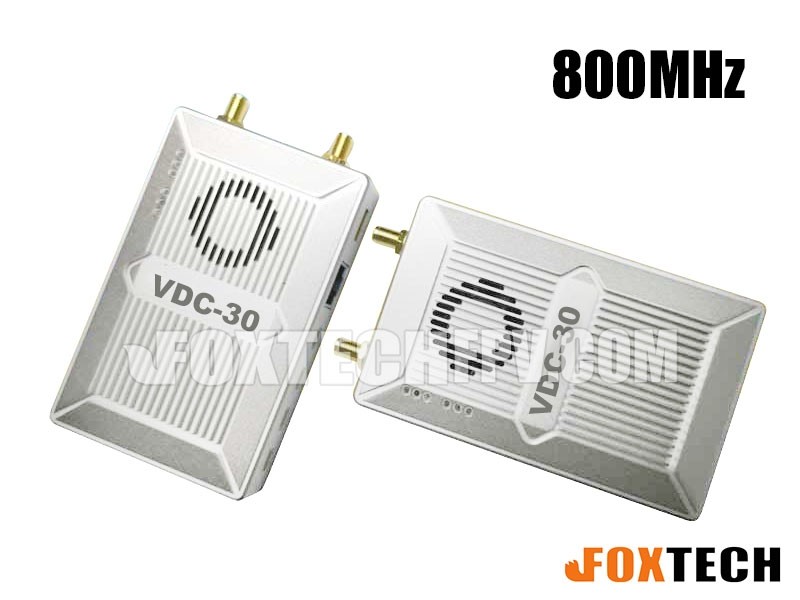

There are two frequency bands——800MHz and 1.4GHz. Users can choose according to your needs. Please choose the suitable frequency band according to local regulations.

The weight of VDC-30 is 143g, making it very suitable for long-range drones. With advanced radio frequency and encryption technology, VDC-30 can achieve long distance secure transmission. The maximum transmission distance of VDC-30 can reach 34km.

VDC-30 has a powerful data and video processing platform, users can call the VDC-30 SDK software interface through the host or embedded processing platform to achieve personalized needs. Users only need to pass simple parameters through the SDK to achieve the functions of gimbal control, speaking, throwing, etc



Specifications:

Size: 112x63.5x19mm

Weight: 143g

Frequency Band: 800MHz/1.4GHz

Transmission distance: Up to 34km

Modulation: OFDM

Video interface: Ethernet

Data interface: UART(TTL/RS232)/SBUS

Bandwidth: 3/5/10/20 MHz

Working mode: Air unit can be :Point to point mode

                                                    Repeater mode

Work temperature: 40℃~+70℃

Voltage: DC 9~28V

Battery: 3S~6S



Your Purchase Includes:

1x VDC-30 Long Range Transmitter

1x VDC-30 Long Range Receiver

2x 2Pin XT30 cable for Power

6x 3Pin cable for UART and SBUS

2x 4Pin cable for Ethernet

2x 7Pin cable for Ethernet and Power_Out

2x Antenna for air unit

2x Fiber-glass antenna for ground unit

Manual Download
