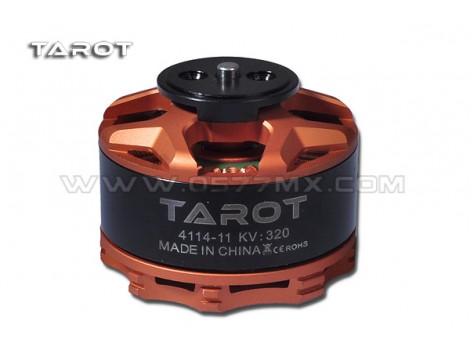

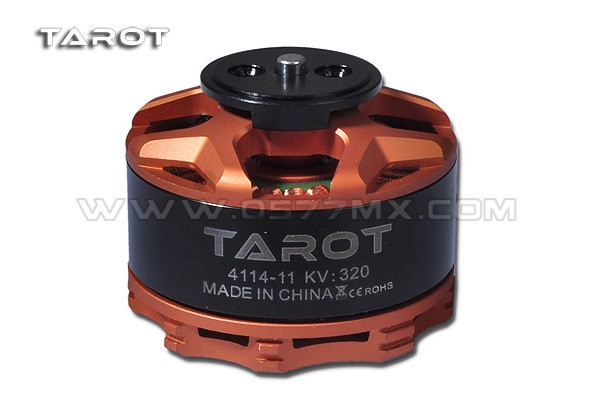

4114/320KV Brushless Motor

SKU: Q00011

Availability: In stock


  • Qty Price
  • 5 $44.09
  • 10 $42.74

Reward points Earn your 60 reward points.


Product Descriptions:
• 4114/320KV Brushless Motor is designed for multi-copter
• CNC processed, smooth surface and well-balanced
• Brand-new turbofan cover, which provide good heat dissipation effect
• Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. Motor shaft is alloy steel applied.
• Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.

• M2.5x6 stepped screw x3
• 4114-11KV320 x1

Product Parameters:
Motor peripheral diameter: 46.00mm
Stator diameter: 41.0 mm
Stator end thickness: 14.0 mm
Stator end: 24N
Motor number of poles: 22P
Diameter: 0.31mm
Per volt speed: 320 RPM/Volt
Of 22.2V empty annexed current: 0.5 Amps
Motor internal resistance: 126 mΩ
Motor Weight: 148 Grams
Gear shaft mounting diameter: ¢ 4.0 mm
Motor Length: 32.0 mm
Motor shaft total length: 37.0 mm

Customer Reviews

1 Item(s)

per page
very good product Review by Aurelian
I bought 4 of these great motors before one year.
They are powerful and I use them with 4s and 1755 carbon props on my extended wmc x-alien quad (to 870mm).
The motors lift the 2kgs very easy, they could lift twice that.
They have a high quality, but after one year some bearings could be exchanged.
But it's no problem: 1$ for a bearing is not expensive.

The price of these motors is extreme low on foxtech and definitely worth it.
(Posted on 5/30/2017)
