Product Descriptions:

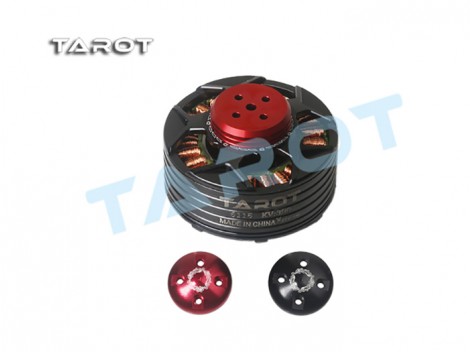

- 6115/320KV brushless self-locking left-hand thread motor is designed for TAROT X4 and other multicopters
- Bi-colored fairings to differentiate front and back rotors
- CNC processed, smooth surface, seamless and well-balanced
- Brand-new turbofan cover, which provides good heat dissipation effect
- Rotor and stator are made respectively out of high magnetic NdFeB ( neodymium iron boron ) and high-strength epoxy resin
- It develops the superiorities of Tarot brushless motor: long lifespan, high efficiency, low power consumption, low noise and perfect control stability
Parameters:
Motor diameter: 68.8mm
Stator diameter: 61.5mm
Stator thickness: 15.0mm
Configuration: 24N22P
KV: 320
ldle current: 2.0Amps
Motor internal resistance: 126mΩ
Motor weight: 312Grams
Motor length: 45.5mm
Motor shaft length: 36.0mm
Motor mounting hole spacing: 32mm
Specifications:
6115 Self-locking multicopter motor x1(68.7×58.5MM) 315g
Self-locking cover x1(31.5×8MM) 8g
Black fairing x1(25×12.5MM) 6g
Red fairing x1(25×12.5MM) 6g
