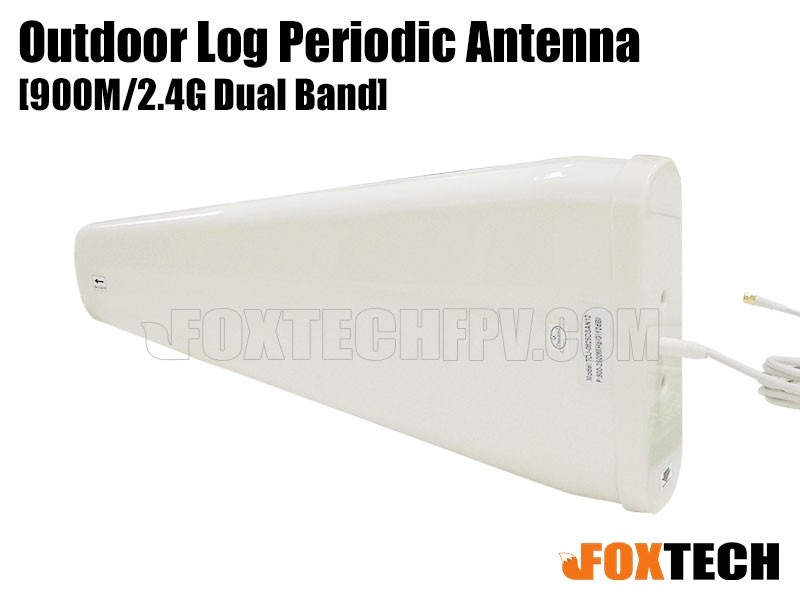

900M/2.4G Directional Dual Band 12dbi Outdoor Log Periodic Antenna

SKU: S71107

Availability: In stock

Weight:1g

$19.99

Reward points Earn you 20 reward points.

$19.99
Qty:

This antenna is a high performance wide band log periodic antenna designed to operate continuously from 800-960M &1.71G-2.5G. This Wideband design eliminates the need to purchase different antennas for each frequency. The broadband characteristics of the antenna enable it to operate over a very wide frequency range. This antenna features 12dBi of gain and a 50 degree vertical beam width.



Specifications:

Gain: 12dBi
Horizontal Beamwidth: 65°/50°
Vertical Beamwidth: 50°/40°
F/B Ratio: ≥18
VSWR: ≦1.5
Nominal Impedance: 50Ω
Polarization: Vertical
Maximum Power: 100W

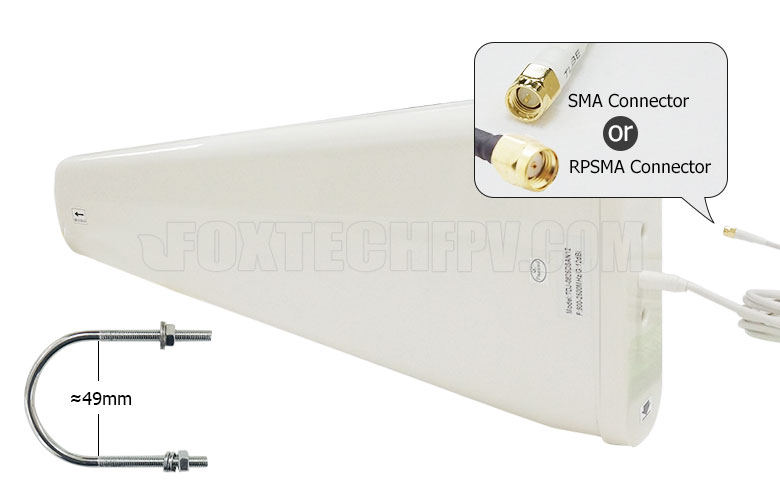

Connector: SMA/RPSMA
Cable length: 3.5m
Weight: 965g
Size: 45x21x6.5cm

Features:

-800-960M/1.71-2.5G dual band
-Broadband, low VSWR
-Sealed radome for all weather operation
-Supplied with mast down-tilt bracket
-Good defense ability
-Impact resistance, waterproofing, anticorrosion, etc

Your Purchase Includes:

1x Antenna
1x Pack of installation accessories
