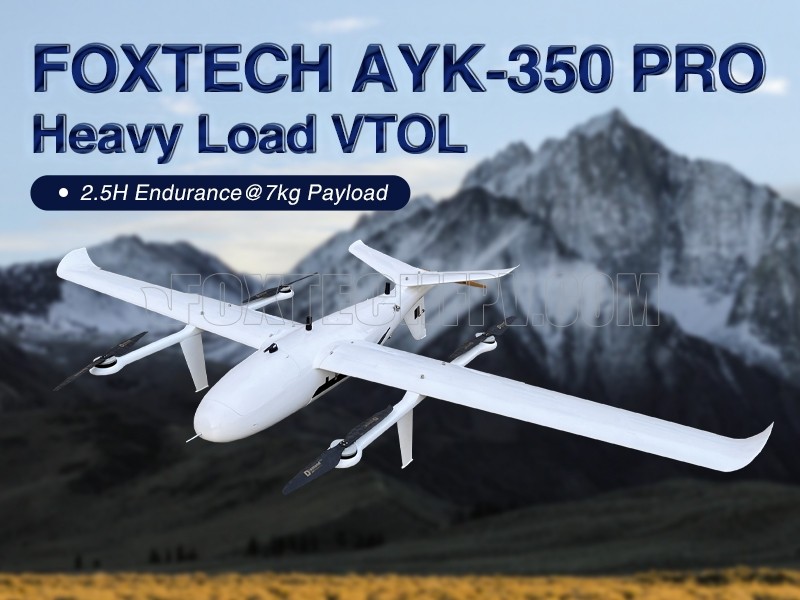

AYK-350 PRO is a heavy load VTOL adopting ESC telemetry technology, redundant airspeed measurement system and dual GPS differential design, which can realize 2.5H endurance with 7kg payload and can be used for cargo delivery, inspection and mapping.
-ESC Telemetry & Servo Data Analysis
Real-time monitoring of the motor and ESC working status, including the temperature of ESC, the voltage, current, and RPM of the motors to ensure flight safety;
Support Servo Current/Voltage/Position Analysis. Adopting notch filtering technology, filter out shakes and noises to ensure the best effect of PID tuning.
-Redundant Airspeed Measurement System
Adopting the latest DLVR air speedometer and SKYE intelligent airspeed sensor, which features high precision and low-temperature drift. The integrated heating system can automatically heat according to the ambient temperature and humidity, avoiding data errors caused by pitot tube freezing, and greatly improving the aircraft's reliability.
-Dual GPS Differential Design
AYK-350 Pro has three reserved GPS positions, so it can be equipped with dual GPS (DGPS) to improve positioning accuracy, anti-interference ability and flight stability;
No need for compass calibration.

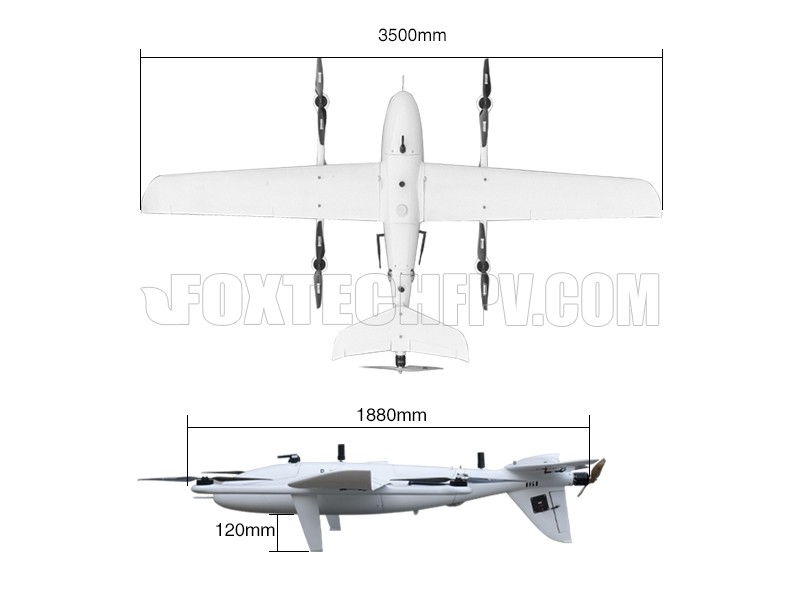

-Advanced Aerodynamic & Quick-mount Design
The tail wing upturned angle design greatly reduces resistance during the flight and ensures a large climb and descent angle.
The whole body of AYK-350 VTOL adopts quick-mount design, including the wings, arms and tail part, ensuring a short assembly time and small packing size.
-Manned/Unmanned Cargo Pickup
ModeⅠ(Unmanned): A. with the pre-set program, AYK-350 PRO will carry the package to the destination; B. drop the package after descending to the desirable height; C. return.
ModeⅡ(Unmanned): A. carry the package to the destination; B. land and disarm; C. drop the cargo; D. automatically take off after 10s (the time can be set).
Your Purchase Includes:
Dual GPS Combo:
1x AYK-350 PRO VTOL
1x High Efficiency Tail Motor
1x Tail ESC
1x 24 inch Propeller for Tail Motor
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 26 inch Propellers for VTOL Mode
2x UBEC
2x Power Monitor Module
1x Pixhawk Cube Orange Standard Set (or CUAV X7+ Pro Flight Controller)
2x C-RTK 9Ps High Precision Positioning Module Pixhawk Sky End
1x CUAV SKYE Airspeed Sensor
1x DLVR Airspeed Sensor
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service
Cargo Delivery Combo:
1x AYK-350 PRO VTOL
1x Cargo Delivery Cabin
1x High Efficiency Tail Motor
1x Tail ESC
1x 24 inch Propeller for Tail Motor
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 26 inch Propellers for VTOL Mode
2x UBEC
2x Power Monitor Module
1x Pixhawk Cube Orange Standard Set (or CUAV X7 Pro Flight Controller)
2x C-RTK 9Ps High Precision Positioning Module Pixhawk Sky End
1x CUAV SKYE Airspeed Sensor
1x DLVR Airspeed Sensor
1x DA16S+ Radio Controller
1x 100m Single Point Lidar
1x Carrying Case
1x Assembling, tuned and Flying Test Service
Option:
6S 25000 Lipo Battery
