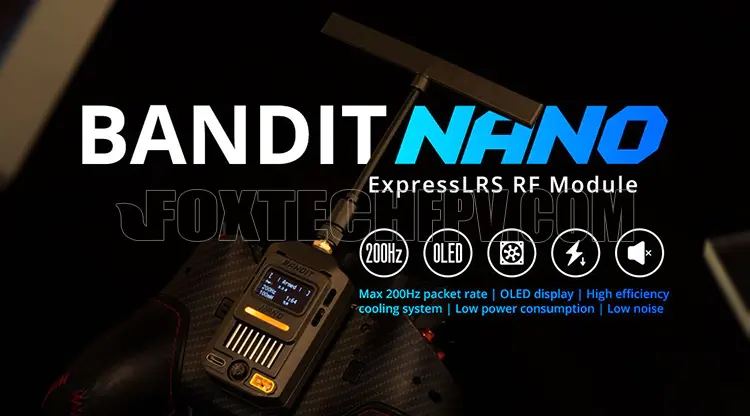

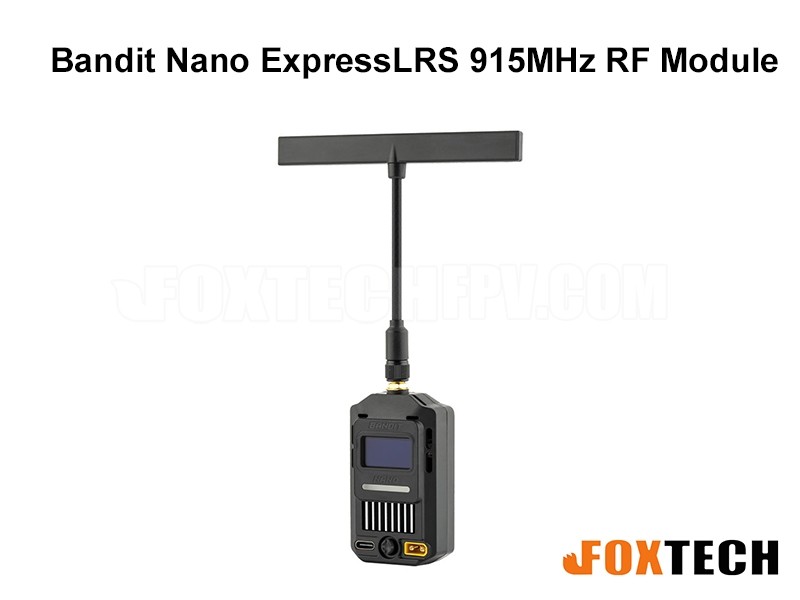

After extensive research and collaboration with the ExpressLRS team, we are thrilled to unveil the all-new Bandit Nano ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for your long-range drone and UAV applications.
Features
Up to 1 Watt power output

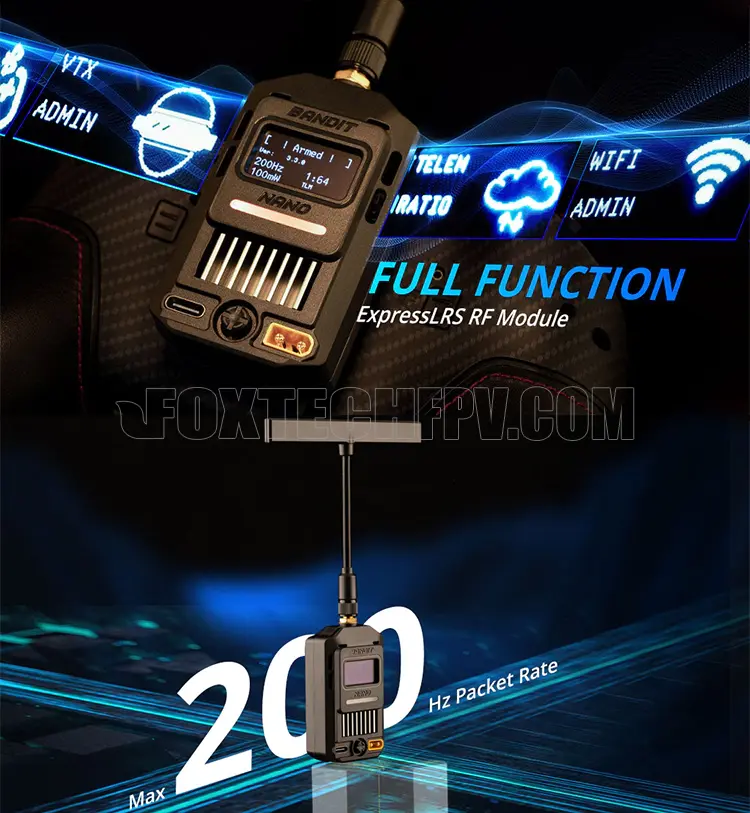

Packet rates up to 200Hz

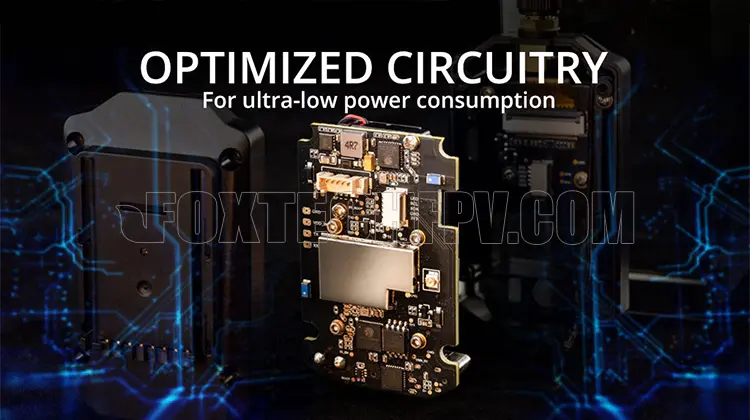

Optimized circuitry for ultra-low power consumption

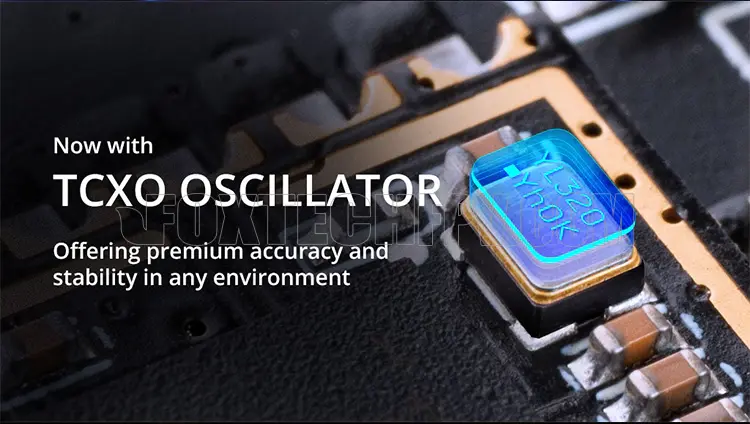

Built-in TCXO oscillator

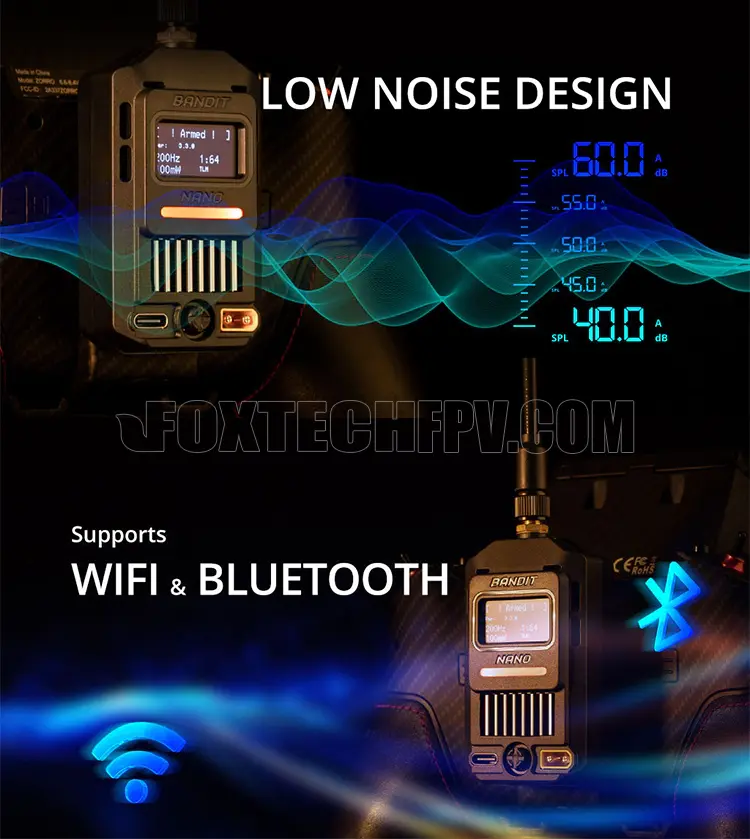

Low noise, high comfort
High contrast OLED display
High efficiency cooling system
Wifi and Bluetooth support
Built-in ExpressLRS backpack
5 Directional nav key

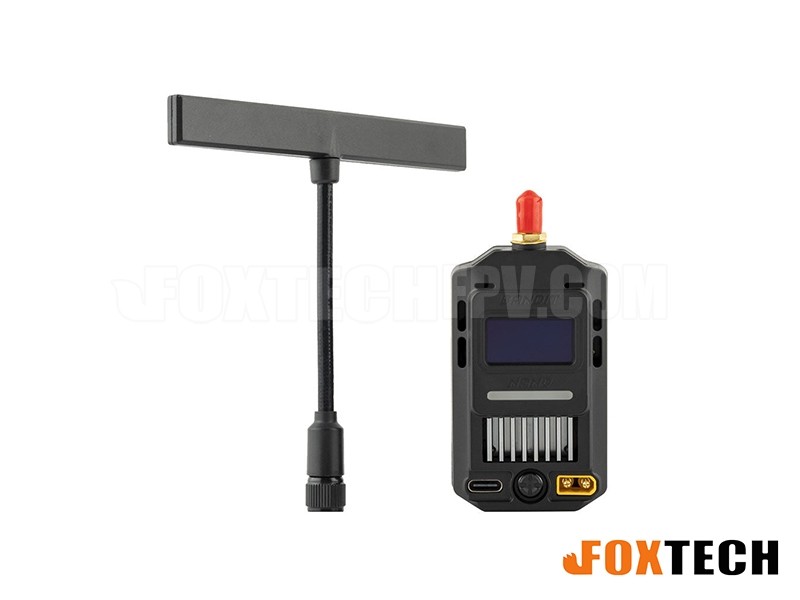

915/868MHz T Antenna included
With the Nano connector, support Zorro, Pocket and MT12 Radio

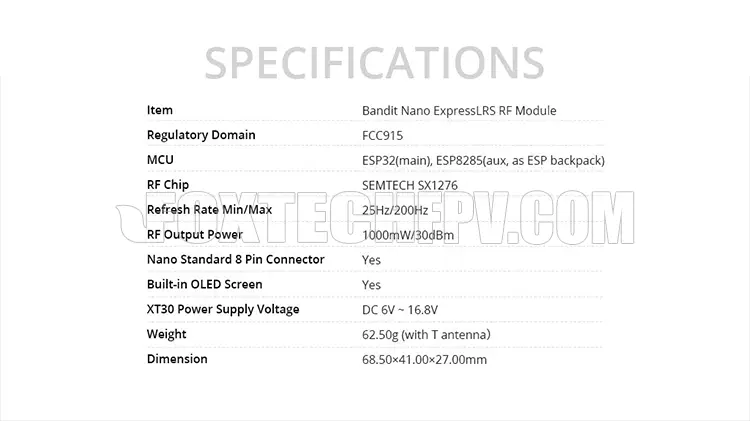

Specifications

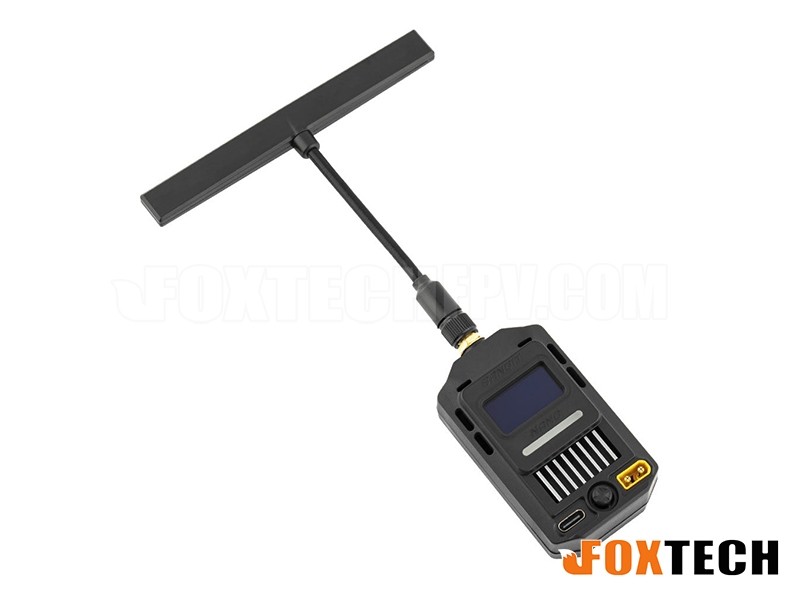

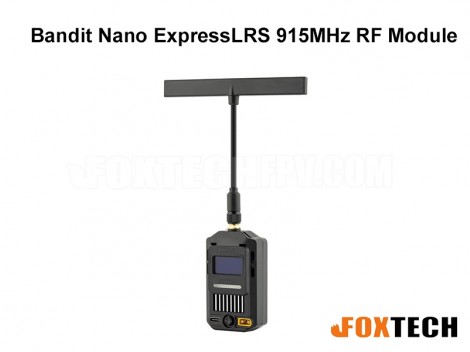

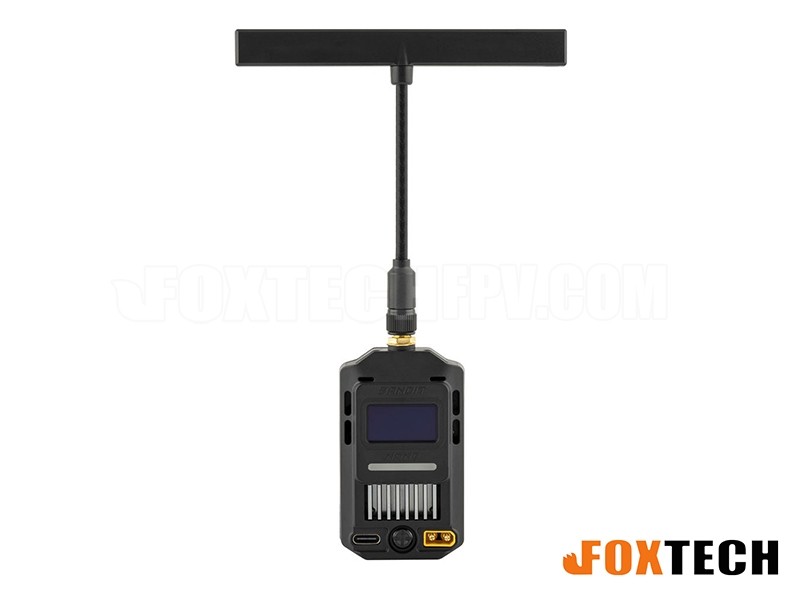

Item: Bandit Nano ExpressLRS RF Module
Regulatory Domain: FCC915
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF Chip: SEMTECH SX1276
Refresh Rate Min/Max: 25Hz/200Hz
RF Output Power: 1000mW/30dBm

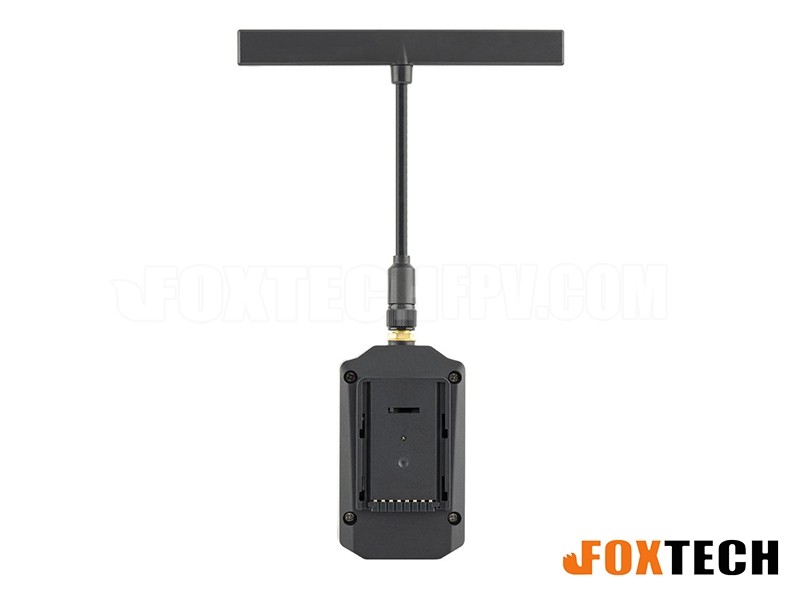

Nano standard 8 pin connector
Built-in OLED screen
XT30 Power Supply Voltage: DC 6V ~ 16.8V
Weight: 62.5grams (with T antenna）
Dimension: 68.5*41.0*27.0mm
Keep Your Cool!

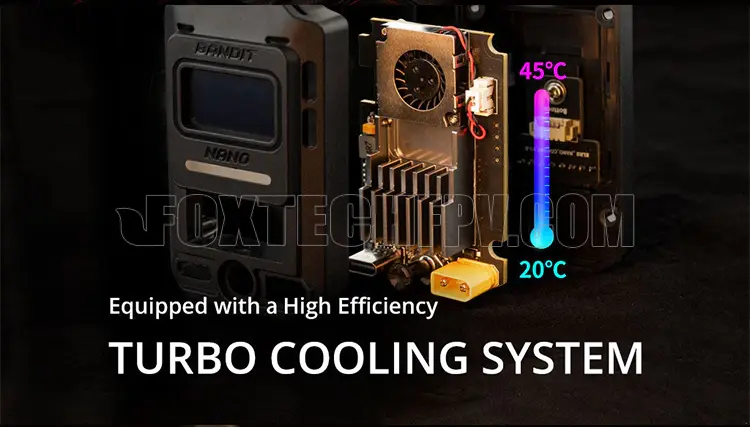

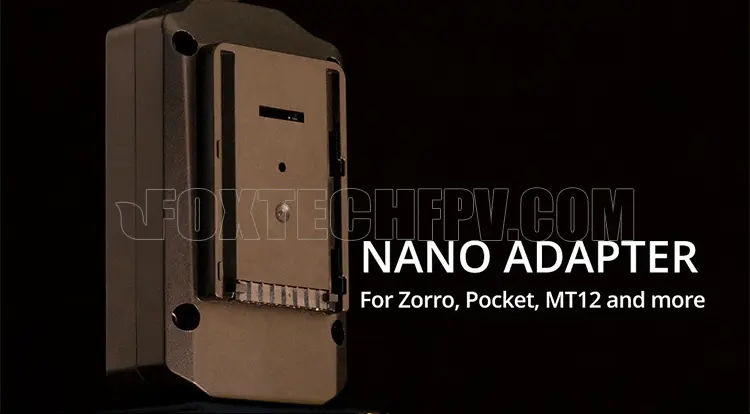

With its innovative convection cooling system and built-in turbo fan, the Bandit Nano ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Nano form factor is ready to go with our Zorro, Pocket, MT12 and other radios with a "Nano" Module bay.

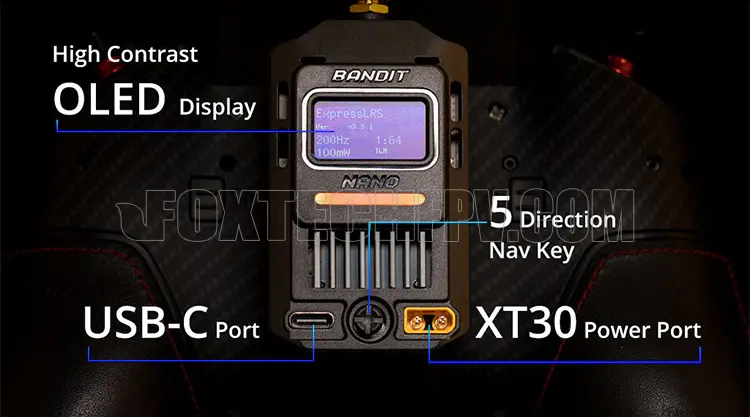

Intuitive Control at Your Fingertips
The Bandit Nano ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.
Versatile Antenna Options for Diverse Applications

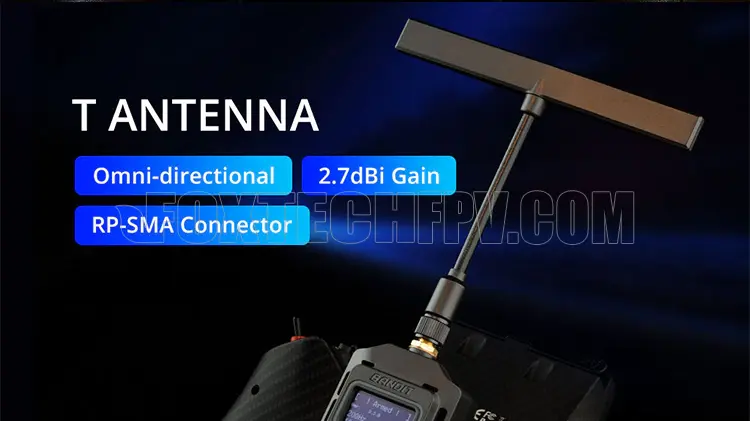

The Bandit Nano ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying. The RadioMaster Moxon antenna is available separately for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.
But wait.. there's more!

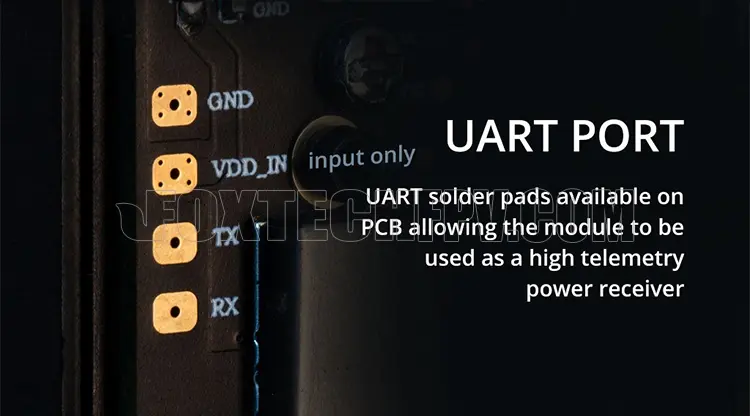

The Bandit Nano has UART solder pads on the PCB and may also be repurposed as a receiver! That's right, you can use the Bandit Nano as a 1000mW Telemetry receiver for ultra long range flights.
The Ideal Solution for Demanding Applications
Whether you're an experienced drone enthusiast or a professional UAV operator, the Bandit Nano ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.
Dimensions

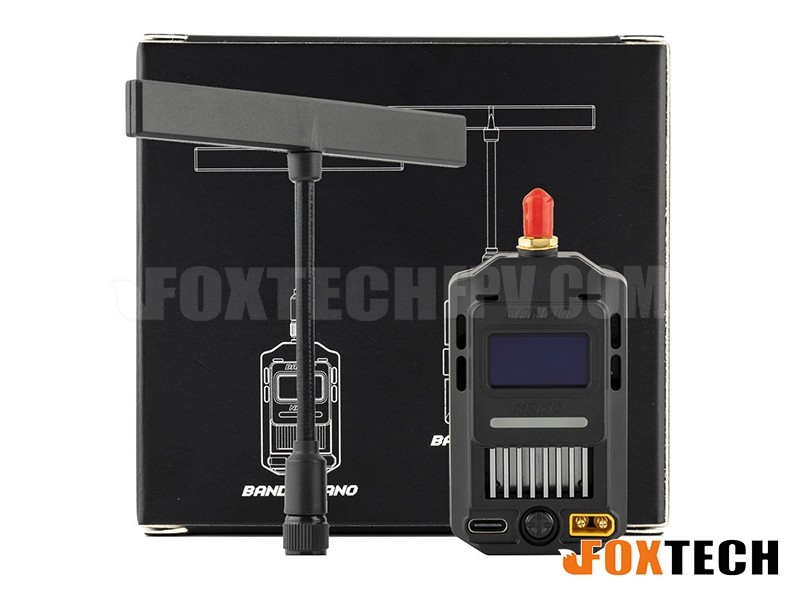

Package Includes
- 1 * Bandit Nano ExpressLRS RF Module
- 1 * 900Mhz T Antenna
- 1 * Manual
