Note: CUAV C-RTK 9P is now out of production, the alternative product is 9Ps, click HERE for more information.

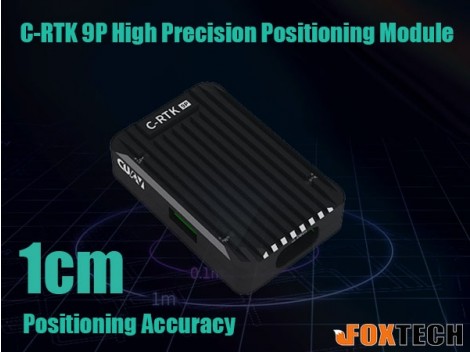

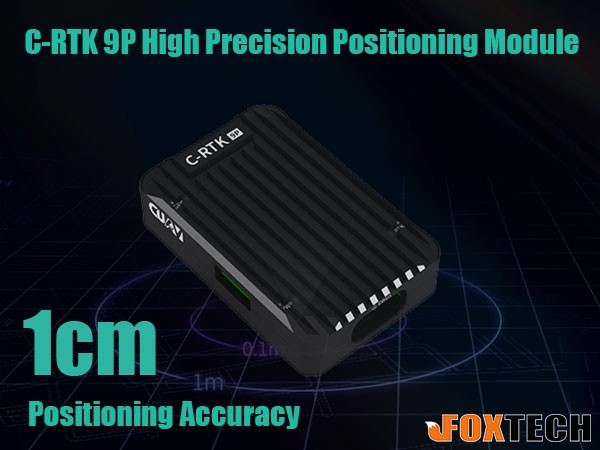

The CUAV C-RTK 9P GPS Receiver is an RTK GPS module designed by CUAV. It uses Ublox's F9P module, which supports multi-satellite multi-frequency and uses advanced RTK algorithms. Two 9P modules used together can serve as a compass for UAV. Using it, the PX4 achieves centimeter-level accuracy in seconds, which is much more accurate than the average GPS, and faster and more convenient than the previous generation M8P module.
Features

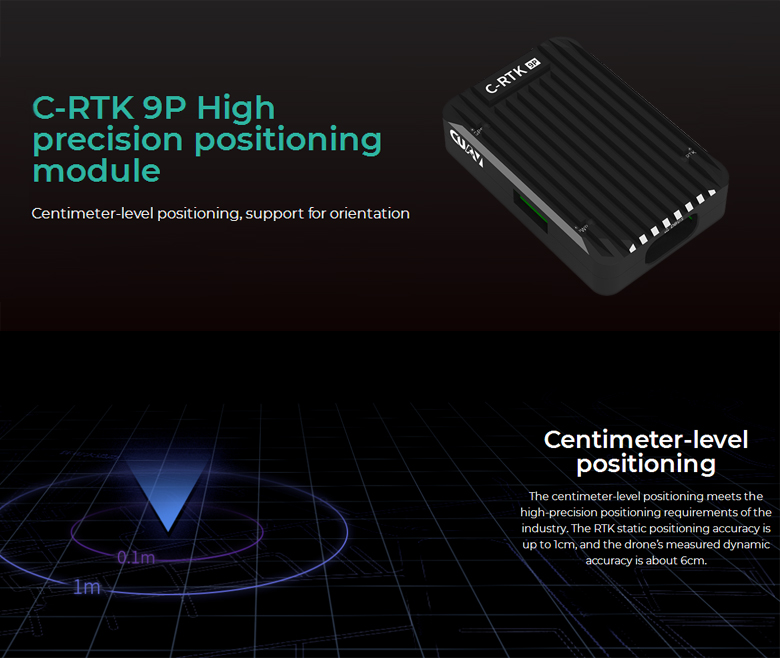

- Centimeter-level positioning for industrial UAV
- 10s switch RTK mode
- 20Hz high-frequency RTK navigation refresh rate
- <10s shorter convergence time
- 2*9P modules serve as a GPS
- PX4 and Ardupilot dual-platform compatible
- Mini size, 31.5*48*12mm, only 21g

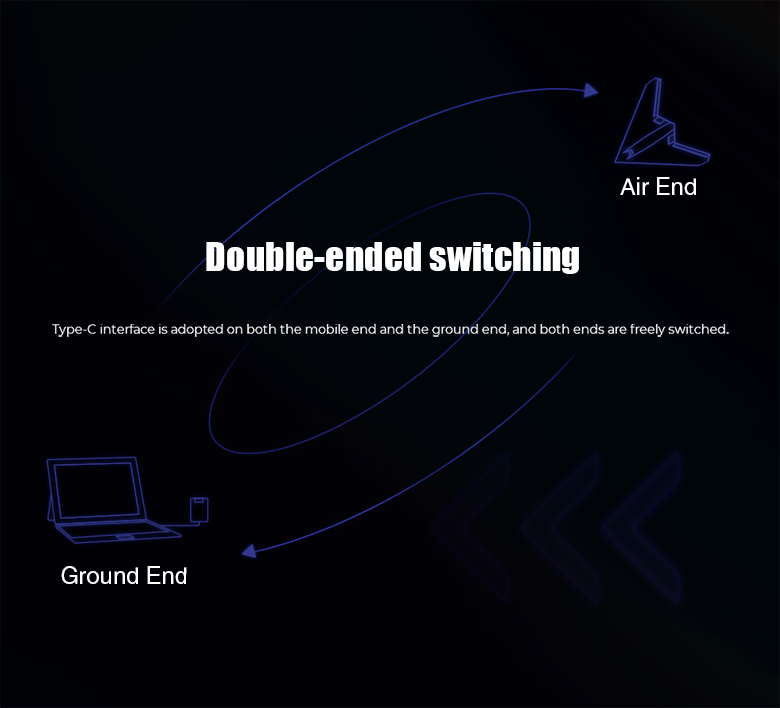

- Universal Type-C interface adopted on both mobile/ground end, switch freely
