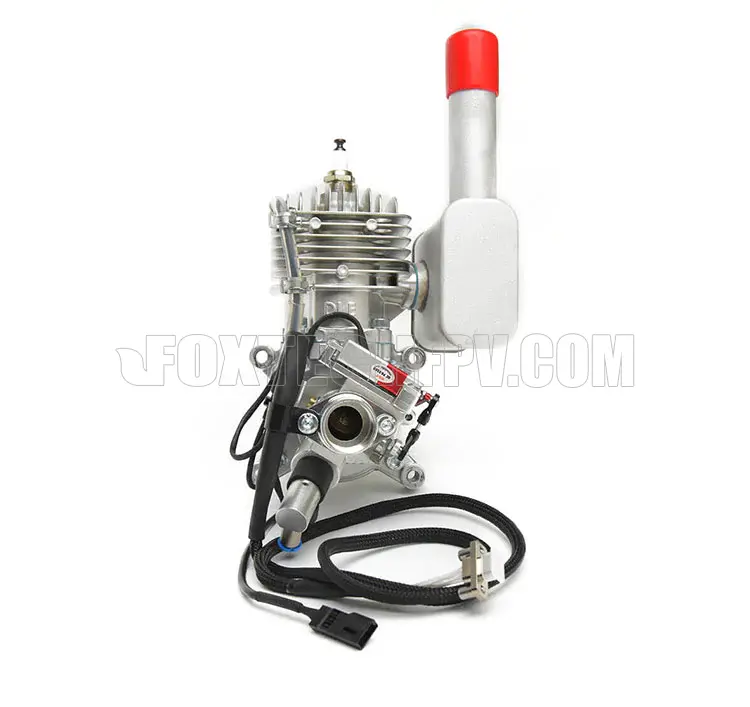

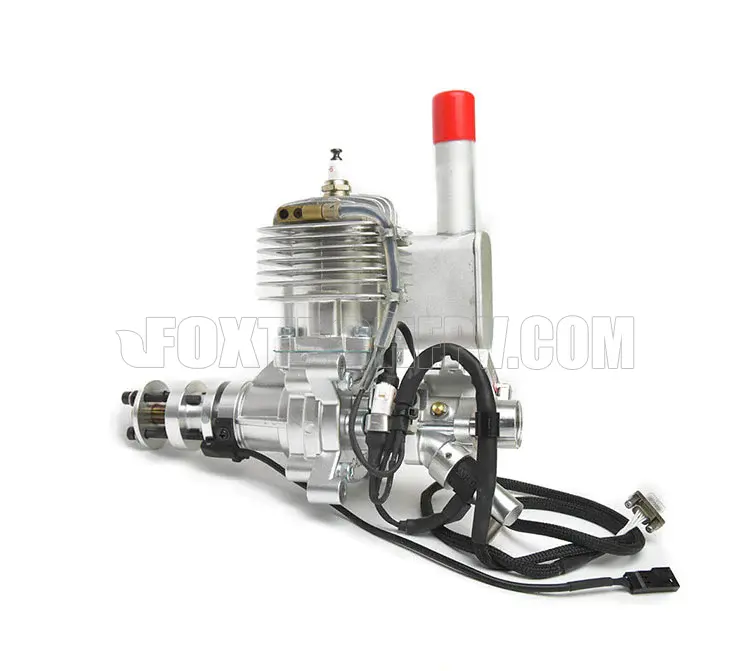

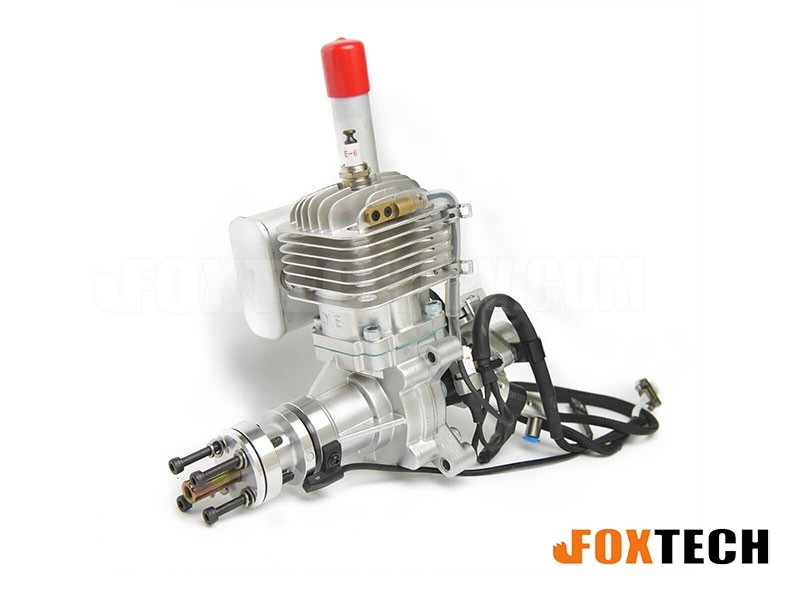

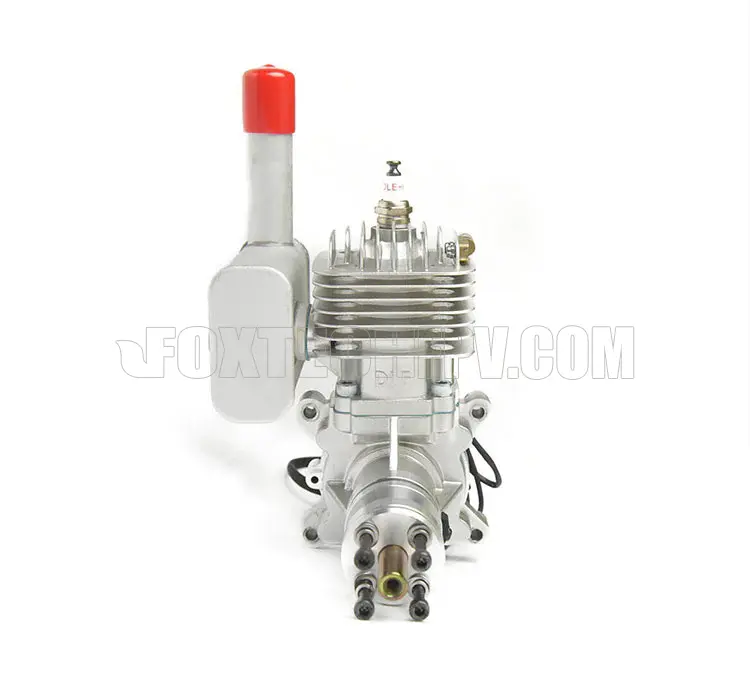

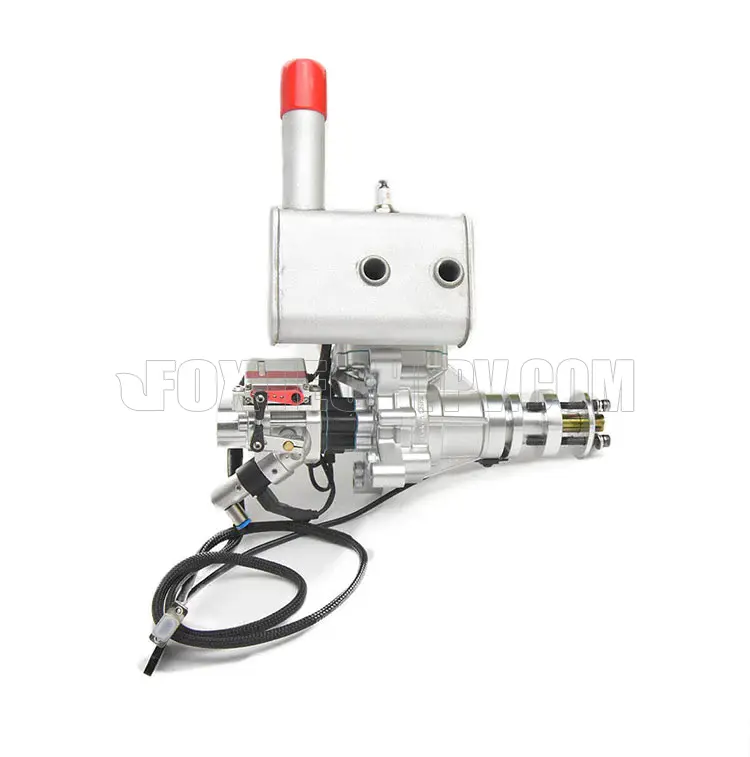

The DLE30 EFI provides increased reliability and power while addressing the shortcomings commonly found in two-stroke engines. The newly designed fuel pump, with self-priming capability, adopts closed-loop pressure control to precisely control the fuel pressure without returning to the fuel tank. The DLE30 EFI incorporates the latest engine technology from LUTAN EFI and DLE Engine. Provide RS232 communication protocol to obtain engine running data in real-time.
Specification:
Power: 3.7HP/8500rpm
Static Thrust: 8.5kg/100 Meters Altitude
Static Thrust: 7.5kg/1800 Meters Altitude
Recommended Propeller: 18x8 ; 18x10 ; 19x8 ; 20x8 ;
Displacement: 30.5cm3
Lubrication Ratio: 40:1
Weight (engine with intake): 1.0kg
Weight (ECU): 110g
Weight (Fuel Pump): 170g
Voltage: 12V
Power Draw: 1 Amp peak, 1 hour/1,000 mAh
Temperature Range: -20° – 50° C
Your Purchase Includes:
LUTAN EFI ECU
LUTAN Self-priming Fuel Pump
Wire Harness
CDI Modules
Isolation Mount
