DVL1 5G 1080P Full HD Digital Video System-Free Shipping

SKU: 708163

Availability: In stock ( 2 )



Reward points Earn your 580 reward points.


DVL1 is the 1080p Full-HD digital video transmission system including air part and ground part. DVL1 transmits the video, image, OSD and more information by the wireless communication mode. DVL1 is perfect for all fields video transmission because of its light weight, low power consumption, long distance and low latency. DVL1 digital video transmission system is based on 5G frequency and with a maximum 4km range in the air with omni-directional antennas. Latency is less than 200ms. Please put ground system antenna wide side face to air system, otherwise, the work distance will be reduce to 50%. The output power of DVL1 is adjustable from 25mw to 800mw. The Receiver module has both HDMI output and wifi output, so the wireless video can be displayed on a Monitor and cellphone at the same time.



Communication Distance: 200mw ground distance ≥1500m; 500mw ground distance ≥2000m(double distance in air)
if change to the wide angle directional patch antenna, the distance will be double.
Video Resolution: 1080p (1920X1080 60/30fps), 720p supported
Output Power: 25mw-800mw adjustable
Sensitivity: -95dbm±2dbm
Frequency: 5G
Latency: <200ms
Video Input: HDMI
Video Output: WiFi(for mobile devices); HDMI (for HDMI display devices)
Working Temperature: -10~60℃
Air system working voltage: 2S-3S,12V-DC
Ground system working voltage: 2S-3S, 12DC
Weight(air system): 86g
Weight(ground system): 198g
Multi-Device monitoring
Cellphone APP available

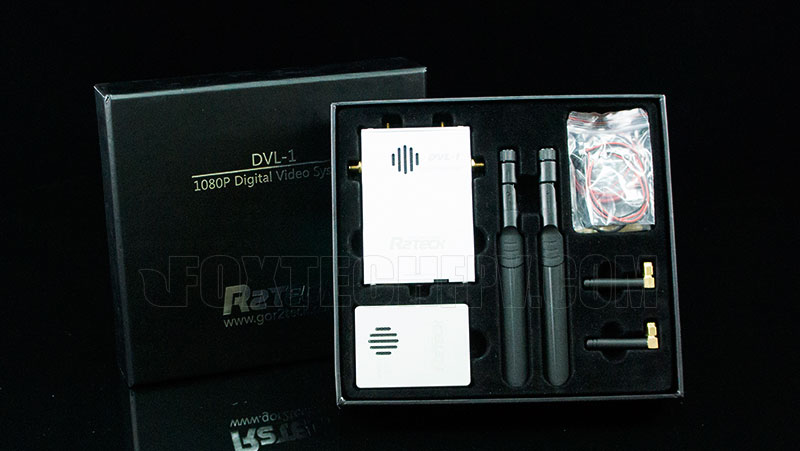

Your Pruchase Includes:

1x Air System
1x Ground System
2x Air System Antenna
2x Ground System Antenna
2x Ground System Mobile Antenna
1x Air System Power Cable
1x HDMI Cable(D-D)
1x Extension Bar
