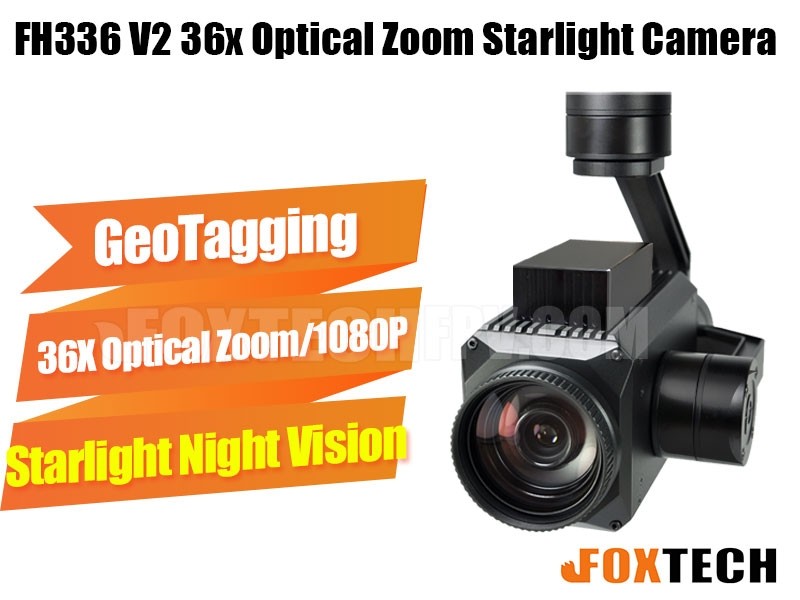

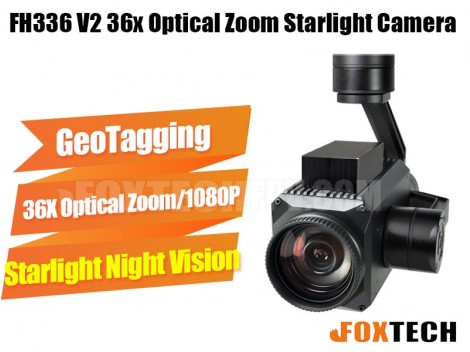

FH336-TR 36X Optical Zoom Camera with 3-axis Gimbal-Free Shipping

SKU: 711081

Availability: In stock ( 2 )

Weight:1g

$4,249.00

Reward points Earn you 4249 reward points.

Qty:

FH336-TR is a high stabilized 3-axis  gimbal with 1080P 36X optical zoom camera. The 36X zoom camera provides 1080P 30FPS full HD video streaming, and the 36X zoom will help to capture every detail in distance.

FH336-TR high-performance 3-axis gimbal is using advanced FOC motor control technology which will enable you to get a 0.01 degree incredible precise control. FH336-TR 3-axis gimbal offers 2 smart speed modes: FAST speed and LOW speed. Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. LOW speed mode is used for large zoom range, will enable you to target the object more accurately.

FH336-TR comes with powerful night vision capability. The camera sensor is very sensitive to IR light due to its super low illumination: [email protected](black/white), [email protected](color),0lux(IR). Once the environment illumination is lower than 0lux, then the camera IR cut will be activated (also you could activate it manually via controller), which will enable you to observe objects clearly in the darkness.

FH336-TR is equipped with an Auto Object Track Module(AOTM), which will enable the pilot to track static/moving objects very easily. And the AOTM is very light only 40g. Just put the object you want to track in the screen, move the cursor to the object and lock it via controller, and then the camera will track it automatically. Another big feature of FH336-TR is that the gimbal will geotag the video streaming and photos, also gimbal Yaw/Pitch angle, height, time information will be displayed on camera OSD, this is really important when you are conducting missions like rescue and search.



Specifications:

Weight: 945g
Size: 105x188x151.5mm
Working temperature range: -10℃~60℃
Input Voltage: 3S~6S
Static current: 450mA(@12V)
Dynamic current: 550mA(@12V)
Range of control angle: Pitch:±90° Roll:±85° Yaw:±170°
Control precision:
Pitch and roll: ±0.01° Yaw:±0.01°
Control signal: PWM and serial command
Storage: SD Card(maximum support 128G)



Features:

-1/1.9 inch 2.38MP CMOS sensor
-36X optical zoom, 1080P/30 HDMI output
-1080P/30 H.264 video recorded
-Auto object tracking
-Geotagging
-Super low illumination: [email protected](black/white),[email protected](color),0lux(IR)
-Convenient wiring hub for RC receiver and video output
-3-aixs high stabilized gimbal system

Your Purchase Includes:

1x FH336-TR 36X Optical Zoom Camera
1x FH336-TR 3-axis Gimbal

Manual Download

Platform Control
