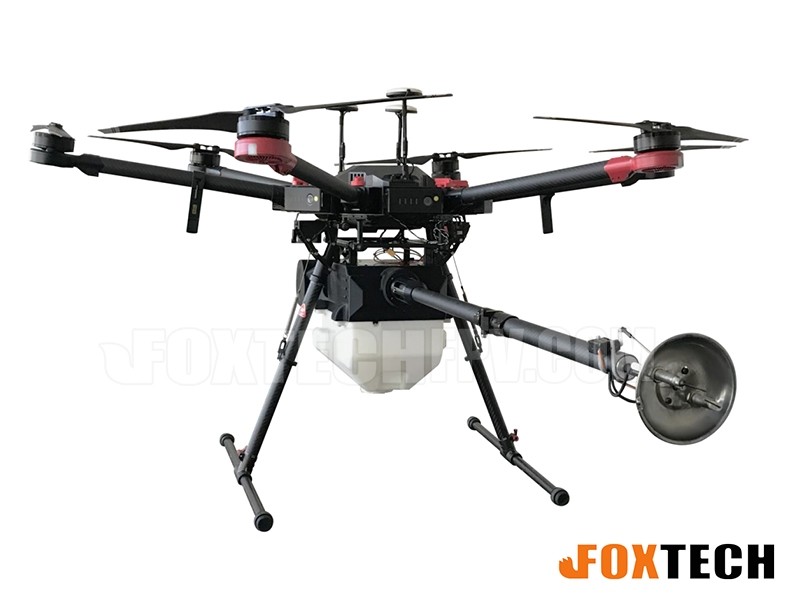

Fire Sprayer Device

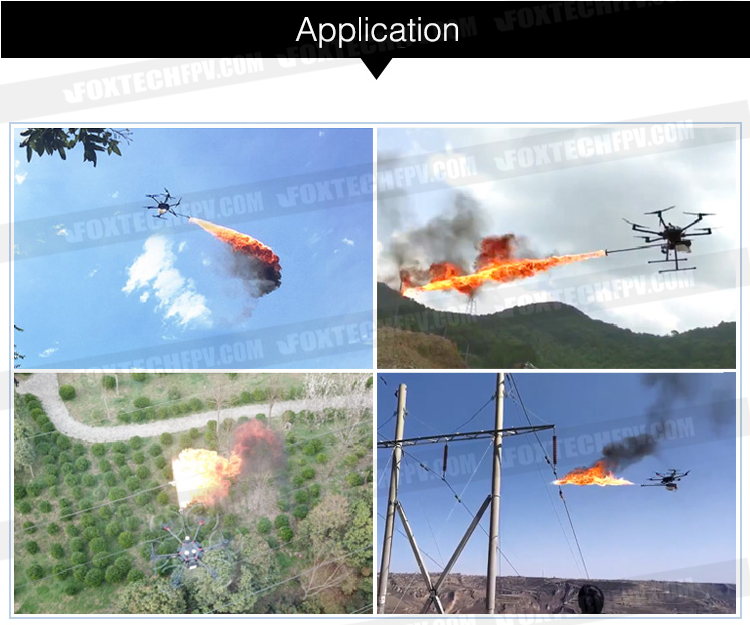

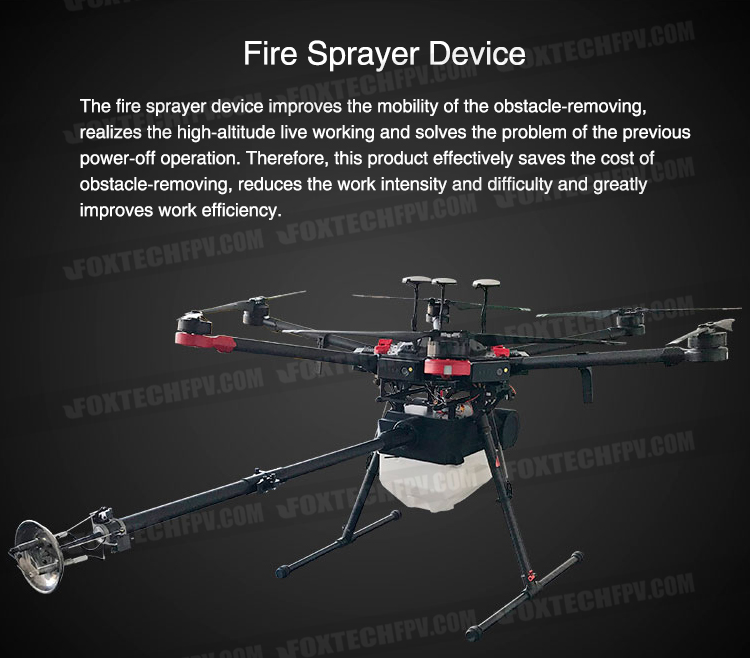

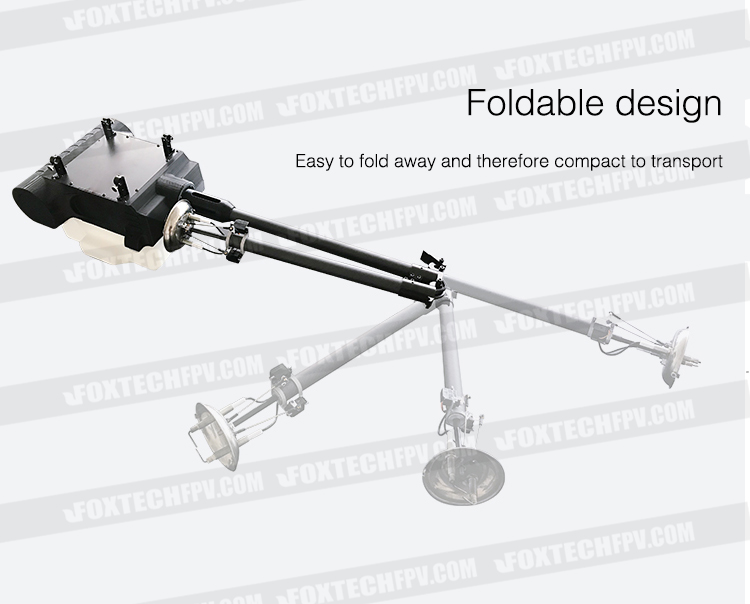

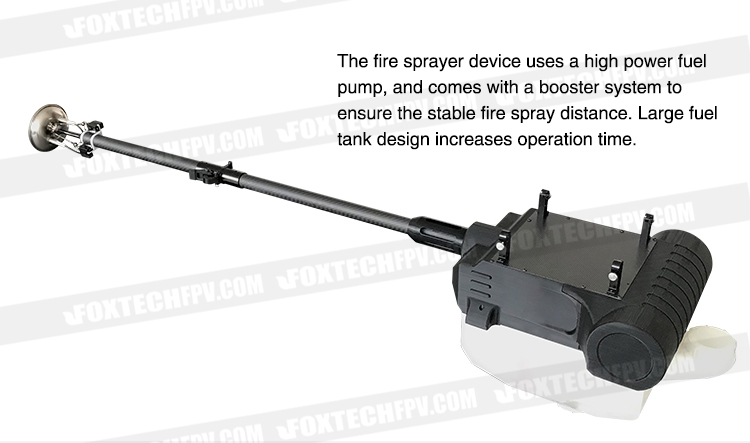

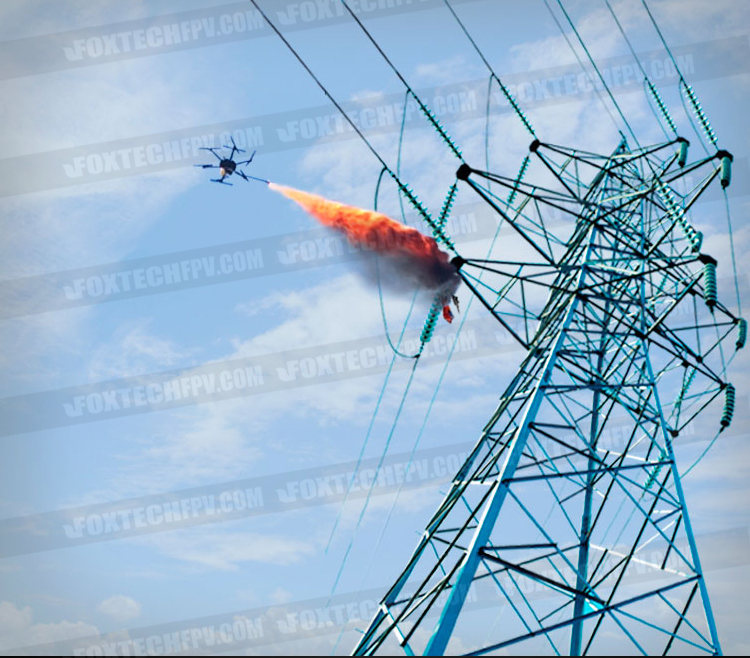

The fire sprayer device for drones changes the obstacle-removing mode of power sector, which used to only rely on manpower. The fire sprayer device adopts foldable design, which is easy to fold away and therefore compact to transport. It also uses a large fuel tank design, increasing each operation time. Spray distance can reach up to 4~6meters. It is fantastic with high-performance high-voltage pulse ignition system, which eliminates the phenomenon of misfire to ensure the safety and reliability of the operation. The fire sprayer device realizes the high-altitude live working, reduces the work intensity and difficulty and greatly improves work efficiency.

Note: Please use with care according to lower regulations. FOXTECH does not bear any consequence of using this device in an inappropriate way.

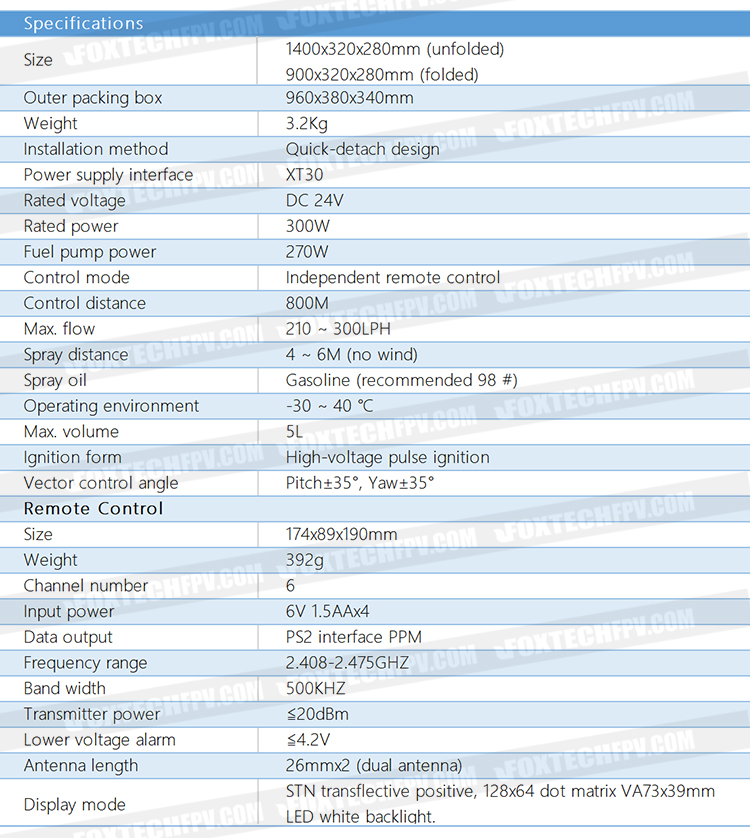

Specifications:

Size: 1400x320x280mm (unfolded)

         900x320x280mm (folded)

Outer packing box: 960x380x340mm

Weight: 3.2Kg

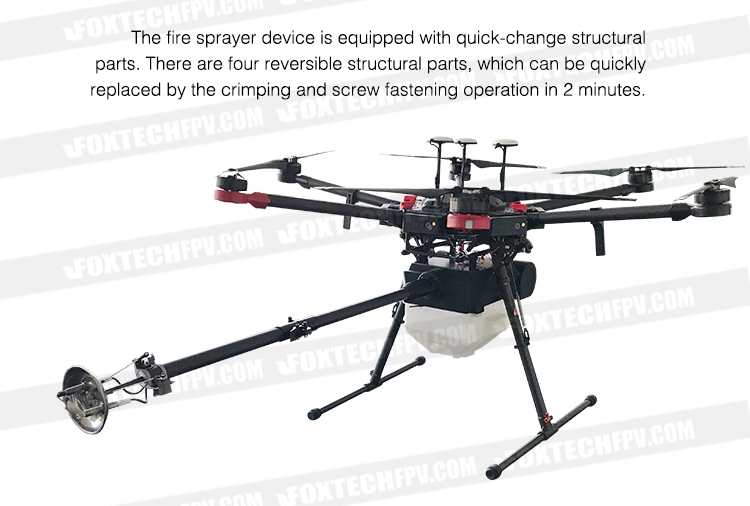

Installation method: Quick-detach design

Power supply interface: XT30

Rated voltage: DC 24V

Rated power: 300W

Fuel pump power: 270W

Control mode: Independent remote control

Control distance: 800M

Max. flow: 210 ~ 300LPH

Spray distance: 4 ~ 6M (no wind)

Spray oil: Gasoline (recommended 98 #)

Operating environment: -30 ~ 40 ℃

Max. volume: 5L

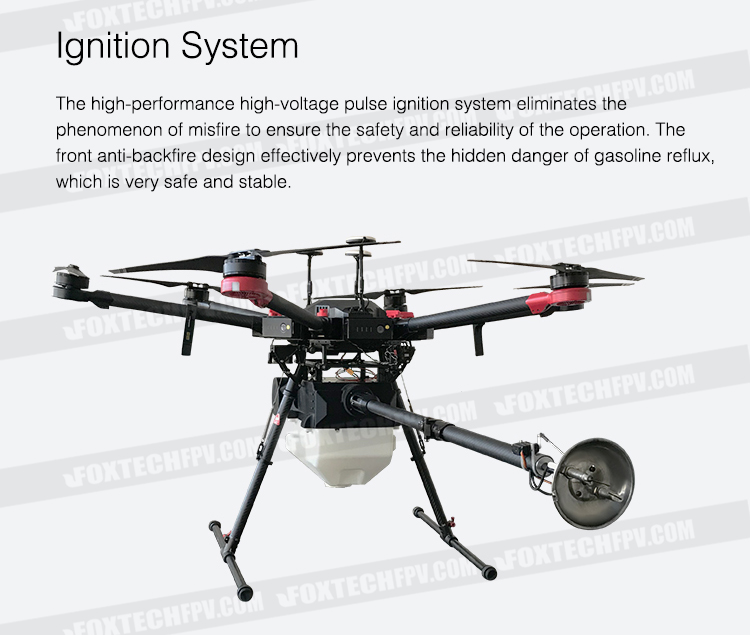

Ignition form: High-voltage pulse ignition

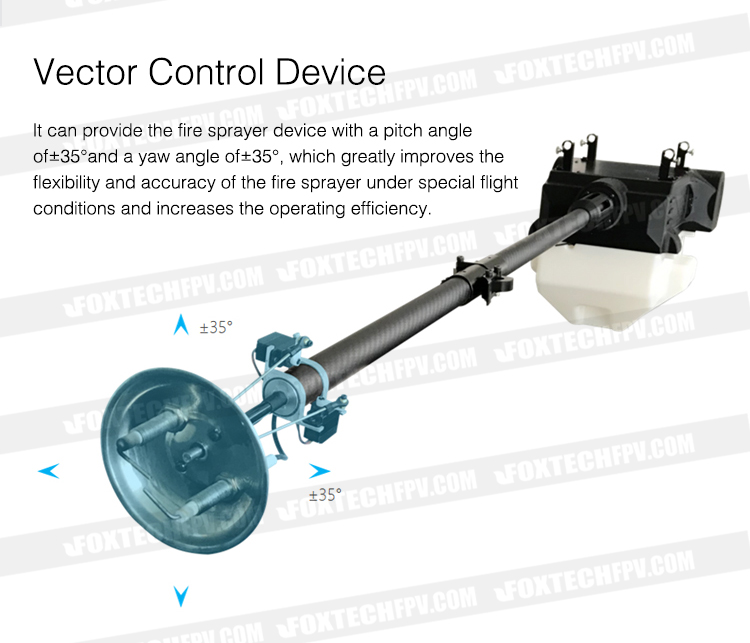

Vector control angle: Pitch±35°, Yaw±35°

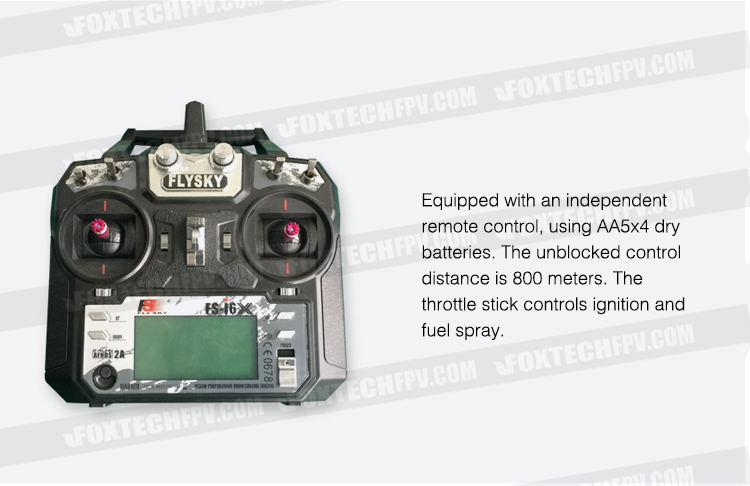

Remote Control:

Size: 174x89x190mm

Weight: 392g

Channel number: 6

Input power: 6V 1.5AAx4

Data output: PS2 interface PPM

Frequency range: 2.408-2.475GHZ

Band width: 500KHZ

Transmitter power: ≦20dBm

Lower voltage alarm: ≦4.2V

Antenna length: 26mmx2 (dual antenna)

Display mode: STN transflective positive, 128x64 dot matrix VA73x39mm

                        LED white backlight

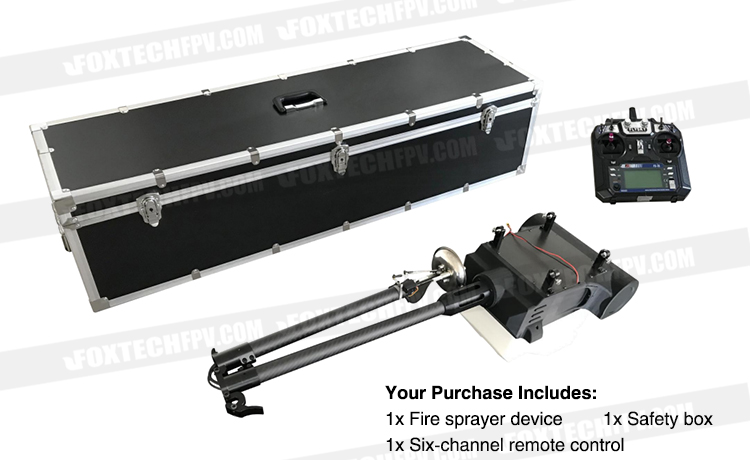

Your Purchase Includes:

1xFire sprayer device

1xSafety box

1xSix-channel remote control
