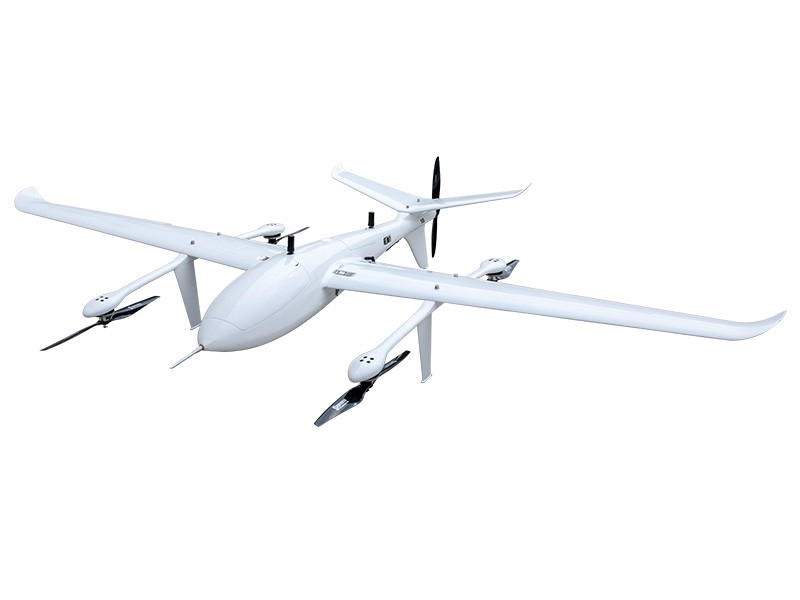

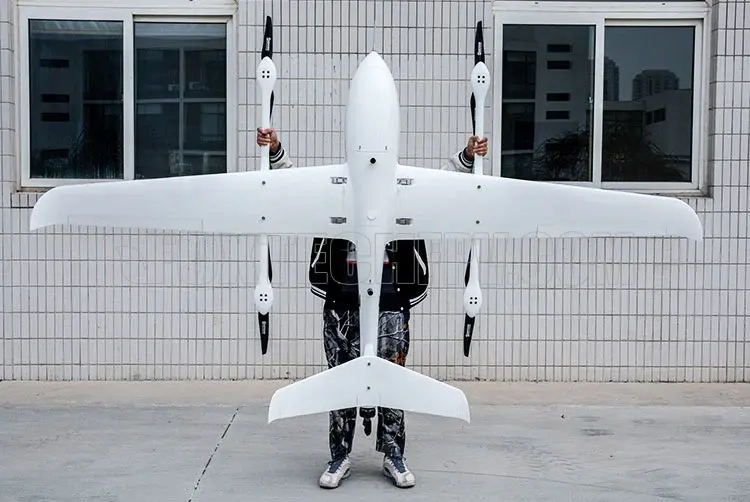

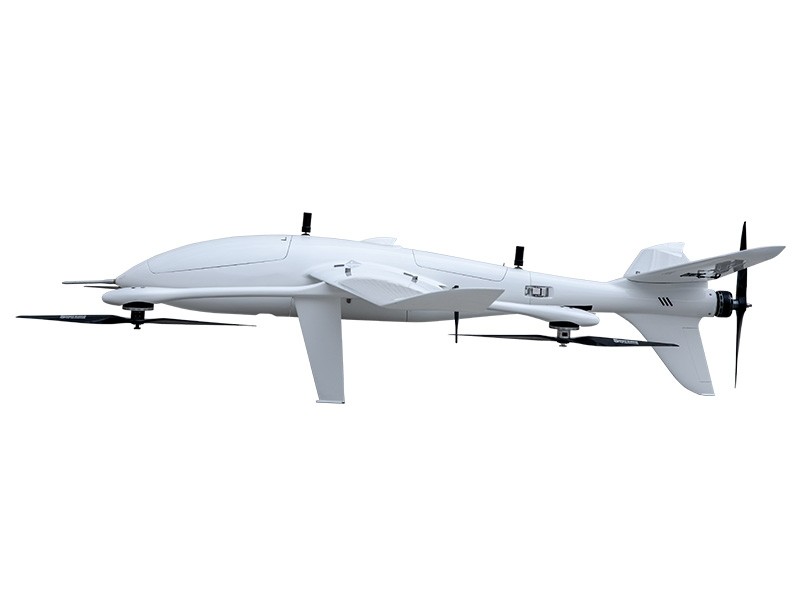

FOXTECH AYK-320 PRO VTOL

SKU: S221105

Availability: In stock

Weight:1g

$12,559.00

Reward points Earn your 12559 reward points.

$12,559.00
Qty:

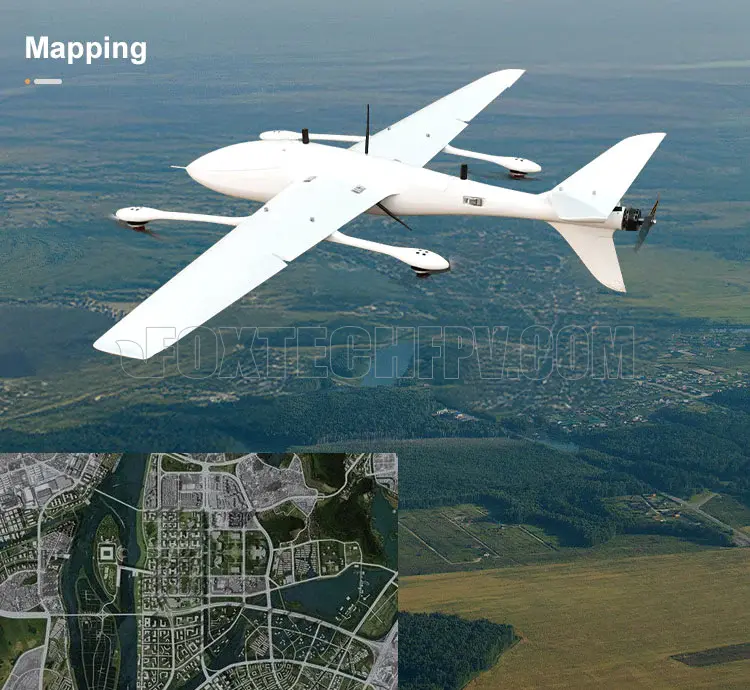

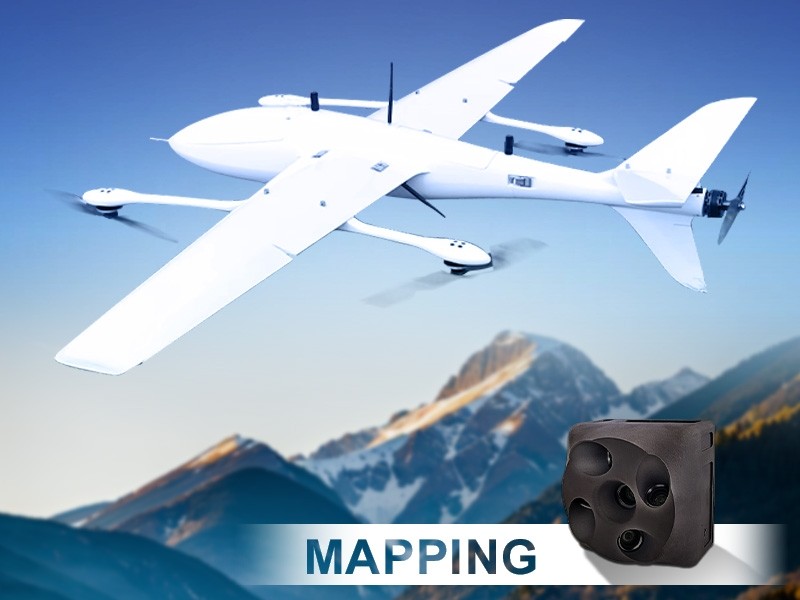

AYK-320 PRO VTOL featuring 3H [email protected] payload is designed for long range inspection, mapping and survey.

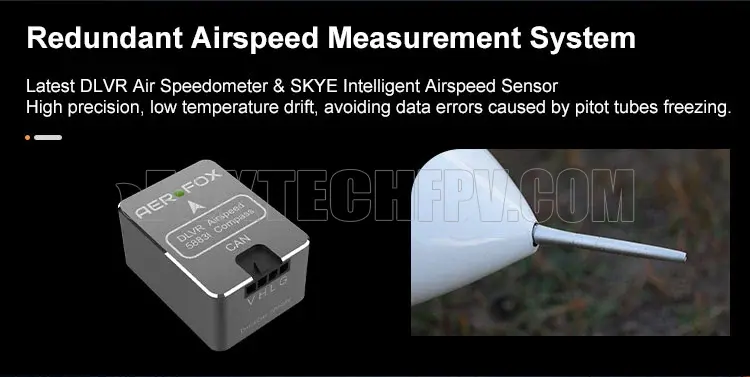

-Redundant airspeed measurement system

Adopt latest DLVR air speedometer and SKYE intelligent airspeed sensor for high precision airspeed measuring. The integrated heating system can automatically heat according to the ambient temperature and humidity, avoiding data errors caused by pitot tubes freezing, and greatly improving the aircraft reliability.

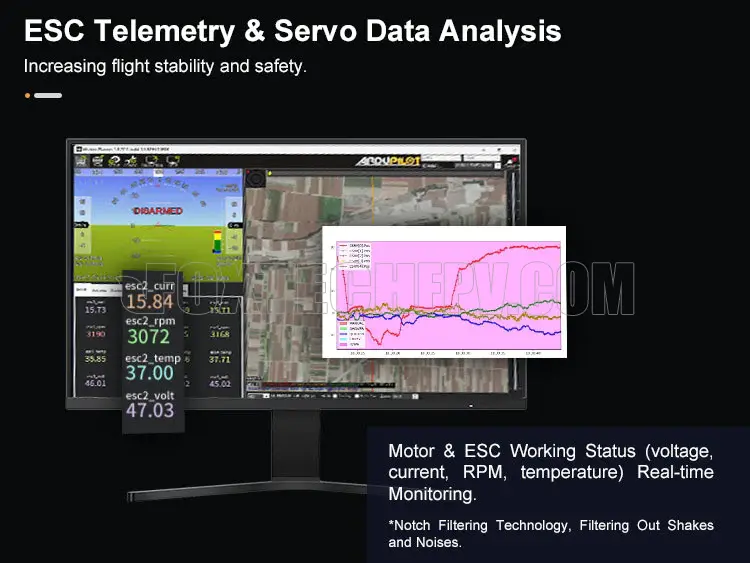

-ESC Telemetry, increasing flight stability and safety

Real-time monitoring the working status of motor and ESC,including the temperature of ESC, the voltage, current, and RPM of the motors to ensure the flight safety;

Adopting notch filtering technology, filter out shakes and noises to ensure the best effect of PID tuning.

-Dual GPS differential design

Improve positioning accuracy, anti-interference ability and flight stability. No need for compass calibration.

- VTOL/Fixedwing carbon fiber propellers

Better dynamic balance, reducing resonance and vibration. The four VTOL propellers adopt quick-mount design, which makes the installation more easier.

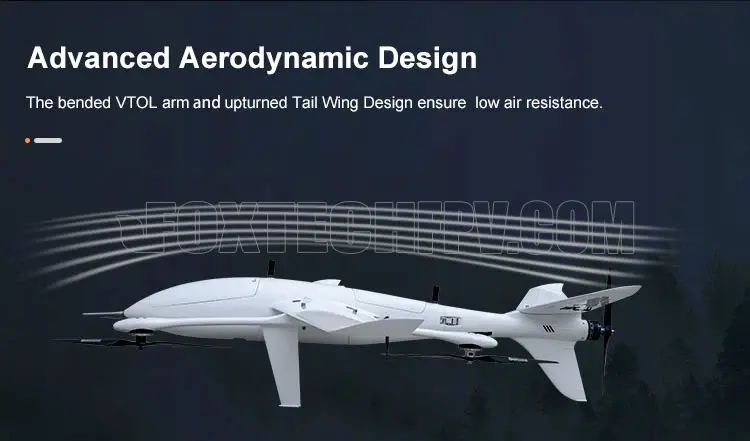

-Advanced aerodynamic design

The curved design of VTOL arm greatly reduces resistance during the flight; the upturned tail wing is designed to reduce induced drag from the tail airflow; the long, narrow fuselage and T-tail design ensure a large climb and descent angle.

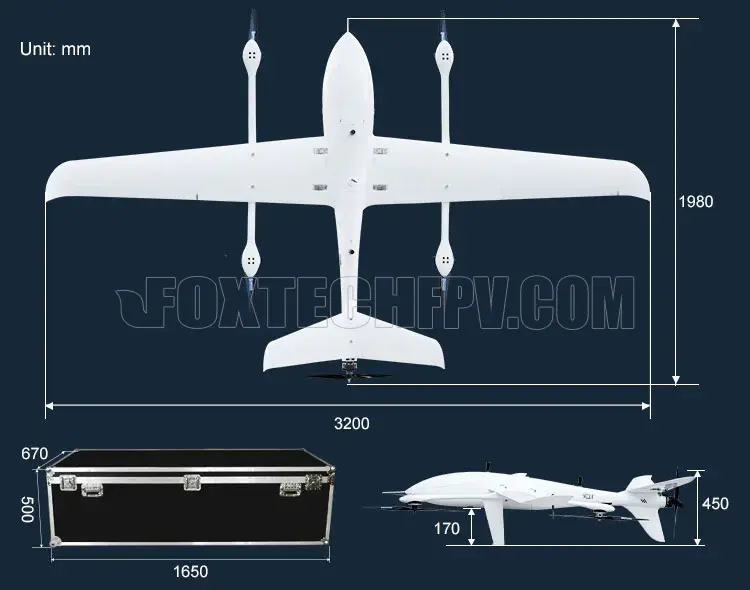

Specification:

Max. take-off weight: 24kg

Operating weight: 21.5kg

Endurance:

[email protected] payload, [email protected] payload

Battery: 6s 27000mAh x4

Stall speed: 17m/s

Cruising speed: 21m/s

Max cruising speed: 30m/s

Max climb angle: 15°

Max climb speed: 5.6m/s

Max descent angle: 25°

Max descent speed: 9.6m/s



Your Purchase Includes:

RTF Combo (Pixhawk / CUAV X7 + Pro):

1x AYK-320 PRO VTOL

1x High Efficiency Tail Motor

1x Tail ESC

1x 20 inch Propeller for Tail Motor

5x Servo

4x Motor for VTOL Mode

4x ESC for VTOL Mode

2x (pairs) 24 inch Propellers for VTOL Mode

2x UBEC

1x Pixhawk Cube Orange Standard Set (or CUAV X7+ Pro Flight Controller)

2x C-RTK 9Ps High Precision Positioning Module Pixhawk Sky End

1x CUAV P8 840-845MHz Radio

1x CUAV SKYE Airspeed Sensor

1x DLVR Airspeed Sensor

 1x DA16S+ Radio Controller

1x Carrying Case

1x Assembling, tuned and Flying Test Service
