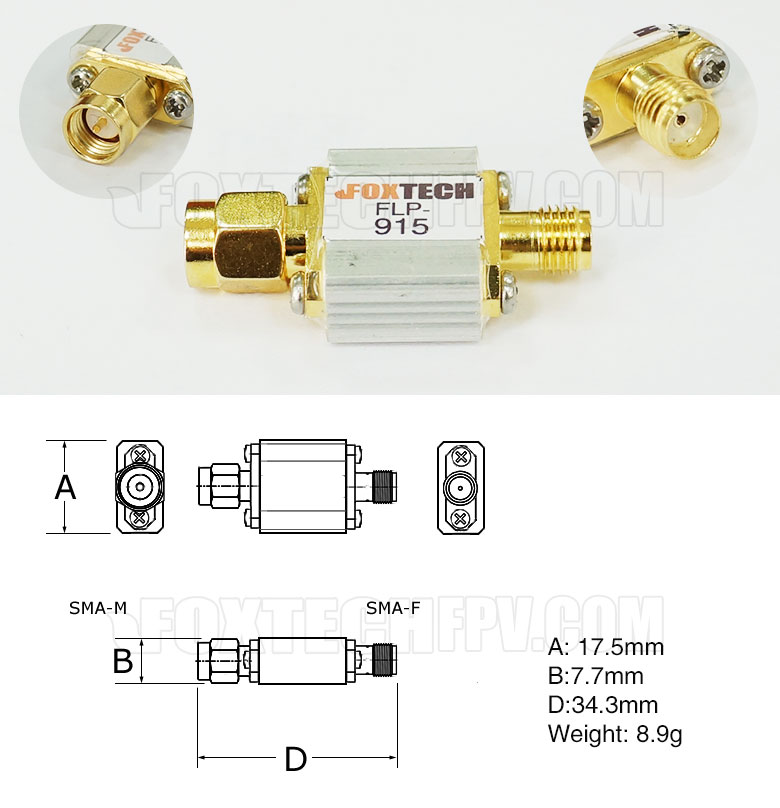

Foxtech FLP-915MHz Low-Pass Filter

The 915MHz RFID low-pass filter,passband (<1000MHz) insertion loss is less than 1dB, the insertion rate of the filter is higher than 40dB when the high frequency of the filter is extended to 3 GHz. The performance index is far superior to other products using PCB bare board.

Specification:

Model: FLP-915
Impedance: 50 Ohms
Insertion loss: <1 dB @ <1000 MHz
                   ～50 dB @ 1830 MHz (915x2)
                   >40 dB @ 2745 MHz (915x3)
Maximum Power: 5W (37 dBm)

Your Purchase Includes:

1x FLP-915MHz RFID low-pass Filter
