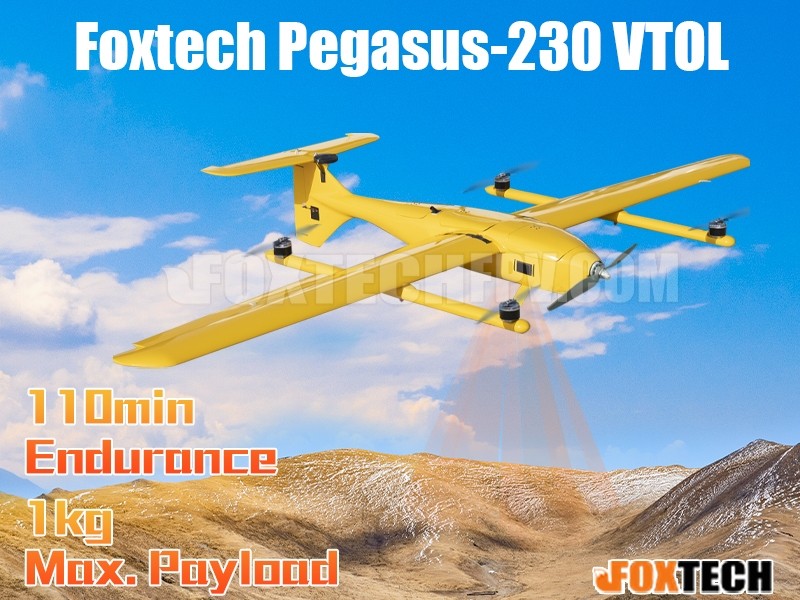

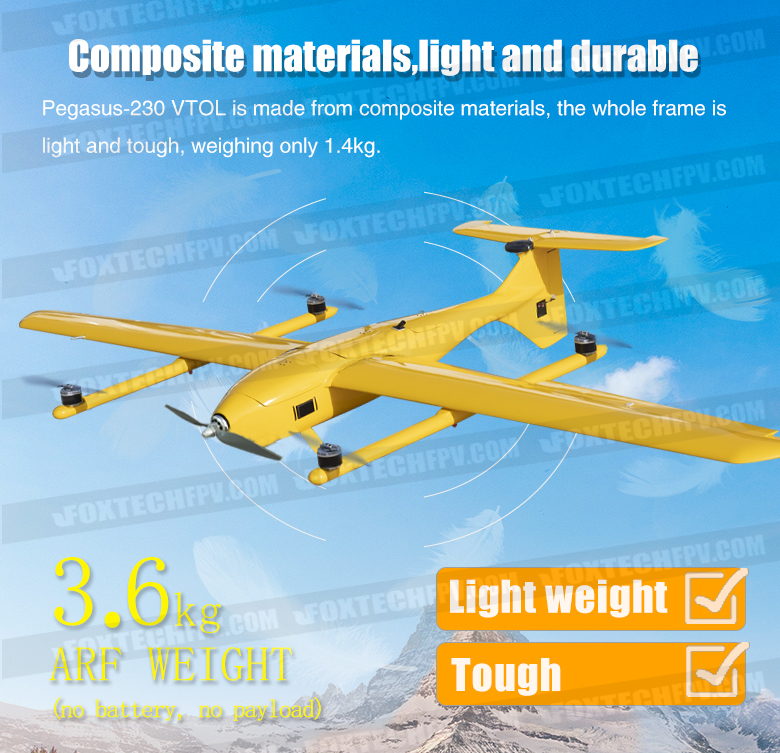

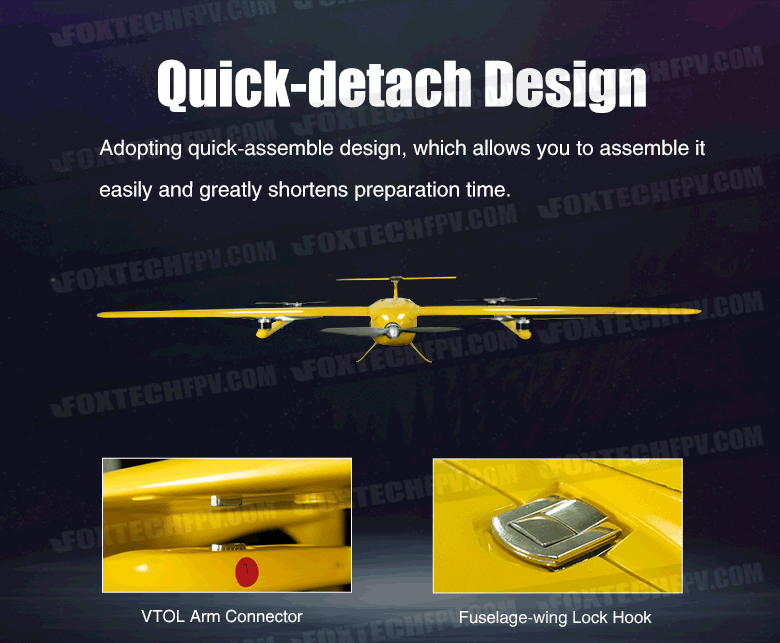

Foxtech Pegasus-230 VTOL featuring high performance is a cost-effective and easy-to-use VTOL specifically designed for mapping. Made from composite materials, the whole frame is light and tough. The quick-assemble design allows you to assemble it easily without any tools so as to shorten preparation time for each flight.

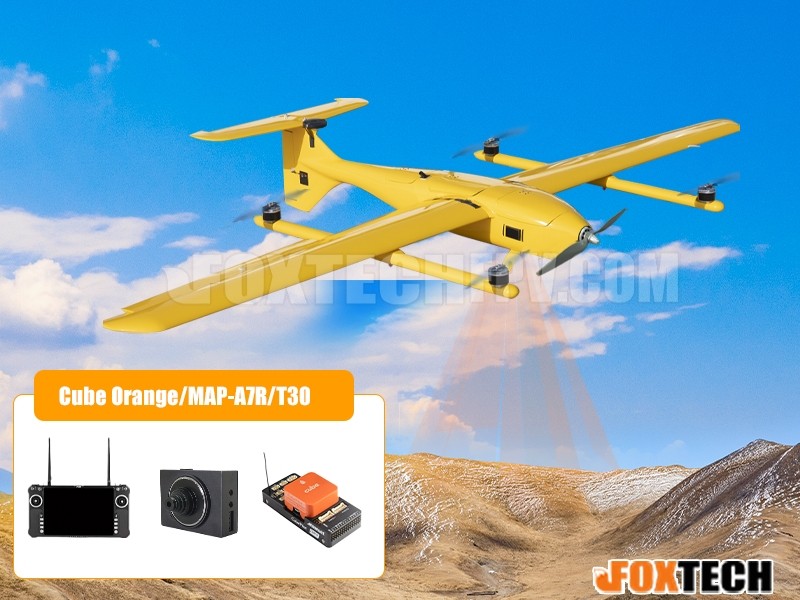

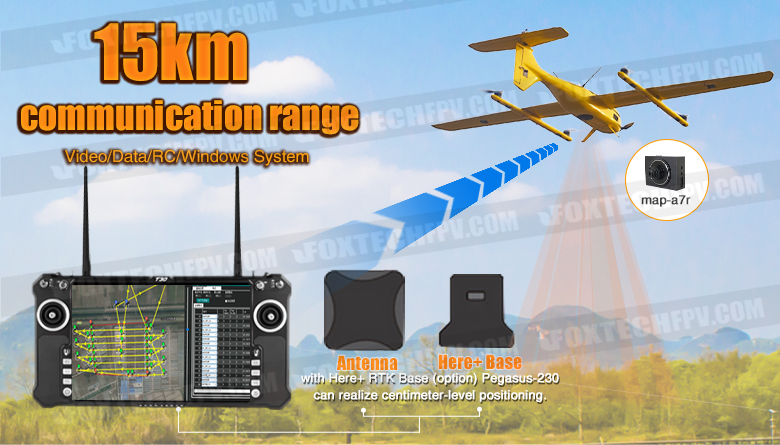

In this mapping combo, Pegasus-230 VTOL is equipped with T30 ground control station and Map-A7R mapping camera, it can complete 12 square kilometer area mapping job in a 90-min-flight, if equipped with Here+ RTK Base(option) Pegasus-230 VTOL can realize centimeter-level positioning.

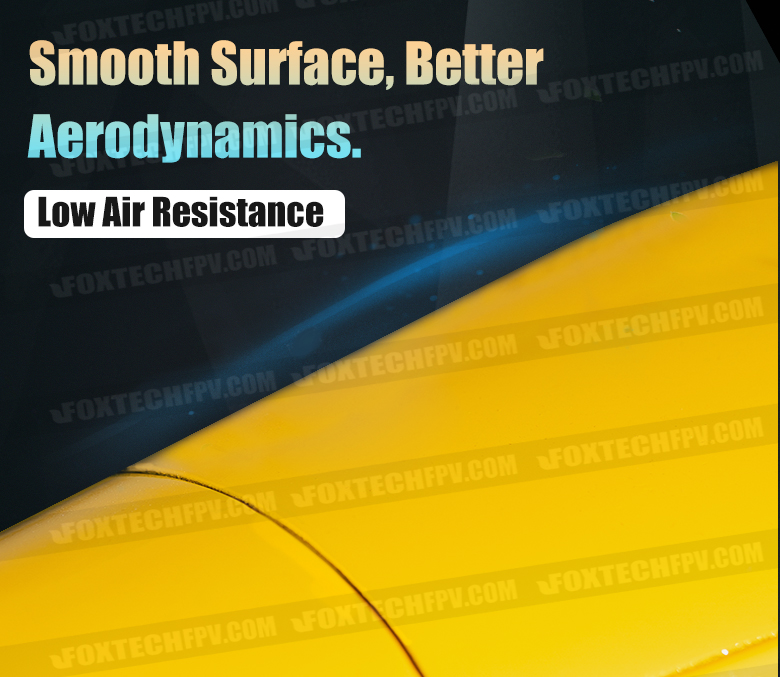

Pegasus-230 VTOL features aerodynamic shape and Low air resistance. With powerful propulsion system Max. take-off weight of Pegasus-230 can reach 8kg and the endurance time is 110 minutes with no payload. Besides, it withstands 5.5m/s-7.9m/s(12.5mph-17.5mph) wind, making it possible to perform aerial task in various complex situations.

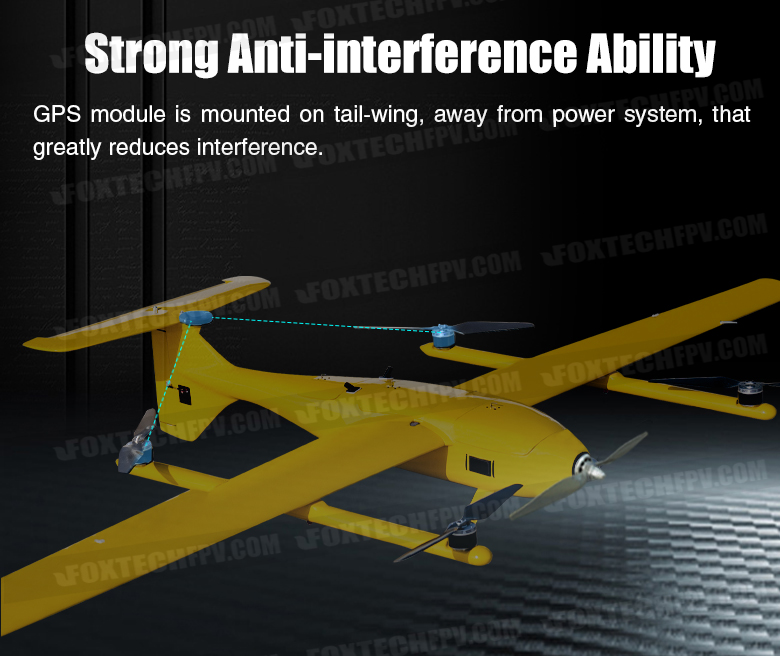

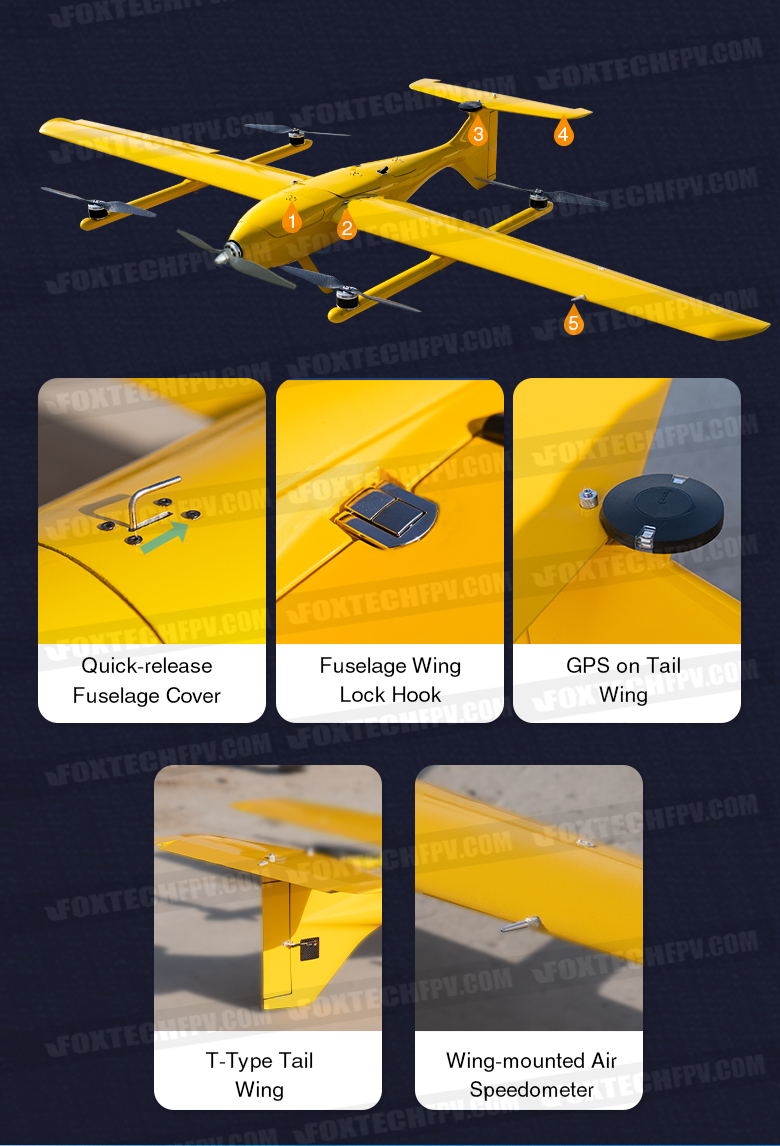

The GPS module is mounted on tail-wing, away from power system, that greatly reduces interference; The ESC for fixed wing mode is mounted on the outside for better heat dissipation. The camera cabin’s neat wiring layout helps to configure the camera without wires getting intertwined.
Pegasus-230 VTOL can be loaded with Max. 1kg of devices, sufficient enough for almost any types of Foxtech mapping cameras such as Map-01, Map-02 and Map-A7R.

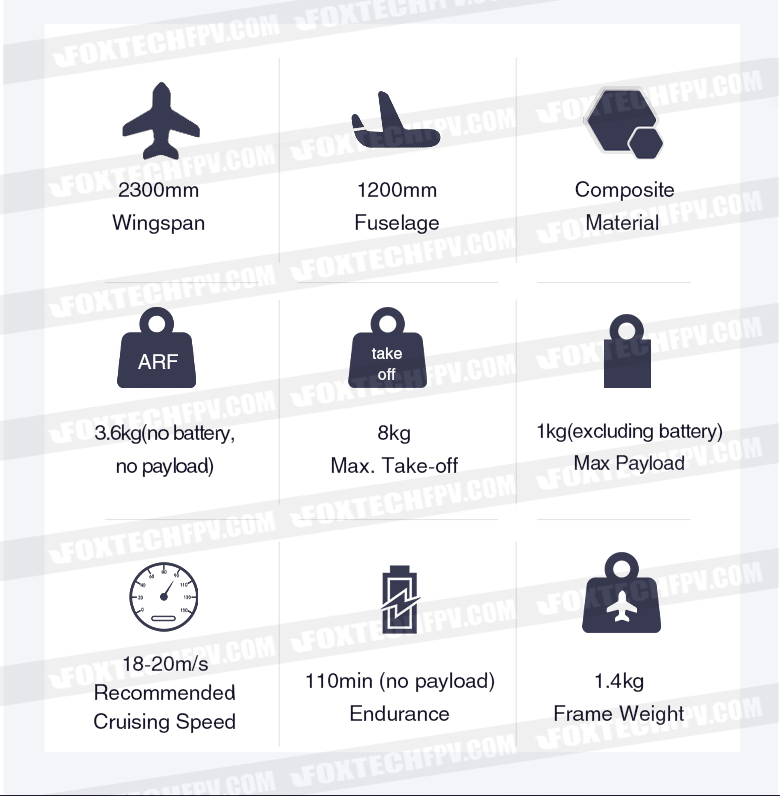

Specifications:
Version: Pegasus-230 VTOL

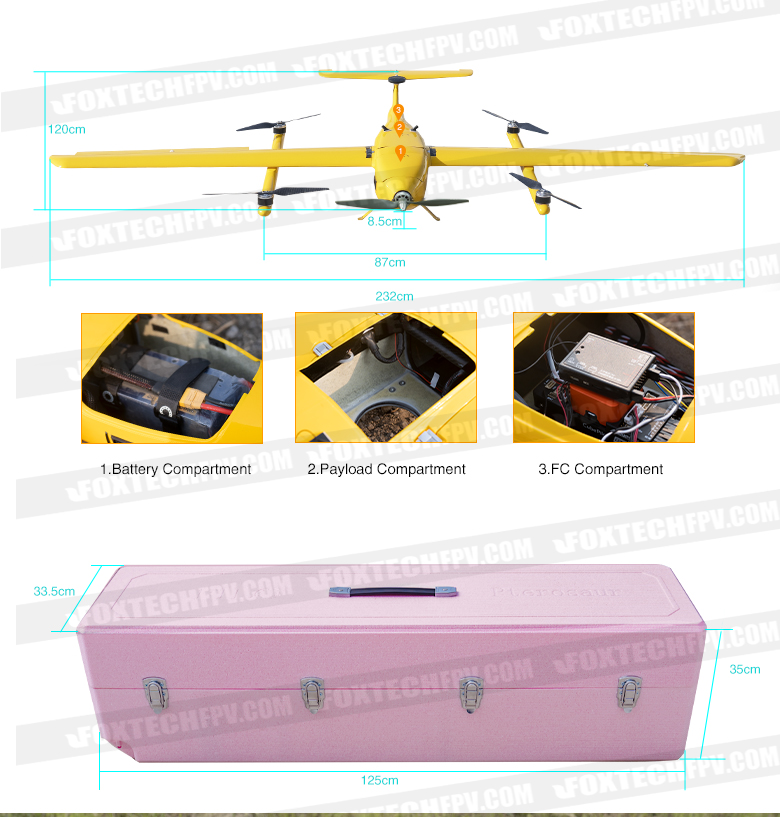

Wingspan: 2300mm
Fuselage: 1200mm
Material: Composite Material
Basic Empty Weight: 3.6kg (no battery)
Max. Take-off Weight: 8kg
Suggested Max Payload: 1kg(excluding battery)
Endurance: 110min (1x 6S 25000mAh High Voltage Lipo Battery, no payload)
Recommended Cruising Speed: 18-20m/s
Stall Speed: 12-14m/s
Suggested Take-off Altitude: 0~3000m
Wind Resistance: 5.5m/s-8m/s(12.5mph-17.5mph)
Take-off/Landing: VTOL
Working Voltage: 24V(6s lipo)
Working Temperature: -10℃-40℃

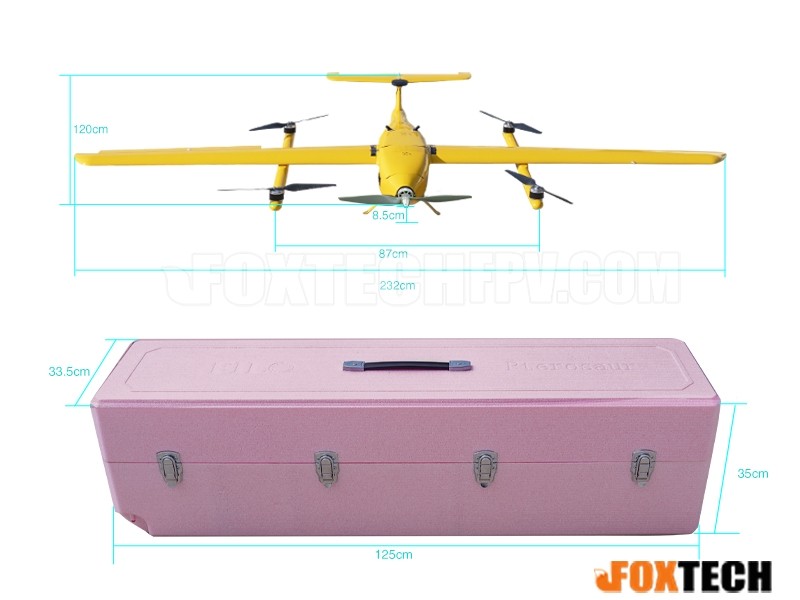

Carrying Case: 125cm*34cm*34cm
Your Purchase Includes:
RTF Combo:
1x Pegasus-230 VTOL Frame
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ 16-Channel Radio Controller
4x VTOL Motor 4118 KV440
1x Motor for Fixed-wing Mode 5052 KV400
4x VTOL ESC 50A Pro
1x ESC 120A for Fixed-wing Mode
3x 17g Servo
2x 9g Servo
2x(pair) 1655 Carbon Fiber Propeller
1x 1680 Glass Fiber Nylon Propeller
1x Pitot Tube
1x Carrying Case
RTF Mapping Combo:
1x Pegasus-230 VTOL Frame
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x T30 All-in-one Portable Ground Control Station(1.4GHz/HDMI)
1x Map-A7R Full-Frame Mapping Camera
4x VTOL Motor 4118 KV440
1x Motor for Fixed-wing Mode 5052 KV400
4x VTOL ESC 50A Pro
1x ESC 120A for Fixed-wing Mode
3x 17g Servo
2x 9g Servo
2x(pair) 1655 Carbon Fiber Propeller
1x 1680 Glass Fiber Nylon Propeller
1x Pitot Tube
1x Carrying Case
1x Assembling, tuned and Flying Test Service
