Important Notice!
Our company's unmanned aerial vehicle (UAV) products only support domestic transactions within China. If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. Furthermore, the products cannot be used for military, terrorist, or war purposes.

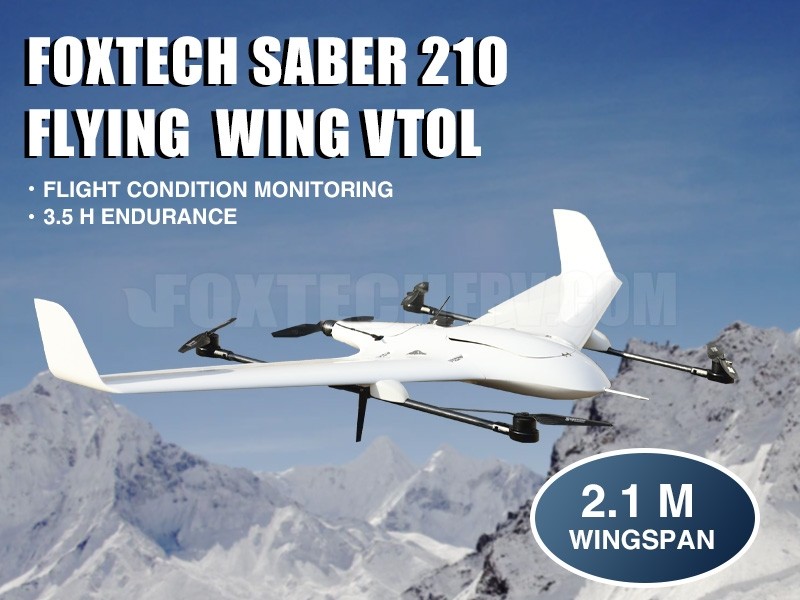

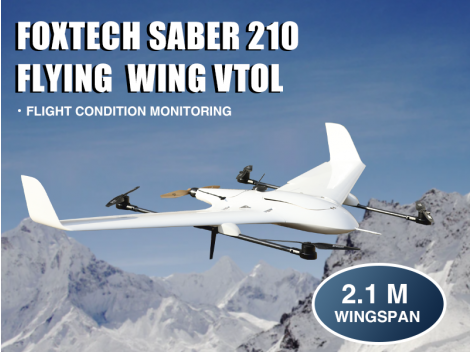

Saber 210 Flying Wing features high lift power, long endurance, light material, stable flying, and easy operating, with ESC telemetry function and quick-assemble wings.
As a flying wing aircraft, Saber 210 has higher lift power due to its body-wing-blending structure, and can maintain stable flying performance. The main material of Saber 210 is fiberglass which is much lighter.
The ESC used for Saber 210 supports ESC telemetry function, which helps to send ESC and motor working status, including the temperature of ESC, the voltage, current, and RPM of the motors, to the operator, so as to monitor the working status of the propulsion system. It also has the function of filtering out shakes and noises caused by rotating propeller.
Assemble the motor and ESC on one base for better heat-dissipation, better wind-resistance and to reduce weight-bearing.
Aiming to be a mapping and inspecting VTOL, Saber 210 can load MAP 01, MAP A7R series to do mapping missions, or with EH314 MINI gimbal camera to carry out inspection missions.
Specification:
Wingspan: 2150 mm
Length: 1000 mm
Clearance to Ground: 75 mm
Material: Fiberglass, Carbon Fiber
Basic Empty Weight: 6.8 kg (no battery, no payload)
Max. Take-off Weight: 13 kg
Suggested Cruising Speed: 19-20 m/s
Stall Speed: 16 m/s
Max Climbing Speed: 5 m/s
Max Descending Speed: 3 m/s
Take-off/Landing: VTOL
Working Voltage: 48 V
Working Temperature: -10~40℃
Carrying Case: 1300*620*390mm
Features:
- Flying Wing
- ESC Telemetry
- Mapping & Inspection
Your Purchase Includes：
No Camera Combo
-1x SABER 210 VTOL
-1x Foxtech DA16S+ 16-Channel Radio Controller
-2x (pair)17 inch Carbon Fiber Propellers
-1x 17 inch Wooden Propeller
-1x Flight Controller with GPS
-1x Diamond HV 12S Battery
-1x Ultra Power UP1200+ Charger
-1x Airspeed & Compass
-5x Motor
-5x ESC
-2x Servo
-2x UBEC
-1x Assembling, tuned and Flying Test Service
-1x Aluminum Carrying Case
Mapping Combo
-1x SABER 210 VTOL
-1x Foxtech DA16S+ 16-Channel Radio Controller
-1x Map-A7R Advanced Full-Frame Mapping Camera
-1x C-RTK 2 PPK Module
-2x (pair)17 inch Carbon Fiber Propellers
-1x 17 inch Wooden Propeller
-1x Flight Controller with GPS
-1x Diamond HV 12S Battery
-1x Ultra Power UP1200+ Charger
-1x Airspeed & Compass
-5x Motor
-5x ESC
-2x Servo
-2x UBEC
-1x Assembling, tuned and Flying Test Service
-1x Aluminum Carrying Case
Inspection Combo
-1x SABER 210 VTOL
-1x Foxtech SYK-10 2K QHD 3-axis Gimbal Camera
-1x Foxtech MX16 All-In-One Radio Controller
-2x (pair)17 inch Carbon Fiber Propellers
-1x 17 inch Wooden Propeller
-1x Flight Controller with GPS
-1x Diamond HV 12S Battery
-1x Ultra Power UP1200+ Charger
-1x Airspeed & Compass
-5x Motor
-5x ESC
-2x Servo
-2x UBEC
-1x Assembling, tuned and Flying Test Service
-1x Aluminum Carrying Case
Option:
1x Diamond 12S 32000mAh HV
