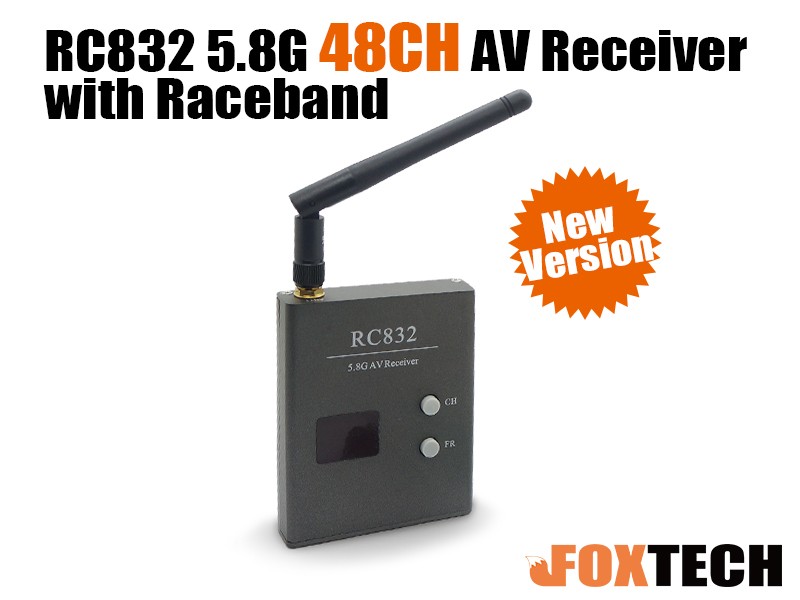

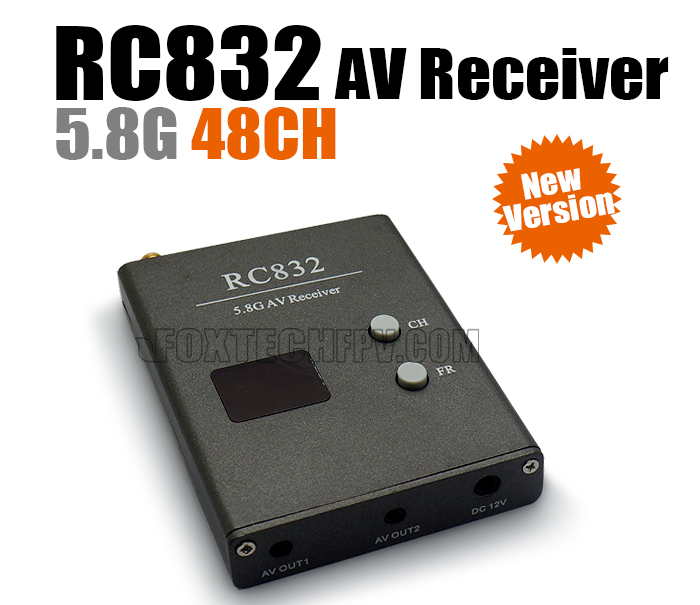

RC832 receiver has the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are

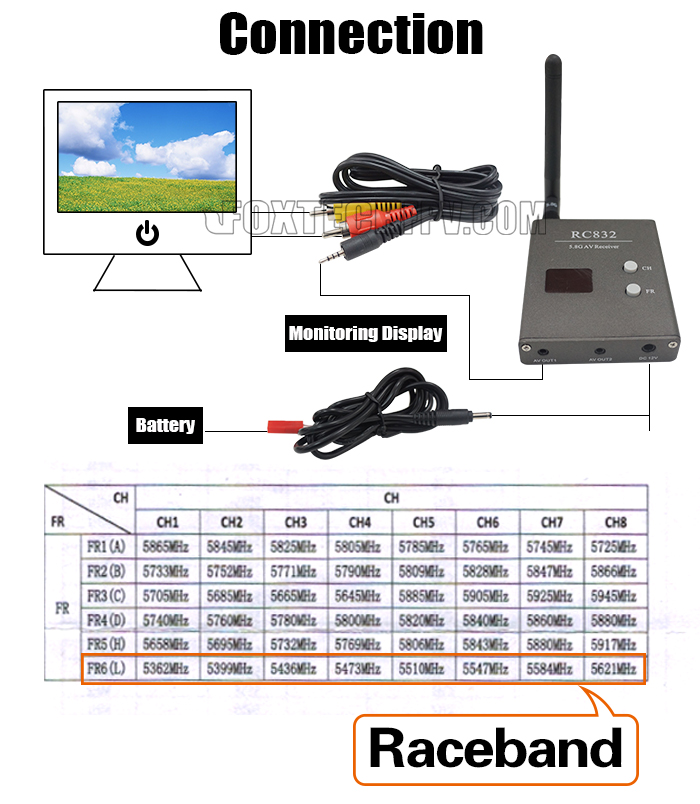

two independent AV outputs for both audio and video,easy to use with a monitor/set of goggles/a DVR to record your
fligh.It also has frequency memory, so when you power down it will save the last frequency channel you were using.
Features:
-48 channels: covers A,B,C,D,H,L 6 bands and all frequencies compatible

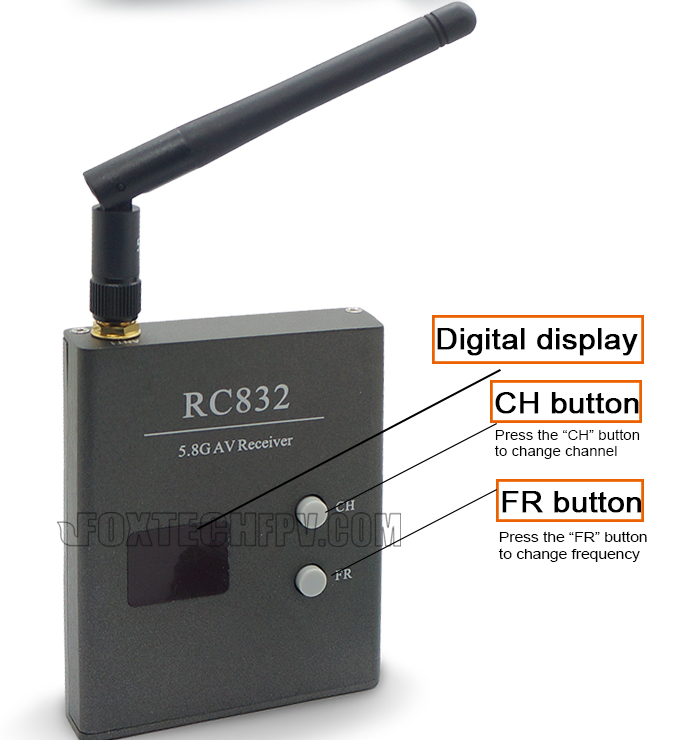

-2 switching buttons
-Digital display
-Power off memory: replay the very last frequency band and channel
-Independent video and audio signal outputs
Specifications:
-Sensitivity: ≤-90dBm
-Working frequency: ISM 5.8GHz
-Available Channel: 48CH
-Power supply: DC 12V
-Consumption current: 200mA, Max.
-Antenna input impedance: 500ohm Typ.
-Antenna connector: RP-SMA
-Antenna gain: 2dBi
-Video output level: 1.0Vp-p, Typ 75Ω
-Audio output level: 1.0Vp-p, Typ 10kΩ
-Audio carrier: 6.5MHz
-Type standard: NTSC/PAL(auto)
-Dimension: 80x65x15mm
-Weight: 85g

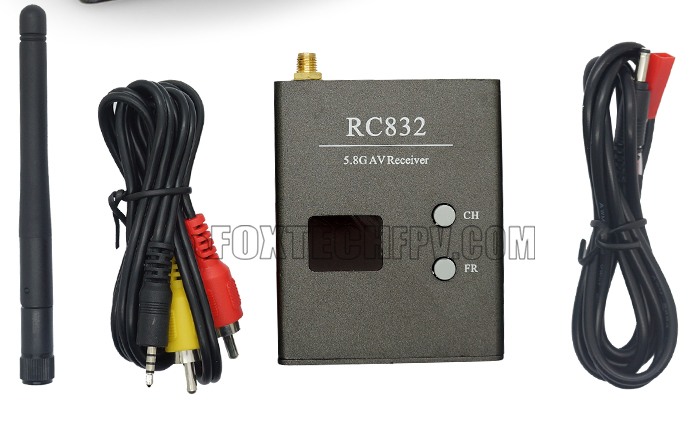

Package Included:
-1 X RC832 AV receiver
-1 X Antenna
-Cables
