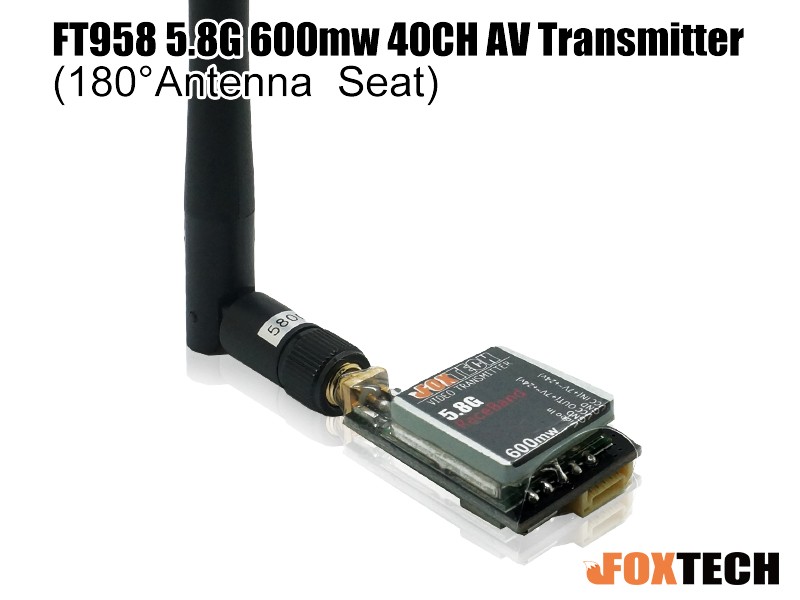

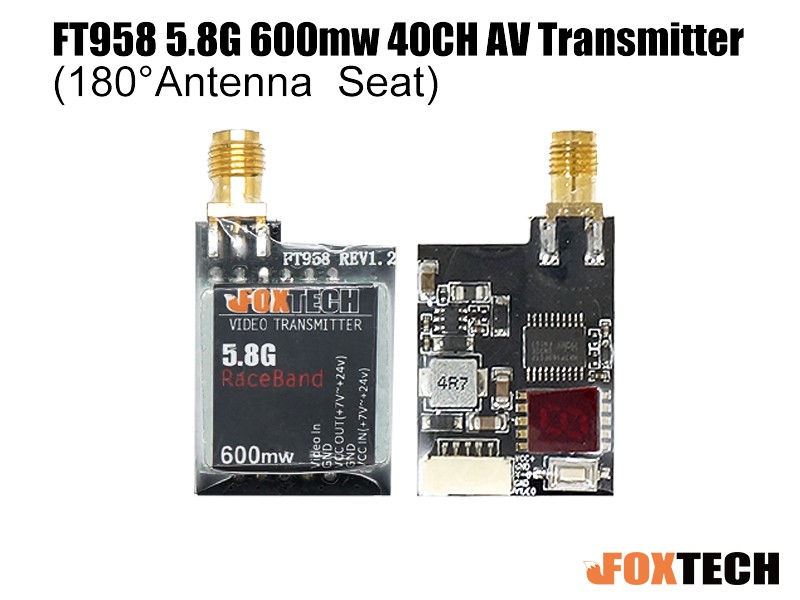

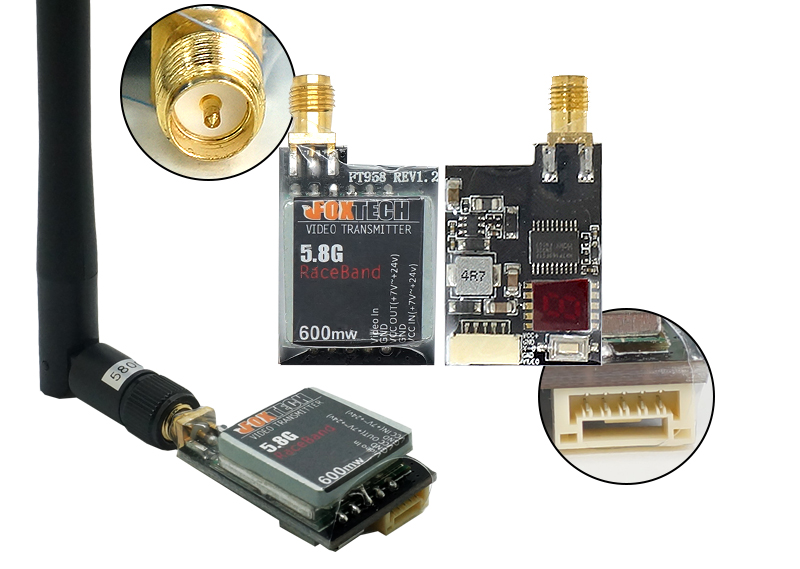

The FT958 transmitter packs 600mW of 5.8GHz power in a micro sized audio/video transmitter. A must have for those looking to save size and weight while still maintaining performance.The FT958 transmits a full range of 40 channels (including Race Band) and weighs less than 21g complete with the included GoPro adapter lead and antenna (the TX is only 9.8g alone), making it perfect for a wide range of aircraft, particularly smaller models and 180-250 sized multi-rotors.
FT958 with 90°antenna seat is also available at Foxtech!
Features:
-Digital channel/band read out
-Push button to change channels/bands
-Wide range perating voltage: 7-24V
-7-24V output to camera
-Ultra small and weight only 10g
-2.4GHz R/C Radios friendly
-Long transmission
-Mini size, Power indicator, easy to carry

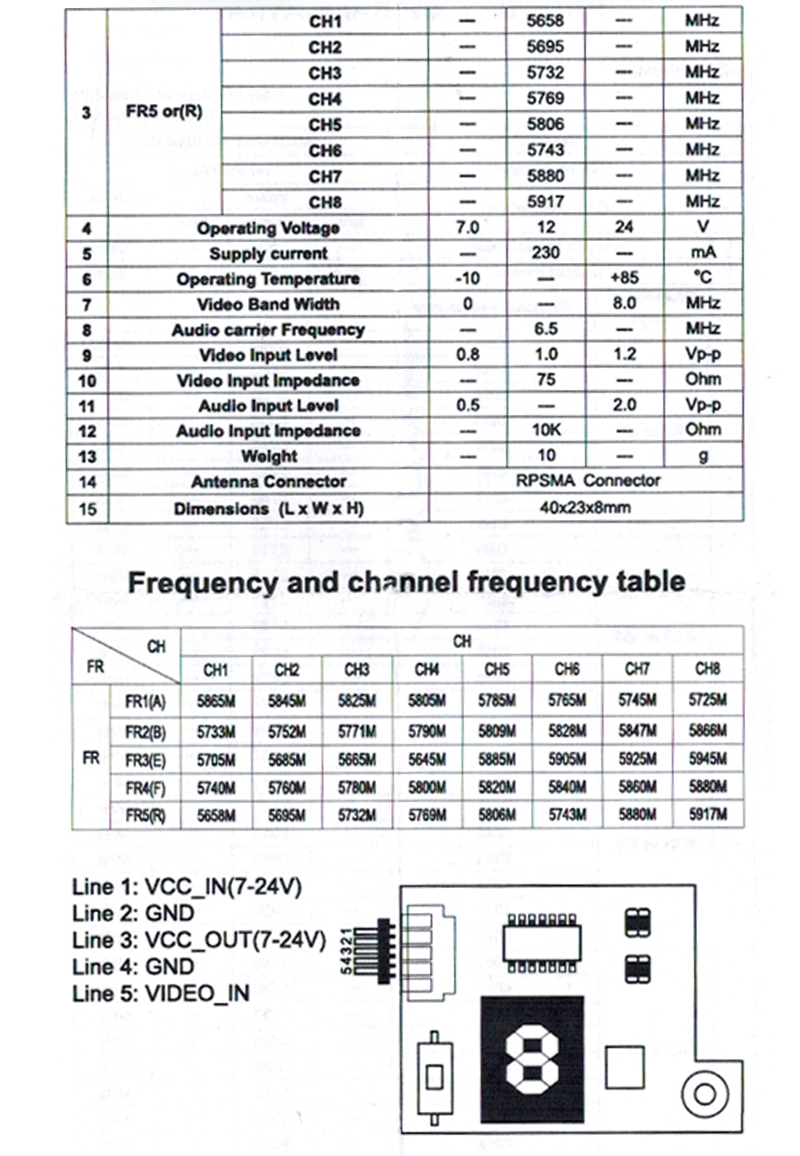

Specifications:
-Video Format: NTSC/PAL
-Output Impedance: 50 Ohm
-Output Power: 27dBm
-Operating Voltage: 7-24V DC
-Supply Current: 230mA
-Operating Tempreture: -10°C to 85°C
-Video bandwidth: 8MHz
-Audio bandwidth : 6.5MHz
-Video Input Level: 0.8-1.2 Vp-p
-Video Iput Impendance: 75 Ohm

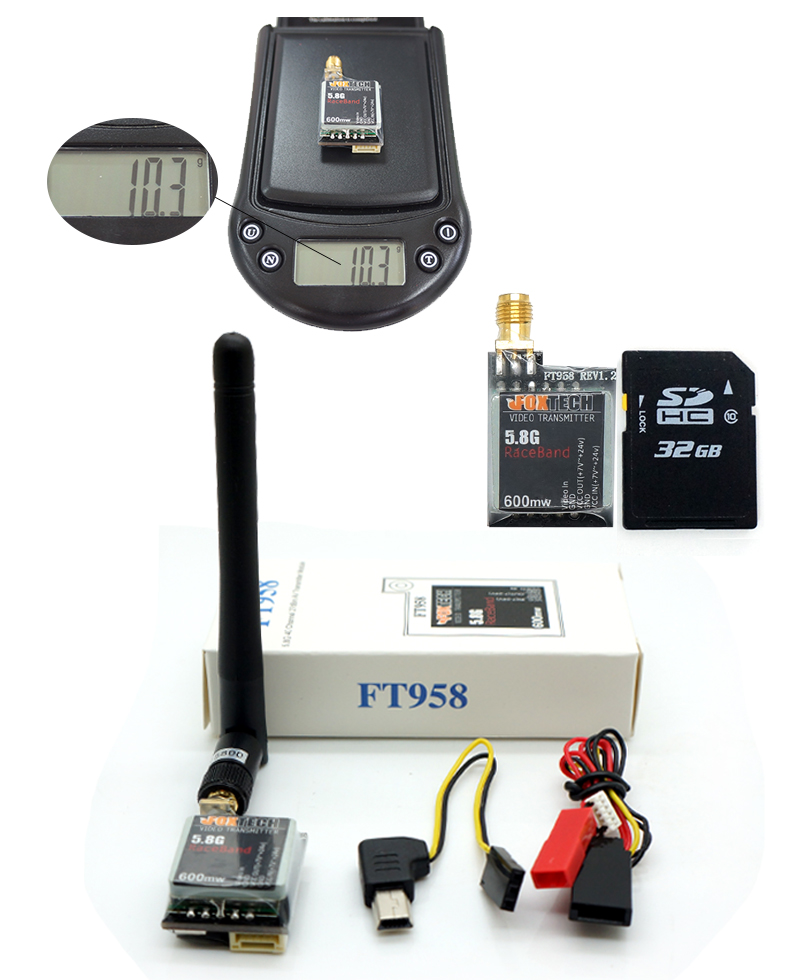

-Weight: 9.8g
-Demensions(LxWxH): 40*23*8 mm

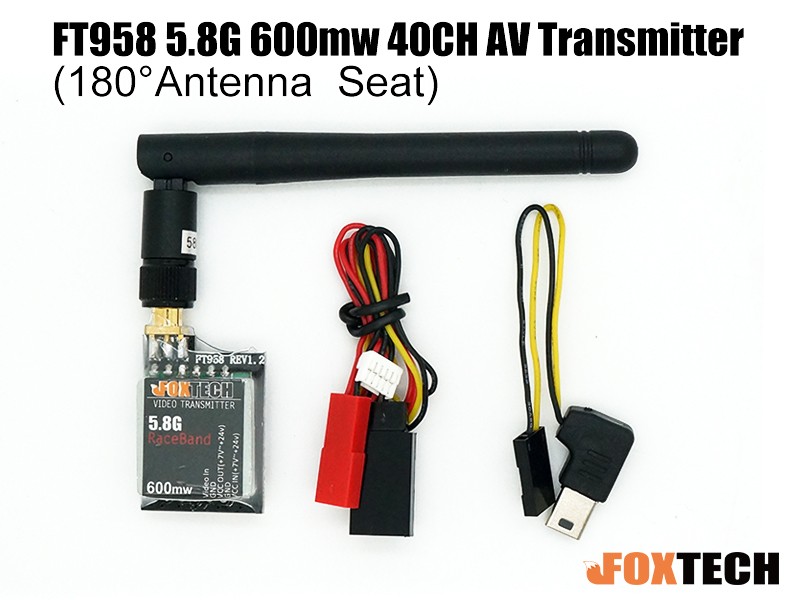

Package includes:
-1x FT958 transmitter with antenna
-1x Antenna
-1x Wire harness
-1x Manual
