GAIA 160-AG Hexacopter ARF NO FC Combo

SKU: 706302

Availability: In stock ( 4 )

Weight:25KG

$3,599.00

Reward points Earn your 3599 reward points.

Qty:

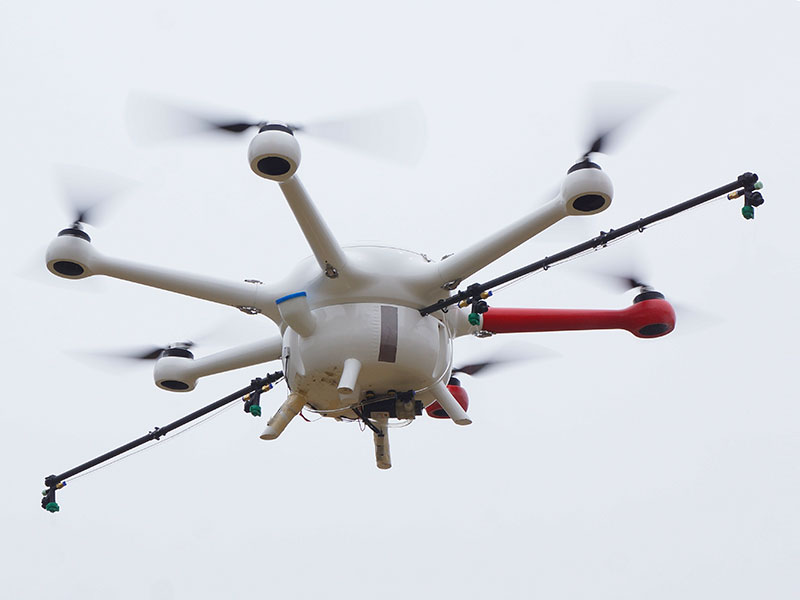

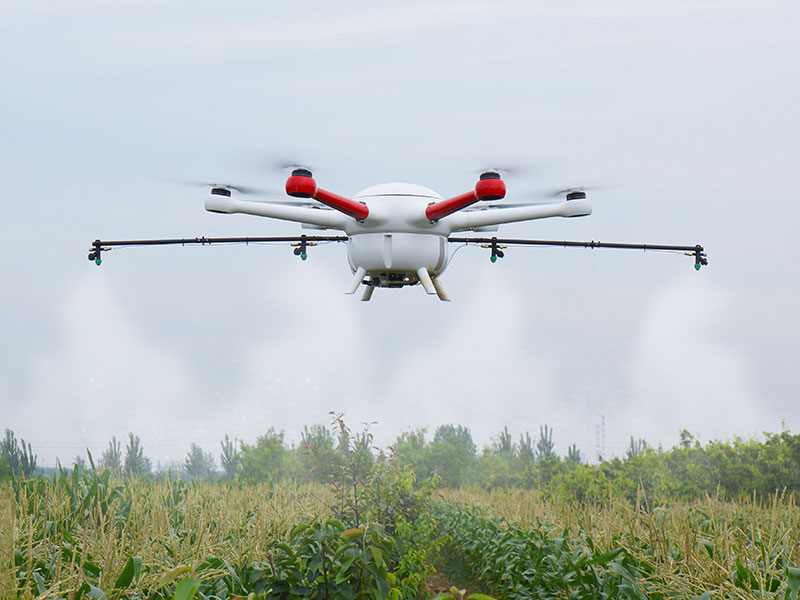

GAIA 160-AG hexacopter is released! This GAIA 160-AG hexacopter is a high performance aircraft capable of offering comprehensive solutions for agricultural care. GAIA 160-AG is made of carbon fiber material which features light weight and high strength, the top cover of the fuselage and the tank are made of glass fiber. The arm of GAIA160 series hexacopter is pluggable, both the cover and arms can be locked with the quick locking hooks.

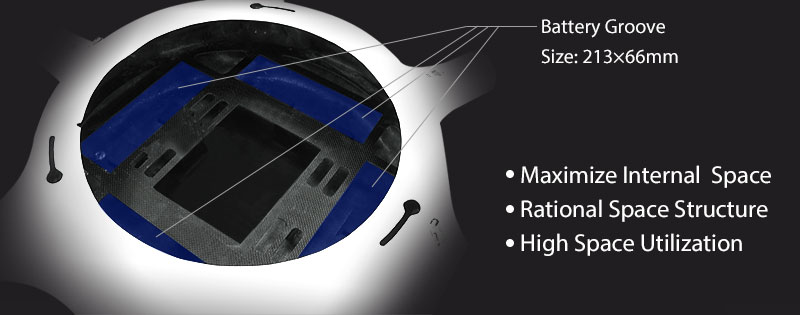

The big fuselage of GAIA 160-AG makes it possible to install many equipments eg. battery, Gps, flight control system. And all the wires are built into the fuselage. The closed fuselage structure can protect the GAIA 160-AG hexacopter from the rain and dust, and also protect other load equipments.

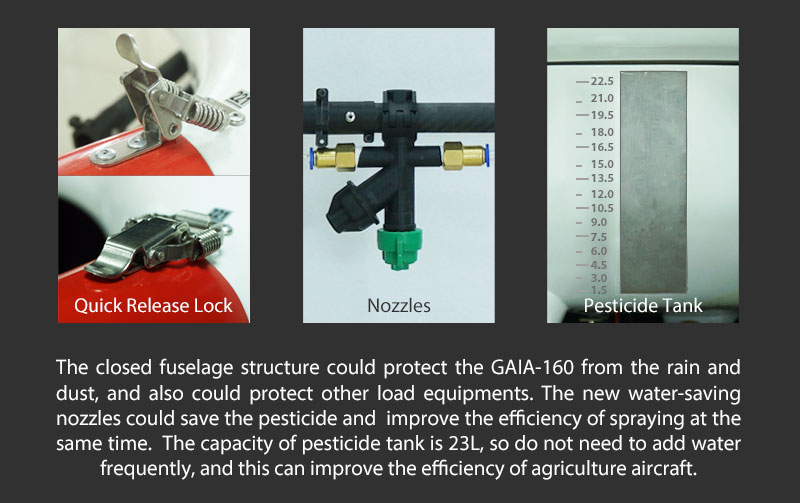

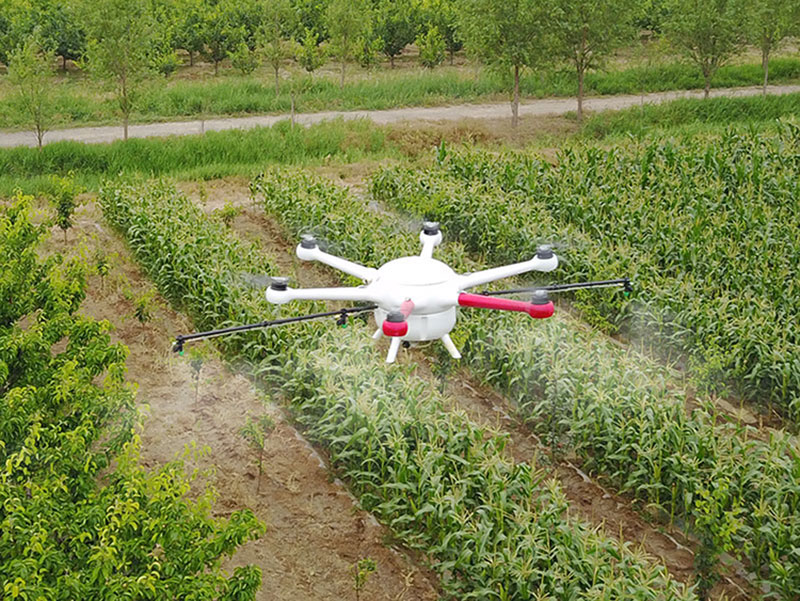

This GAIA 160- AG is equipped with a 2.8 meter long tube with four nozzles. The new water-saving nozzles could save the pesticide and improve the efficiency of spraying at the same time. This GAIA 160- AG has a grid pesticide container which can prevent the liquids sloshing in the flight. The capacity of pesticide tank is 22.5L, so do not need to add pesticide frequently. The propeller vortex can help the GAIA 160-AG evenly spraying the pesticide on the front and back of the plant leaves.

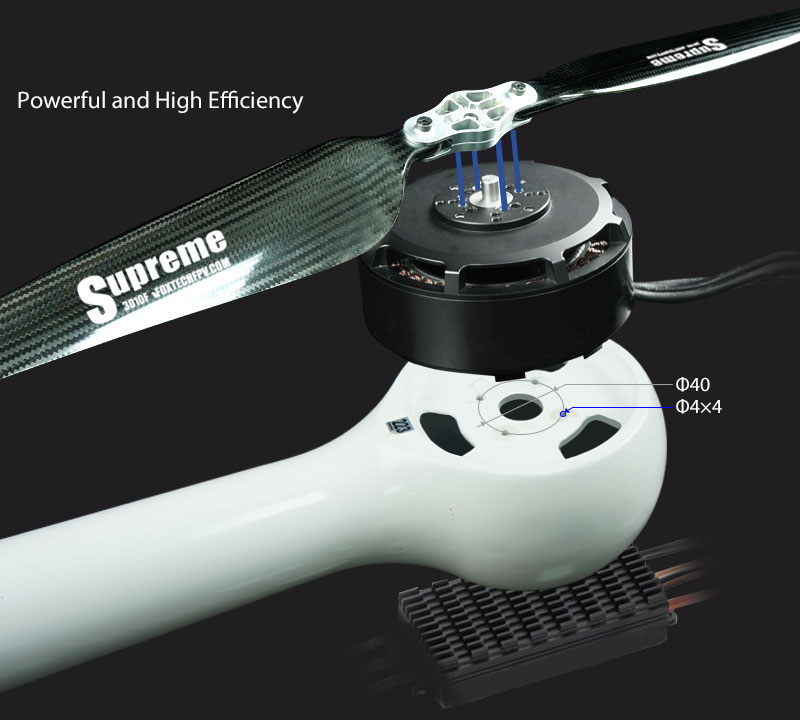

The GAIA 160-AG is equipped with powerful motor and high efficiency 30 inch folding propeller, the max lift of one rotor can reach 13kg. The total thrust is over 70kg. The GAIA 160-AG supports both manual and automatic flight, it can achieve automatic spraying by the planned flight paths. The motor and ESC use the water-resistant design, and can be applied in different weather conditions. Because of the large liquids load the efficiency of GAIA 160-AG is twice as much as other aircraft with 10L payload.

The strong body can be equipped with various of equipments, so GAIA 160 also can be applied in many other fields: emergency rescue,reconnaissance mission,remote sensing surveyand mapping etc.



Specifications:

Version: Agricultural Aircraft

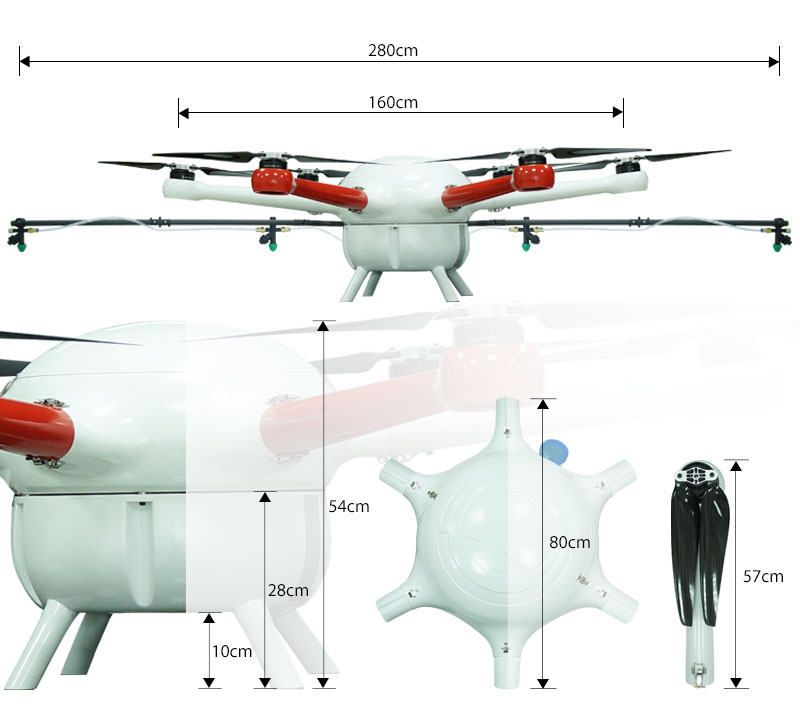

Wheelbase:1600mm
Max Take-off Weight: 46.5kg
No-load Weight: 24kg
Load pesticides: 22.5L
Flying time: 13min
The altitude of spraying: 1-5m
Spraying swath: >5m
Spraying speed: 2-6m/s
Operation efficiency: 39mu/h



Features:

- Closed fuselage structure,rain resistance,large capacity
- High strength, durable
- Convenient operation,easy maintenance
- Powerful and high efficiency power system
- Heavy load, more stable flight



Your Purchase Includes:

N3 Combo:

-1 x GAIA 160-AG hexacopter frame
-1 x 2.8 meter long carbon tube
-1 x Pump and controller
-1 x Water tube
-4 x Nozzles
-6 x XRotor 8120 100KV FOC ESC HV Combo
-3 x 3010 Carbon Fiber Propeller

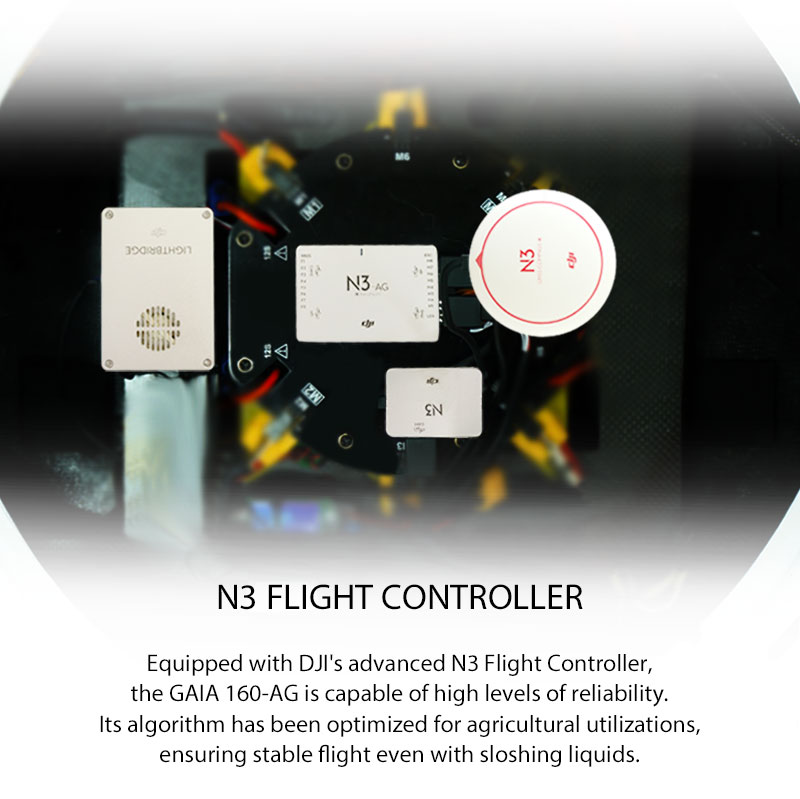

-1 x DJI N3 flight controller
-1 x Plug/Cable/Wires/Shrink Tubing etc



A3 Combo:

-1 x GAIA 160-AG hexacopter frame
-1 x 2.8 meter long carbon tube
-1 x Pump and controller
-1 x Water tube
-4 x Nozzles
-6 x XRotor 8120 100KV FOC ESC HV Combo
-3 x 3010 Carbon Fiber Propeller
-1 x DJI A3 flight controller
-1 x Plug/Cable/Wires/Shrink Tubing etc



Options:

- Propeller: 3010 Carbon Fiber Propeller/Foxtech Supreme C/F 3010T propeller/Foxtech Supreme C/F 3010F propeller
- Battery: Foxtech 6s 16000mah lipo battery
- Remote Controller: DJI Lightbridge 2/Futaba 14SG Radio Controller
- PDB: EFT V3 High Current Power Distribution Board



Notice:The GAIA 160-AG Hexacopter ARF Combo will be shipped in two parcels, and the appointed delivery methods is EMS only, please contact:[email protected] or customer online service about the freight difference with other delivery methods.
