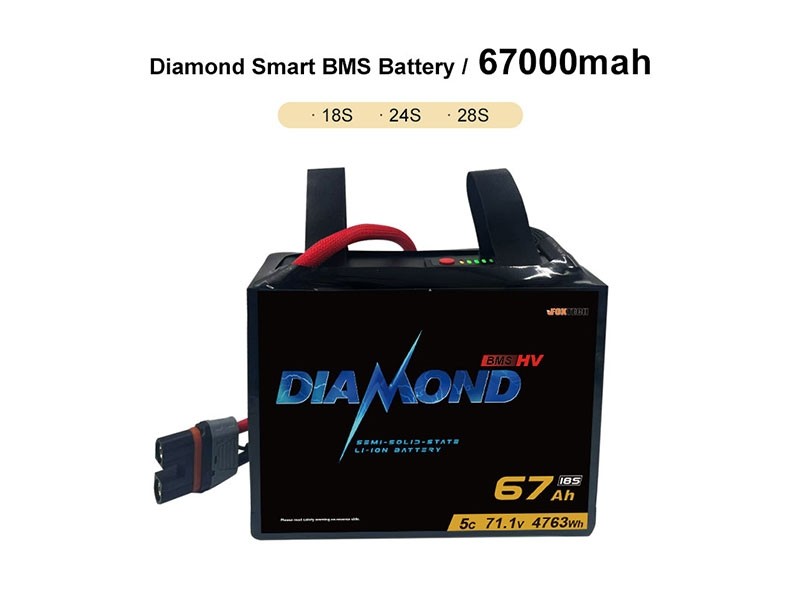

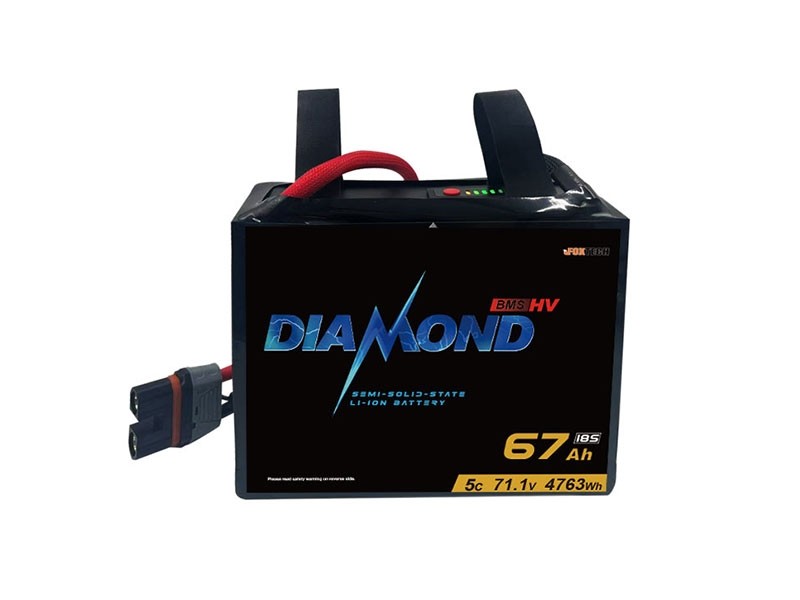

The Diamond Smart Series BMS Semi-Solid-State Li-ion Battery delivers exceptional energy density, reliability, and intelligent power management for demanding applications.
Equipped with an advanced BMS, it offers real-time monitoring of voltage, current, and temperature, along with CAN and RS485 communication for seamless system integration.
With capacities ranging from 36,000mAh to 72,000mAh and configurations from 18S to 28S, it provides stable, high-power output—ideal for drones, robotics, and other high-performance equipment requiring long endurance and maximum safety.
Key Features:
Accurate Data Monitoring – Real-time collection of voltage (±10mV), current (±1%), and temperature (±2°C) across multiple channels.
Comprehensive Data Logging – Stores up to 60,000 records with timestamped voltage, current, temperature, and usage status.
Precise Timekeeping – RTC clock with high accuracy (±0.5s/day).
Bluetooth Connectivity – Android app support for real-time battery information and status monitoring.
Note: Custom Battery Enclosure Available — Please contact sales for details.
Your Purchase Includes:
1x Diamond Smart Series BMS Semi-Solid-State Li-ion Battery
18S / 24S / 28S 37000mAh–70000mAh
(The smart battery comes with a QS12 connector by default.)
