Ranger Nano 2.4GHZ ELRS Module

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology.

*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays,

Features

• Built-in ExpressLRS Backpack
• High-efficiency cooling system
• Wifi and Bluetooth support
• Packet rates up to F-1000Hz

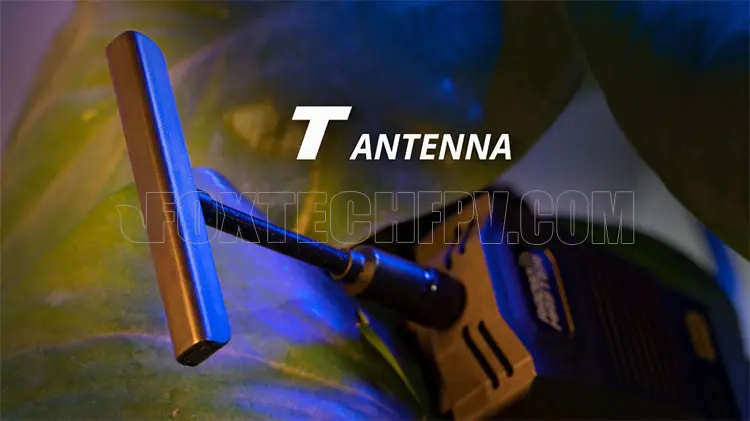

• T-antenna included

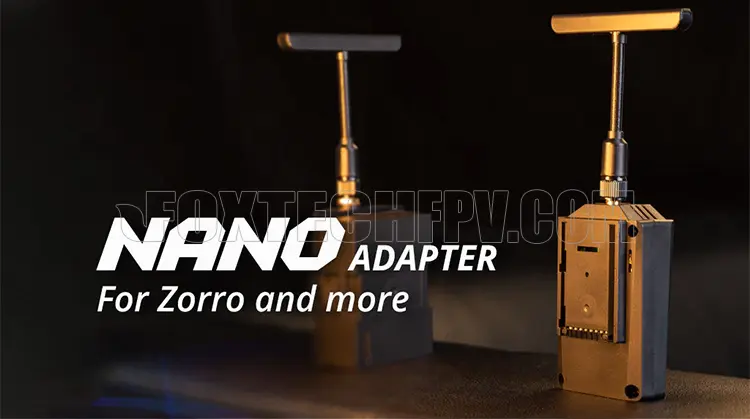

• With the Nano connector, support Zorro radio

Specification

• Item: Ranger Nano Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux,as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz - 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• RF Output Power: Default 100mW
• Wifi Support: Yes
• Bluetooth support: Yes
• XT30 Power supply voltage: DC 6V - 16.8V
• Weight: 48g (with antenna) / 39g (without antenna)
• Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

Package Includes

Need receivers too? Purchase the Ranger Nano Combo, which includes the following items:

• 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
• 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
