FOXTECH 3DM PSDK Dual-Lens Oblique Camera

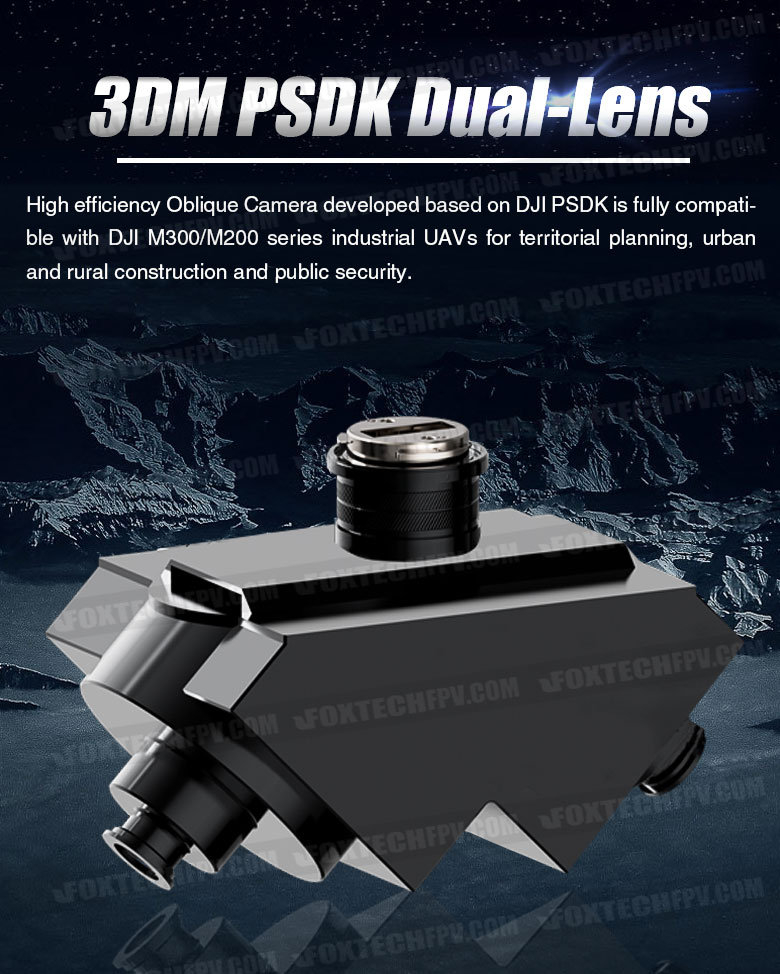

3DM PSDK Dual-Lens Oblique Camera featuring high reliability and efficiency is developed based on DJI PSDK, which is fully compatible with DJI M300RTK, M210RTK and M200 industrial UAVs for territorial planning, urban and rural construction, public security etc.

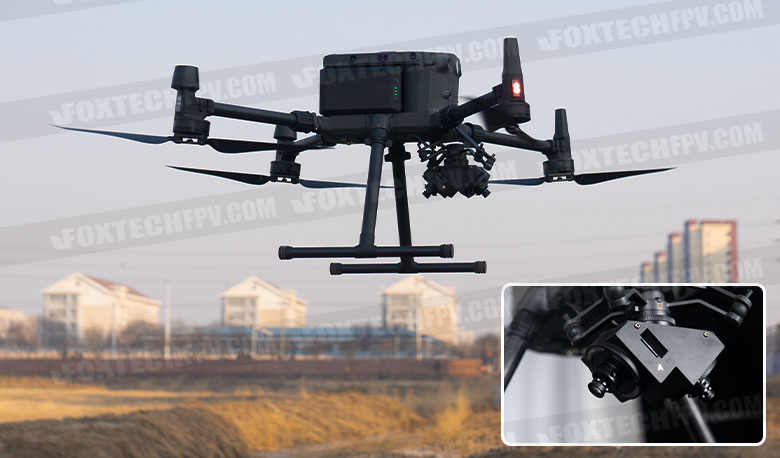

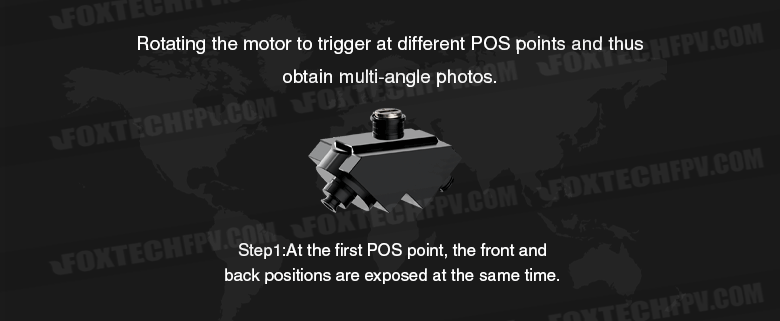

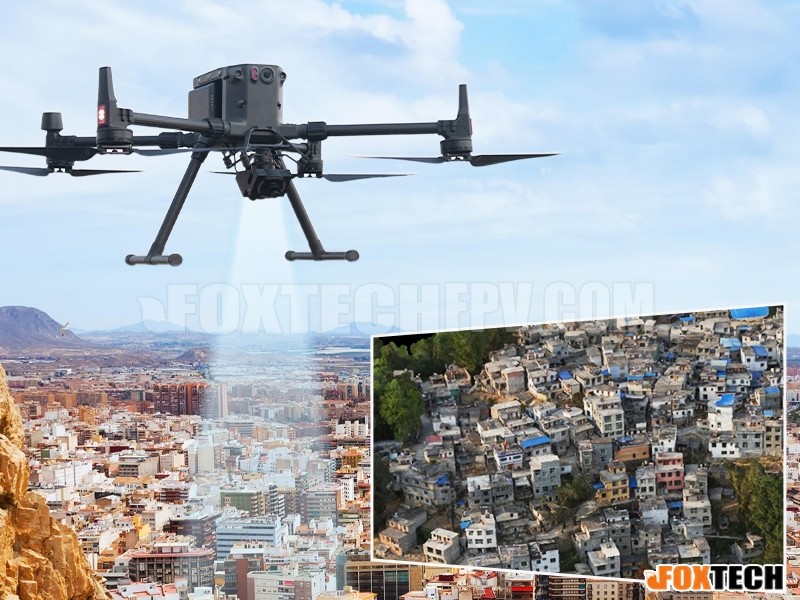

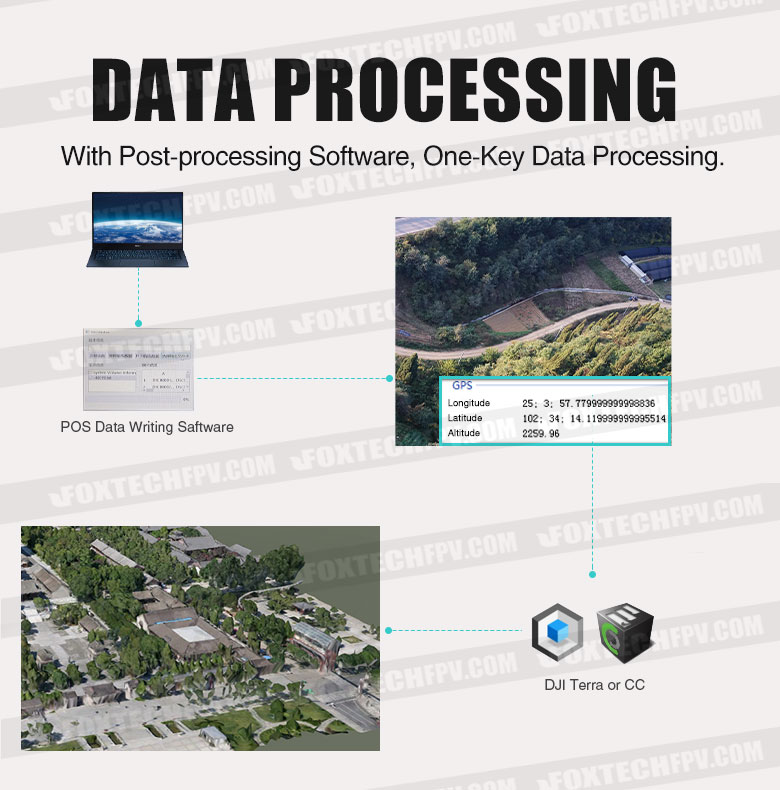

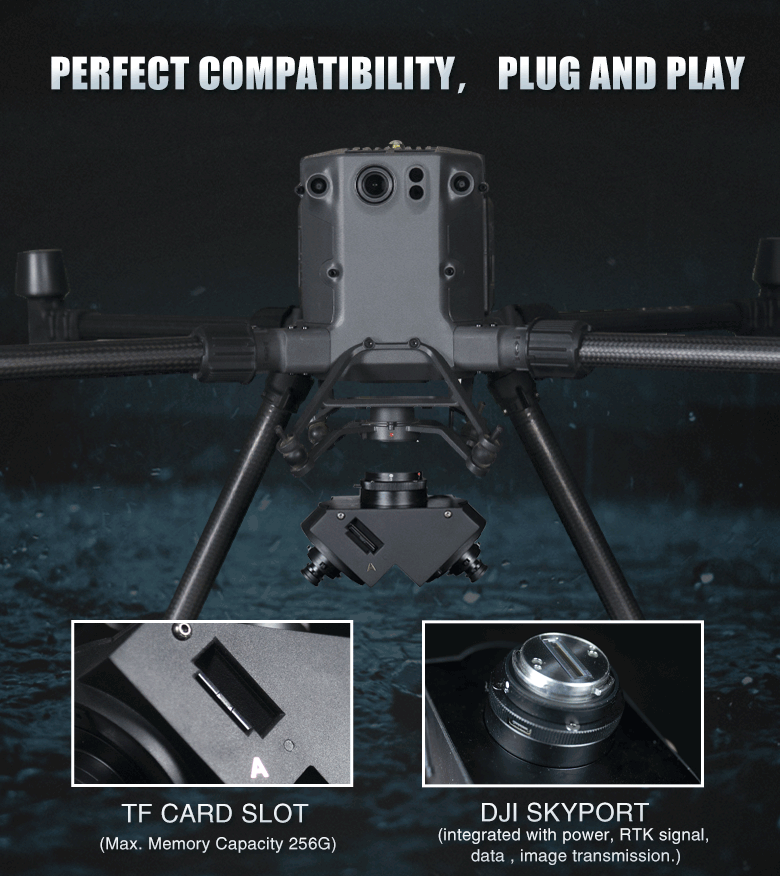

The lens of the oblique camera is interchangeable. Equipped with different lens such as 25mm, 35mm, 40mm, 56mm it can meet the requirements of various complex survey areas.Working principle of the 2-lens oblique camera is to trigger at different POS points by rotating the motor and thus obtain multi-angle photos. 3DM PSDK Dual-Lens Oblique Camera is mounted to DJI M300 RTK through SkyPort which is integrated with power, RTK signal, data and image transmission, it can realize 1:500 modeling without control points;With the special post-processing software,POS data will be written to the photo, then using mainstream data processing software such as DJI Terra and Bentley CC to generate 3D model.

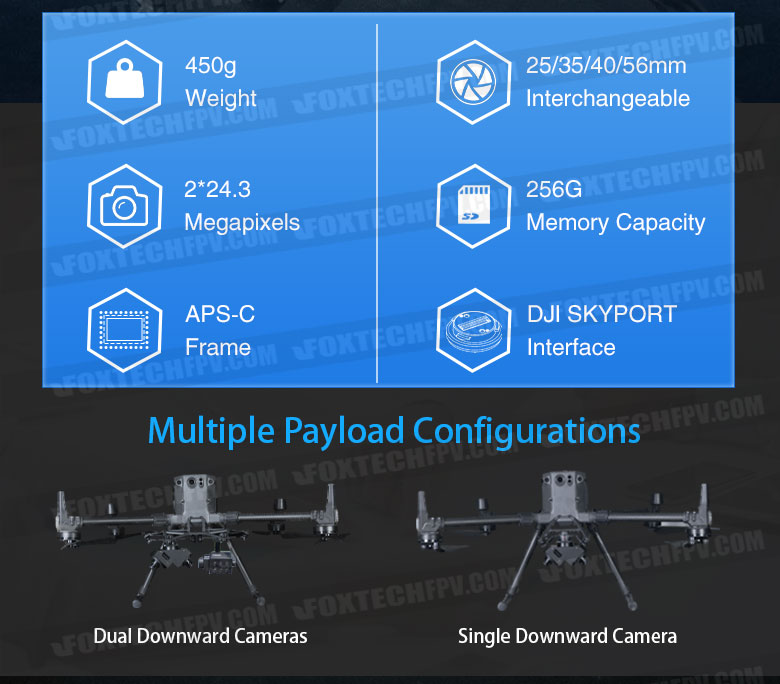

Specification:

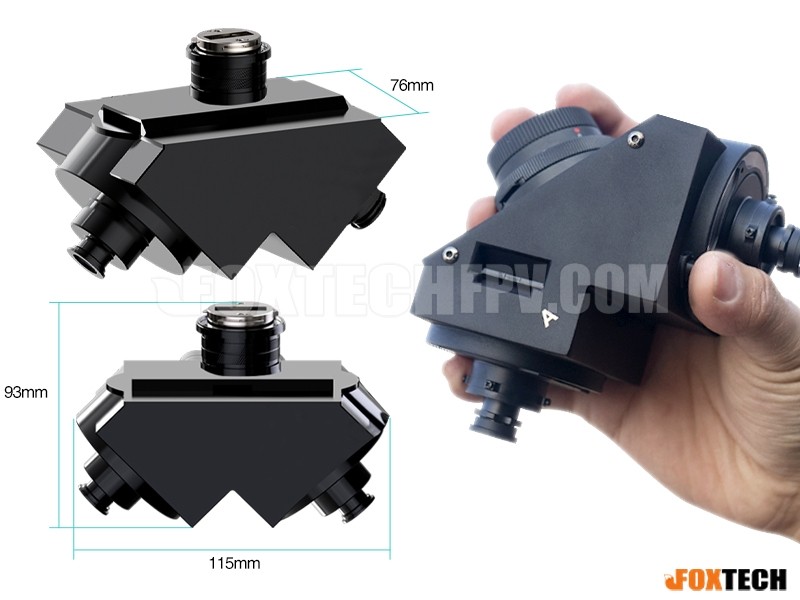

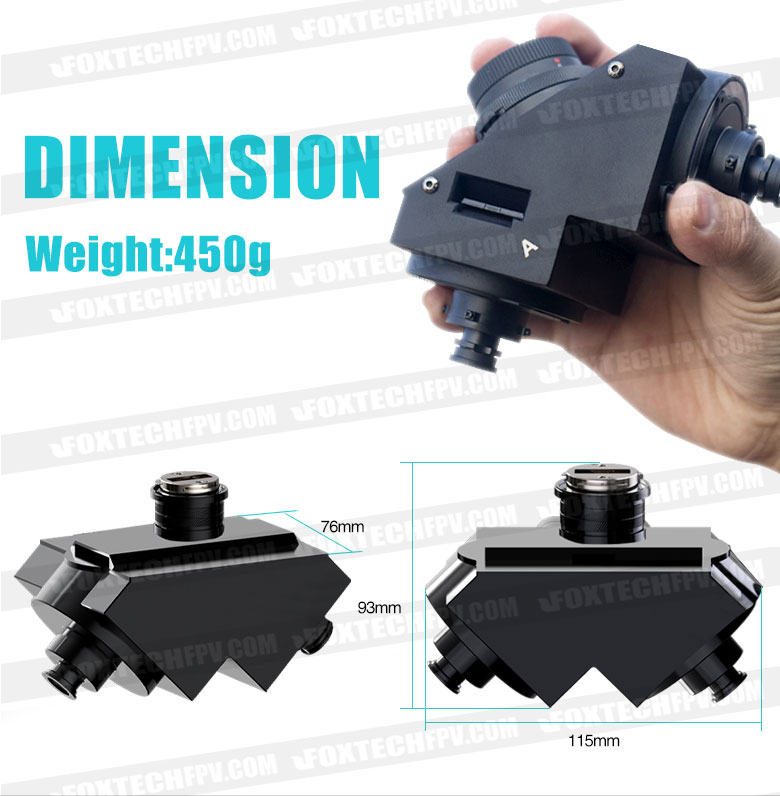

Weight: 450g
Number of Camera: 2
Camera Frame: APS-C
Pixel Size: 3.9μm
Rotation Speed: 0.5s
Functional: 3D oblique
Rotation Angle: 90°
Camera Pixels: 24.3 MP
Sensor Size: 23.5×15.6mm

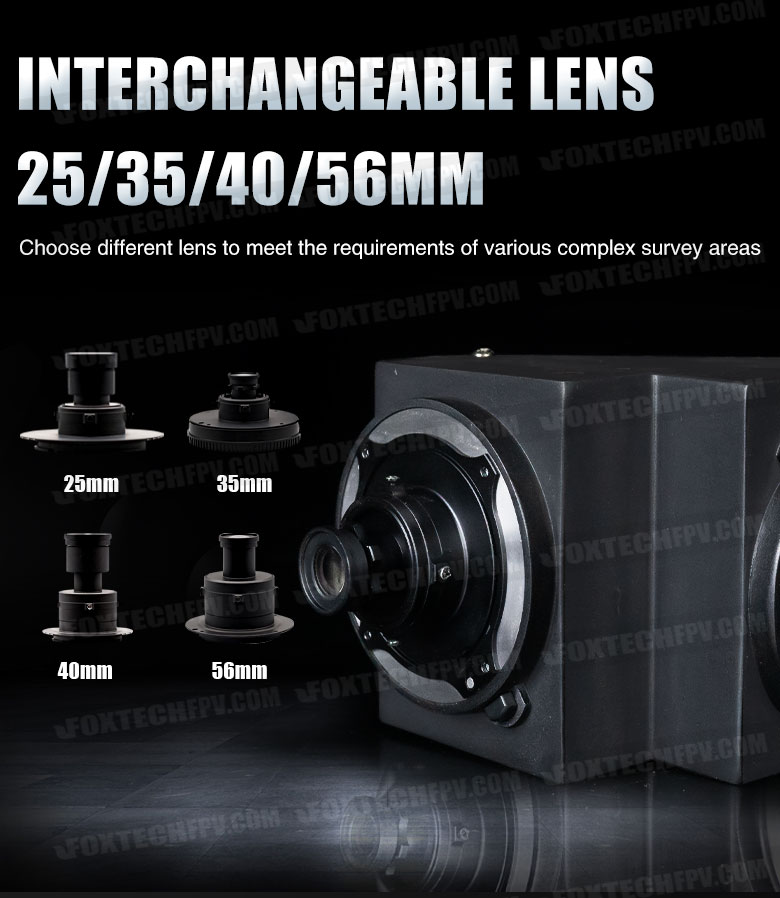

Focal Length: 25/35/40/56mm replaceable
Control Accuracy: 0.01°
Working Environment Temperature: -20℃ - +50℃
Material: Aluminum
Memory Card: Max. 256G

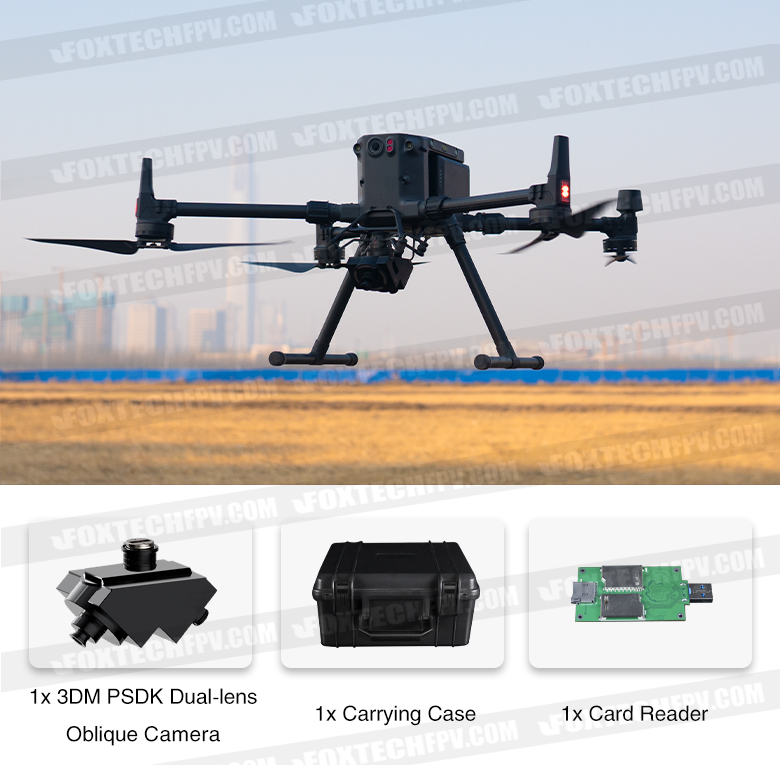

Your Purchase Includes:
1x 3DM PSDK Dual-Lens Oblique Camera
2x 64G TF Card
1x TF Card Reader

Original Photos
