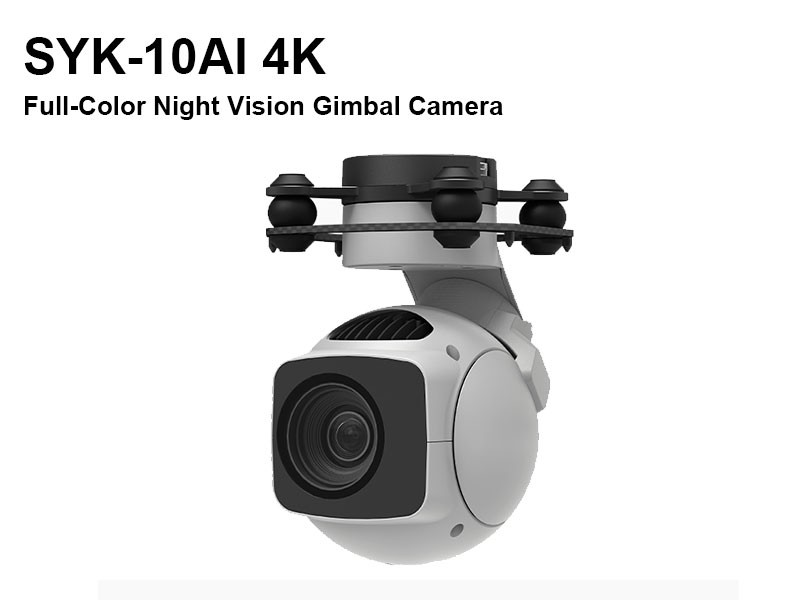

SYK-10AI 4K Full-Color Night Vision Gimbal Camera

Featuring an 80X hybrid zoom camera with 4K resolution, powered by the AI-ISP full-color night vision imaging engine, it delivers clear, full-color images even in low-light conditions.
With AI-HDR an ultra-wide dynamic range, the system ensures both bright and dark areas in high-contrast scenes are captured with exceptional clarity and detail.

Features AI-powered multi-object detection and tracking, capable of intelligently identifying pedestrians and vehicles in the scene and locking onto any selected target for continuous tracking.
*AICore Expandable Module (Option), Enhanced AI Multi-Object Detection & Tracking.

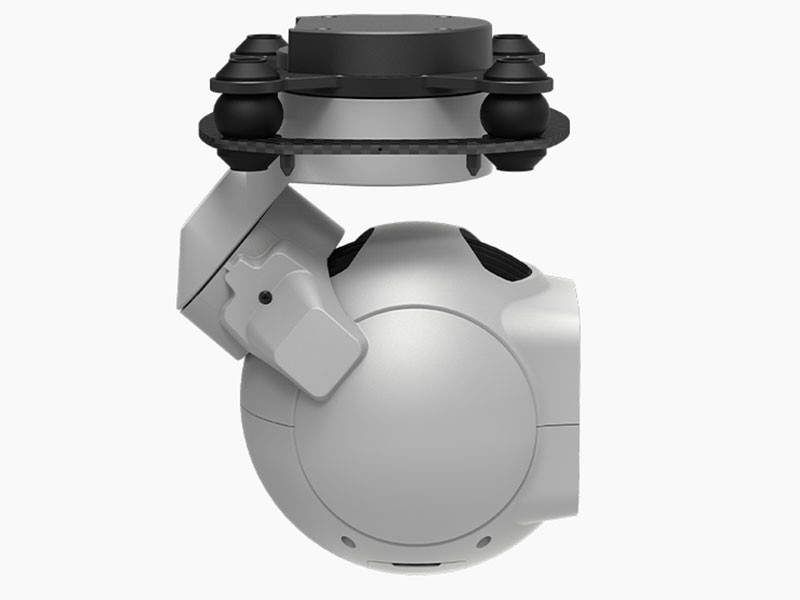

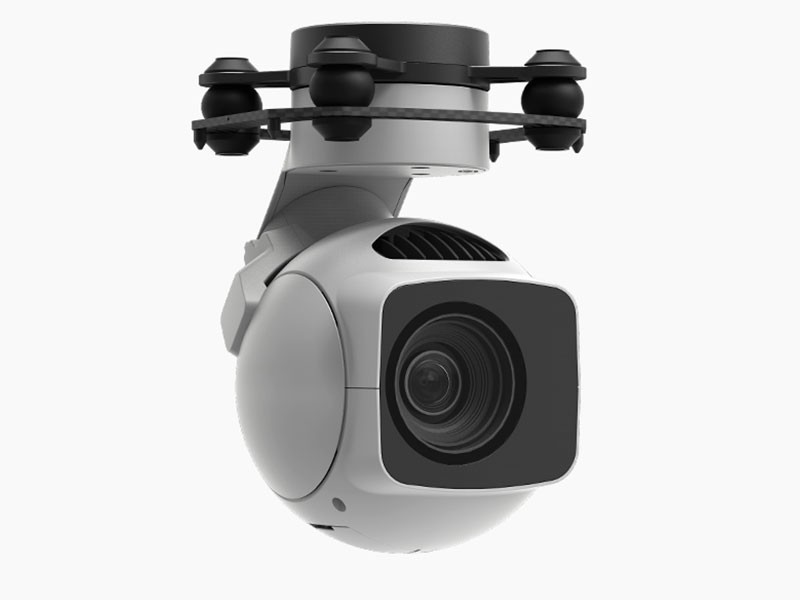

Compact spherical design with a non-orthogonal 3-axis mechanical gimbal stabilization system. Minimizes rotational radius and aerodynamic drag. Yaw axis supports 360° x N continuous rotation.

Supports control via network, serial port, and S.BUS. Compatible with proprietary protocols and MAVLink for flexible secondary development.

Dual IMU complementary algorithm combined with temperature-controlled IMU and aircraft navigation data fusion enables high image stabilization accuracy up to ±0.01°. Maintains stability even during aggressive flight maneuvers.

Supports both top-mount and bottom-mount installations for quick integration onto various UAV platforms.

Supports OSD overlay of GPS coordinates, altitude, and other information on live video; EXIF metadata for photos with geotagging; and SEI metadata embedding for real-time video and recordings (SEI support available via future firmware upgrade).

Wide voltage input range: 20–53 VDC.

Your Purchase Includes:
1x SYK-10AI 4K Full-Color Night Vision Gimbal Camera
1x J1.0 Config Module
1x Network Conversion Module
1x Power Cable
2x Net Cable
1x Network Convertor
1x Open Source Autopilot UART Cable
