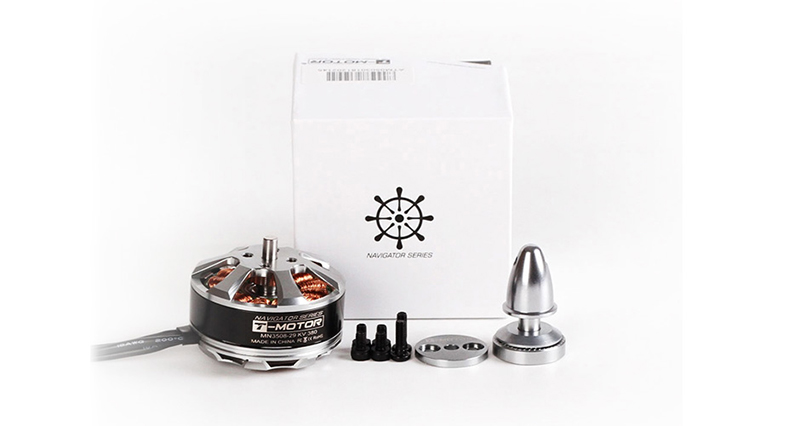

T-MOTOR MN3508

SKU: Q00010

Availability: In stock

Weight:1g

$69.90

Reward points Earn you 70 reward points.

$69.90
Qty:

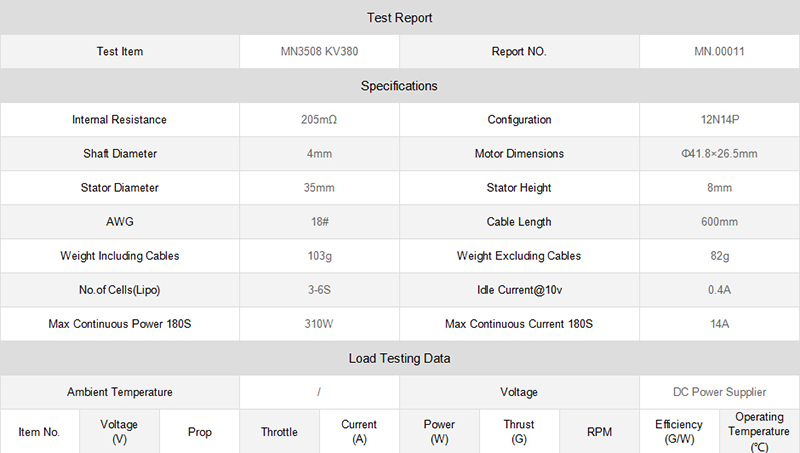

Specifications:
KV.............................................................................................................380
Configu ration....................................................................................12N14P
Stator Diameter....................................................................................35mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4mm

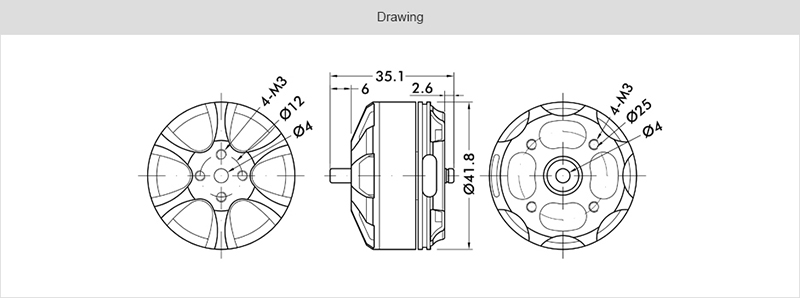

Motor Dimensions(Dia.*Len)...........................................Φ41.8×26.5mm
Weight (g)..................................................................................................82g
ldle current(10)@10v(A).................................................................... ...0.4A
No.of Cells(Lipo)....................................................................................3-6S
Max Continuous current(A)180S...........................................................14A
Max Continuous Power(W)180S.......................................................310W
Max. efficiency current................................................................(2-7A)>84%
internal resistance............................................................................205mΩ

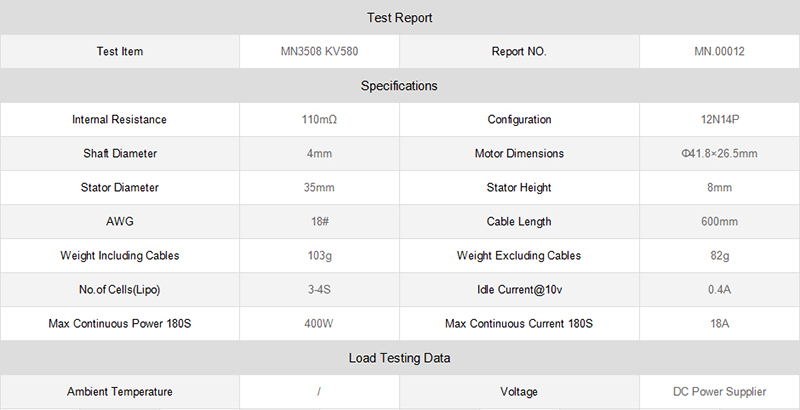

Specifications:
KV.............................................................................................................580
Configu ration................................................................................12N14P
Stator Diameter................................................................................35mm
Stator Length.......................................................................................8mm
Shaft Diameter....................................................................................4mm
Motor Dimensions (Dia.*Len).......................................Φ41.8×26.5mm
Weight (g)...............................................................................................82g
ldle current(10)@10v(A)......................................................................0.4A
No.of Cells(Lipo)..................................................................................3-4S
Max Continuous current(A)180S.........................................................18A
Max Continuous Power(W)180S.....................................................400W
Max. efficiency current..............................................................(3-9A)>82%
internal resistance...........................................................................110mΩ

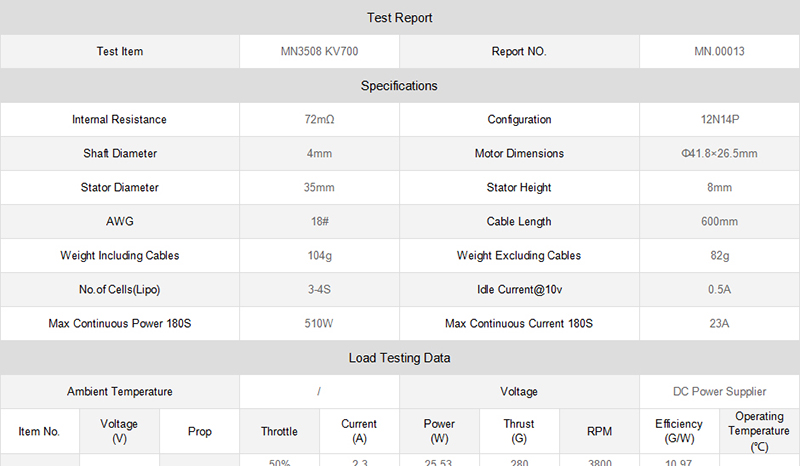

Specifications:
KV...............................................................................................................700
Configu ration..................................................................................12N14P
Stator Diameter..................................................................................35mm
Stator Length........................................................................................8mm
Shaft Diameter.....................................................................................4mm
Motor Dimensions(Dia.*Len).........................................Φ41.8×26.5mm
Weight (g)................................................................................................82g
ldle current(10)@10v(A).......................................................................0.5A
No.of Cells(Lipo)..................................................................................3-4S
Max Continuous current(A)180S.........................................................23A
Max Continuous Power(W)180S.....................................................510W
Max. efficiency current..............................................................(3-9A)>80%
internal resistance.............................................................................72mΩ
