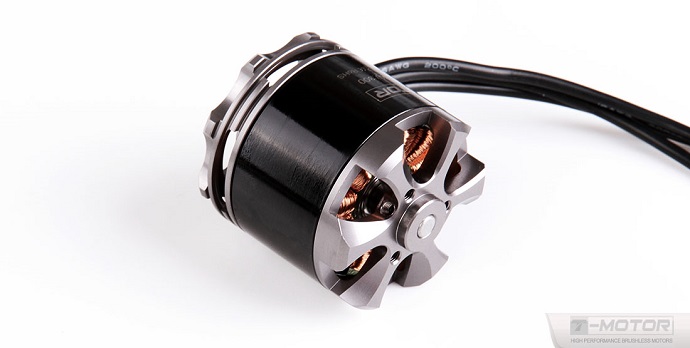

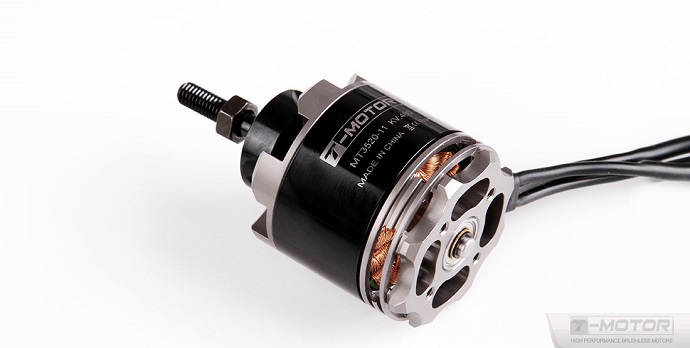

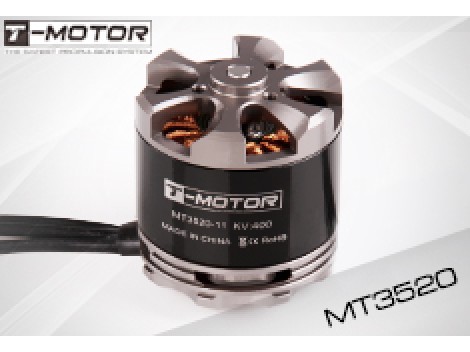

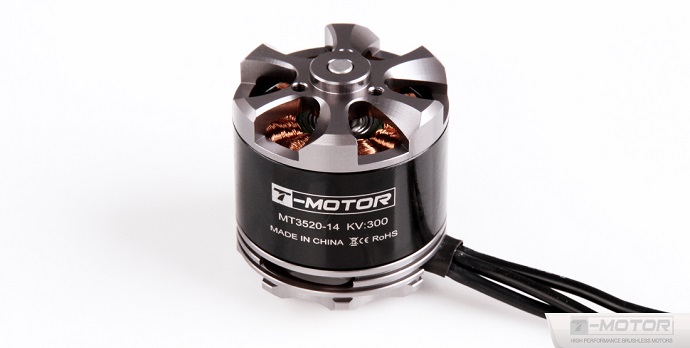

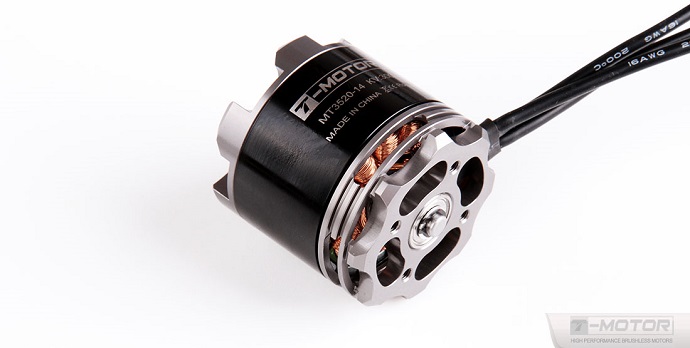

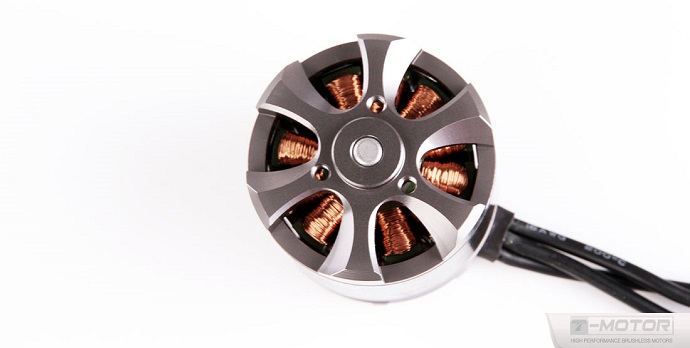

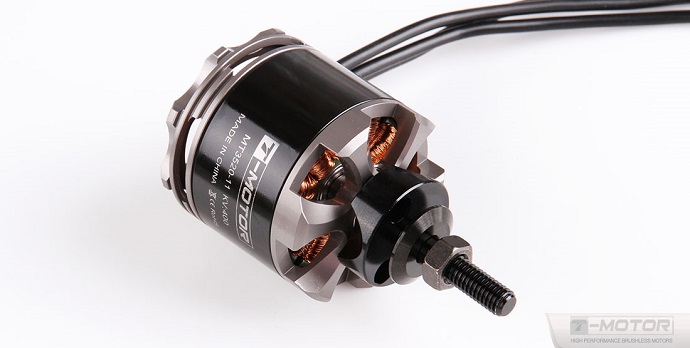

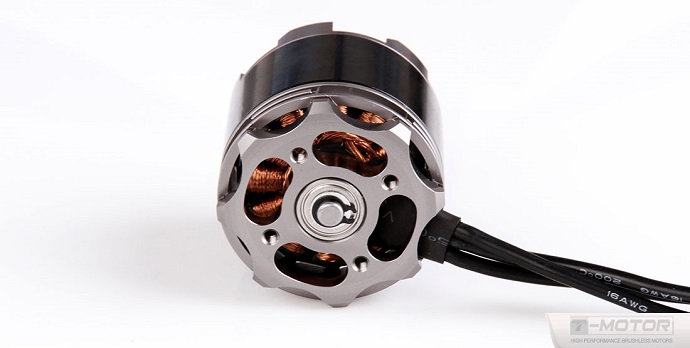

T-MOTOR MT3520

SKU: Q00009

Availability: In stock

Weight:1g

$99.90

Reward points Earn you 100 reward points.

$99.90
Qty:



Specifications:
KV................................................................................................................300
Configu ration...................................................................................12N14P
Stator Diameter....................................................................................35mm
Stator Length........................................................................................20mm
Shaft Diameter.......................................................................................5mm
Motor Dimensions(Dia.*Len)...............................................Φ42.5×45mm
Weight (g)................................................................................................205g
ldle current(10)@10v(A)............................................................................1A
No.of Cells(Lipo).....................................................................................4-8S
Max Continuous current(A)180S............................................................33A
Max Continuous Power(W)180S........................................................990W
Max. efficiency current..............................................................(3-13A)>85%
internal resistance.............................................................................107mΩ





Specifications:
KV................................................................................................................400
Configu ration...................................................................................12N14P
Stator Diameter....................................................................................35mm
Stator Length........................................................................................20mm
Shaft Diameter.......................................................................................5mm
Motor Dimensions(Dia.*Len)..................................................Φ43×45mm
Weight (g)................................................................................................205g
ldle current(10)@10v(A).........................................................................1.2A
No.of Cells(Lipo).....................................................................................4-8S
Max Continuous current(A)180S............................................................38A
Max Continuous Power(W)180S......................................................1140W
Max. efficiency current..............................................................(4-13A)>83%
internal resistance................................................................................32mΩ
